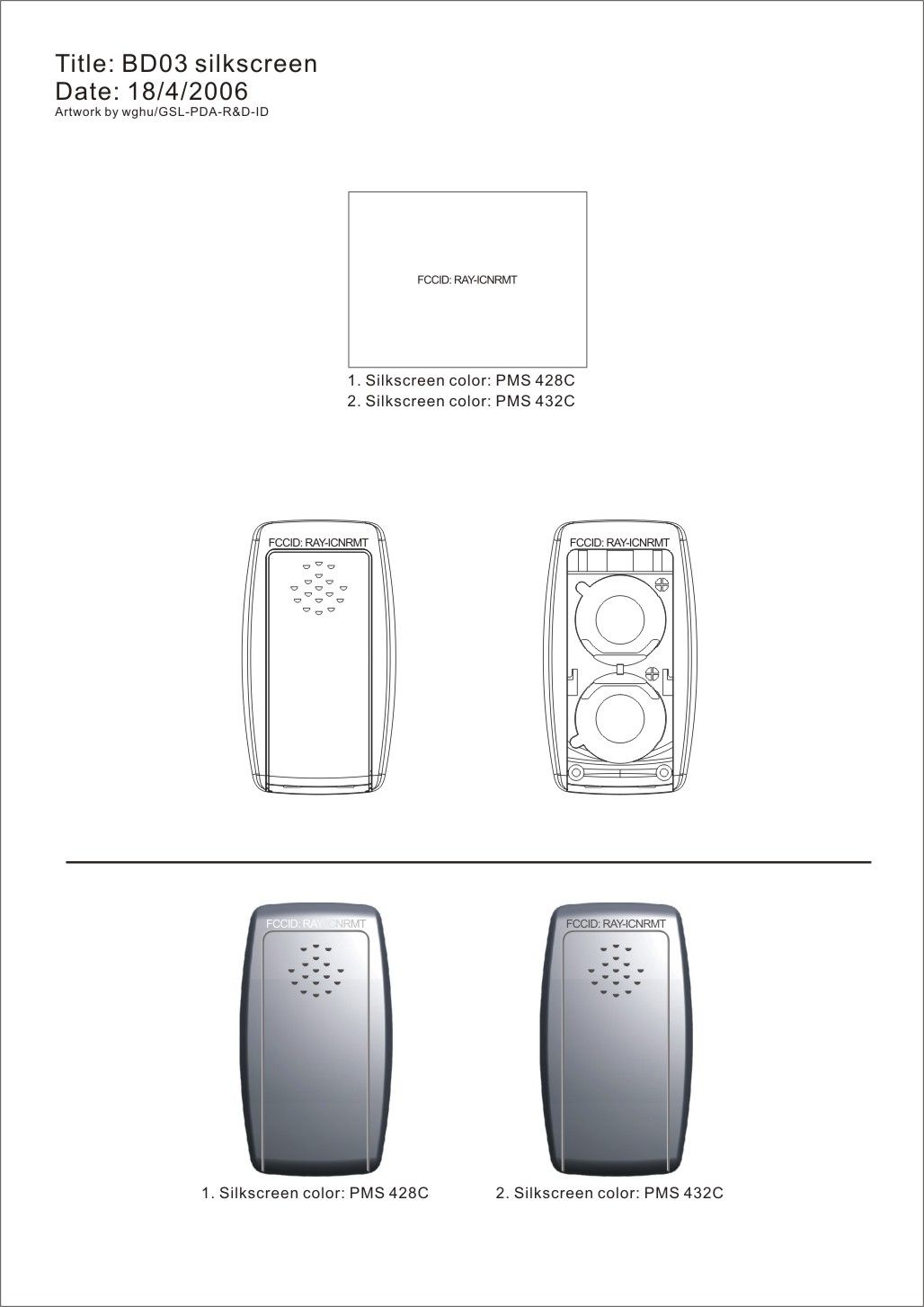

RAY-ICNRMTREMOTE CONTROL TRANSCEIVER

series Remote Control iCN 700 USER MANUAL 1 2 4 3 iCN Remote Control | Copyright 3 © 2006 Brunswick New Technologies Asia Pte Limited. Navman is a registered trademark of Brunswick New Technologies Asia Pte Limited and is used under licence by Navman New Zealand. All rights reserved. The software contains proprietary information of Navman; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of Navman. Back-On-Track, Drive-Away, Geopix and Smart5 are either registered trademarks or trademarks of Brunswick New Technologies Asia Pte Limited and are used under licence by Navman New Zealand. All rights reserved. All other trademarks and registrations are the property of their respective owners. Published in New Zealand. Disclaimer Due to continued product development this information may change without notice. Navman does not warrant that this document is error-free. The screenshots and other presentations shown in this User Manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects. Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. iCN Remote Control | General operation 4 General operation Component Description Press twice to cancel the current route.  Increases the volume. The on-screen volume bar displays as green and increases as the button is pressed.  Decreases the volume. The volume bar displays as green and decreases as the button is pressed. Turns the sound off. The volume bar displays as grey and indicates that the volume is muted. ! Navigate to My Home. Press once to display the My Home Preview screen so that you can navigate home. Press again to calculate the route to My Home and display the Map screen.  Adjusts the screen brightness up.  Adjusts the screen brightness down. ( Cycles through the 3D Map, 2D Map, Next Turn and Direction List screens. CAUTION Do not expose the remote control to direct sunlight for prolonged periods. Overheating may damage the remote control. CAUTION If you are not going to use the remote control for three months or longer, remove the batteries from the remote control. iCN Remote Control | Setting up your remote control 5 Setting up your remote control The remote control uses radio technology, therefore you need to create a link between the remote control and the iCN every time batteries are inserted. The remote control takes 3V lithium batteries (CR2025 or CR2032). Under normal conditions, the remote control batteries will last approximately one year: 1. Inserting the batteries WARNING Keep the batteries out of reach of children. Should a battery be swallowed, immediately consult a doctor. The batteries may explode if mistreated. Do not recharge, disassemble or heat the batteries. Do not expose the batteries to fire. CAUTION Do not hold the batteries with metallic tweezers, as a short-circuit may occur. The enclosed warranty excludes non-rechargeable batteries such as the remote control batteries. a) While gently pushing on the thumb-grip, slide the battery cover towards the bottom of the remote control. b) Insert the batteries into the battery tray with the positive (+) side facing up. c) Gently slide the battery cover back into position. 2. Linking the remote control to your iCN a) Turn on your iCN and follow the prompts until the map screen is displayed. b) Press K on your iCN. The Main Menu screen will display. c) Point the remote control at your iCN, then press (. The map screen will redisplay. Your remote control is now linked to your iCN. iCN-fjernbetjening | Copyright 6 © 2006 Brunswick New Technologies Asia Pte Limited. Navman er et registreret varemærke tilhørende Brunswick New Technologies Asia Pte Limited og anvendes under licens af Navman New Zealand. Alle rettigheder forbeholdes. The software contains proprietary information of Navman; it is provided under a licence agreement containing restrictions on use and disclosure and is also protected by copyright law. Reverse engineering of the software is prohibited. Ingen dele af denne publikation må gengives, lagres i et genfindingssystem eller overføres i nogen form eller på nogen måde, uanset om det sker elektronisk, mekanisk, ved fotokopiering, optagelse eller på anden måde, uden skriftlig tilladelse fra Navman. Back-On-Track, Drive-Away, Geopix and Smart5 are either registered trademarks or trademarks of Brunswick New Technologies Asia Pte Limited and are used under licence by Navman New Zealand. All rights reserved. All other trademarks and registrations are the property of their respective owners. Published in New Zealand. Disclaimer Due to continued product development this information may change without notice. Navman does not warrant that this document is error-free. The screenshots and other presentations shown in this User Manual may differ from the actual screens and presentations generated by the actual product. All such differences are minor and the actual product will deliver the described functionality as presented in this User Manual in all material respects. Overensstemmelse Denne enhed er i overensstemmelse med del 15 i FCC-reglerne. Følgende to betingelser skal være opfyldt, for at enheden fungerer korrekt: (1) Enheden må ikke forårsage interferens, og (2) enheden skal acceptere interferens, herunder interferens, …

Text truncated - open the document above for the full version.

RF Remote Control Compatible with: iCN 720, 750 navman.com RF Remote Control navman.com ITALIANO • Telecomando • batteria da 3V CR2025 NEDERLANDS • Afstandsbediening • 3V CR2025 batterij SVENSKA • Fjärrkontroll • 3 V CR2025 batteries ESPANÕL • Mando a distancia • Pila CR2025 de 3 FRANÇAIS • Télécommande • Pile CR2025 de 3V FRANÇAIS CANADIEN • Télécommande • 2 piles CR2025 3V ENGLISH • Remote control • 2 x 3V CR2025 batteries DANSK • Fjernbetjening • 3V CR2025 batteri DEUTSCH • Fernbedienung • 3-V-CR2025-Batterie it nl sv fc fr es en da de © 2006 Brunswick New Technologies Asia Pte Limited. Navman is a registered trademark of Brunswick New Technologies Asia Pte Limited and is used under licence by Navman New Zealand. Navman is part of the Brunswick Group, headquarters Chicago, IL. All rights reserved. This product is warranted to be free of defects under normal use for 12 months from date of purchase. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: the manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. Assembled in China. CD000289A-G 140 X 190

EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 12 of 14 This report may not be reproduced except in full 9. PHOTOGRAPHS External views

EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 13 of 14 This report may not be reproduced except in full Internal Views

RF Remote Product type and general commercial description The remote will be sold as an accessory with the iCN720 and iCN750 products. It may also be used with future products. It is a simple RF remote transmitting at 2.4GHz using a simple protocol. Its button functions are: • Cancel route • Route to Home • Volume Control • Brightness Control • Mute • Change view mode The remote is powered by two CR2025 or CR2032 3volt lithium batteries and will come with a small cradle that can be strapped to the steering wheel of a car for convenience of the driver.

EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 1 of 14 This report may not be reproduced except in full TEST REPORT Navman Remote Control Transceiver tested to the Code of Federal Regulations (CFR) 47 Part 15 – Radio Frequency Devices, Subpart C – Intentional Radiators Section 15.249 – Operation in the band 2400 – 2483.5 MHz for Navman New Zealand This Test Report is issued with the authority of: ________________________________________ Andrew Cutler - General Manager EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 2 of 14 This report may not be reproduced except in full Table of Contents 1. CLIENT INFORMATION 3 2. DESCRIPTION OF TEST SAMPLE 3 3. SUMMARY OF TEST RESULTS 4 4. TEST SAMPLE DESCRIPTION 5 5. ATTESTATION 6 6. TRANSMITTER TEST RESULTS 7 7. TEST EQUIPMENT USED 11 8. ACCREDITATIONS 11 9. PHOTOGRAPHS 12 EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 3 of 14 This report may not be reproduced except in full 1. CLIENT INFORMATION Company Name Navman New Zealand Address PO Box 68-155 Newton City Auckland Country New Zealand Contact Mr Dominic Cranfield 2. DESCRIPTION OF TEST SAMPLE Brand Name Navman Model Number - Product Remote Control Transceiver Manufacturer Navman New Zealand Country of Origin New Zealand FCC ID RAY-ICNRMT Sample Details Serial No. PCB Description BD03000037 30-BD00-075049 D2 Xmit every 180msec on 2.4149 GHz BD03000054 30-BD00-075049 D2 Xmit every 180msec on 2.4489 GHz BD03000065 30-BD00-075049 D2 Xmit every 180msec on 2.4709 GHz BD03000011 30-BD00-075049 D2 Xmit every 180msec; 6 channels EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 4 of 14 This report may not be reproduced except in full 3. COMPLIANCE STATEMENT The Navman Remote Control Transceiver complies with 47 CFR Part 15 and in particular Sections, 15.205, 15.207, 15.209, 15.215 and 15.249 as detailed below. CLAUSE TEST PERFORMED RESULT 15.109 Radiated emission limits Complies 15.203 Antenna requirement Complies 15.205 Operation in restricted bands Complies 15.207 Conducted emissions Not applicable 15.209 Radiated emissions Complies 15.215 Additional provisions Complies 15.249: (a) Field strength of fundamental Complies (a) Field strength of harmonics Complies (b) Fixed, point to point operations Not applicable (c) 3 metre measurement distance Noted (d) Spurious emission levels except harmonics Complies (e) Detectors above 1000 MHz Noted (f) Reference to section 15.37(d) Noted EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 5 of 14 This report may not be reproduced except in full 4. TEST SAMPLE DESCRIPTION The Navman iCN720 / iCN750 in-car GPS navigation devices are sold with RF Remote Control transmitters. These transmitters can be used to control various iCN720 / iCN750 device functions. The remote control(s) have had their firmware modified so that they transmit continuously (every 180 msec) on a single channel. Frequency Range: 2.4 GHz – 2.4835 GHz Test Frequencies: 2414.9 MHz, 2448.9 MHz, 2470.9 MHz Operating Frequencies: 2414.9 MHz, 2426.0 MHz, 2437.0 MHz, 2448.9 MHz, 2460.0 MHz, 2470.9 MHz. Rated RF Power (max): 1 mW (0 dBm) Modulation Type: FSK Antenna Type: Integral Power Supply: Lithium battery Nominal Voltage: 6 Vdc Category: Indoor use not below 0 degrees EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - …

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 60225.3 Report date: 14 th March 2006 ____________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 14 of 14 This report may not be reproduced except in full Radiated emissions test set up
