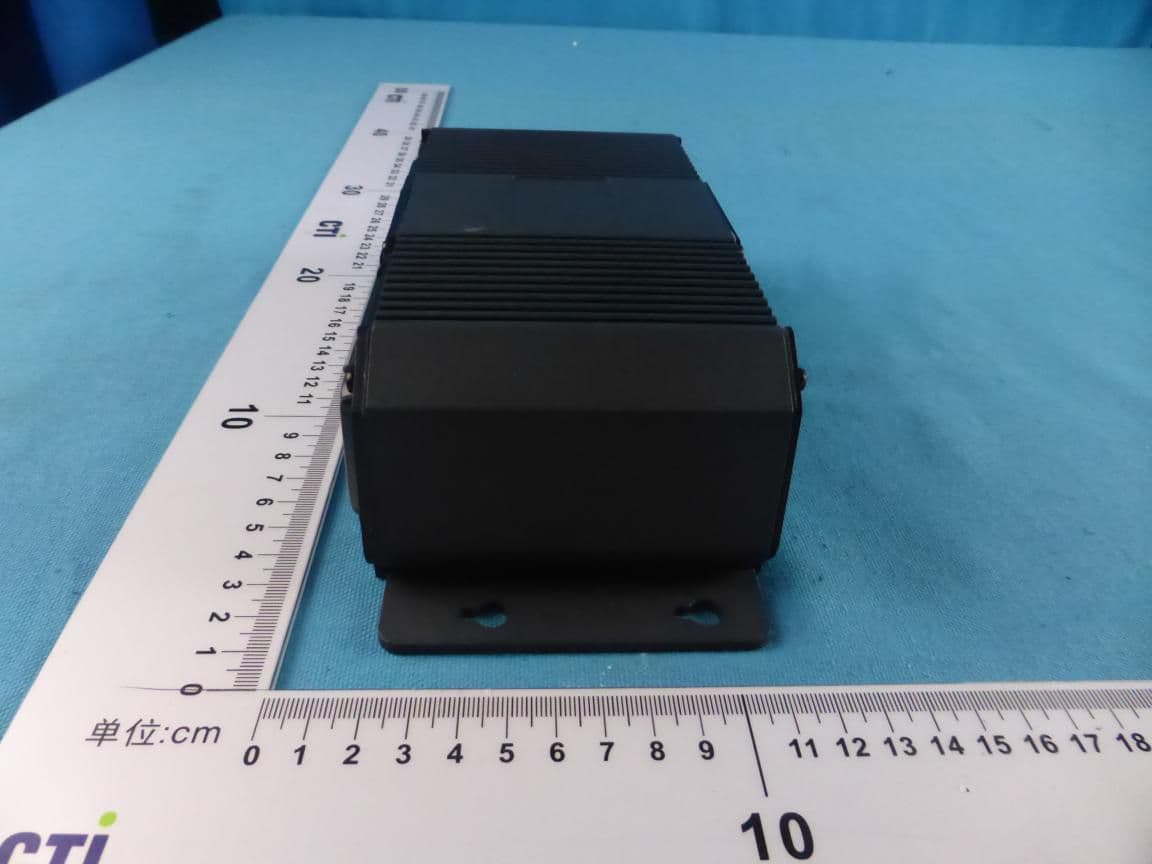

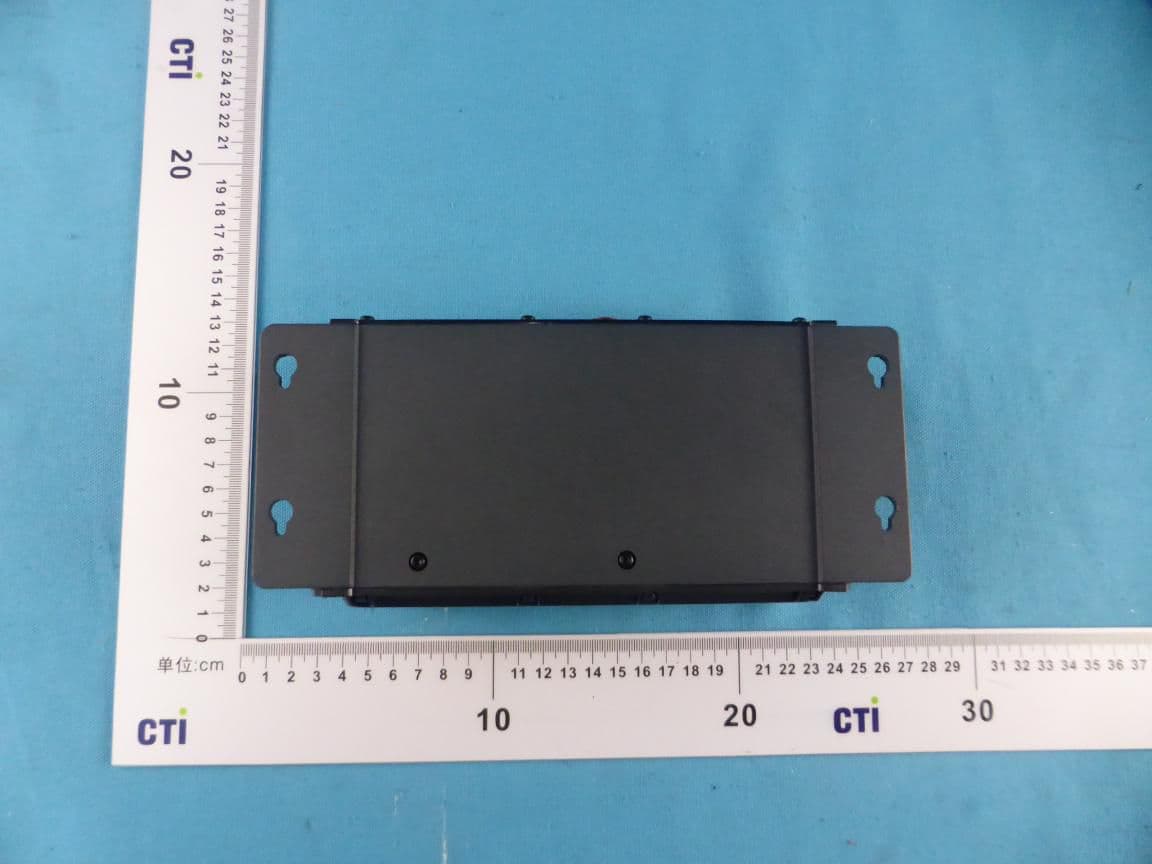

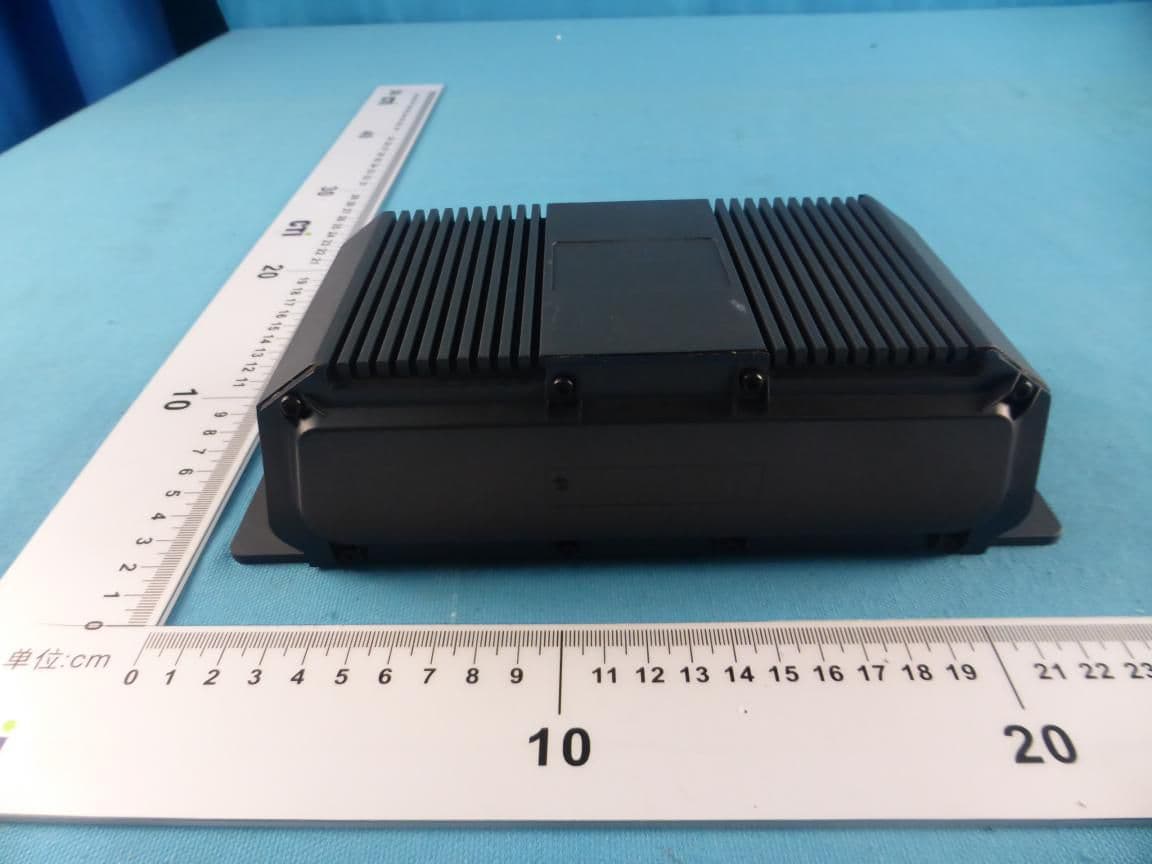

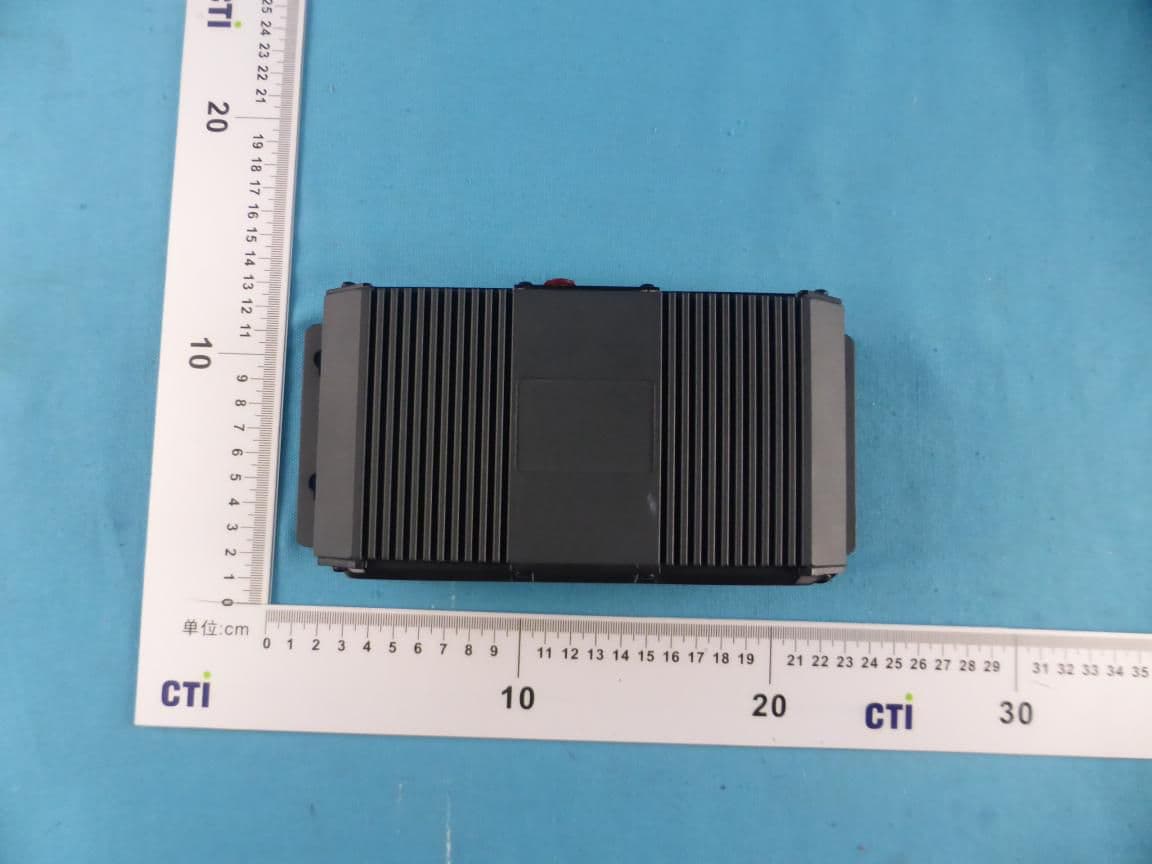

RAYSHGEN2Marine Entertainment System

Regulatory Statements • complies with CE under R&TTE directive 1999/5/EC • complies with the requirements of level 2 devices of the Radio communications (Electromagnetic Compatibility) standard 2008 • This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and Warning The user is cautioned that any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that Industry Canada IC RSS-GEN, Sec 7.1.3 Warning Statement- (Required for license-exempt devices) This device complies with Industry Canada‘s license-exempt RSSs. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. (2) this device must accept any interference received, including interference that may cause undesired operation. The relevant Declaration of Conformity is available on the following websites, under the model documentation section: www.lowrance.com www.simrad-yachting.com www.bandg.com the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that of the receiver • Consult the dealer or an experienced technician for help Countries of intended use in the EU AT - Austria BE - Belgium BG - Bulgaria CH - Switzerland CY - Cyprus CZ - Czech Republic DE - Germany DK - Denmark EE - Estonia ES - Spain FI - Finland FR - France GR - Greece HU - Hungary IE - Ireland IS - Iceland IT - Italy LI - Liechtenstein LT - Lithuania LU - Luxembourg LV - Latvia MT - Malta NL - Netherlands NO - Norway PL - Poland PT - Portugal RO - Romania SE - Sweden SI - Slovenia SK - Slovakia TR - Turkey UK - United Kingdom *988-10938-001* SonicHub 2: SonicHub™ 2 6.5” Speaker MOUNTING TEMPLATE *988-10965-001* 6" 150 mm Check dimensions before cutting IMPORTANT. Do not use this template if it has been rescaled by copying or printing. If this is not the original, or is a print from a file, please check the dimension lines below are to scale before use. IMPORTANT. Ne pas utiliser ce gabarit s’il a été photocopié ou imprimé en format réduit ou agrandi. Si ce gabarit n’est ni un original ni une version imprimée d’un fi chier PDF, veuillez vérifi er qu’il est à l’échelle avant de l’utiliser. IMPORTANTE. no usar la plantilla si hay peligro que la escala original exacta se ha alterado por copias o procesos de impresión imprecisos. Si esto no es el original, o un PDF, verifi car que las líneas abajo están a la escala antes de usar. WICHTIG. Diesen Vordruck nicht verwenden, wenn er durch Kopieren oder Drucken im Maßstab verändert wurde. Sollte es nicht das Original oder ein PDF-Ausdruck sein, müssen untenstehende Zeilen vor erwendung an den richtigen Maßstab angepasst werden. BELANGRIJK. Gebruik deze mal niet indien de schaal is veranderd doordat het is gecopieerd of gedrukt. Indien deze mal niet het origineel of een print van PDF is, controleer dan of de onderstaande lijnen de juiste schaal zijn voordat u ze gebruikt. IMPORTANTE. Não utilize este gabarito se a escala do mesmo tiver sido alterada por cópia ou impressão. Se não for o original ou uma cópia impressa de um arquivo PDF, verifi que as linhas abaixo, para acertar a escala antes da utilização. VIKTIGT. Använd inte denna mall om den skalats om genom utskrift eller kopiering. Om detta inte är originalet eller en utskrift från en PDF, kontrollera att linjerna nedan stämmer med skalan innan det används. IMPORTANTE. Non utilizzare questo modello se è stato ridimensionato copiandolo o stampandolo. Se questo non è l’originale o la stampa di un fi le PDF, verifi care se le linee che seguono devono essere dimensionate prima di essere utilizzate. TÄRKEÄÄ. Älä käytä tätä kaaviota, jos sen mittakaava on muuttunut kopio-idessa tai tulostaessa. Jos tämä ei ole alkuperäinen tai PDF tuloste tarkista rajat mittakaavas- ta alla ennen käyttöä. 195 mm (7.67”) Remove material from shaded area only Drill 4 x pilot hole to suit #6 self tapping screw Product Outline 70.50 mm (2.77”) L C L C Remove material from shaded area only Drill 4 x pilot hole to suit #6 self tapping screw Product Outline 70.50 mm (2.77”) L C L C 1942 SonicHub™ 2 Marine Audio Server INSTALLATION GUIDE Parts included Mounting Information For compliance information see the reglatory statement included with this product. Visit one of the websites listed below for software updates and more information about SonicHub™ 2. www.lowrance.com www.simrad-yaching.com www.bandg.com Operation by an MFD The SonicHub™ 2 is operated by a compatible Multi-Function Dis…

Text truncated - open the document above for the full version.

DATE:August.28,2015 EquipmentAutorisationDivision FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 FCCID:RAYSHGEN2 ProductName:MarineEntertainmentSystem RequestforConfidentiality PursuanttoSections0.457and0.459ofthecommissionsrules,weherebyrequestthat thefollowingdocumentsbeheldconfidential: (Listherethedocumentsforwhichyouareseekingconfidentiality–forexample...)  Schematics Blockdiagram Operationdescription Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoourcompetitors. Dated this Agencyagreementexpirationdate:August.28,2015toAugust.27,2016 By:Johnscott SignaturePrinted Title:COO&EVPProductManagement Onbehalfof:_NavicoAucklandLimited Telephone:+64-9-925-4500

MBB-8401-NC 条形码认证贴纸(1) 林晓君 50x11mm,R=0.7mm 80g亚银龙纸，过光胶,背不干胶。 5、成品如右图，成卷封装。 7-8401-1001-00-02 1 . 5mm 1 . 2mm 2 . 5mm 注：条形码号递增 1 . 5mm 1 . 5mm 1 . 5mm 5mm 3mm Made in China S2 onicHub 10100001 FCC ID:RAYSHGEN 2 IC:4697A-SHGEN2 1942 ® 10100001 ® This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that ma y cause undesired o p eration. MBB-8401-NC 条形码认证贴纸(2) 林晓君 7-8401-1004-00-01 3mm3mm 1 . 5mm 1 . 5mm 3、成品如右图，成卷封装。 80g , 白色铜版纸,背不干胶 50x7mm,R=0.5mm CMIIT ID: 2015DJ4155 018-150152D15-0032018

RF Exposure evaluation report RF Exposure Compliance Requirement 1. Standard Requirement 15.247(b)(4) requirement: The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6dBi. 2. Limits According to KDB447498 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances
50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]  [  f(GHz)]
3.0 for 1-g SAR and
7.5 for 10-g extremity SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is
50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 3. EUT RF Exposure The Max Conducted Peak Output Power is 4.664dBm (2.93mW) in low channel and the Max Conducted Average Output Power is less than 2.93mW. The best case gain of the antenna is 0dBi. 2.93 /5*  2.480=0.92
3.0 Conclusion: No SAR is required.

Report No. :EED32H000844-1Page 1 of 55 1 COVER PAGE TEST REPORT Product:Marine Entertainment System Trade mark:B&G, Simrad, Lowrance Model/Type reference :SonicHub 2 Serial Number:N/A Report Number:EED32H000844-1 FCC ID:RAYSHGEN2 Date of Issue:Aug. 27, 2015 Test Standards:47 CFR Part 15 Subpart C (2014) Test result:PASS Prepared for: Navico Auckland Limited 44 Arrenway Drive, Rosedale, Auckland, New Zealand Prepared by: Centre Testing International (Shenzhen) Corporation Building C, Scientific Innovation Park, Tiegang Reservior, Xixiang, Baoan District, Shenzhen, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Tested by:Reviewed by: Approved by:Date:Aug. 27, 2015 Sheek Luo Lab supervisor CheckNo.: 2211402566 Report No. :EED32H000844-1Page 2 of 55 2 Version Version No.DateDescription 00 Aug. 27, 2015 Original Report No. :EED32H000844-1Page 3 of 55 3TestSummary Test ItemTest RequirementTest methodResult Antenna Requirement 47 CFR Part 15 Subpart C Section 15.203/15.247 (c) ANSI C63.10-2013PASS AC Power Line Conducted Emission 47 CFR Part 15 Subpart C Section 15.207 ANSI C63.10-2013PASS Conducted Peak Output Power 47 CFR Part 15 Subpart C Section 15.247 (b)(1) ANSI C63.10-2013PASS 20dB Occupied Bandwidth 47 CFR Part 15 Subpart C Section 15.247 (a)(1) ANSI C63.10-2013PASS Carrier Frequencies Separation 47 CFR Part 15 Subpart C Section 15.247 (a)(1) ANSI C63.10-2013PASS Hopping Channel Number 47 CFR Part 15 Subpart C Section 15.247 (b) ANSI C63.10-2013PASS Dwell Time 47 CFR Part 15 Subpart C Section 15.247 (a)(1) ANSI C63.10-2013PASS Pseudorandom Frequency Hopping Sequence 47 CFR Part 15 Subpart C Section 15.247(b)(4)&TCB Exclusion List (7 July 2002) ANSI C63.10-2013PASS RF Conducted Spurious Emissions 47 CFR Part 15 Subpart C Section 15.247(d) ANSI C63.10-2013N/A Radiated Spurious emissions 47 CFR Part 15 Subpart C Section 15.205/15.209 ANSI C63.10-2013PASS Test according to ANSI C63.4-2014 & ANSI C63.10-2013. Report No. :EED32H000844-1Page 4 of 55 4 Content 1COVERPAGE..................................................................................................................................................................... 1 2 VERSION..............................................................................................................................................................................2 3 TEST SUMMARY................................................................................................................................................................3 4CONTENT.............................................................................................................................................................................4 5 TEST REQUIREMENT.......................................................................................................................................................5 5.1 T EST SETUP................................................................................................................................................................... 5 5.1.1For Conducted test setup...................................................................................................................................5 5.1.2For Radiated Emissions test setup...................................................................................................................5 5.1.3For Conducted Emissions test setup............................................................................................................... 6 5.2 T ESTENVIRONMENT......................................................................................................................................................6 5.3 T ESTCONDITION............................................................................................................................................................6 6 GENERAL INFORMATION...............................................................................................................................................7 6.1 C LIENTINFORMATION.................................................................................................................................................... 7 6.2 G ENERALDESCRIPTION OFEUT..................................................................................................................................7 6.3 P RODUCTSPECIFICATION SUBJECTIVE TO THIS STANDARD........................................................................................7 6.4 D ESCRIPTION OFSUPPORTUNITS...............................................................................................................................8 6.5 T ESTLOCATION............................................................................................................................................................. 8 6.6 T ESTFACILITY................................................................................................................................................................8 6.7 D EVIATION FROMSTANDARDS...................................................................................................................................... 9 6.8 A BNORMALITIES FROMSTANDARDCONDITIONS..........................................................................................................9 6.9 O THERINFORMATIONREQUESTED BY THECUSTOMER..............................................................................................9 6.10 M EASUREMENTUNCERTAINTY(95%CONFIDENCE LEVELS,K=2)......................................................................... 10 7EQUIPMENTLIST............................................................................................................................................................ 11 8 RADIO TECHNICAL REQUIREMENTS SPECIFICATION........................................................................................14 Appendix A): 20dB Occupied Bandwidth.........................…
