Specifications / Spécifications English / Français WIFI-1 Install Guide / Guide d’installation www.bandg.com | www.simrad-yachting.com | www.lowrance.com Dimensions / Dimensions *988-10401-002* 52 mm (2.05”) 156 mm (6.14”) 25 mm (1.0”) 187 mm (7.36”) 171 mm (6.76”) 154 mm (6.06”) WIFI-1 features Marinised ConstructionIPX5 Wireless standards802.11 b/g Network Ports2 Automatic configurationPlug-n-play Power supply12 V DC, 200 mA Layout / Schéma 2 2 45 31 1 Antenna / Antenne 2 Ethernet / Ethernet 3 Power / Alimentation 4 Ethernet LEDs / LEDs Ehernet -Green: port is active / -Vert: port actif 5 Power LED / LED d’alimentation -Red: power on / -Rouge: sous tension 1 The antenna can’t be replaced by the user for it has been fixed with special glue, The maximum peak gain of this antenna is only 3dBi. Establish Wi-Fi connection / Etablir la liaison Wi-Fi Download Apps from App Store / Télécharger l’application de l’App Store References / Références 12 Password available on sticker on Wifi-1 unit, and from MFD / Mot de passe disponible sur l’étiquette de l’unité WIFI-1 ou à partir du MFD For a list of supported features or to view the latest apps for your MFD please visit: / Pour une liste des fonctionnalités supportées, ou pour connaitre les dernières applications pour votre écran multifonction, visitez: www.bandg.com/gofree www.simrad-yachting.com/gofree www.lowrance.com/gofree ¼Note: Graphics from iPad and App Store are examples only. Tablets and smartphones from other vendors can be used for controlling the MFD when relevant Apps are available. / ¼Note: Les graphiques de l’iPad et App Store ne sont que des exemples. D’autres tablettes et smartphones peuvent être utilisés pour contrôler l’écran multifonction, dès lors que l’application correspondante est disponible. 2 IC warning statements: - English Warning Statement: “This device complies with Industry Canada licence-exempt - French Warning Statement: RSS standard(s).Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this devicemust accept any interference,including interference that may cause undesired operation of the device." “Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. est susceptible d'en compromettre le fonctionnement." will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the energy and, if not installed and used in accordance with the protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable FCC warning statements: instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. . . . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. . Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause . This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be located or operating in conjunction with any "To comply with FCC RF exposure compliance requirements, this grant is applicable to only mobile configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be equipment. undesired operation other antenna or transmitter. co-located or operating in conjunction with any other antenna or transmitter."

Navico Auckland Limited Add: 3-5 Omega Rd, Albany, Auckland, New Zealand Tel: 64-9-925-4510 Fax: n/a 2012-10-23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD We Navico Auckland Limited, declare that this EUT (FCC ID: RAYGOFREEWIFI ) doesn’t have Ad Hoc mode function on “non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Client’s name / title : John Scott / General Manager Contact information / address : 3-5 Omega Street, Building A Albany 0632, Auckland, New Zealand Tel: 64-9-925-4510 Fax: n/a E-Mail: [email protected]

Navico Auckland Limited Add: 3-5 Omega Rd, Albany, Auckland, New Zealand Tel: 64-9-925-4510 Fax: n/a Date: 2012-10-15 To: PHOENIX TESTLAB GmbH. Koenigswinkel 10, D-32825 Blomberg FCC ID: RAYGOFREEWIFI & IC: 4697A-GOFREEWIFI Dear Sir/Madam, We, Navico Auckland Limited, Hereby declares the following statement for PHOENIX TESTLAB GmbH., We ensure our product(Product name: WIFI Router , Model no.: GoFreeWIFI-1) that the antenna can’t be replaced by the user for it has been fixed with special glue. , Sincerely, Client’s name / title : John Scott / General Manager Contact information / address : 3-5 Omega Street, Building A Albany 0632, Auckland, New Zealand Tel: 64-9-925-4510 Fax: n/a E-Mail: [email protected]

Navico Auckland Limited Add: 3-5 Omega Rd, Albany, Auckland, New Zealand Tel: 64-9-925-4510 Fax: n/a 2012-10-20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: RAYGOFREEWIFI We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : John Scott / General Manager Contact information / address : 3-5 Omega Street, Building A Albany 0632, Auckland, New Zealand Tel: 64-9-925-4510 Fax: n/a E-Mail: [email protected]

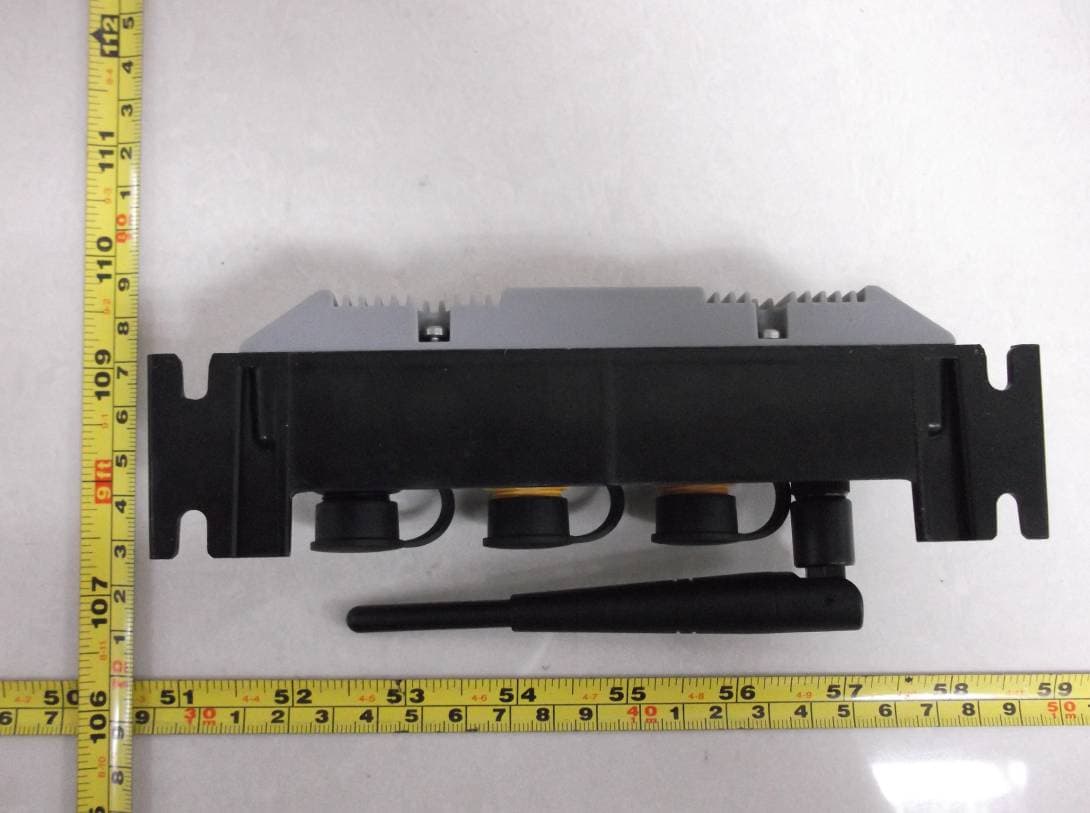

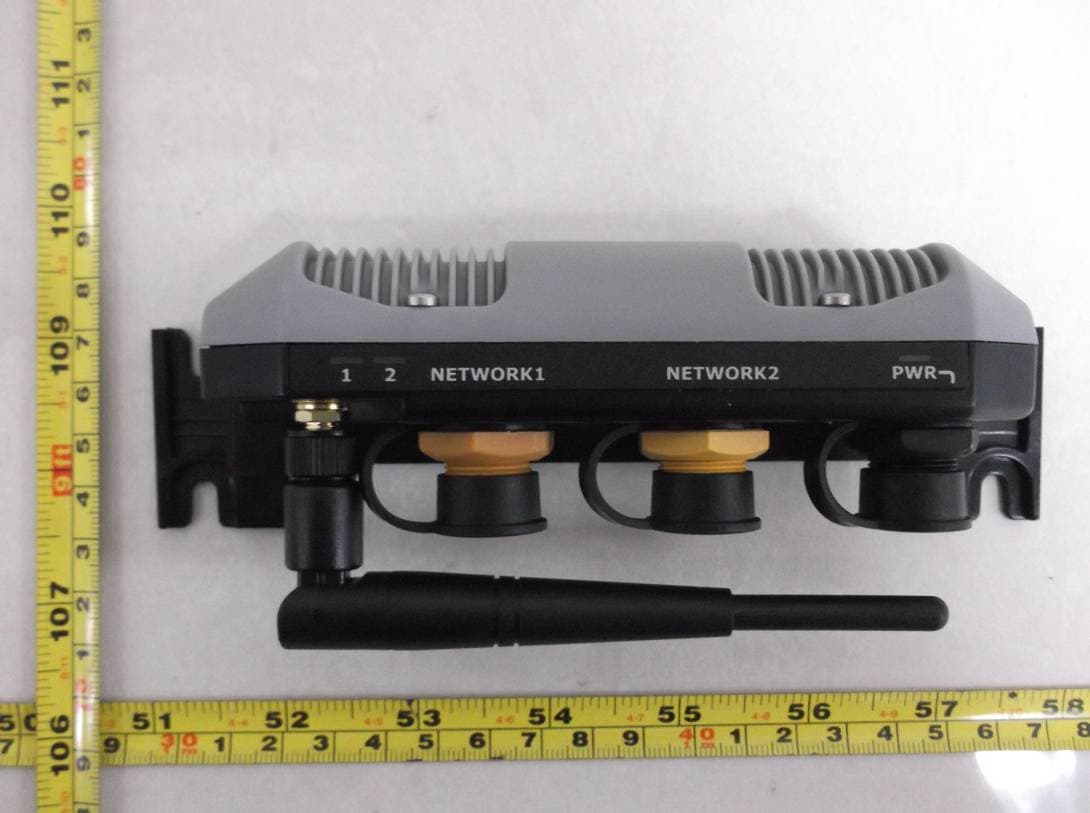

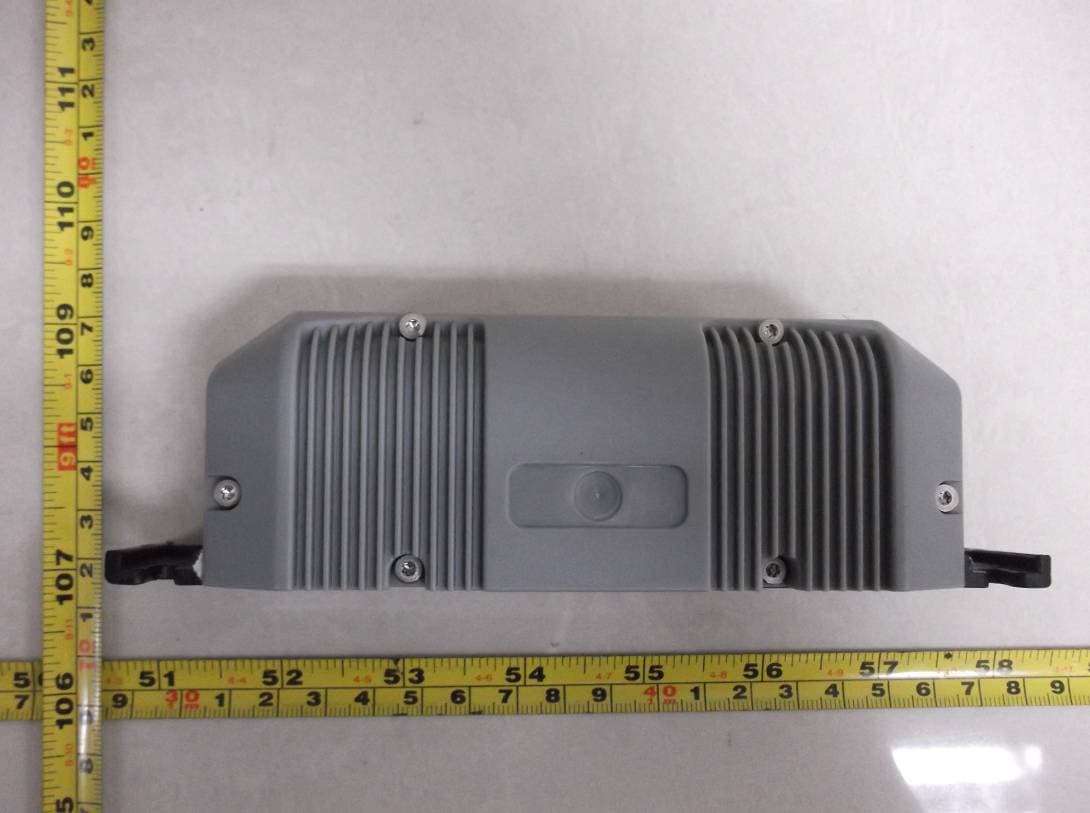

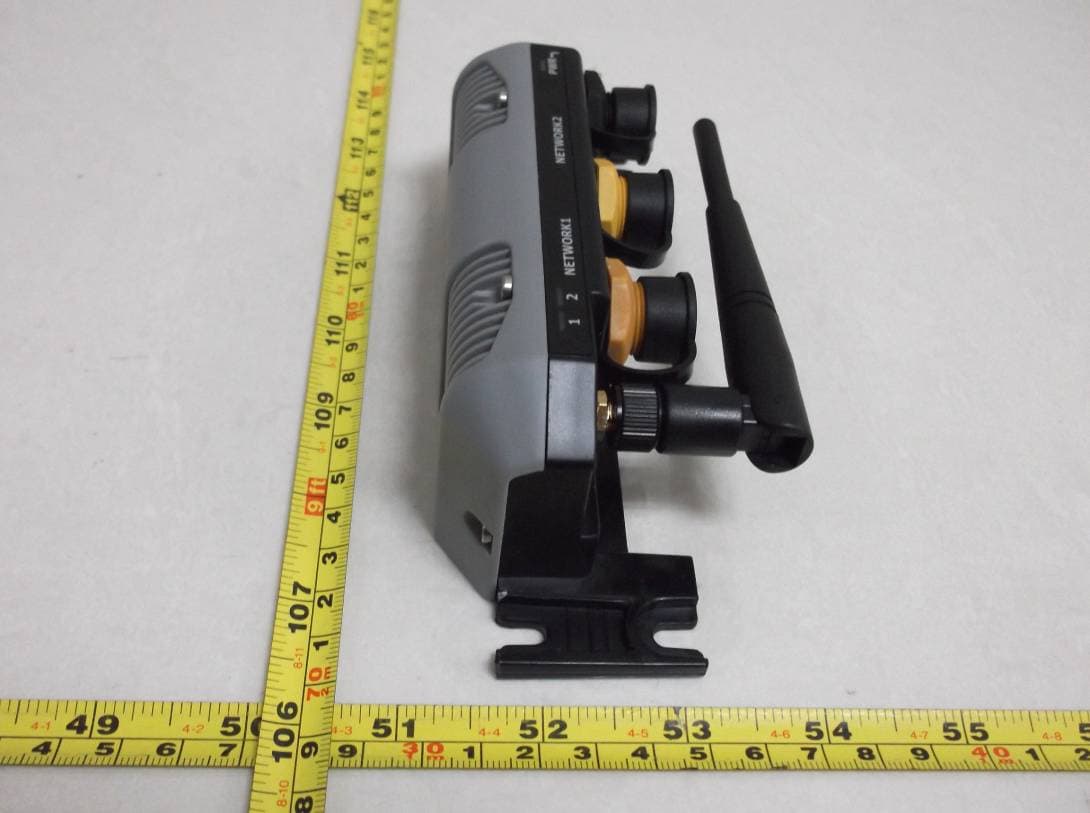

FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 5 1. EXTRIOR PHOTOGRAPHS Fig.1 Fig.2 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 5 Fig.3 Fig.4 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 5 Fig.5 Fig.6 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 5 Fig.7 Fig.8（Special fixed） FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 5 of 5 Fig.9

FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: L5cm x W3cm

FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 5.7. MPE 5.7.1. Limit According to §1.1310 and §2.1091 MPE is calculated. F = frequency in MHz * = Plane-wave equivalent power density 5.7.2. Maximum Permissible Exposure Prediction Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared that the maximum antenna gain is 3.0 dBi. 2. Manufacturer declared that the nearest distance between human and the EUT is 20cm. 3. Only record worst case data. FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 802.11b Max Peak output Power at antenna input terminal 17.19 dBm Max Peak output Power at antenna input terminal 52.36 mW Prediction distance 20 cm Prediction frequency 2412 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.0208 mW/cm2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm2 802.11g Max Peak output Power at antenna input terminal 15.82 dBm Max Peak output Power at antenna input terminal 38.19 mW Prediction distance 20 cm Prediction frequency 2462 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Power density at prediction frequency( S) 0.0152 mW/cm2 MPE limit for uncontrolled exposure at prediction frequency 1.0000 mW/cm2 5.7.3 Test Results The power density level at 20cm is 0.0208mW/cm²(802.11b), 0.0152mW/cm²(802.11g), which is below the uncontrolled exposure limit for WIFI band.

FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 41 RADIO TEST REPORT For Navico Auckland Limited WIFI Router Model No.: GoFreeWIFI-1 Prepared for : Navico Auckland Limited Address : 3-5 Omega Street, Building A Albany 0632, Auckland, New Zealand Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : September 24, 2012 Number of tested samples : 1 Serial number : Prototype Date of Test : September 24, 2012 – October 22, 2012 Date of Report : October 22, 2012 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 41 RADIO TEST REPORT FCC CFR 47 PART 15 C(15.247) IC RSS-210 Issue 8 Report Reference No. .............. : LCS120924131TF Date of Issue ................................ : October 22, 2012 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Navico Auckland Limited Address ........................................ : 3-5 Omega Street, Building A Albany 0632, Auckland, New Zealand Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C: 2011, ANSI C63.4-2009, IC RSS-210 Issue 8 Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : WIFI Router Trade Mark : NAVICO Model/ Type reference................. : GoFreeWIFI-1 Ratings ......................................... : DC 12V, Current: 0.2A Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang / File administrators Vito Cao/ Technique principal Gavin Liang/ Manager FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 41 RADIO -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS120924131TF October 22, 2012 Date of issue Type / Model........................... : WIFI Router EUT......................................... : GoFreeWIFI-1 Applicant............................... : Navico Auckland Limited Address.................................. : 3-5 Omega Street, Building A Albany 0632, Auckland, New Zealand Telephone............................... : / Fax.......................................... : / Manufacturer........................ : New Energy Technology Ltd. Address................................... : Room 1301, 13/F., David House, 8-20 Nanking Street, Jordan, Kowloon, HK Telephone............................... : / Fax.......................................... : / Factory................................... : China Legend Technology Limited Address................................... : 602 East Building, No.13 Mai An Road, Huicheng, Huizhou, GD, China Telephone............................... : / Fax.......................................... : / FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 41 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ...........................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS............................................................................................. 5 1.3. EXTERNAL I/O CABLE.......................................................................................................................................... 5 1.4. DESCRIPTION OF TEST FACILITY........................................................................................................................... 5 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY............................................................................................ 6 1.6. MEASUREMENT UNCERTAINTY............................................................................................................................ 6 1.7. DESCRIPTION OF TEST MODES..........................................…

Text truncated - open the document above for the full version.

FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emission Measurement Fig.1 Fig.2 FCC ID: RAYGOFREEWIFI IC: 4697A-GOFREEWIFI SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. Report No.: LCS120924131TF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 1.2. Photo of Conducted Emission Measurement Fig.3
