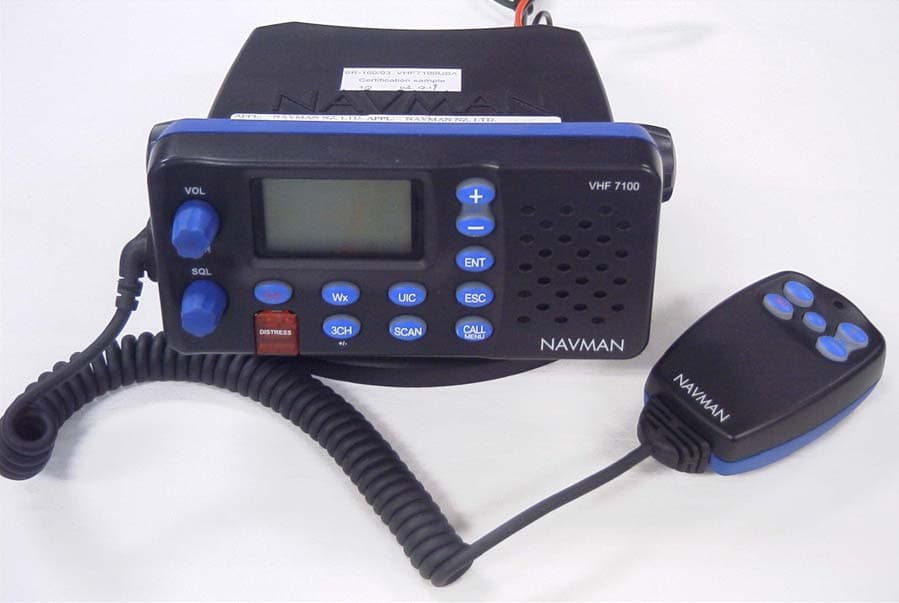

TEKCOM Industries Limited Page 1 of 6 THEORY OF OPERATION VHF7100/VHF7000 (For NAVMAN) November 28, 2003 This PLL controlled VHF marine mobile transceiver provides an accurate and stable multi-channel operation. The transceiver consists of 12 main sections Transmitting stage !" Receiving stage !" Local oscillator PLL (Phase Lock Loop) Circuit !" Memory backup !" Low voltage detection !" Large LCD !" Local/distance circuit !" 2nd receiver. (only VHF7100EC) !" wx alert circuit [only VHF7100USA] !" PC program !" DSC Feature [only VHF7000ROW without] !" GPS Message [only VHF7000ROW without] !" ATIS Feature. (only VHF7100EC) !" Transmitter Stage The audio is picked up from the internal Mic. The audio signal is then amplified by Audio Amplifier, IC205C [NJM3403AM], IC205 B [NJM3403AM] and filtered by a low pass filter IC10C [NJM3403AM]), IC10D [NJM3403AM]). The audio that is adjusted by VR3 to obtain a suitable RF frequency-deviation, modulates the carrier of VCO, through Varicap (VD302). The modulated signal output from the VCO is pre-amplified by Q2, and IC1 (RA35H1516M-01). When the supply voltage is 13.8V, this signal will be amplified up to 1W or 25W. The signal is filtered by low-pass filter circuit of which consists of L1, L2, L4, C1, C2, C3, C5, C6. C14, C47 and C62.These low pass filters are necessary to suppress the second and the third harmonics as higher. The signal is then fed into the antenna input and radiated out. The signal is also fed into another path consisting of C9, C10, D3, D4 for sampling, and is converted into a direct current voltage for the Automatic Power Control (APC) circuit IC12 (NJM2904M) Q5, Q14, Q15,Q24 to control the voltage of IC1 Pin 2 to maintain the output power stability. Q15 is used control Hi/Lo power When the unit is transmitting, the channel control voltage is added to the TX VCO varicap VD306. The capacitance of VD302 is varied following the audio signal, therefore the carrier is modulated to form the modulated signal. !" Receiver The receiver uses a double frequency super-heterodyne circuit. The first Immediate Frequency (IF) is 21.4 MHz and the second is 455 KHz. The RF signal is received by the antenna, and passes through a low-pass filter network L1, L2, L3, L9, C1, C2, C3, C5, C6. C14, C47 and C62 to filter out unwanted signal. the received RF signal then passes through a high RF transformer L10 and is amplified by RF amplifier Q9. L11, L12, L13, C15, C18, C20 form the band pass filter. The RF signal then is mixed with the local oscillation frequency by the mixer
TEKCOM Industries Limited Page 2 of 6 D22, D23. The first IF (Immediate Frequency) 21.4 MHz is produced. This IF is passed through a coil T2 and a pair of crystal filter F1, F2 to further filter out other unwanted signals. The first IF then is amplified by Q11 and the IF amplifier IC7 (BA4116FN). (IC7 is an integrated IF amplifier which consists of a local oscillator, a demodulator, a second mixer, squelch control circuit, and IF amplifier). The 21.4 MHz IF then is mixed here with second mixer and converted into 2nd Immediate Frequency (IF) 455 kHz. The 2nd IF passes through a ceramic filter F4 to filter out the residue unwanted signal at pin 5 of IC7 (BA4416FN) output this final IF signal and The demodulated AF signal is output at pin 9 of IC7 (BA4416FN). The demodulated AF signal is amplified by IC8B. the amplified audio then passes through a volume control VR201 through de-emphasis circuit feeding IC10A, IC10B.and finally amplified by Audio amplifier IC11 (LA4629) and heard in the speaker. The squelch control signal also produced by IC7 (BA4116FN), the rectified noise signal is output by Pin 14 of the IC7 then signal is amplified by IC8A. Pass through the network by composition of R45 R38 R44 and C171 sends the digital squelch control signal to the MCU to mute the audio speaker path and to indicate the RX station on LCD. R214.R217 and VR203 form a variable resistor, which correspond to the squelch level. !" Local oscillator PLL (Phase Lock Loop) Circuit: The receiver and transmitter both share the same PLL (Phase Lock Loop) Circuitry to produce the carrier frequency or the receiver local oscillation frequency. The local oscillator consists of a fundamental frequency oscillator Q301 and A phase Lock Loop (PLL) IC16 (TB31202) When Rx 5Vvoltage is supply, the VCO will produce receiver local oscillator frequency. The high stability frequency is determined by crystal X2 (20.950 MHz) and as the PLL reference oscillator. This signal is frequency-divided by IC16 and a 12.5 kHz signal is produced. When the VCO frequency applied to IC16 pin1 and frequency-divided by IC2 produces a frequency comparable to 12.5 kHz, PLL IC pin 3 will output a PD voltage to control the VCO. When these two frequencies are matched, a constant control voltage is output from PLL to lock VCO in desired frequency. Otherwise the PLL IC pin 4 will also output a unlock indication to MCU to indicate that the PLL is in the frequency unlock state. !" Memory Backup IC201 is an EEPROM AT24C64, which acts as a memory backup for the working channel code and the system parameters. Every time when the unit is switched on, the MCU will reset the system, clear the RAM, and recall the memory from the EEPROM to refresh the RAM in MCU IC203. !" Low Voltage Detection The battery voltage divided byR250 and R251 through R254 is input to IC203 for voltage level detection. If the battery voltage drops below 9.5 V, LCD will indicate the battery is in low state. !" Local/distance circuit Local/distance circuits are composed of Q16,R195,R94,C125.L17,D17,R93. When local SW is on high level, receiver sensitive is high otherwise is on low. !" Wx alert circuit The 1050Hz tone of receiver through IC6A composed band-pass filter and IC6B amplifier form square wave signal. To fed IC203 pin 97produce weather alert. !" Large LCD All message through series bus from MCU to display driver IC204 and will be displayed through a 1.5 ′′ 1 ′′× 1 ′′ in 4 × …

Text truncated - open the document above for the full version.

TEKCOM CODE NO.: NV366-USA-1 CUSTOMER MODEL: VHF7100USA POWER: 25W FUNCTION: ISSUE: 2.08 11 Dec, 2003 ITEM PART NO DESCRIPTION QTY LOCATION 1 1........ 99-366USA1-A00 TM366-USA-1/MAIN UNIT ASS''Y 2 2...... 99-366FRUF-A00 FRONT HOUSING ASS''Y (NV366-USA-1) 3 3.... 06-710324A-A00 ROTARY POTENTIOMETER W/SW A10K RD901S-20-15K-A10K 1 VR201 4 3.... 06-810314A-A00 ROTARY POTENTIOMETER B10K RD901-20-15K-B10K 1 VR203 5 3.... 08-8096201-A00 50 OHM CABLE D1.9mm 0.11 For SPK 6 3.... 08-4324D50-A00 3PIN CONNECTOR ASSEMBLY 28# 50mm PITCH:1.5mm UL1571 1 J211 7 3.... 08-4524D50-A00 5PIN CONNECTOR ASSEMBLY 28# 50mm PITCH:1.5mm UL1571 1 J208 8 3.... 11-45BT421-A00 FLAT SPEAKER D45mm 8 OHM 3W 1 SPK1 9 3.... 32-5700303-A00 NUT M7.0*1.8mm (Cu) 2 10 3.... 34-121821A-A00 DISTRESS SPRING 1 11 3.... 35-3369F15-A00 DISTRESS CAP FIX PLATE 1 12 3.... 35-066CC11-A00 CABLE CASE 1 13 3.... 36-7366S15-A00 SHAFT S/S 1 14 3.... 40-0366D39-A00 DISTRESS CAP (PC) (187C) 1 15 3.... 40-1366FC1-A00 FRONT HOUSING(A.B.S) (Black 3U 2X) (NAVMAN) 1 16 3.... 40-4366S61-A00 SQL. KNOB (A.B.S+SILICONE RUBBER) (2945 Blue) 1 17 3.... 40-4366V61-A00 VOL. KNOB (A.B.S+SILICONE RUBBER) (2945 Blue) 1 18 3.... 40-63660C6-A00 LENS (PMMA) (Black 3U 2X) 1 19 3.... 40-A366062-A00 CHANNEL KEYBOARD (SILICONE RUBBER) (2945 Blue) (VHF7100USA) 1 20 3.... 40-0366D0V-A00 DUST COVER (P.P) (Off-white) 1 21 3.... 44-741001E-A00 SPEAKER NET D41mm 1 22 2...... 99-366LCDS-A00 LCD BOARD SMT ASS'Y 23 3.... 02-2BAV990-A00 SMT DIODE BAV99 1 D401 24 3.... 02-39014T0-A00 SMT TRANSISTOR KTC9014S (SSC1623G&2SC2712) 1 Q401 25 3.... 03-KS00731-A00 LCD DRIVER IC KS0073 (DIE PACK) 1 IC401 26 3.... 06-5103731-A00 CHIP RES 1608 10K OHM 1/10W +/-5% 5 R401,R402,R404,R405,R407 27 3.... 06-5273731-A00 CHIP RES 1608 27K OHM 1/10W +/-5% 1 R403 28 3.... 06-5683731-A00 CHIP RES 1608 68K OHM 1/10W +/-5% 1 R408 29 3.... 06-5514731-A00 CHIP RES 1608 510K OHM 1/10W +/-5% 1 R406 30 3.... 06-5470731-A00 CHIP RES 1608 47 OHM 1/10W +/-5% 3 R410,R411,R412 31 3.... 06-5301731-A00 CHIP RES 1608 300 OHM 1/10W +/-5% 1 R409 Marine Base Station ,w/ DSC, JIS7 1 OF 14 TEKCOM CODE NO.: NV366-USA-1 CUSTOMER MODEL: VHF7100USA POWER: 25W FUNCTION: ISSUE: 2.08 11 Dec, 2003 ITEM PART NO DESCRIPTION QTY LOCATION Marine Base Station ,w/ DSC, JIS7 32 3.... 07-5104681-A00 CHIP CAP 1608 0.1UF 50V +80-20% Y5V 2 C403,C404 33 3.... 07-6225343-A00 SMT TAN ELECT CAP 3216 2.2UF 16V +/-20% 2 C402,C405 34 3.... 07-6106243-A00 SMT TAN ELECT CAP 3216 10UF 10V +/-20% 1 C401 35 3.... 13-0366L11-A00 LCD PCB (FR-4 1.0mm) (NV-366) 1 36 2...... 99-366CPUD-A00 CPU BOARD DIP ASS'Y 37 3.... 04-314723C-A00 CRYSTAL 14.7456MHz NC-3 +/-30PPM 1 X201 38 3.... 07-41073AE-A00 ELECT CAP 100UF 16V -40 +105 +/-20% (D6*5mm) 2 C207,C225 39 3.... 08-3321D11-A00 3PIN HEADER 1.5mm L=4.5mm 1 J204 40 3.... 08-3521D11-A00 5PIN HEADER 1.5mm JS-1174-05 L=4.5mm 1 J205 41 3.... 08-3821D11-A00 8PIN HEADER 1.5mm 2 J201,J203 42 3.... 08-A519862-A00 SILICONE INTERCONNECTION TYPE "SP" PITCH:0.1mm L51.9*W8.6*H2.0mm 2 43 3.... 08-D50305A-A00 FLAT FLEXIBLE CABLE 30PIN 50mm PITCH:0.5mm 1 44 3.... 14-1366001-A00 LCD DISPLAY (FSTN) 1 LCD 45 3.... 30-405026J-A00 SCREW M2.0*5.0mm PB BLACK 4 FRONT PCB 46 3.... 35-1366011-A00 LCD MOUNT PLATE 1 47 3.... 36-D102008-A00 COPPER FOIL 10*20mm (T=0.1mm) 1 48 3.... 36-D161308-A00 COPPER FOIL 16.0*13.0*0.09mm W/TAPE 1 49 3.... 43-15150E1-A00 SINGLE SPONGE 15*15*12mm 1 50 3.... 44-6366006-A00 LCD BACK LIGHT PLATE (PMMA) 1 51 3.... 99-366CPUS-A00 CPU BOARD SMT ASS'Y 52 4.. 02-2BAV700-A00 SMT DIODE BAV70 (EDS2838&SDS2838&ISS184) SOT-23 5 D202,D201,D209,D210D203 53 4.. 02-39014T0-A00 SMT TRANSISTOR KTC9014S (SSC1623G&2SC2712) 3 Q201,Q203,Q208 54 4.. 02-33904T0-A00 SMT TRANSISTOR MMBT3904 4 Q202,Q205,Q206,Q207 55 4.. 02-6190H26-A00 SMT LED LAMP RED HT-190HR 1 D204 56 4.. 02-6111C36-A00 SMT LED LAMP ORANGE AA1111C-TR 4 D205,D206,D207,D208 57 4.. 03-0340301-A00 SMT IC NJM3403AM O.P AMP (DMP14) 1 IC205 58 4.. 03-354N1T1-A00 SMT PHOTO COUPLER IC PC354N1T 1 IC207 59 4.. 03-614202M-A00 SMT IC XC61CN4202MR SOT-23 1 IC202 60 4.. 03-24C64N1-A00 SMT IC EEPROM AT24C64N-10SI-2.7V 1 IC201 61 4.. 03-6430625-A00 SMT IC CPU FLASH MEMORY HD64F3062F25 FB-100B (H8/3062) 1 IC203 62 4.. 03-78M051A-A00 SMT IC VOLTAGE REGULATOR NJM78M05DL1A (TO-252) 1 IC206 2 OF 14 TEKCOM CODE NO.: NV366-USA-1 CUSTOMER MODEL: VHF7100USA POWER: 25W FUNCTION: ISSUE: 2.08 11 Dec, 2003 ITEM PART NO DESCRIPTION QTY LOCATION Marine Base Station ,w/ DSC, JIS7 63 4.. 06-5102731-A00 CHIP RES 1608 1K OHM 1/10W +/-5% 4 R203,R230,R241,R254 64 4.. 06-5222731-A00 CHIP RES 1608 2.2K OHM 1/10W +/-5% 1 R243 65 4.. 06-5332731-A00 CHIP RES 1608 3.3K OHM 1/10W +/-5% 1 R205 66 4.. 06-5472731-A00 CHIP RES 1608 4.7K OHM 1/10W +/-5% 2 R242,R244 67 4.. 06-5822731-A00 CHIP RES 1608 8.2K OHM /10W +/-5% 1 R227 68 4.. 06-5103731-A00 CHIP RES 1608 10K OHM 1/10W +/-5% 11 R207,R213,R215,R231,R234,R237,R245 R257,R263,R278,R279 69 4.. 06-5203731-A00 CHIP RES 1608 20K OHM 1/10W +/-5% 5 R211,R212,R218,R223,R268 70 4.. 06-5303731-A00 CHIP RES 1608 30K OHM 1/10W +/-5% 2 R220,R222 71 4.. 06-…

Text truncated - open the document above for the full version.

TEKCOM Industries Limited Page 4 of 6 ALIGNMENT AND ADJUSTMENT This transceiver is completely aligned at the factory and does not require any adjustments for installation. However it is considered as good practice to verify that none of the adjustments are changed. Do not adjust any circuitry in this radiotelephone unless you understand the circuit operation and have experience in adjusting radiotelephone. Tampering with the radiotelephone may upset the alignment and lower its performance. Test Equipment Required: !" Regulated DC power supply, 15V,7A !" Audio signal generator,10Hz~3kHz !" Digital multimeter !" Deviation meter !" Frequency counter,0~500MHz high impedance !" Oscilloscope !" RF power meter, ≥ 30W !" High frequency standard generator,>500MHz !" Tracking generator,>500MHz !" Distortion analyzer !" Audio level meter !" T-coupler !" Alignment drivers, etc. ADJUSTMENT PROCEDURE Step Item Adjustment Procedure 1 TX Frequency VC2 Adjust VC2 to obtain demanded TX frequency. 2 TX Power Hi VR5 Adjust VR5 to obtain demanded TX power 23 ± 2W. 3 TX Power Lo VR6 Adjust VR6 to obtain demanded TX power 0.8 ± 0.1 W. 4 TX. Dev. VR3 1. Inject an audio frequency (AF) -20dBm. 2. Adjust VR3 to obtain maximum TX deviation ≤ 5kHz. 3. Check MIC modulation sensitivity, which should be 2.5~10mV. 5 RX L10,L11,L12, L13,L14,T1,T2 1. Check RX sensitivity if it is normal. 2. Adjust L10, L11, L12, and L13 to obtain Best Frequency response. 3. Adjust L14,T1 and T2 to obtain Best RX sensitivity
TEKCOM Industries Limited Page 5 of 6 TROUBLE SHOOTING Before troubleshooting, prepare your unit as follows: !" Turn volume control fully clockwise so that it is all the way up. !" Install the batteries onto your unit. Item Symptom Cause/Remedy 1 Unit is not able to turn on. !" Check the power voltage and power switch. !" Check to see if regulator IC8 defective. 2 No sound with AF signal applied to pin 6 of IC6. !" Check to see if IC1 and /or associated components is Defective. !" Check to see if speaker on control circuit VR201, IC10A, IC10B, is defective. 3 Squelch circuit inoperative. !" Check to see if VR203 is defective. !" Check to see if IC4 is defective. 4 No receiver (RX) !" Check to see if IC11 is defective. !" Check to see if IC4 audio output at pin 9 is defective. !" Check Q12. !" Check 21.6MHz output of first mixer Q10. !" Check 21.6MHz output of crystal filters F1, F2. !" Check 21.6MHz output of first IF amplifier Q11. !" Check 455kHz signal from ceramic filter F3. !" Check to see if VCO circuit is defective. !" Check to see MCU is defective. 5 Low receiver sensitivity !" Check to see if antenna is bad connecting. !" Check to see if the output from Q9, Q10, Q11 and F1 F2 is defective. 6 No transmission (TX) !" Check to see if the PTT switch is defective. !" Check to see if Q13 is defective. !" Check to see if power transmit circuit Q1, Q2, Q3 are Defective. !" Check to see if VCO circuit is defective. !" Check PLL control voltage if it reads 1.2 ± 0.3V at 156.05MHz. 7 Poor or no modulation !" Check to see if the microphone or MIC jack is defective. !" Check to see if IC205 and/or its associated components are defective. 8 Deviation of transmit frequency !" Check the frequency of 12.8MHz crystal X3. !" Adjust VC2 and verify the transmit frequency.

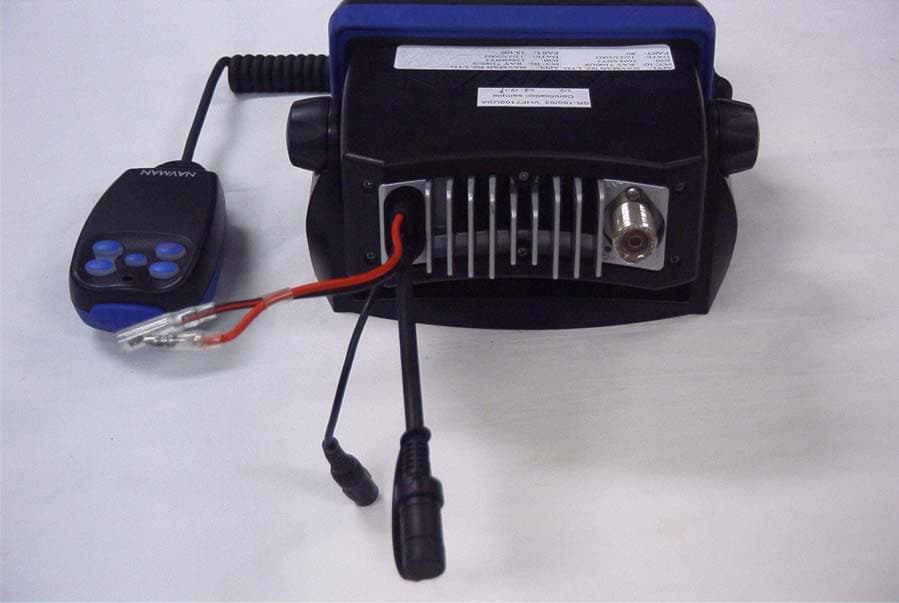

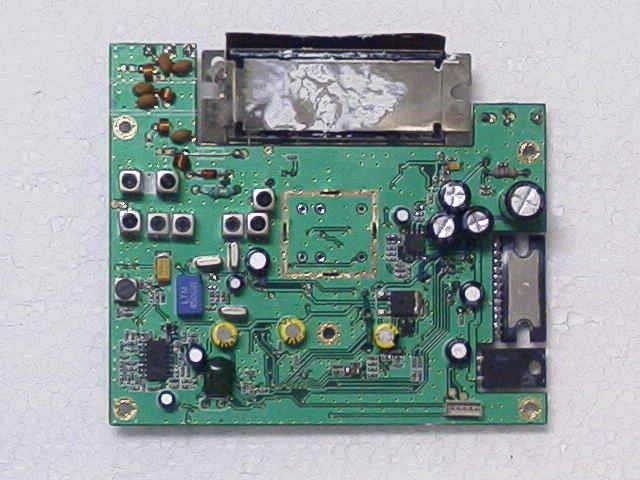

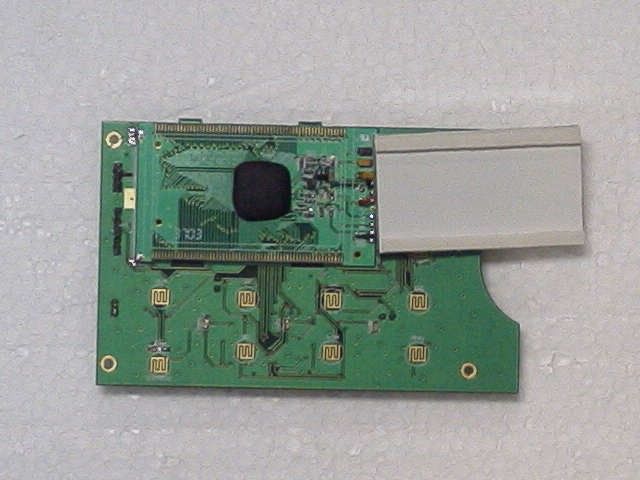

TEKCOM Industries Limited Page 6 of 6 DISASSEMBLY INSTRUCTIONS 1. Rotate counterclockwise volume knob to OFF position. 2. Pull out all external wires (GPS, SP, POWER). 3. Unscrew 2 mounting nuts. 4. Remove the main radio from the mounting bracket. 5. Unscrew the four screws of hand MIC. 6. Separate the front cabinet and bottom cabinet of the hand MIC. 7. Unscrew 6 screws for the bottom cabinet of the main unit. 8. Separate the front cabinet and bottom cabinet of the main unit. 9. Unscrew the mounting screw of the upper shielding case. 10. Remove the upper shielding case. 11. Unscrew the mounting screw of the lower shielding case. 12. Remove the lower shielding case.
