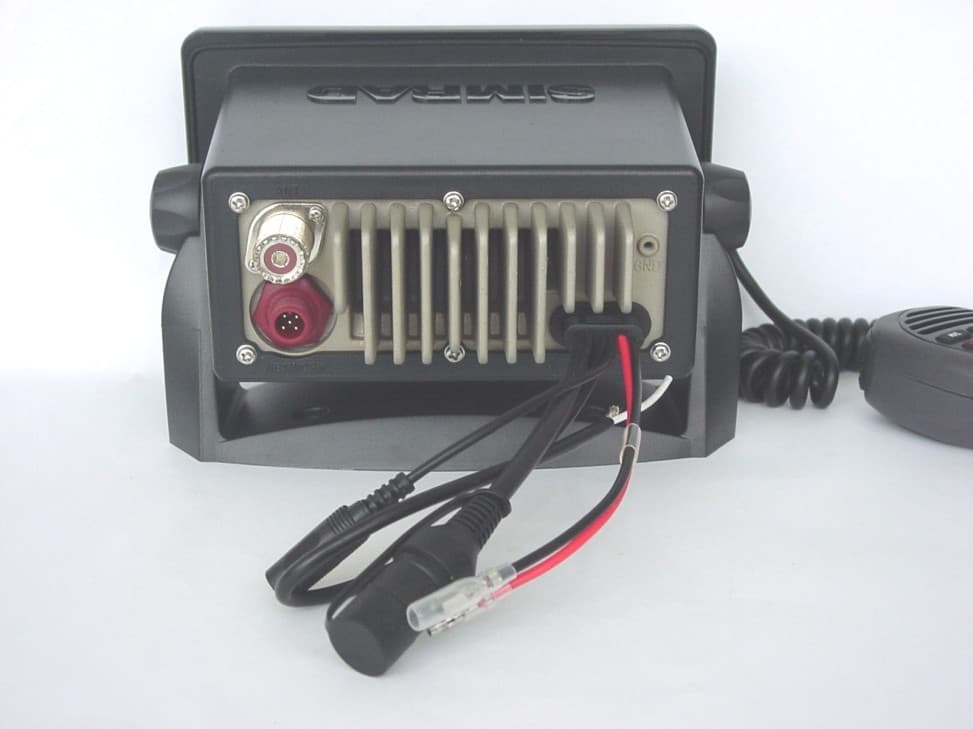

RAYVHFRS35MOBILE VHF MARINE TRANSCEIVER

simrad-yachting.com ENGLISH RS35 VHF HS35 handset Installation Instructions Simrad - RS35 Installation Instructions2Simrad - RS35 Installation Instructions3 Copyright © 2013 Navico All rights reserved. Simrad® is a registered trademark of Navico No part of this manual may be copied, reproduced, republished, transmitted or distributed for any purpose, without prior written consent of Simrad Electronics. Any unauthorized commercial distribution of this manual is strictly prohibited. Simrad Electronics may find it necessary to change or end our policies, regulations, and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice. All screens in this manual are simulated. For free owner’s manuals and the most current information on this product, its operation and accessories, visit our web site: www.simrad-yachting.com IMPORTANT SAFETY INFORMATION Please read carefully before installation and use. DANGER This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. CAUTION CAUTION used without the safety alert symbol indicates a po- tentially hazardous situation which, if not avoided, may result in property damage. Table of Contents 1 Installation preparation ................................................................................6 1.1 Checklist.................................................................................................................................................6 1.2 Tools needed for installation ..........................................................................................................6 2 VHF installation ..............................................................................................7 2.1 Location requirements .....................................................................................................................7 2.2 LCD viewing angle .............................................................................................................................7 2.3 Choose an installation type ............................................................................................................7 2.3.1 Mounting bracket installation ....................................................................................................8 2.3.2 Recessed installation .....................................................................................................................9 2.4 RS35 dimensions .............................................................................................................................10 2.5 Handset mic wall hanger ..............................................................................................................11 3 VHF electrical installation ............................................................................12 3.1 Connect the radio ............................................................................................................................12 3.2 Wiring diagram - NMEA 2000 connections ............................................................................15 3.3 Wiring diagram - External speaker and hailer .......................................................................16 3.4 Wiring diagram - NMEA 0183 connections ............................................................................17 3.5 Installation diagram - HS35 Charger Cradle ..........................................................................18 4 Setup your radio - Your user MMSI...............................................................20 MMSI and license information: You must obtain a user MMSI (Marine Mobile Service Identity) and enter it into your RS35 in order to use the DSC functions. Contact the appropriate authorities in your country. If you are unsure who to contact, consult your Simrad dealer. The user MMSI is a unique nine digit number, similar to a personal telephone number. It is used on marine transceivers that are capable of using DSC (Digital Select Calling). Depending upon your location, you may need a radio station license for the RS35. You may also need an individual operator’s license. Simrad recommends that you check the requirements of your national radio communications authorities before operating DSC functions. IMPORTANT: 1. DSC functions will not operate on the RS35 until your MMSI has been entered. Refer to DSC Setup section for details. 2. The radio channels installed into this Simrad VHF radio may vary from country to country de- pending upon the model and government or national communications authority regulations. 3. Navico recommends that you check the radio operating licensing requirements of your country before using this Simrad VHF radio. The operator is solely responsible for observing proper radio installation and usage practices. 4. A DSC warning label is supplied with this Simrad VHF radio. To comply with FCC regulations, this label must be affixed in a location that is clearly visible from the operating controls of this radio. Make sure that the chosen location is clean and dry before applying this label. 5. This radio is designed to generate a digital maritime distress call to facilitate search and rescue. To be effective as a safety device, this radio must be used only within the geographic range of a shore-based VHF marine Channel 70 distress and safety watch system. The geographic range may vary but under normal conditions is approximately 20 nautical miles. RF Emissions notice: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environ- ment.…

Text truncated - open the document above for the full version.

simrad-yachting.com ENGLISH RS35 VHF User Guide Copyright © 2013 Navico All rights reserved. Simrad® is a registered trademark of Navico No part of this manual may be copied, reproduced, republished, transmitted or distributed for any purpose, without prior written consent of Simrad Electronics. Any unauthorized commercial distribution of this manual is strictly prohibited. Simrad Electronics may find it necessary to change or end our policies, regulations, and special offers at any time. We reserve the right to do so without notice. All features and specifications subject to change without notice. All screens in this manual are simulated. For free owner’s manuals and the most current information on this product, its operation and accessories, visit our website: www.simrad-yachting.com Important safety information Please read carefully before installation and use. DANGER This is the safety alert symbol. It is used to alert you to potential personal injury hazards, Obey all safety messages that follow this symbol to avoid possible injury or death. WARNING WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, could result in minor or moderate injury. CAUTION CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. Simrad - RS35 Operation Instructions3 Section 1 - General information .......................................................................7 1-1 Features ................................................................................................................................................7 1-2 Customizing your Simrad VHF radio ...........................................................................................8 1-3 How to display and navigate menus .........................................................................................8 1-4 How to enter alphanumeric data .................................................................................................8 1-5 LCD symbols and meanings ..........................................................................................................8 1-3 Beep tones & call alerts .................................................................................................................10 Section 2 - Basic operation and key functions ...............................................11 Section 3 - Radio MENU SELECT options .........................................................17 3-1 Manage your waypoints list (WAYPOINT) ..............................................................................18 3-1-1 Add a new waypoint ...................................................................................................................................18 3-1-2 Edit or delete a waypoint .........................................................................................................................18 3-1-3 Go to a new waypoint ...............................................................................................................................19 3-1-4 Go to nearest waypoint (NEAREST WP) ...........................................................................................19 3-1-5 Go to temporary waypoint .....................................................................................................................20 3-1-6 Edit or delete a temporary waypoint ................................................................................................20 3-1-7 Send waypoint data to a chartplotter ..............................................................................................21 3-2 Set the backlighting level (BACKLIGHT) ...............................................................................21 3-3 Maintain your buddy list (BUDDY LIST) ..................................................................................22 3-3-1 Add an entry ...................................................................................................................................................22 3-3-2 Edit or delete an entry ..............................................................................................................................23 3-4 Local or distance sensitivity (LOCAL/DIST) ...........................................................................23 3-4-1 Set distance sensitivity ...............................................................................................................................23 3-4-2 Set local sensitivity .......................................................................................................................................24 3-5 Set the contrast level (CONTRAST) ..........................................................................................24 3-6 GPS data and time (GPS/DATA) .................................................................................................24 3-6-1 Manually enter position and UTC time (MANUAL) ................................................................25 3-6-2 Local time (TIME OFFSET ) ........................................................................................................................25 3-6-3 Time format options (TIME FORMAT ) ..............................................................................................26 3-6-4 Time display options (TIME DISPLY ) .................................................................................................26 3-6-5 Position display options (LL DISPLY ) ................................................................................................27 3-6-6 Course & speed display options (COG/SOG) ..............................................................................27 3-6-7 GPS alert (GPS ALERT ) .....................................................…

Text truncated - open the document above for the full version.

January 13, 2013 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: RAYVHFRS35 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibits Description Exhibits Name.extension Block Diagram RS35 Block Diagram.pdf Schematics RS35 AIS Schematic Diagram.pdf RS35 HANDMIC Schematic Diagram.pdf RS35 RF Schematic.pdf RS35 CPU Schematic Diagram.pdf Parts List RS35 BOM-20121127.pdf Tune Up Procedure Tuning procedure.pdf Operational Description RS35 theory of operation.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Pursuant to DA 04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application for maximum allowed 180 days as outlined below: Exhibits Description Exhibits Name.extension Test Setup Photos Rad Setup Photos.pdf External Photos External photos.pdf Internal Photos Internal photos.pdf Users Manual RS35_Installation Manual_KST.pdf RS35_OperationManual_KST.pdf Sincerely, John Scott COO Navico Auckland Limited

APPLICANT: NAVICO AUCKLAND LTD. FCC ID: RAYVHFRS35 MODEL: RS35 EXTERNAL PHOTOS

APPLICANT: NAVICO AUCKLAND LTD. FCC ID: RAYVHFRS35 MODEL: RS35 INTERNAL PHOTOS RF PCB RS35 CPU BOARD CPU BOARD WITH BLUETOOTH AIS PCB BT BOARD

2/13/2013 Page 1 of 2 RF Exposure Requirements General information: Device category: Mobile per Part 2.1091 Environment: Uncontrolled Exposure Mobile devices that operate under Part 80 of this chapter are subject to routine environmental evaluation for RF exposure prior to equipment authorization or use if they operate at frequencies of 1.5 GHz or below and their effective radiated power (ERP) is 1.5 watts or more. However, compliance with the power density limits of 1.1310 is not required. Antenna: The manufacturer does not specify an antenna to be used with this device, but typical installations have gains up to 3 dBi. This device has provisions for operation in a vehicle (boat), or a fixed location. Configuration Antenna p/n Type Max. Gain (dBi) Boat Any omni 3 Operating configuration and exposure conditions: The conducted output power is 25 Watts. Typical use qualifies for a maximum duty cycle factor of 50%. In normal operation the use of this transmitter is considered uncontrolled exposure. - Part 2.1091 states that devices are excluded from routine evaluation if the EIRP is less than 2.46Watt (or 1.5WERP). - Vehicle Operation: The maximum antenna gain that can be used is 3dBi. A coaxial cable of the type RG 58 has a loss of 1dB for a length of 15 feet and this value was used in the following calculation of separation distance. MPE Calculation: The minimum separation distance is calculated as follows: The limit for general uncontrolled exposure environment below 300 MHz is 0.2 mW/cm 2 . 2/13/2013 Page 2 of 2 Channel frequency: 156.025-157.425 MHz The conducted power output is 25 watt. The coax loss was taken as 1 dB. Antenna gain was taken as 3 dBi 50% talk time in 30 minutes antenna gain in dBd S f 1500 power density limit f or uncontrolled exposure G1dBd2.15 gain in dBi G13dBi S0.2 CL1 dB coax loss GG1CL gain numeric Gn10 G 10 Gn1.585dB R PoGn() 4S inches R 2.54 R88.784 dist ance in cent imeters required f or compliance inches34.954 W25 power in Watts D1 Dut y Factor in decimal % (1=100%) 1 f or FM E15 exposure time in minutes U30 (use 6 f or controlled and 30 f or uncontrolled) WexpWD E U PC E U 100 Wexp12.5WattsPC50 % on time _____________________________________________________________________________ Po12500mWatts f300 Frequency in MHz dBd.85

FCC PART 80 AND IC RSS-182 (i5) TEST REPORT APPLICANT NAVICO AUCKLAND LTD 3-5 OMEGA STREET ALBANY 0632 AUCKLAND NEW ZEALAND FCC ID RAYVHFRS35 IC CERTIFICATION 4697A-VHFRS35 MODEL NUMBER RS35 PRODUCT DESCRIPTION MOBILE VHF MARINE TRANSCEIVER WITH BLUETOOTH DATE SAMPLE RECEIVED 12/26/2012 DATE TESTED 02/03/2013 TESTED BY John A. Day APPROVED BY Mario de Aranzeta TIMCO REPORT NO. 3245AUT12TestReport.doc TEST RESULTS PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. TABLE OF CONTENTS 849 NW STATE ROAD 45 NEWBERRY, FL 32669 USA PH: 888.472.2424 OR 352.472.5500 FAX: 352.472.2030 EMAIL: [email protected] HTTP://WWW.TIMCOENGR.COM Certificate # 0955-01 Applicant: NAVICO AUCKLAND LTD FCC ID: RAYVHFRS35 IC CERT #: 4697A-VHFRS35 Report: N\NAVICO AUCKLAND_RAY\2070AUT12\2070AUT12TestReport.doc Page 2 of 21 GENERAL REMARKS ........................................................................................................... 3 GENERAL INFORMATION .................................................................................................... 4 TEST PROCEDURES ............................................................................................................ 5 TECHNICAL DATA ............................................................................................................... 6 RF POWER OUTPUT ............................................................................................................ 7 MODULATION CHARACTERISTICS ...................................................................................... 8 AUDIO FREQUENCY RESPONSE ......................................................................................... 9 AUDIO LOW PASS FILTER ................................................................................................. 10 AUDIO INPUT VERSUS MODULATION ............................................................................... 11 OCCUPIED BANDWIDTH ................................................................................................... 12 SPURIOUS EMISSIONS AT ANTENNA TERMINALS (CONDUCTED) .................................... 15 FIELD STRENGTH OF SPURIOUS EMISSIONS .................................................................. 17 FREQUENCY STABILITY .................................................................................................... 20 EMC EQUIPMENT LIST ...................................................................................................... 21 Applicant: NAVICO AUCKLAND LTD FCC ID: RAYVHFRS35 IC CERT #: 4697A-VHFRS35 Report: N\NAVICO AUCKLAND_RAY\2070AUT12\2070AUT12TestReport.doc Page 3 of 21 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025: 2005 requirements. Testing Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: John A. Day Testing Technician Date: February/3/2013 Applicant: NAVICO AUCKLAND LTD FCC ID: RAYVHFRS35 IC CERT #: 4697A-VHFRS35 Report: N\NAVICO AUCKLAND_RAY\2070AUT12\2070AUT12TestReport.doc Page 4 of 21 GENERAL INFORMATION DUT Specification DUT Description MOBILE VHF MARINE TRANSCEIVER FCC ID RAYVHFRS35 IC Certification 4697A-VHFRS35 Model Number RS35 Operating Frequency 156.025-157.425 MHz Test Frequencies 156.050,156.725,157.425 and 162.475 No. of Channels 59 Type of Emission 16K0G3E/ 16K0G2B Modulation FM DUT Power Source 110–120Vac/50– 60Hz DC Power 13.6V Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector SO-239 Test Conditions The temperature was 26ºC Relative humidity of 50%. Modification to the DUT Added wires for PTT and audio input. Test Exercise The DUT was placed in continuous transmit mode. Applicable Standards ANSI/TIA 603-C:2004, FCC CFR 47 Part 80, IC RSS- 182 (issue 5) and RSS-GEN (issue 3) Test Facility Timco Engineering Inc. at 849 NW State Road 45 Newberry, FL 32669 USA. Applicant: NAVICO AUCKLAND LTD FCC ID: RAYVHFRS35 IC CERT #: 4697A-VHFRS35 Report: N\NAVICO AUCKLAND_RAY\2070AUT12\2070AUT12TestReport.doc Page 5 of 21 TEST PROCEDURES Power Line Conducted Interference: The procedure used was ANSI/TIA 603-C: 2004 using a 50uH LISN. Both lines were observed with the DUT transmitting. The bandwidth of the spectrum analyzer was 10 kHz with an appropriate sweep speed. Bandwidth 20 dB: The measurements were made with the spectrum analyzer's resolution bandwidth (RBW) = 1 MHz and the video bandwidth (VBW) = 3 MHz and the span set as shown on plot. Power Output: The RF power output was measured at the antenna feed point using a peak power meter. Antenna Conducted Emissions: The RBW = 100 kHz, VBW = 300 kHz and the span set to 10.0 MHz and the spectrum was scanned from 30 MHz to the 10 th harmonic of the fundamental. Above 1 GHz the resolution bandwidth was 1 MHz and the VBW = 3 MHz and the span to 50 MHz. Radiation Interference: The test procedure used was ANSI C63.4-2004 using an Agilent spectrum receiver with pre-selector. The bandwidth (RBW) of the spectrum receiver was 100 kHz up to 1 GHz and 1 MHz above 1 GHz with an appropriate sweep speed. The VBW above 1 GHz was 3 MHz. The …
