RBN1023Wireless AP

NetSprite1023 USER GUIDE Release: 2.2 Doc. Code: L2 DS02 2202 02 10 00 UTStarcom, Inc. Copyright © 2004 UTStarcom, Inc. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without prior, express and written permission from UTStarcom, Inc. UTStarcom, Inc. reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of UTStarcom, Inc. to provide notification of such revision or changes. UTStarcom, Inc. provides this documentation without warranty of any kind, implied or expressed, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. UTStarcom may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. UNITED STATES GOVERNMENT LEGENDS: If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: United States Government Legend: All technical data and computer software is commercial in nature and developed solely at private expense. Software is delivered as Commercial Computer Software as defined in DFARS 252.227-7014 (June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in UTStarcom's standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. UTStarcom, the UTStarcom logo, PAS, mSwitch, Airstar, WACOS, Netman, Total Control, and CommWorks are registered trademarks of UTStarcom, Inc. and its subsidiaries. The UTStarcom name, AN-2000, and the CommWorks logo are trademarks of UTStarcom, Inc. and its subsidiaries. Other brand and product names may be registered trademarks or trademarks of their respective holders. Any rights not expressly granted herein are firmly reserved. i Contents About This Guide................................................................................... 1 Introduction.................................................................................................. 1 Conventions................................................................................................. 1 Notice ...................................................................................................... 1 Text.......................................................................................................... 2 Figures and Screen Captures................................................................... 3 Related Documentation ............................................................................... 3 1 Overview ......................................................................................... 5 Device Introduction ...................................................................................... 5 Feature List.................................................................................................. 6 Application ................................................................................................... 6 2 Installation Planning...................................................................... 9 Packing List ................................................................................................. 9 Interfaces Introduction................................................................................. 9 Cable Connections..................................................................................... 12 3 Before Configuration ................................................................... 15 Login NetSprite1023 .................................................................................. 15 Web Page Introduction .............................................................................. 16 4 Quick Start.................................................................................... 19 5 Setup Configuration .................................................................... 23 Configure WAN.......................................................................................... 23 Configure ADSL Connection .................................................................. 23 Configure ADSL Line Setup ................................................................... 29 Configure WLAN........................................................................................ 29 Configure Basic Setup............................................................................ 29 ii ii Configure WLAN Security ...................................................................... 31 Configure Management.......................................................................... 34 Configure VoIP .......................................................................................... 36 Configure Codec .................................................................................... 36 Configure SIP......................................................................................... 37 Configure Digital Map............................................................................. 37 Configure Call Forwarding...................................................................... 38 Configure Voice Connection................................................................... 39 Configure LAN ........................................................................................... 40 Configure LAN Group............................................................................. 40 Configure DHCP .......................................…

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: UTStarcom Telecom Co., Ltd, FCC ID: RBN1023, Assessment NO.: AN04T4399, Notice#1 1/14/2005 From: CCS(KS) - Eric Wong [mailto:[email protected]] Sent: Friday, January 14, 2005 2:36 AM To: Helen Zhao Cc: 'CCS(KS) - Eric Wong' Subject: FW: UTStarcom Telecom Co., Ltd, FCC ID: RBN1023, Assessment NO.: AN04T4399, Notice#1 Hello Helen, Please find my replies below in BROWN Thank you!! BR, Eric Wong Subject: UTStarcom Telecom Co., Ltd, FCC ID: RBN1023, Assessment NO.: AN04T4399, Notice#1 Question #1: The user manual does not contain Information to the User pursuant rule part of 15.105. Please add the information to User into the user manual. Question #2: The user manual indicated that the frequency band is 2400-2497MHz ISM band, please note 2483.5-2500MHz is a restricted band as specified in 15.205, no device can be allowed to operate in that band. Please revise the user manual Question #3: Please update the user manual to indicate channels and operating frequencies that will be allowed to operate in US. Question #4: The User manual indicated that the device uses indoor omni-directional antenna for 2,5dBi, however the antenna specification and the test report both indicated that a max. 2.4dBi antenna is used. Please clarity which one is correct, and update the document accordingly. (Eric: For Q#1~4, please find the updates on the revised manual as the attached file.) Question #5: The user manual indicated that the power required is 12V/1.25A, but the test report indicated that the device is power from AC/DC adaptor (20A/8A/160W). Please clarify which one is correct, and update the document accordingly. (Eric: Please find the updates on the revised report as the attached file.) Question #6: The FCC ID label format does not show the location that the FCC ID label will be affixed on the device. Please update the FCC ID label format. Question #7: The FCC ID label format does not meet labeling requirement as specified in 15.19. Please add the information into FCC ID label format. Question #8: The EUT also meets the definition of a personal computer peripheral, then that portion of the EUT must also be authorized, through Verification (if Class A), Certification, or DoC. Please note if it is through DoC, you need to add DoC logo on the FCC ID label format. If it is through certification, then composite device filing is necessary. (Eric: For Q#6~8, please find the updates on the “LabelSmpl” as the attached file.) Question #9: Please provide photos of AC/DC Adaptor, please clearly show if there is any ferrite core is used. (Eric: Please find the additional picture showing the adapter by the updated “ExtPhoto” as the attached file.) Question #10: Page 4 of the test report indicated a wrong FCC ID, please explain. (Eric: Please find the updates on the revised report as the attached file.) Question #11: Page 38 of the test report is a redundant page, which indicated past-due calibration date, please remove it from the test report. (Eric: I have removed the page per your info, thanks and please find those updates on the revised report as the attached file.) Question #12: Page 56 & 60 of the test report show peak and average results are the same, please revise the test report. (Eric: Please find the updates on the revised report as the attached file.) Question #13: MPE calculation in the test report show the data from other report. Also page 37 indicated MPE is for a Bluetooth device. Please correct the error and re-calculate MPE value. (Eric: Please find the updates on the revised report as the attached file.) Question #14: The "Setup Photos" in the filing is a wrong file, please update it. (Eric: Please find the updated “TSup” as the attached file.) Question #15: The setup photos in the test report shows the test was not setup based on the section 6 of the test report. Please clearly list all the supporting equipments on the turn table and please provide setup diagram. (Eric: I have updated and harmonized the exhibit between the Appendix of the report also the “TSup” exhibit, thank you!!) Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 1/14/2005

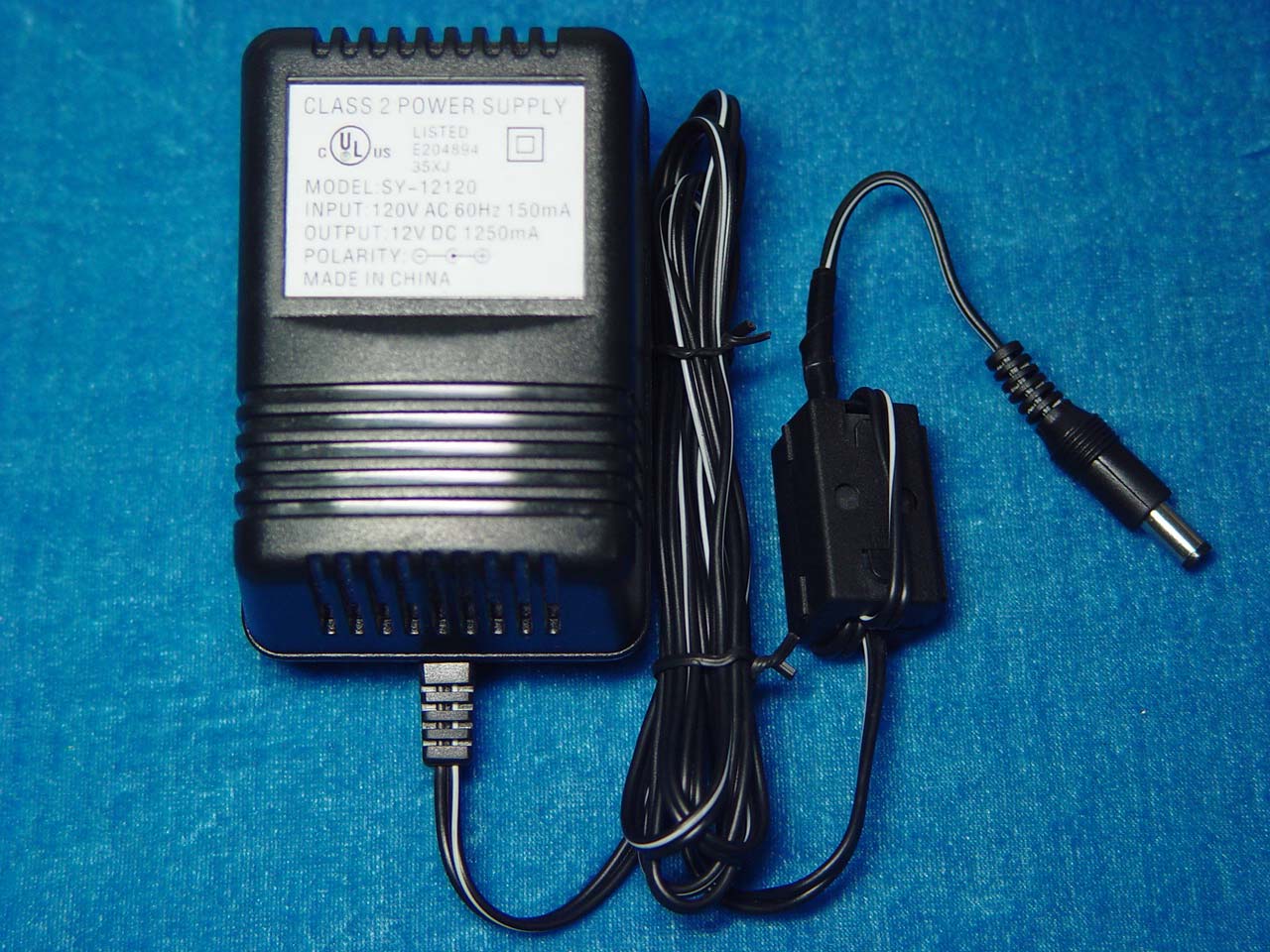

Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: December 9, 2004 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: December 9, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: December 9, 2004

Label Location

Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: December 9, 2004 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: December 9, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: December 9, 2004

Product TypeMB2400-OA-2.5B MOBI Installation Manual Product Name 2400MHz 2.5dBi INDOOR OMNIDIRECTIONAL ANTENNA 1.Electrical Specifications And Mechanical Specifications 1.1.Electrical Specifications a.Frequency Range: 24002500MHz b.Gain: 2.4dBi c.VSWR: 1.5 d.Polarization: Vertical e.Input Impedance: 50 f.Max Input Power: 50W g.Connector: ULF(IPX) (With Nessis 1.13) h.Tail Line Length 100mm/120mm/200m 1.2.Mechanical Specifications a.Antenna Length: 110mm(unbend) 92mm(bend) b.Antenna Weight: 9g c.Incasement number: 100 d.Box Size: 29511060mm e.Box Weight 1000g f.Application Condition In door MB2400-OA-2.5B

Compliance Certification Services (Kunshan) Inc. Report No: 04E0052-RP FCC ID: RBN1023 Date of Issue: December 1, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 64 FCC 47 CFR PART 15 SUBPART C TEST REPORT For UTStarcom Telecom Co., Ltd. NetSprite Model: NS1023 Trade Name: UTStarcom Prepared for UTStarcom Telecom Co., Ltd . No.368 LiuHe Road, Hi-Tech Industrial Development Zone, BinJiang Hangzhou 310053, PRC Prepared by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 10#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Lab. Code: 200581-0 Compliance Certification Services (Kunshan) Inc. Report No: 04E0052-RP FCC ID: RBN1023 Date of Issue: December 1, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION...........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..............................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS................................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................22 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................32 7.6 SPURIOUS EMISSIONS.................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................60 APPENDIX 1 PHOTOGRPHS OF TEST SETUP......................................................................................63 Compliance Certification Services (Kunshan) Inc. Report No: 04E0052-RP FCC ID: RBN1023 Date of Issue: December 1, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: UTStarcom Telecom Co., Ltd. No.368 LiuHe Road, Hi-Tech Industrial Development Zone, BinJiang Hangzhou 310053, PRC Equipment Under Test: NetSprite Trade Name: UTStarcom Model: NS1023 Date of Test: September 14~ December 1, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Compliance Certification Services (Kunshan) Inc. Report No: 04E0052-RP FCC ID: RBN1023 Date of Issue: December 1, 2004 Page 4 2. EUT DESCRIPTION Product NetSprite Trade Name UTStarcom Model Number NS1023 Model Discrepancy N/A Power Supply Powered from power adapter (Rating: I/P: 12Vac / 60Hz / 150mA O/P: 12Vdc / 1250mA) Frequency Range 802.11b mode: 2412 ~ 2462 MHz 802.11g mode: 2412 ~ 2462 MHz Transmit Power 802.11b mod…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: 04E0052-RP FCC ID: RBN1023 Date of Issue: November 19, 2004 Page 63 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No: 04E0052-RP FCC ID: RBN1023 Date of Issue: November 19, 2004 Page 64 RADIATED EMISSION TEST
