RBN21690032-2010802.11 b/g Wireless LAN PCMCIA Card

1 WIRELESS NETWORK CARD USER GUIDE WNIC2010 2 Copyright © 2003, UTStarcom, Inc. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without prior written permission from UTStarcom, Inc. UTStarcom, Inc. reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of UTStarcom, Inc. to provide notification of such revision or change. UTStarcom, Inc. provides this documentation without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. UTStarcom may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. UNITED STATES GOVERNMENT LEGENDS: If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: United States Government Legend: All technical data and computer software is commercial in nature and developed solely at private expense. Software is delivered as Commercial Computer Software as defined in DFARS 252.227-7014 (June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in UTStarcom's standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. UTStarcom, the UTStarcom logo, PAS, mSwtich, Airstar, WACOS, Netman, Total Control, and CommWorks are registered trademarks of UTStarcom, Inc. and its subsidiaries. The UTStarcom name, Airstar, AN-2000, WACOS, Netman and the CommWorks logo are trademarks of UTStarcom, Inc. and its subsidiaries. Intel and Pentium are registered trademarks of the Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, Windows NT, and NetMeeting are registered trademarks of Microsoft Corporation. Sun, Java, and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. Oracle is a registered trademark of Oracle Corporation. HP, HP-UX, and HP Openview are trademarks or registered trademarks of the Hewlett-Packard Company. Other brand and product names may be registered trademarks or trademarks of their respective holders. 3 UTSTARCOM MANUAL PRECAUTIONS (FCC) Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 4 The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE (CO-LOCATED OPERATION) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. 5 UTSTARCOM MANUAL PRECAUTION (CE) R&TTE Regulatory statement European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400- 2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. CE Declaration of Conformity For the following equipment: Wireless LAN Card ! 0984 Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. The test was performed according to the following European standards: • EN 300 328-2 V.1.2.1 (2001-12) • EN 301 489-1 V.1.4.1 (2002-04) / EN 301 489-17 V.1.2.1 (2002-04) • EN 50371: 2002 • EN 60950: 2000 i Table of Contents UTSTARCOM MANUAL PRECAUTIONS (FCC) ..................... 3 Federal Communications Commission (FCC) Requirements, Part 15 ... 3 IMPORTANT NOTE (CO-LOCATED OPERATION) .............................. 4 MPE Statement (Safety Information)......................! Safety Information ..................................................! UTSTARCOM MANUAL PRECAUTION (CE).......................... 5 R&TTE Regulatory statement ................................................................ 5 CE Declaration of Conformity ................................................................. 5 1 Overview ............................…

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] Sent: July01 2004 Thursday 1:48 AM To: [email protected] Cc: [email protected]; [email protected]; [email protected] Subject: FW: UTStarcom Telecom Co., Ltd., FCC ID: RBN21690032-2010, Assessment NO.: AN04T3993 7/1/2004 Hello Mike, Please find our reply in BLUE below. Thank you!! Should you have any question, please don't hesitate to ask me. Best regards, / Eric Wong ( ) / Compliance Certification Services (Kuanshan) Inc. Tel.: +86-512-57355888 Fax: +86-512-57370818 Add.: ( : 215300) / Changjiang S. Rd., Kunshan City, JiangSu Province 215300, China, P.R.O.C. Email: [email protected] / [email protected] URL: http://www.ccsemc.cn / http://www.ccsemc.com.tw ----- eric/ccsemc 2004/07/01 04:31 PM ----- ----- ting/ccsemc 2004/06/17 08:40 AM ----- ting 2004/06/17 08:45 AM eric/ccsemc@ccsemc Mike Kuo <[email protected]> 2004/06/17 04:34 AM "CCS-Taiwan, Ting (E-mail)" <[email protected]>, "CCS-Taiwan, Wklo (E-mail)" <[email protected]> -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Wednesday, June 16, 2004 1:17 PM To: [email protected] Subject: UTStarcom Telecom Co., Ltd., FCC ID: RBN21690032-2010, Assessment NO.: AN04T3993 Question #1: The operational description file contains identical diagram which is same as schematic diagram file. Please submit operational description . (Eric: Please find the revised operational description attached.) Question #2: Please provide more detail information on the functional block diagram. (Eric: Please find the block diagram attached.) Question #3: This device PCMICA card designed to be used with notebook computer which 20 cm separation distance can not be maintained. Since this device is designed to be used as portable device per section 2.1093 of FCC rules, MPE statement does not apply. Please provide revised user manual. (Eric: Please find the revised manual with the MPE statement removed.) Question #4: As indicated in the user manual, the rated output power for this device is 100 mW ( 20 dBm ). However, the max. measured peak output power is 13.2 dBm. Please explain the differences. (Eric: Please find the revised manual with the correct values listed.) Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 7/1/2004

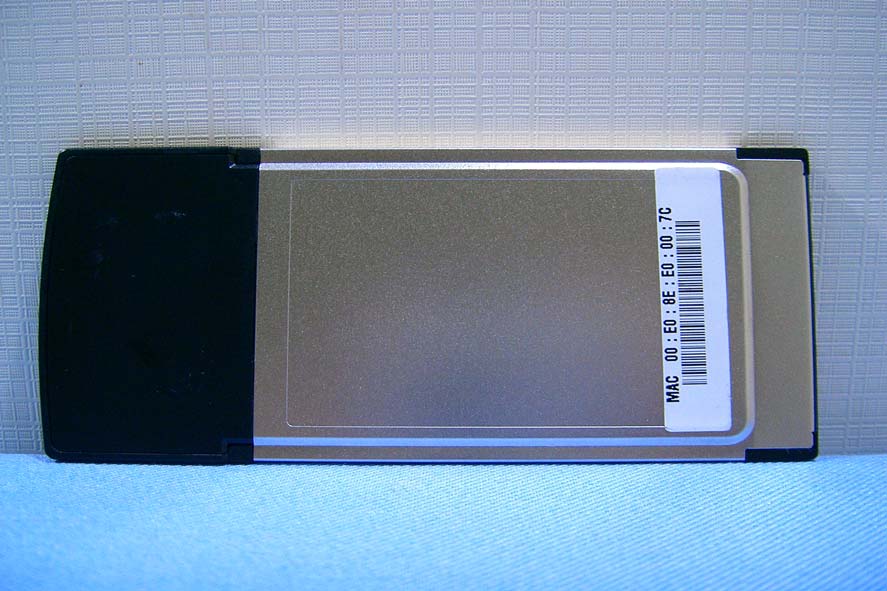

Compliance Certification Services Inc. Report No: B40407404 Date of Issue: April 28, 2004 Page 1 of 4 EXTERNAL PHOTOGRPHS OF EUT

Label location

Compliance Certification Services Inc. Report No: B40407404 Date of Issue: April 28, 2004 Page 2 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Report No: B40407404 Date of Issue: April 28, 2004 Page 3 Compliance Certification Services Inc. Report No: B40407404 Date of Issue: April 28, 2004 Page 4

Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 2 1. ANTENNA TEST CONDITIONS Test Setup EUT Antenna Description Antenna Pattern Testing – Anechoic Chamber 3m Signal Generator Spectrum Horn Antenna EUT PCMCIA Antenna B Antenna A Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 3 2. ELECTRICAL CHARACTERISTICS V. S . W. R . Antenna A Antenna B Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 4 Smith Chart Antenna A Antenna B Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 5 3. ANTENNA PATTERNS Antenna A z Co-plane (E-plane) Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 6 z Cross-plane (H-plane) Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 7 Antenna B z Co-plane (E-plane) Compliance Certification Services Inc. Date of Test: April 30, 2004 Page 8 z Cross-plane (H-plane)

Compliance Certification Services Inc. Report No: B40407404-RP FCC ID: RBN21690032-2010 Date of Issue: April 29, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 73 FCC 47 CFR PART 15 SUBPART C TEST REPORT For WIRELESS LAN CARD Model: WNIC2010 Trade Name: UTStarcom Prepared for UTStarcom Telecom Co., Ltd. Building 2,Yile Industrial Park No. 129, Wen Yi Road, Hangzhou 310012, PRC Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No: B40407404-RP FCC ID: RBN21690032-2010 Date of Issue: April 29, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION...........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..............................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS................................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................17 7.3 BAND EDGES MEASUREMENT ................................................................................................23 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................24 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................38 7.6 sPURIOuS eMISSIONS .................................................................................................................43 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................68 APPENDIX 1 PHOTOGRPHS OF TEST SETUP......................................................................................72 Compliance Certification Services Inc. Report No: B40407404-RP FCC ID: RBN21690032-2010 Date of Issue: April 29, 2004 Page 4 2. EUT DESCRIPTION Product WIRELESS LAN CARD Trade Name UTStarcom Model Number WNIC2010 Model Discrepancy N/A Power Supply Powered from the host device Frequency Range IEEE 802.11b,g: 2412 ~ 2462 MHz IEEE 802.11g: 2437 MHz (Turbo Mode) Transmit Power IEEE 802.11b: 13.20 dBm IEEE 802.11g: 13.18 dBm Modulation Technique IEEE 802.11b: DSSS (CCK; DQPSK; DBPSK) IEEE 802.11g: OFDM Antenna Gain -0.92 dBi (Max) Antenna Designation PCB Antenna Note: This submittal(s) (test report) is intended for FCC ID: RBN21690032-2010 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No: B40407404-RP FCC ID: RBN21690032-2010 Date of Issue: April 29, 2004 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.247. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. According to its specifications, the EUT must comply with the requirements …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No: B40407404-RP FCC ID: RBN21690032-2010 Date of Issue: April 29, 2004 Page 72 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos Compliance Certification Services Inc. Report No: B40407404-RP FCC ID: RBN21690032-2010 Date of Issue: April 29, 2004 Page 73 Conducted Emission Set Up Photos
