RBN3001PAccess Point

WA3001 Indoor AP Wireless Access Point USER GUIDE Release: 1.1 Doc. Code: L3 DW09 1000 02 010 00 UTStarcom, Inc. Copyright © 2004 UTStarcom, Inc. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without prior, express and written permission from UTStarcom, Inc. UTStarcom, Inc. reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of UTStarcom, Inc. to provide notification of such revision or changes. UTStarcom, Inc. provides this documentation without warranty of any kind, implied or expressed, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. UTStarcom may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. UNITED STATES GOVERNMENT LEGENDS: If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: United States Government Legend: All technical data and computer software is commercial in nature and developed solely at private expense. Software is delivered as Commercial Computer Software as defined in DFARS 252.227-7014 (June 1995) or as a commercial item as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in UTStarcom's standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. UTStarcom, the UTStarcom logo, PAS, mSwitch, Airstar, WACOS, Netman, Total Control, and CommWorks are registered trademarks of UTStarcom, Inc. and its subsidiaries. The UTStarcom name, AN-2000, and the CommWorks logo are trademarks of UTStarcom, Inc. and its subsidiaries. Other brand and product names may be registered trademarks or trademarks of their respective holders. Any rights not expressly granted herein are firmly reserved. Regulatory statement (FCC) The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. IMPORTANT NOTE (CO-LOCATION) FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. MPE Statement (Safety Information) Your device contains a low power transmitter. When device is transmitted it sends out Radio Frequency (RF) signal. Safety Information In order to maintain compliance with the FCC RF exposure guidelines, this equipment should be installed and operated with minimum distance 20cm between the radiator and your body. Use only with supplied antenna. Unauthorized antenna, modification, or attachments could damage the transmitter and may violate FCC regulations. 15.105(b) Information of the responsible party for a DoC product The identification of the product: Product Name: Wireless Access Point Model: WA3001 Technical Support: UTStarcom Telecom Co., Ltd. Address: NO.88 Wenhua Road, Hangzhou PRC 310012 Telephone : 0571-88862342-3524 Email: [email protected] Technical Support in the US: UTStarcom, Inc. Address: 1275 Harbor Bay Parkway Alameda, CA 94502 USA Telephone: 1 (866) 663-3266 Email: [email protected] 15.21 Regulatory information / Disclaimers The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 15.105 Federal Communications Commission (FCC) Requirements, Part 15 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Regulatory statement (CE R&TTE) European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465- 2.4835GHz frequency range and must be restricted to indoor use. Declaration of Conformity For the following equipment: WA3001 Access Point ! 0984 Is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (89/336/EEC), Low-voltage Directive (73/23/EEC) and the Amendment Directive (93/68/EEC), the procedures given in European Council Directive 99/5/EC and 89/3360EEC. The equipment was passed. Th…

Text truncated - open the document above for the full version.

Helen Zhao Subject: FW: UTStarcom Telecom Co., Ltd., FCC ID: RBN3001P, Assessment NO.: AN04T4446, Notice#1 1/14/2005 From: CCS(KS) - Eric Wong [mailto:[email protected]] Sent: Friday, January 14, 2005 8:11 AM To: Helen Zhao Cc: 'CCS(KS) - Eric Wong' Subject: RE: UTStarcom Telecom Co., Ltd., FCC ID: RBN3001P, Assessment NO.: AN04T4446, Notice#1 Dear Helen, Please find my replies below in BROWN. Thank you!! BR, Eric Wong Subject: UTStarcom Telecom Co., Ltd., FCC ID: RBN3001P, Assessment NO.: AN04T4446, Notice#1 Question #1: The transmitting power indicated on the user manual is 40mW (802.11b), 25mW (802.11g). The user manual does not indicate the power in 802.11g turbo mode, the highest power reported in the test report, please add this power on the user manual. Please confirm here you list average power or peak power. If it is peak power, please indicate clearly on the manual, also please make sure the values match the measurement on the test report: 40mW (802.11b), 26mW (802.11g), 72mW(802.11g Turbo). If it is average power, you may need to report average power in the test report. (Eric: All the power reported are measured by the PEAK detector mode, please find the correction on the updated manual.) Question #2: Page 69 and page 151 of the user manual indicated that there are 1-13 selectable channels, it also provides instruction to the user on how to select the desired channel. This is not acceptable as this device will be certified to use only 1-11 channels in USA. Please remove such instruction from the user manual and provide mechanism as how to prevent the users in USA from selecting channel 12 and 13. (Eric: Our client has fixed the issue. The manual has been updated accordingly.) Question #3: The user manual does not contain regulatory statement as specified in FCC15.105 and FCC15.21. Please add the statements into the manual. (Eric: The manual has been updated accordingly.) Question #4: The test report indicated the highest power is 18.56dBm in 802.11g turbo mode. First please revise section 2 to list this highest power. Secondly, please redo MPE calculation to use the highest power instead. (Eric: The report is updated, please find the correction by the attached file.) Question #5: The device can be connected to PC, please advise the digital portion has been certified or DoCed. If it is under DoC scheme, please add FCC DoC on the FCC ID label format. (Eric: The “LabelSmpl” has been revised. FYI.) Question #6: Most of the plots in the test report, except Page 16, are not clear enough. In future please make sure the plots are all clear and readable. (Eric: Okay) Best Regards, Helen The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 1/14/2005

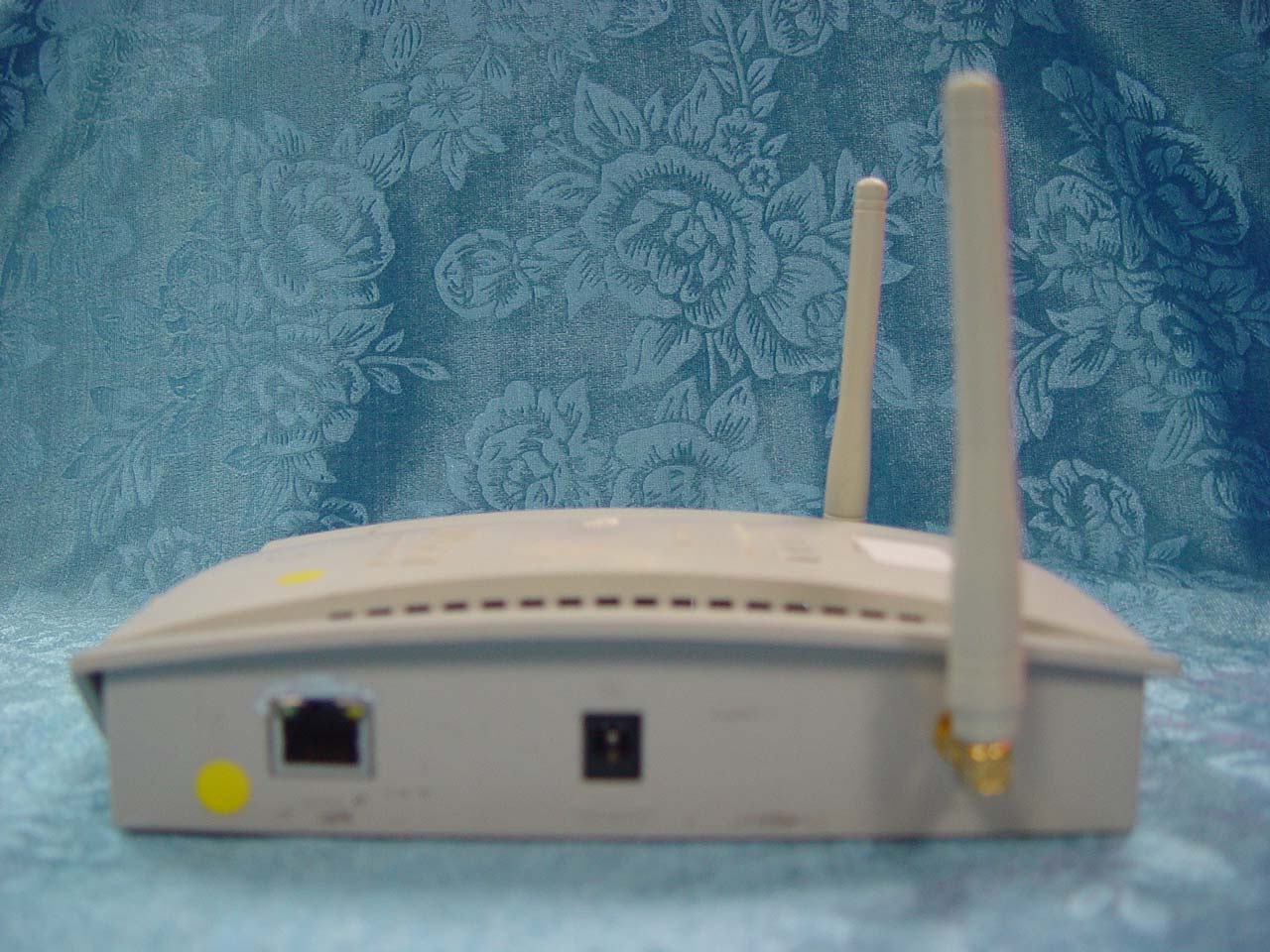

Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 EXTERNAL PHOTOGRPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004

Label Location

Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065 Date of Issue: November 19, 2004

Product TypeMB2400-OA-2.5 MOBI Installation Manual Product Name 2400MHz 2.5dBi INDOOR OMNIDIRECTIONAL ANTENNA 1.Electrical Specifications And Mechanical Specifications 1.1.Electrical Specifications a.Frequency Range: 24002500MHz b.Gain: 2.5dBi c.VSWR: 1.5 d.Polarization: Vertical e.Input Impedance: 50 f.Max Input Power: 50W g.Connector: SMA-WK(Reverse polarity) 1.2.Mechanical Specifications a.Antenna Length: 107mm b.Antenna Weight: 12g c.Incasement number: 100 d.Box Size: 23511060mm e.Box Weight 1250g f.Application Condition In door MB2400-OA-2.5 2500MHZ 2450MHZ 2400MHZ

Compliance Certification Services (Kunshan) Inc. Report No: 04E0065-RP FCC ID: RBN3001P Date of Issue: November 19, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 69 FCC 47 CFR PART 15 SUBPART C TEST REPORT For UTStarcom Telecom Co., Ltd. Access Point Model: WA3001 Trade Name: UTStarcom Prepared for UTStarcom Telecom Co., Ltd. No.88 Wenhua Road, Hangzhou 310012, PRC Prepared by COMPLIANCE CERTIFICATION SERVICES (KUNSHAN) INC. 10#Weiye Rd, Innovation Park Eco. & Tec. Development Zone Kunshan city JiangSu, (215300) CHINA TEL: 86-512-57355888 FAX: 86-512-57370818 Lab. Code: 200581-0 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065-RP FCC ID: RBN3001P Date of Issue: November 19, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION........................................................................................................3 2. EUT DESCRIPTION..............................................................................................................................4 3. TEST METHODOLOGY.......................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION...........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..............................................................................................8 5.1 FACILITIES....................................................................................................................................... 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST...........................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS................................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................17 7.3 BAND EDGES MEASUREMENT ................................................................................................23 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................24 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................34 7.6 SPURIOUS EMISSIONS.................................................................................................................41 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................57 APPENDIX 1 PHOTOGRPHS OF TEST SETUP......................................................................................57 Compliance Certification Services (Kunshan) Inc. Report No: 04E0065-RP FCC ID: RBN3001P Date of Issue: November 19, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: UTStarcom Telecom Co., Ltd. No.88 Wenhua Road, Hangzhou 310012, PRC Equipment Under Test: Access Point Trade Name: UTStarcom Model: WA3001 Date of Test: November 2~ November 19, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Compliance Certification Services (Kunshan) Inc. Report No: 04E0065-RP FCC ID: RBN3001P Date of Issue: November 19, 2004 Page 4 2. EUT DESCRIPTION Product Access Point Trade Name UTStarcom Model Number WA3001 Model Discrepancy N/A Power Supply Powered from power adapter (Rating: 20V / 8A / 160W) Frequency Range 802.11b mode: 2412 ~ 2462 MHz 802.11g mode: 2412 ~ 2462 MHz Transmit Power 802.11b mode: 16.02 dBm 802.11g mode: 14.14 dBm / 18.56 dBm (Turbo mode) Modulation Technique 802.11b: DSSS (CCK; DQPS…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Report No: 04E0065-RP FCC ID: P3B755SI4 Date of Issue: November 19, 2004 Page 63 APPENDIX 1 PHOTOGRPHS OF TEST SETUP LINE CONDUCTED EMISSION TEST Compliance Certification Services (Kunshan) Inc. Report No: 04E0065-RP FCC ID: P3B755SI4 Date of Issue: November 19, 2004 Page 64 RADIATED EMISSION TEST
