RC6-BRF70NAC in Mobile Wireless Router

http://www.sapido.com.tw/ User Manual v1.0.0 1 SAPIDO BRF70n User Manual AC in Mobile Router http://www.sapido.com.tw/ User Manual v1.0.0 2 http://www.sapido.com.tw/ User Manual v1.0.0 3 Table of Contents Table of Contents .................................................................................................................................. 3 FCC Caution .......................................................................................................................................... 5 Chapter 1 Introduction ................................................................................................................. 7 1.1 Hardware Features...................................................................................................... 7 1.2 Product Appearance ................................................................................................... 8 Chapter 2 System and Network Setup...................................................................................... 10 2.1 Build Network Connection ....................................................................................... 10 2.2 Connecting BRF70N ................................................................................................. 10 2.3 Network setup ........................................................................................................... 10 2.3.1 Windows 2000................................................................................................... 11 2.3.2 Windows XP ...................................................................................................... 12 2.3.3 Windows Vista / Windows 7 ............................................................................ 12 2.4 Router IP Address Lookup ....................................................................................... 13 2.4.1 Log into Web GUI ............................................................................................. 15 Chapter 3 Internet Connection .................................................................................................. 16 3.1 Using as a broadband router ................................................................................... 16 3.2 Home button menu ................................................................................................... 17 3.3 Internet Setup ............................................................................................................ 20 3.3.1 PPPoE................................................................................................................ 21 3.3.2 DHCP................................................................................................................. 21 3.3.3 Static IP.............................................................................................................. 22 3.3.4 PPTP .................................................................................................................. 22 3.3.5 L2TP................................................................................................................... 24 3.3.6 WiFi ISP ............................................................................................................. 25 3.4 AP ............................................................................................................................... 25 3.5 WiFi AP....................................................................................................................... 26 Chapter 4 GUI Function Setup................................................................................................... 28 4.1 Firmware Upgrade..................................................................................................... 28 4.1.1 Auto upgrade .................................................................................................... 38 4.1.2 Manual upgrade ................................................................................................ 38 4.2 Parental Control ........................................................................................................ 30 4.2.1 URL Filtering ..................................................................................................... 30 4.2.2 MAC Filter Schedule ........................................................................................ 31 4.2.3 Wireless Schedule............................................................................................ 33 4.3 Office Control ............................................................................................................ 33 4.3.1 Multiple AP ........................................................................................................ 34 4.3.2 Wireless Access Control ................................................................................. 35 4.3.3 IP Filtering ......................................................................................................... 35 4.3.4 IP Binding.......................................................................................................... 36 4.3.5 QoS .................................................................................................................... 36 4.4 NAT Management ...................................................................................................... 39 4.4.1 Virtual Server .................................................................................................... 42 4.4.2 DMZ.................................................................................................................... 43 4.5 VPN Server................................................................................................................. 40 4.6 Time Zone .................................................................................................................. 44 4.7 DoS .................................................................…

Text truncated - open the document above for the full version.

Customers:易通圓科技股份有限公司 Customer Model No.: Master Wave Model No.:902P00057N0 Product Description: Issue Date: REV.:00 承 認 書 APPROVAL SHEET 2011/11/10 BR081 PIFA 核准 Approve主管 Chief承辦 Responsible CharleneCoreyHero 客戶承認用印 Customer Approved 權億承認用印 Confirmation Signature 2011.11.10 MASTER WAVE TECHNOLOGY CO., LTD. 權億科技股份有限公司 Address: No.81-8, Longshou St., Taoyuan City, Taoyuan County 330, Taiwan (R.O.C.) Tel: +886-3-3600306 Fax: +886-3-3600979 Shengyih Electronic Plastic Co. Ltd (Shou Zhou) 聲億電子塑膠有限公司 (蘇州廠 ) Address: No.95 Wusong south Rd of Luzhi Town Wu zhong Area Suzhou City, China Tel：+86-512-65046030 Fax：+86-512-65046033 Shengyih Electronic Plastic Manufactory (Dongguan) 聲億電子塑膠製品廠 (東莞廠) Address: Mu-Lun Administration Area, Changping Town,Dongguan City.Guangdong Province,China T el：+86-769-83914045 Fax：+86-769-83914046 Table of Contents Item 1. Antenna Specifications -Drawing -Electrical Properties -Mechanical Properties 2. Test Report -Electrical test -Pattern test -Antenna Efficiency 3. Packing Modification History: REV.Content 00 Date 2011/11/10 Electrical Properties Mechanical Properties BR081 PIFA 2.4 GHz 50 Ohms ≦2.0 Dimension(L*W*H)25*11*0.3T mm Type Frequency Range Impedance VSWR SUS430Material Electrical Test 3D Radiation Pattern 2.4GHz 3D Radiation Pattern 2.45GHz 3D Radiation Pattern 2.5GHz Antenna Gain and Efficiency 1.1360.39-2.193.322.5 69.04 63.99 Efficiency (%)Frequency (GHz) 2.4 2.45 Directivity (dBi) 3.83 3.85 Efficiency (dB) -1.94 -1.61 Peak Gain (dBi) 1.89 2.24

Amigo Technology Inc. 5F., NO.63, Lane77, Xing-Ai Road, Neihu Dist., Taipei City114, Taiwan(R.O.C) Attestation FCC IDRC6-BRF70N Product: AC in Mobile Wireless Router Model : BRF70n Statements: We, the undersigned, hereby certify that only 11 channels from 2412-2462MHz will be used in USA, other channels will be disabled by software. Sincerely yours, _________________________ Name/ Title JW Tsai / Manager Company name Amigo Technology Inc.

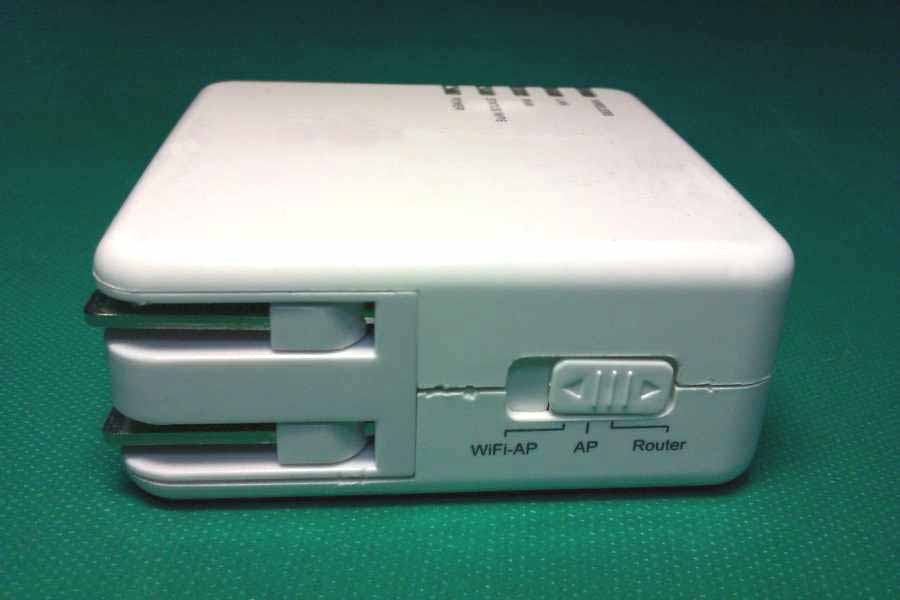

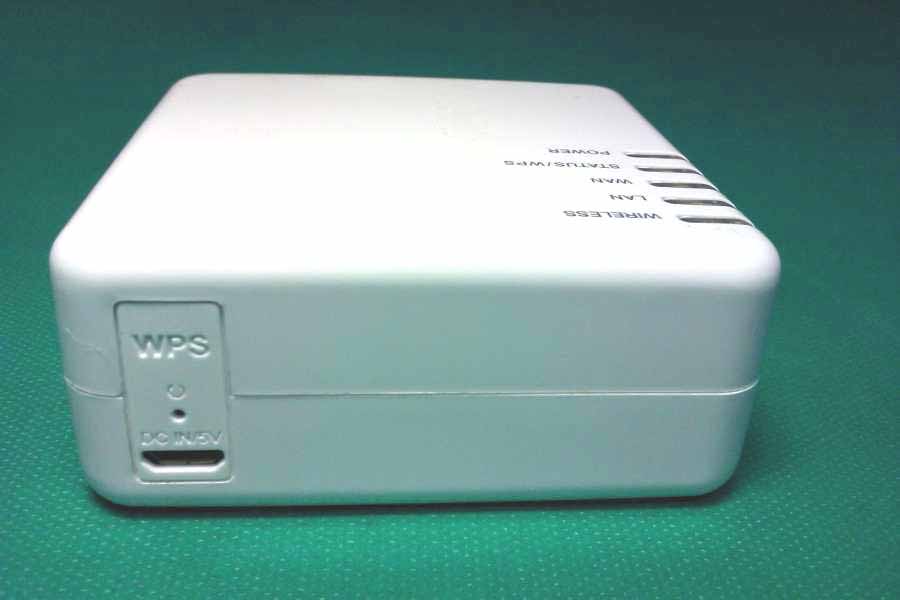

Compliance Certification Services Inc. Report No.T121105N41 Page A1 / 8 External Photo ( BRF70n ) Compliance Certification Services Inc. Report No.T121105N41 Page A2 / 8 Compliance Certification Services Inc. Report No.T121105N41 Page A3 / 8

Compliance Certification Services Inc. Report No.T121105N41 Page A4 / 8 Internal Photo ( BRF70n ) Compliance Certification Services Inc. Report No.T121105N41 Page A5 / 8 Compliance Certification Services Inc. Report No.T121105N41 Page A6 / 8 Compliance Certification Services Inc. Report No.T121105N41 Page A7 / 8 Compliance Certification Services Inc. Report No.T121105N41 Page A8 / 8

Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 45 / 116 8.3 MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 46 / 116 LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS No non-compliance noted. () () 22 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Once Antenna Gain=2.24dBi=1.674942881mW Total Antenna Gain=5.01dBi= 3.169786mW IEEE 802.11b = 0.0796 * 65.4636 * 1.67494288 ÷ 400 = 0.02182 IEEE 802.11g = 0.0796 * 161.4359 * 1.67494288 ÷ 400 = 0.05381 IEEE 802.11n HT20 = 0.0796 * 129.1219 * 1.67494288 ÷ 400 = 0.04304 IEEE 802.11n HT40 = 0.0796 * 109.3956 * 1.67494288 ÷ 400 = 0.03646 Mode Minimum separation distance (cm) Output Power (dBm) Output Power (mW) Antenna Gain (dBi) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11b 20 18.16 65.46 2.24 1.00 0.021820 IEEE 802.11g 20 22.08 161.44 2.24 1.00 0.053809 IEEE 802.11n HT2020 21.11 129.12 2.24 1.00 0.043038 IEEE 802.11n HT4020 20.39 109.40 2.24 1.00 0.036463 REMARK: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 1 / 116 FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4: 2003 TEST REPORT For AC in Mobile Wireless Router Model: BRF70n Brand: Amigo Issued for Amigo Technology Inc. 5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Issued by Compliance Certification Services Inc. Tainan Lab. No.8,Jiucengling, Xinhua Dist., Tainan City 712, Taiwan (R.O.C.) TEL: 886-6-580-2201 FAX: 886-6-580-2202 Date of Issue: December 08, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. Ltd. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 2 / 116 REVISION HISTORY Rev. Issue Date Revisions Effect Page Revised By 00 December 08, 2012 Initial Issue ALL Sunny Chang Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 3 / 116 TABLE OF CONTENTS 1. TEST REPORT CERTIFICATION............................................................................................ 4 2. EUT DESCRIPTION.................................................................................................................... 5 3. DESCRIPTION OF TEST MODES........................................................................................... 7 4. TEST METHODOLOGY............................................................................................................. 8 5. FACILITIES AND ACCREDITATIONS.................................................................................... 8 5.1 FACILITIES............................................................................................................................................8 5.2 EQUIPMENT..........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS LISTINGS..............................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................9 6. CALIBRATION AND UNCERTAINTY..................................................................................... 9 6.1 MEASURING INSTRUMENT CALIBRATION..................................................................................9 6.2 MEASUREMENT UNCERTAINTY.....................................................................................................9 7. SETUP OF EQUIPMENT UNDER TEST................................................................................. 10 7.1 SETUP CONFIGURATION OF EUT..................................................................................................10 7.2 SUPPORT EQUIPMENT.....................................................................................................................11 7.3 EUT OPERATING CONDITION.........................................................................................................12 8. APPLICABLE LIMITS AND TEST RESULTS........................................................................ 13 8.1 6DB BANDWIDTH................................................................................................................................13 8.2 MAXIMUM PEAK OUTPUT POWER.................................................................................................24 8.3 MAXIMUM PERMISSIBLE EXPOSURE...........................................................................................45 8.4 POWER SPECTRAL DENSITY..........................................................................................................47 8.5 CONDUCTED SPURIOUS EMISSION.............................................................................................57 8.6 RADIATED EMISSIONS......................................................................................................................70 8.7 POWERLINE CONDUCTED EMISSIONS........................................................................................107 9. ANTENNA REQUIREMENT...................................................................................................... 111 9.1 STANDARD APPLICABLE..................................................................................................................111 9.2 ANTENNA CONNECTED CONSTRUCTION...................................................................................111 APPENDIX SETUP PHOTOS........................................................................................................ 112 APPENDIX II PHOTOGRAPHS OF EUT.................................................................A1 Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 4 / 116 1. TEST REPORT CERTIFICATION Applicant Amigo Technology Inc. Address 5F., No.63, Lane 77, Xing-Ai Road, Neihu Dist., Taipei City 114, Taiwan (R.O.C.) Manufacturer Amigo Technology Inc. Address No. 82, Gongye 2nd Rd., Tainan City 70955, Taiwan, R.O.C. Equipment Under Test AC in Mobile Wireless Router Model BRF70n Brand Amigo Date of Test November 08, 2012 ~ November 17, 2012 APPLICABLE STANDARD STANDARD TEST RESULT FCC Part 15 Subpart C AND ANSI C63.4 : 2003 No non-compliance noted Approved by: Reviewed by: Jeter Wu Assistant Manager Eric Huang Assistant Section Manager Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 5 / 116 2. EUT DESCRIPTION Product Name AC in Mobile Wireless Router Model BRF70n Brand Amigo Received Date November 05, 2012 Frequency Range IEEE 802.11b/g, 802.11n HT20 (DTS Band):2412MHz~2462MHz IEEE 802.11n HT40 (DTS Band):2422MHz~2452MHz Transmit Power IEEE 802.11b Mode : 18.16dBm (DTS Band) (65.464mW) IEEE 802.11g Mode : 22.08dBm (DTS Band) (161.44mW) IEEE 802.11n HT20 Mode : 21.11dBm (DTS Band) (129.1…

Text truncated - open the document above for the full version.

Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 112 / 116 APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Test Mode: Normal Operation Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 113 / 116 Test Mode: 5Vdc Input Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 114 / 116 RADIATED RF MEASUREMENT SETUP Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 115 / 116 ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP Reference No.: T121105N41-RP1 FCC IDRC6-BRF70N Report No.T121105N41-RP1 Page 116 / 116 CONDUCTED EMISSION SETUP
