RC6-GRN70C4G Mesh Router

STEP 0. Check the whole set: One Master and Satellites. STEP 1. Power on Mater A. Connects WAN port to Modem and LAN port to computer, respectively. Smart Mesh Router Quick Installation Guide B. Insert the mini-SIM card into the card slot in the direction shown below until you hear a click. 3. Install external antenna You must install an external antenna to receive 4G LTE signals. Make sure that the external antenna is firmly connected to the SMA antenna ports on both sides of the router. STEP 2. Powering on two satellites nearby Master synchronizes Master and Satellites. Synchronization is done as flash green for 5G LED, 2.4G LED, and solid green for Status LED in whole set. LED Indicator Status Description Remark Power/Status ON Green System boot up ready and working normally Flashing Green (Interval : 1 sec) 1.System boot up progressing 2.Reset to default progressing (after push reset button 5s) Flashing Green (Interval : 0.5 sec) Mesh system pairing progressing (after push WPS button 1 sec) Flashing Green 30 sec (Interval : 0.1 sec) To identify which physical unit in mesh system (Trigger LED) OFF System shut down/ power OFF Internet (Dual-color) ON Amber LTE network connection If mixed-color needed, Amigo will not guarantee the performance. ON Green Ethernet network connection OFF No network connection Wi-Fi/WPS ON Green Wireless radio is enabled Flashing Green Traffic is passing through Wireless LAN Flashing Green (Interval : 1 sec) WPS function is enable (after push WPS button 5 sec) OFF Wireless radio is disabled WAN/LAN ON Green WAN/LAN Ethernet cable is connected Flashing Green Traffic is passing through WAN/LAN port OFF WAN/LAN Ethernet cable is not connected 4G Signal Strength ON Green Good Signal Flashing Green (Interval : 1 sec) Poor Signal OFF NO Signal STEP 3. Setup Master as whole Mesh synchronized (1) In computer, open web browser, go to 192.168.1.254. Apply admin for both Username and Password. Click Sing in. (2) In QUICK SETUP Web (3.1) INTERNET CONNECTION TYPE: Fill in Username and Password of PPPoE provided by your ADSL agent. (3.2) WIRELESS SETUP: Give SSID, enable security, and give passwords. (3.3) Click Save STEP 4. Satellites Placement and Configuration Move each Satellite to suitable location then power on for synchronization then enjoy the internet. Easy Troubleshooting # Synchronization Fail: When these two conditions occur, synchronization is fail. 1. 5G, 2.4G LEDs are flash green, but status LED can’t show solid green. 2. In 192.168.1.254 web GUI, MESH SETUP, shows no or less than two satellites in Mesh Status List. Solution: To push WPS buttons of fail Satellite and Master at the same time. Then they will be forced synchronization. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 21 cm between the radiator & your body.

Amigo Technology Inc. No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C) Date: 2019-12-30 FCC ID: RC6-GRN70C To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description Tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Jay Kung, R&D AVP Tel: +886226093434 ext. 216 Fax: +886226091394 E-mail: [email protected]

Reference No.: 191015C02 Page 1 / 11 CONSTRUCTION PHOTOS OF EUT Reference No.: 191015C02 Page 2 / 11 Reference No.: 191015C02 Page 3 / 11 Reference No.: 191015C02 Page 4 / 11 Reference No.: 191015C02 Page 5 / 11 Reference No.: 191015C02 Page 6 / 11 Reference No.: 191015C02 Page 7 / 11 Reference No.: 191015C02 Page 8 / 11 Reference No.: 191015C02 Page 9 / 11 Reference No.: 191015C02 Page 10 / 11 Reference No.: 191015C02 Page 11 / 11

Part NO. Part NameDevice Label Crystal Description Dimention75*45mm 左上C2mm Material Print ColorBlack Version :1.1 Remark Unitsmm Tolerance DrawerDate CustomerAmigo GRN70C ±0.5 mm Version :1.1 50番白色特多龍+PET膜 全抗碳帶 2019.12.20 75mm 45mm C2mm 1:1 Font:微軟正黑體 廠內自印 Code 128A QR Code S/N RN70MYH00001 XXXXXXXXXXXX XXXXXXXXXXXXXXX MAC IMEI FCC IDRC6-GRN70C Support LTE frequency bands : LTE FDD 2100(B1)/1900(B2)/1800(B3)/1700(B4) 850(B5)/2600(B7)/900(B8)/700(B28) MHz LTE TDD 2300(B40) MHz Model Name / 型號：GRN70C 4G Mesh Router / 4G 網狀無線路由器 Power Input / 輸入電源：12V 1.5A SSIDGRN70C-XXXXXX Wi-Fi KeyXXXXXXXX WPS PINXXXXXXXX IP: 192.168.1.254 User: admin Password: admin *XXXXXXXXXXXXXXX* Made in Taiwan 台灣製造 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. RN70MY H00001 Amigo 2019 = J 2020 = K 2021 = L 2022 = M 2023 = N MCA 印製：LAN MAC （NIC0 欄位） SSID: GRN70C-XXXXXX (XXXXXX→ 依照QR_CODE的ssid內容印製，大小寫須相同) S/N : 12碼 CODE 128A 空白貼紙料號：3LS075045XXXDSXX S/N RN70MYH00001 XXXXXXXXXXXX XXXXXXXXXXXXXXX MAC IMEI FCC IDRC6-GRN70C Support LTE frequency bands : LTE FDD 2100(B1)/1900(B2)/1800(B3)/1700(B4) 850(B5)/2600(B7)/900(B8)/700(B28) MHz LTE TDD 2300(B40) MHz Model Name / 型號：GRN70C 4G Mesh Router / 4G 網狀無線路由器 Power Input / 輸入電源：12V 1.5A SSIDGRN70C-XXXXXX Wi-Fi KeyXXXXXXXX WPS PINXXXXXXXX IP: 192.168.1.254 User: admin Password: admin *XXXXXXXXXXXXXXX* Made in Taiwan 台灣製造 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Location (Bottom Case) 50%

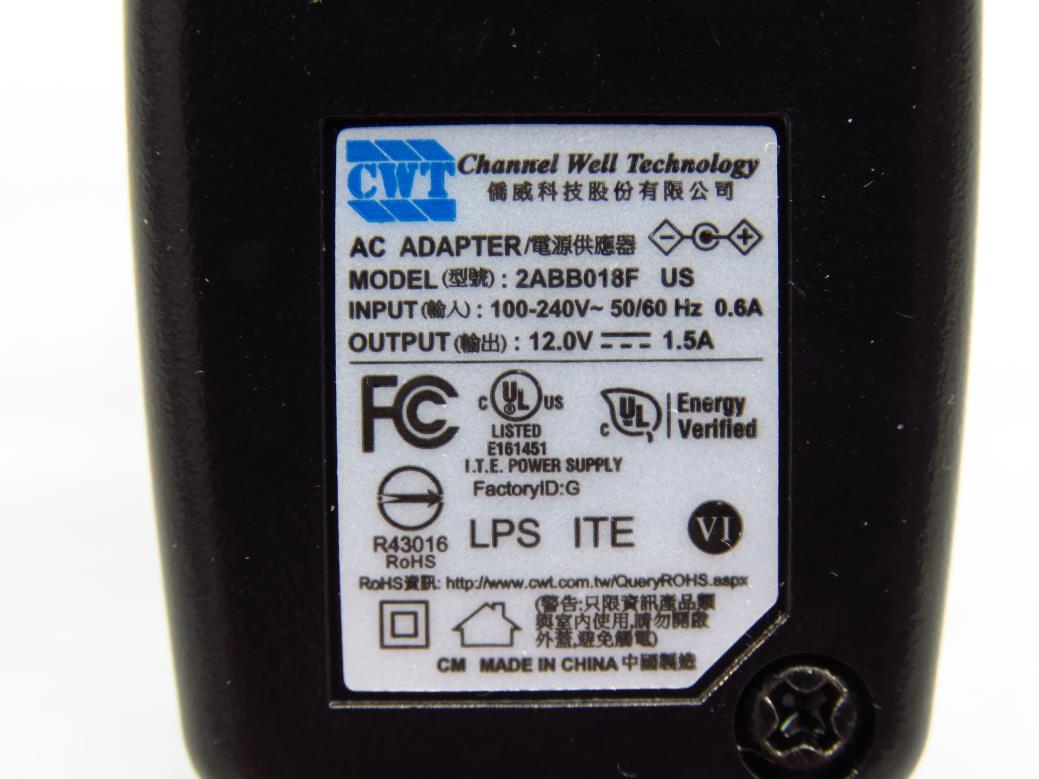

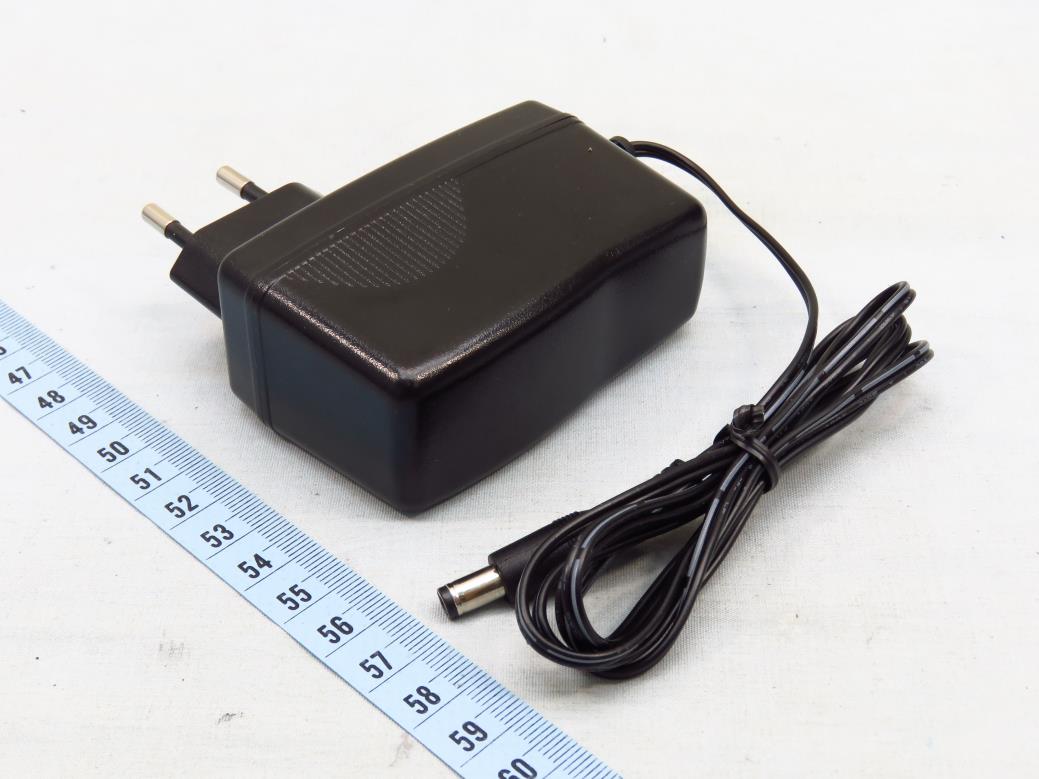

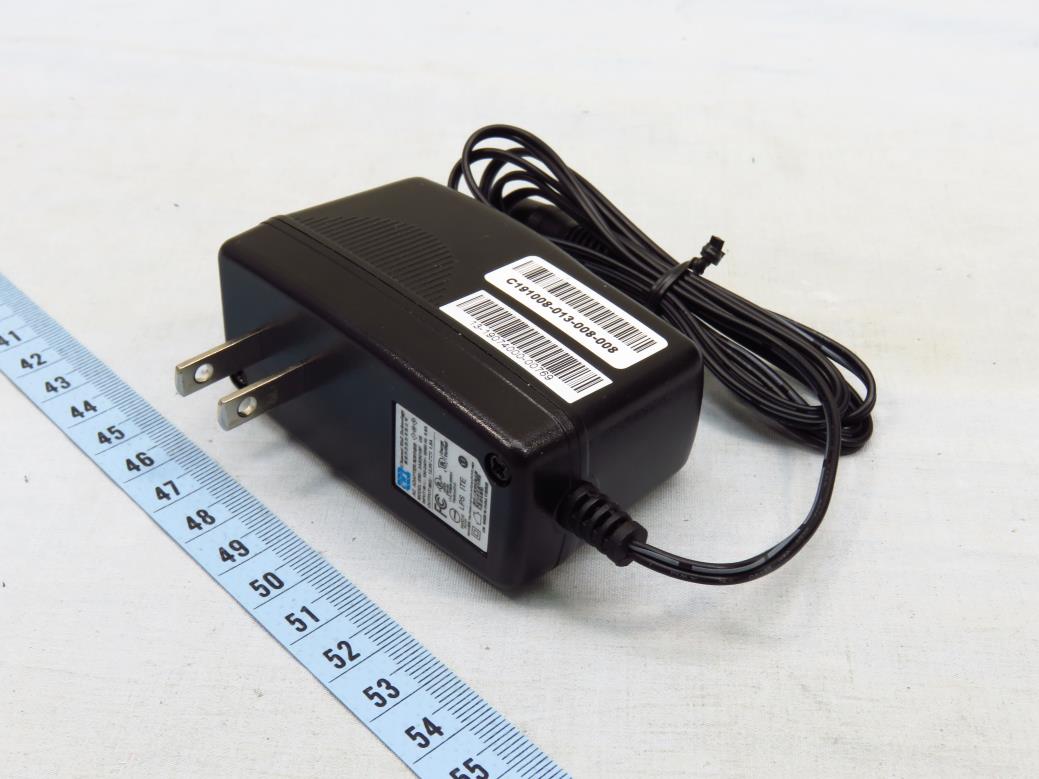

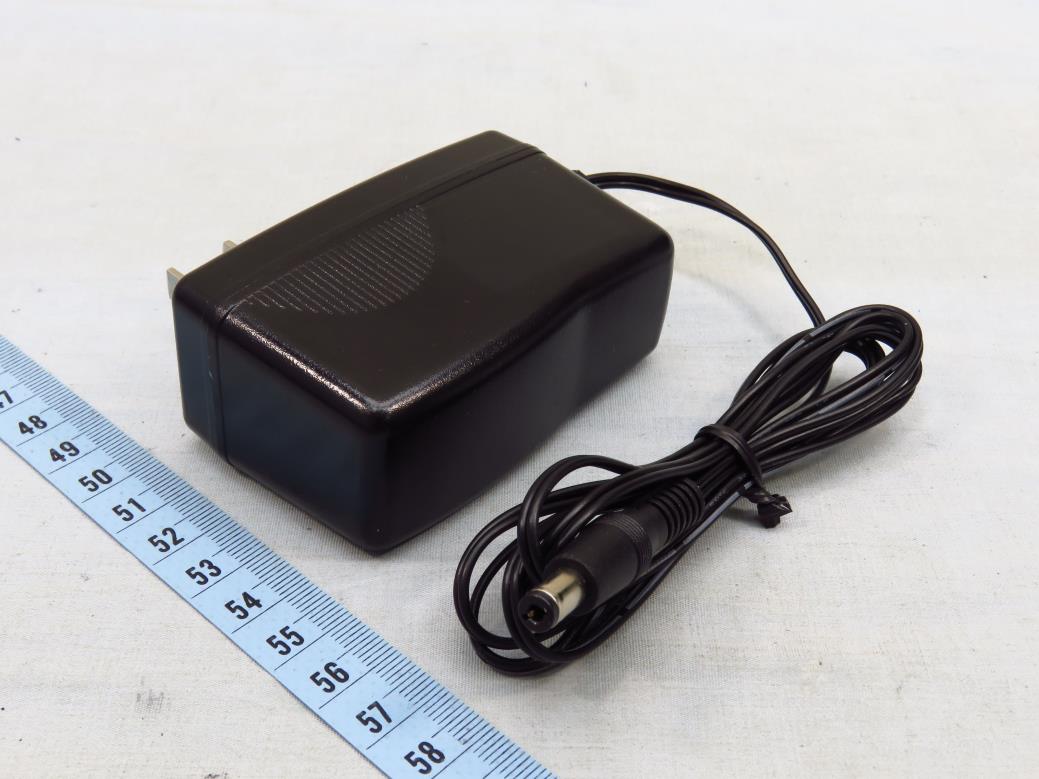

Reference No.: 191015C02 Page 1 / 5 CONSTRUCTION PHOTOS OF EUT Reference No.: 191015C02 Page 2 / 5 Reference No.: 191015C02 Page 3 / 5 Reference No.: 191015C02 Page 4 / 5 Reference No.: 191015C02 Page 5 / 5

Report No.: SA191015C02 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA191015C02 FCC ID: RC6-GRN70C Test Model: GRN70C Received Date: Oct. 15, 2019 Date of Evaluation: Dec. 09, 2019 Issued Date: Dec. 09, 2019 Applicant: Amigo Technology Inc. Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA191015C02 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Calculation Result of Maximum Conducted Power ............................................................................. 6 Report No.: SA191015C02 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA191015C02 Original Release Dec. 09, 2019 Report No.: SA191015C02 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: 4G Mesh Router Brand: Amigo Test Model: GRN70C Sample Status: ENGINEERING SAMPLE Applicant: Amigo Technology Inc. Date of Evaluation: Dec. 09, 2019 Standards: FCC Part 2 (Section 2.1091) References Test Guidance : KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.3 -2002 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Dec. 09, 2019 Gina Liu / Specialist Approved by : , Date: Dec. 09, 2019 Dylan Chiou / Project Engineer Report No.: SA191015C02 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 21cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA191015C02 Page No. 6 / 6 Report Format Version: 6.1.1 2.4 Calculation Result of Maximum Conducted Power Band Frequency Band (MHz) Max Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) LTE 2 1850-1910 23.47 4.7 21 0.118 1.00 LTE 4 1710-1755 23.08 4.7 21 0.108 1.00 LTE 5 824-849 23.93 3.5 21 0.100 0.55 LTE 7 2500-2570 23.88 4.7 21 0.130 1.00 WLAN 2412-2462 24.50 5.68 21 0.188 1.00 5180-5240 25.58 8.14 21 0.425 1.00 5745-5825 27.35 8.14 21 0.639 1.00 Note: 1. Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. 2. 2.4GHz: Directional gain = 2.67 dBi + 10log(2) = 5.68 dBi 5.0GHz: Directional gain = 5.13 dBi + 10log(2) = 8.14 dBi Conclusion: …

Text truncated - open the document above for the full version.

Report No.: RF191015C02-2 Page No. 1 / 61 Report Format Version: 6.1.1 FCC Test Report (PART 22) Report No.: RF191015C02-2 FCC ID: RC6-GRN70C Test Model: GRN70C Received Date: Oct. 15, 2019 Test Date: Oct. 23 ~ Oct. 30, 2019 Issued Date: Dec. 12, 2019 Applicant: Amigo Technology Inc Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies Report No.: RF191015C02-2 Page No. 2 / 61 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Test Site and Instruments ..................................................................................................................... 7 3 General Information ................................................................................................................................... 8 3.1 General Description of EUT .................................................................................................................. 8 3.2 Configuration of System under Test ...................................................................................................... 9 3.2.1 Description of Support Units ....................................................................................................... 9 3.3 Test Mode Applicability and Tested Channel Detail ............................................................................ 10 3.4 EUT Operating Conditions ................................................................................................................... 11 3.5 General Description of Applied Standards and references................................................................. 12 4 Test Types and Results ............................................................................................................................ 13 4.1 Output Power Measurement ............................................................................................................... 13 4.1.1 Limits of Output Power Measurement ...................................................................................... 13 4.1.2 Test Procedures ........................................................................................................................ 13 4.1.3 Test Setup ................................................................................................................................. 14 4.1.4 Test Results .............................................................................................................................. 15 4.2 Modulation Characteristics Measurement .......................................................................................... 24 4.2.1 Limits of Modulation Characteristics ......................................................................................... 24 4.2.2 Test Setup ................................................................................................................................. 24 4.2.3 Test Procedure ......................................................................................................................... 24 4.2.4 Test Results .............................................................................................................................. 24 4.3 Frequency Stability Measurement ...................................................................................................... 25 4.3.1 Limits of Frequency Stability Measurement ............................................................................. 25 4.3.2 Test Procedure ......................................................................................................................... 25 4.3.3 Test Setup ..........................…

Text truncated - open the document above for the full version.

Report No.: RF191015C02-3 Page No. 1 / 74 Report Format Version: 6.1.1 FCC Test Report (PART 24) Report No.: RF191015C02-3 FCC ID: RC6-GRN70C Test Model: GRN70C Received Date: Oct. 15, 2019 Test Date: Oct. 23 ~ Oct. 30, 2019 Issued Date: Dec. 12, 2019 Applicant: Amigo Technology Inc Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF191015C02-3 Page No. 2 / 74 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Test Site and Instruments ..................................................................................................................... 7 3 General Information ................................................................................................................................... 8 3.1 General Description of EUT .................................................................................................................. 8 3.2 Configuration of System under Test ...................................................................................................... 9 3.2.1 Description of Support Units ....................................................................................................... 9 3.3 Test Mode Applicability and Tested Channel Detail .............................................................................. 9 3.4 EUT Operating Conditions ................................................................................................................... 11 3.5 General Description of Applied Standards and references.................................................................. 11 4 Test Types and Results ............................................................................................................................ 12 4.1 Output Power Measurement ............................................................................................................... 12 4.1.1 Limits of Output Power Measurement ...................................................................................... 12 4.1.2 Test Procedures ........................................................................................................................ 12 4.1.3 Test Setup ................................................................................................................................. 13 4.1.4 Test Results .............................................................................................................................. 14 4.2 Modulation Characteristics Measurement .......................................................................................... 28 4.2.1 Limits of Modulation Characteristics ......................................................................................... 28 4.2.2 Test Setup ................................................................................................................................. 28 4.2.3 Test Procedure ......................................................................................................................... 28 4.2.4 Test Results .............................................................................................................................. 29 4.3 Frequency Stability Measurement ...................................................................................................... 30 4.3.1 Limits of Frequency Stability Measurement ............................................................................. 30 4.3.2 Test Procedure ......................................................................................................................... 30 4.3.3 Test Setup .......................…

Text truncated - open the document above for the full version.

Report No.: RF191015C02-4 Page No. 1 / 73 Report Format Version: 6.1.1 FCC Test Report (PART 27) Report No.: RF191015C02-4 FCC ID: RC6-GRN70C Test Model: GRN70C Received Date: Oct. 15, 2019 Test Date: Oct. 23 ~ Oct. 30, 2019 Issued Date: Dec. 12, 2019 Applicant: Amigo Technology Inc Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies Report No.: RF191015C02-4 Page No. 2 / 73 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 4 1 Certificate of Conformity ........................................................................................................................... 5 2 Summary of Test Results ........................................................................................................................... 6 2.1 Measurement Uncertainty ..................................................................................................................... 6 2.2 Test Site and Instruments ..................................................................................................................... 7 3 General Information ................................................................................................................................... 8 3.1 General Description of EUT .................................................................................................................. 8 3.2 Configuration of System under Test ...................................................................................................... 9 3.2.1 Description of Support Units ....................................................................................................... 9 3.3 Test Mode Applicability and Tested Channel Detail .............................................................................. …

Text truncated - open the document above for the full version.
