RC6-GRN72CMesh Router

STEP 0. Check the whole set: One Master and Satellites. STEP 1. Power on Mater, connects WAN port to Modem and LAN port to computer, respectively. Smart Mesh Router Quick Installation Guide STEP 2. Powering on two satellites nearby Master synchronizes Master and Satellites. Synchronization is done as flash green for 5G LED, 2.4G LED, and solid green for Status LED in whole set. LED Indicator Status Description Remark Power/Status ON Green System boot up ready and working normally Flashing Green (Interval : 1 sec) 1.System boot up progressing 2.Reset to default progressing (after push reset button 5 sec) Flashing Green (Interval : 0.5 sec) Mesh system pairing progressing (after push WPS button 1 sec) Flashing Green 30 sec (Interval : 0.1 sec) To identify which physical unit in mesh system (Trigger LED) OFF System shut down or power OFF Internet (Single color) ON Green Ethernet network connection OFF No network connection Wi-Fi/WPS ON Green Wireless radio is enabled Flashing Green Traffic is passing through Wireless LAN Flashing Green (Interval : 1 sec) WPS function is enable (after push WPS button 5 sec) OFF Wireless radio is disabled WAN ON Green When WAN is connected Flashing Green Traffic is passing through WAN port OFF WAN Ethernet cable is not connected LAN ON Green When LAN is connected Flashing Green Traffic is passing through LAN port OFF LAN Ethernet cable is not connected STEP 3. Setup Master as whole Mesh synchronized (1) In computer, open web browser, go to 192.168.1.254. Apply admin for both Username and Password. Click Sing in. (2) In QUICK SETUP Web (3.1) INTERNET CONNECTION TYPE: Fill in Username and Password of PPPoE provided by your ADSL agent. (3.2) WIRELESS SETUP: Give SSID, enable security, and give passwords. (3.3) Click Save STEP 4. Satellites Placement and Configuration Move each Satellite to suitable location then power on for synchronization then enjoy the internet. Easy Troubleshooting # Synchronization Fail: When these two conditions occur, synchronization is fail. 1. 5G, 2.4G LEDs are flash green, but status LED can’t show solid green. 2. In 192.168.1.254 web GUI, MESH SETUP, shows no or less than two satellites in Mesh Status List. Solution: To push WPS buttons of fail Satellite and Master at the same time. Then they will be forced synchronization. Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Operations in the 5.15-5.25GHz band are restricted to indoor usage only. Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Amigo Technology Inc. No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C) Date: 2019-12-25 FCC ID: RC6-GRN72C To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Jay Kung, R&D AVP Tel: +886226093434 ext. 216 Fax: +886226091394 E-mail: [email protected]

Io Whom lt May Concern: This application is intended to reuse previous test data (from FCC.TD: RC6-GRN70c, certified on 0r/06/2020), crue to the fact that the two versions of pioducts are hardware-wise identicar .ro "rrvir," folrowing changes have been made: L' Remove LTE hardware: There are a total of two PCB boards, and ZigBee is located on first pcB board as shown below. Originat FCC tD: RC6_GRNTOC New FCC lD: RC6-GRN72G: ail LTE rerated components removed. ,*-.i r *$6Ji iil., : fiEt ", aaaaa aaaaa aaaaa q is* 1 $dl &rffIsIn?a&B$A I I t.u sr-,orr*-.:rur'* i ff sn npRi.,iil2A,tOSA?E I g rrrrl a;eoroosoteos{.r ll rce ffi# '-rfit#. # since LTE circuit are located in an isolated block with all RF circuits shielded and have its own independent antenna' so' no big impact on the 2'4G,5G non-license circuit is expected. we have performed spot checks on the following items to verifli that if any unexpected RF conducted power or emission changes can be noted. The test results show that all spot check data are within the instrument measurement uncertainty and data reuse is justifiable. Verification test items: WiFipart: o conducted power fu, test on a, modurations and channers o Radiated Emission Test (choose worse case) For the test result' ptease refers to included exhibit'Test Report- 2.4G/sc(spot check).pdf, for detail. Also' both the referenced application and this new application are within 2 months and are all subject to the same FCC rure and there is no new rure update for rerated rures. Accordingly' we believe that the reuse data from previous certified filing is justifiable. Thank you for your attention and prease feerfree to contact us, if you shourd have any questions. Sincerely yours, I Ittul V,v,'V Jay Kung, R&D AVp/ Tel: +886226093434 ext. 216 Fax: +886226091394 E-mail : jay.kung@am igo.com.trrrr 0 r t r E G e 6 x x , *s, E& / i aatat aaaaa ['....ffi ;,gtsr{1i;;i6 r-

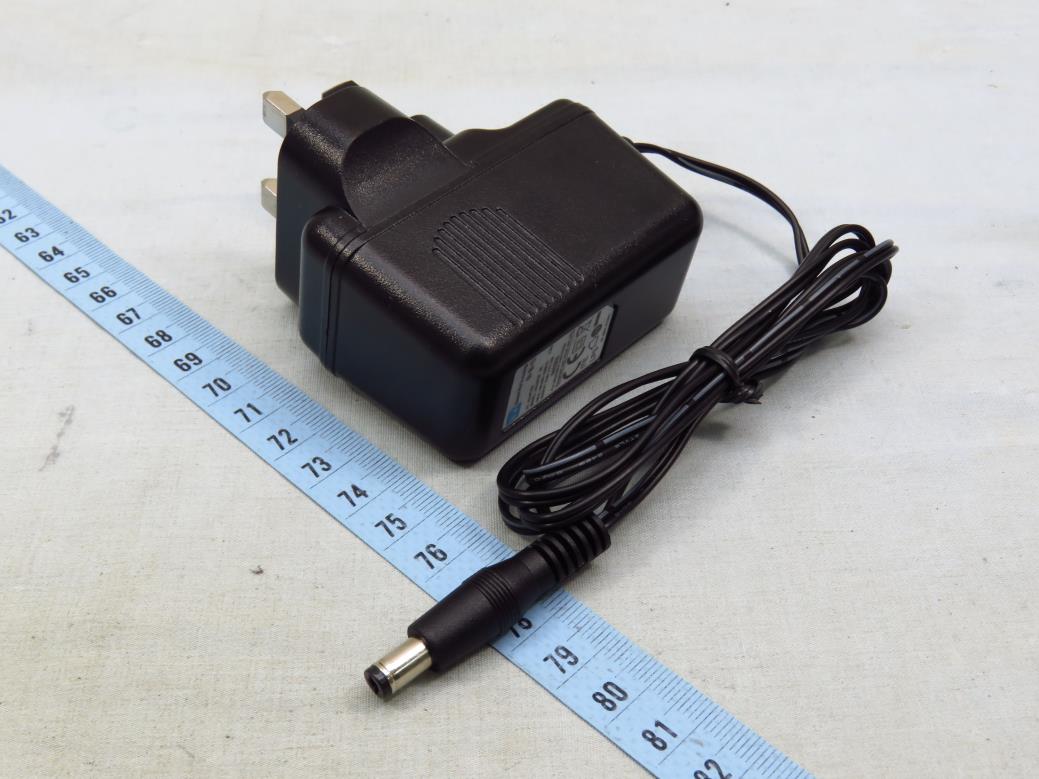

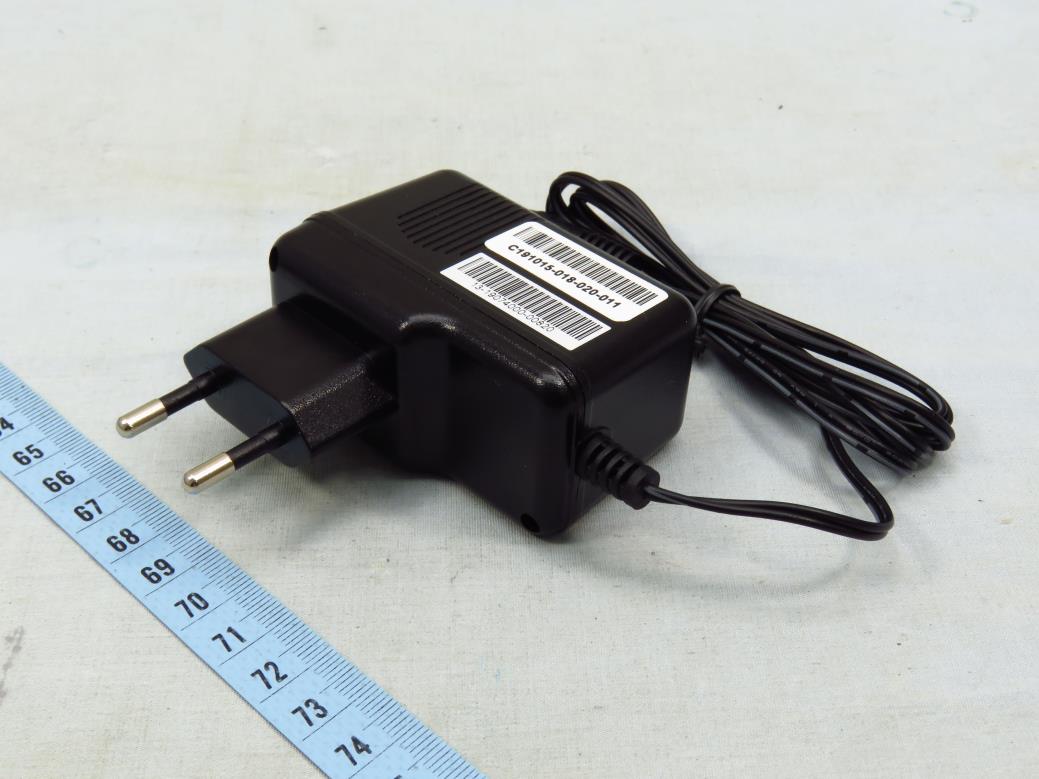

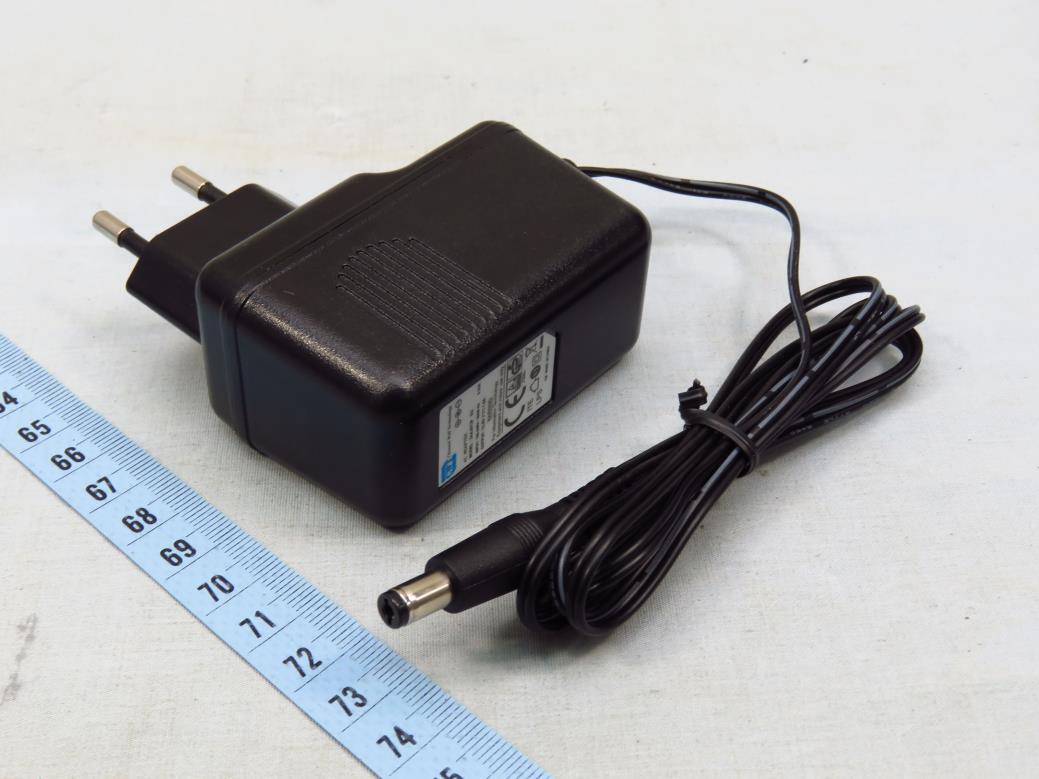

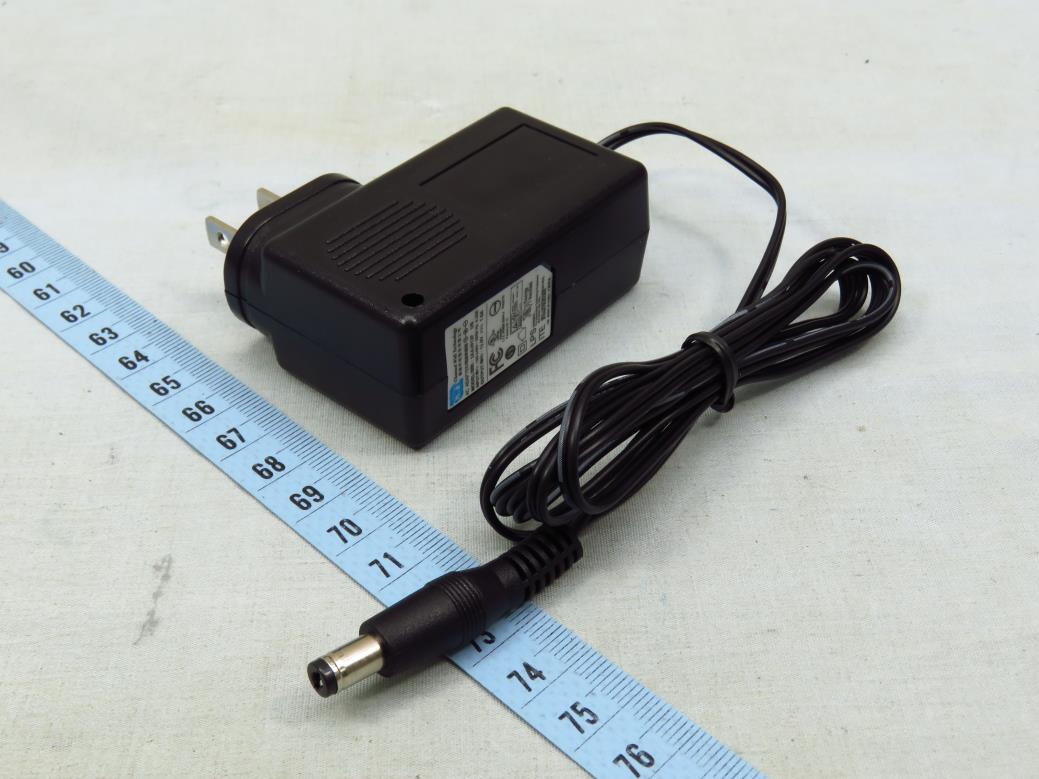

Reference No.: 191014C24 Page 1 / 10 CONSTRUCTION PHOTOS OF EUT Reference No.: 191014C24 Page 2 / 10 Reference No.: 191014C24 Page 3 / 10 Reference No.: 191014C24 Page 4 / 10 Reference No.: 191014C24 Page 5 / 10 Reference No.: 191014C24 Page 6 / 10 Reference No.: 191014C24 Page 7 / 10 Reference No.: 191014C24 Page 8 / 10 Reference No.: 191014C24 Page 9 / 10 Reference No.: 191014C24 Page 10 / 10

Part NO. Part NameDevice Label Description Dimention75*45mm 左上C2mm Material Print ColorBlack Crystal Version :1.0 Remark Unitsmm Tolerance DrawerDate CustomerAmigo GRN72C ±0.5 mm 2019.12.20 Version :1.0 50番白色特多龍+PET膜 75mm 45mm C2mm 1:1 Font:微軟正黑體 廠內自印 Code 128A S/N RN72MYH00001 XXXXXXXXXXXXMAC FCC IDRC6-GRN72C Model Name / 型號：GRN72C Mesh Router / 網狀無線路由器 Power Input / 輸入電源：12V 1A SSIDGRN72C-XXXXXX Wi-Fi KeyXXXXXXXX WPS PINXXXXXXXX IP: 192.168.1.254 User: admin Password: admin 空白貼紙料號：3LS075045XXXDSXX MCA 印製：LAN MAC （NIC0 欄位） Made in Taiwan 台灣製造 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. QR Code 全抗碳帶 RN72MY H00001 Amigo 2019 = J 2020 = K 2021 = L 2022 = M 2023 = N S/N : 12碼 CODE 128A SSID: GRN72C-XXXXXX (XXXXXX→ 依照QR_CODE的ssid內容印製，大小寫須相同) Label Location (Bottom Case) 50% S/N RN72MYH00001 XXXXXXXXXXXXMAC FCC IDRC6-GRN72C Model Name / 型號：GRN72C Mesh Router / 網狀無線路由器 Power Input / 輸入電源：12V 1A SSIDGRN72C-XXXXXX Wi-Fi KeyXXXXXXXX WPS PINXXXXXXXX IP: 192.168.1.254 User: admin Password: admin Made in Taiwan 台灣製造 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Reference No.: 191014C24 Page 1 / 5 CONSTRUCTION PHOTOS OF EUT Reference No.: 191014C24 Page 2 / 5 Reference No.: 191014C24 Page 3 / 5 Reference No.: 191014C24 Page 4 / 5 Reference No.: 191014C24 Page 5 / 5

Report No.: SA191014C24 Page No. 1 / 6 Report Format Version: 6.1.1 RF Exposure Report Report No.: SA191014C24 FCC ID: RC6-GRN72C Test Model: GRN72C Received Date: Oct. 14, 2019 Date of Evaluation: Nov. 14, 2019 Issued Date: Nov. 18, 2019 Applicant: Amigo Technology Inc Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No. 19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, TAIWAN FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: SA191014C24 Page No. 2 / 6 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 RF Exposure .......................................................................................................................................... 5 2.1 Limits for Maximum Permissible Exposure (MPE) .............................................................................. 5 2.2 MPE Calculation Formula ................................................................................................................... 5 2.3 Classification ....................................................................................................................................... 5 2.4 Calculation Result of Maximum Conducted Power ............................................................................. 5 Report No.: SA191014C24 Page No. 3 / 6 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued SA191014C24 Original Release Nov. 18, 2019 Report No.: SA191014C24 Page No. 4 / 6 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Mesh Router Brand: Amigo Test Model: GRN72C Sample Status: Engineering Sample Applicant: Amigo Technology Inc Date of Evaluation: Nov. 14, 2019 Standards: FCC Part 2 (Section 2.1091) KDB 447498 D01 General RF Exposure Guidance v06 IEEE C95.3 -2002 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Prepared by : , Date: Nov. 18, 2019 Gina Liu / Specialist Approved by : , Date: Nov. 18, 2019 Dylan Chiou / Project Engineer Report No.: SA191014C24 Page No. 5 / 6 Report Format Version: 6.1.1 2 RF Exposure 2.1 Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) Limits For General Population / Uncontrolled Exposure 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f 2 )* 30 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 f = Frequency in MHz ; *Plane-wave equivalent power density 2.2 MPE Calculation Formula Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 2.3 Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. 2.4 Calculation Result of Maximum Conducted Power Band Frequency Band (MHz) Max Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) WLAN 2412-2462 24.43 5.68 20 0.204 1.00 5180-5240 25.57 8.14 20 0.467 1.00 5745-5825 27.17 8.14 20 0.676 1.00 Note: 1.Determining compliance based on the results of the compliance measurement, not taking into account measurement instrumentation uncertainty. 2.2.4 GHz: Directional gain = 2.67 dBi + 10log(2) = 5.68 dBi 5 GHz: Directional gain = 5.13 dBi + 10log(2)= 8.14 dBi 3.The WLAN 2.4G and WLAN 5G can transmit simultaneously. Report No.: SA191014C24 Page No. 6 / 6 Report Format Version: 6.1.1 Conclusion: The formula of calculated the MPE is: CPD1 / LPD1 + CPD2 / LPD2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of …

Text truncated - open the document above for the full version.

Report No.: RF191014C24 Page No. 1 / 27 Report Format Version: 6.1.1 FCC Test Report (Spot Check) Report No.: RF191014C24 FCC ID: RC6-GRN72C Test Model: GRN72C Received Date: Oct. 14, 2019 Test Date: Oct. 30 ~ Nov. 14, 2019 Issued Date: Nov. 18, 2019 Applicant: Amigo Technology Inc Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF191014C24 Page No. 2 / 27 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ........................................................................................................................... 4 2 Summary of Test Results ........................................................................................................................... 5 2.1 Measurement Uncertainty ..................................................................................................................... 5 2.2 Modification Record .............................................................................................................................. 5 3 General Information ................................................................................................................................... 6 3.1 General Description of EUT .................................................................................................................. 6 3.2 Description of Test Modes ..................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail .................................................................... 9 3.3 Description of Support Units ................................................................................................................ 11 3.3.1 Configuration of System under Test .......................................................................................... 11 3.4 General Description of Applied Standards ........................................................................................... 11 4 est Types and Results .............................................................................................................................. 12 4.1 Radiated Emission and Bandedge Measurement .............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement ..................................................... 12 4.1.2 Test Instruments ....................................................................................................................... 13 4.1.3 Test Procedures ........................................................................................................................ 14 4.1.4 Deviation from Test Standard ................................................................................................... 14 4.1.5 Test Set Up ............................................................................................................................... 15 4.1.6 EUT Operating Conditions ........................................................................................................ 16 4.1.7 Test Results .............................................................................................................................. 17 4.2 Conducted Emission Measurement .................................................................................................... 20 4.2.1 Limits of Conducted Emission Measurement ........................................................................... 20 4.2.2 Test Instruments ....................................................................................................................... 20 4.2.3 Test Procedures ........................................................................................................................ 21 4.2.4 Deviation from Test Standard ................................................................................................... 21 4.2.5 Test Setup ..................................................................…

Text truncated - open the document above for the full version.

Report No.: RF191014C24-2 Page No. 1 / 22 Report Format Version: 6.1.1 FCC Test Report (Co-Located) Report No.: RF191014C24-2 FCC ID: RC6-GRN72C Test Model: GRN72C Received Date: Oct. 14, 2019 Test Date: Jan. 09, 2020 Issued Date: Jan. 09, 2020 Applicant: Amigo Technology Inc Address: No.82, Gongye 2nd Rd., Annan Dist.,Tainan City 709, Taiwan(R.O.C.) Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Lin Kou Laboratories Lab Address: No. 47-2, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan Test Location: No.19, Hwa Ya 2nd Rd., Wen Hwa Vil., Kwei Shan Dist., Taoyuan City 33383, Taiwan FCC Registration / Designation Number: 788550 / TW0003 This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF191014C24-2 Page No. 2 / 22 Report Format Version: 6.1.1 Table of Contents Release Control Record .................................................................................................................................. 3 1 Certificate of Conformity ...................................................................................................................... 4 2 Summary of Test Results ..................................................................................................................... 5 2.1 Measurement Uncertainty ................................................................................................................... 5 2.2 Modification Record ............................................................................................................................ 5 3 General Information .............................................................................................................................. 6 3.1 General Description of EUT ................................................................................................................ 6 3.2 Description of Test Modes ................................................................................................................... 8 3.2.1 Test Mode Applicability and Tested Channel Detail ........................................................................... 10 3.3 Description of Support Units .............................................................................................................. 11 3.3.1 Configuration of System under Test ................................................................................................... 11 3.4 General Description of Applied Standards and references ................................................................ 11 4 Test Types and Results ...................................................................................................................... 12 4.1 Radiated Emission and Bandedge Measurement ............................................................................. 12 4.1.1 Limits of Radiated Emission and Bandedge Measurement .............................................................. 12 4.1.2 Test Instruments ................................................................................................................................ 14 4.1.3 Test Procedures ................................................................................................................................. 15 4.1.4 Deviation from Test Standard ............................................................................................................ 15 4.1.5 Test Setup .......................................................................................................................................... 16 4.1.6 EUT Operating Conditions ................................................................................................................. 17 4.1.7 Test Results ....................................................................................................................................... 18 5 Pictures of Test Arrangements .......................................................................................................... 21 Appendix – Information on the Testing Laboratories ................................................................................ 22 Report No.: RF191014C24-2 Page No. 3 / 22 Report Format Version: 6.1.1 Release Control Record Issue No. Description Date Issued RF191014C24-2 Original Release Jan. 09, 2020 Report No.: RF191014C24-2 Page No. 4 / 22 Report Format Version: 6.1.1 1 Certificate of Conformity Product: Mesh Router Brand: Amigo Model Name: GRN72C Sample Status: Engineering Sample Applicant: Amigo Technology Inc Test Date: Jan. 09, 2020 Standards: 47 CFR FCC Part 15, Subpart C (Section 15.2…

Text truncated - open the document above for the full version.

FCC ID: RC6-GRN72C 1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RC6-GRN72C 2 RADIATED EMISSION TEST BELOW 1GHz (X-Plane) FCC ID: RC6-GRN72C 3 RADIATED EMISSION TEST BELOW 1GHz (Y-Plane) FCC ID: RC6-GRN72C 4 RADIATED EMISSION TEST ABOVE 1GHz (X-Plane) FCC ID: RC6-GRN72C 5 RADIATED EMISSION TEST ABOVE 1GHz (Y-Plane)
