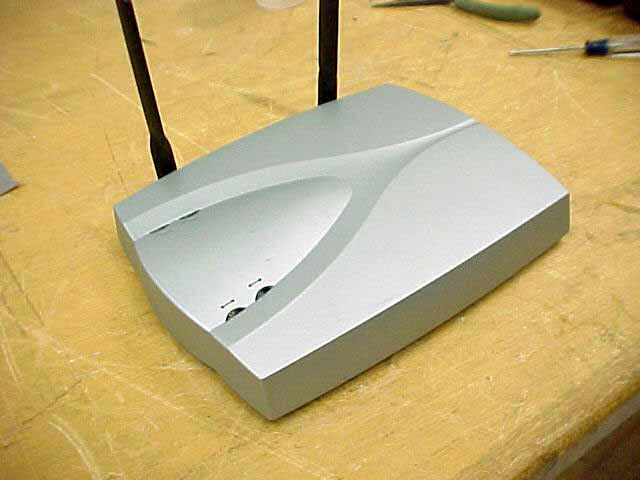

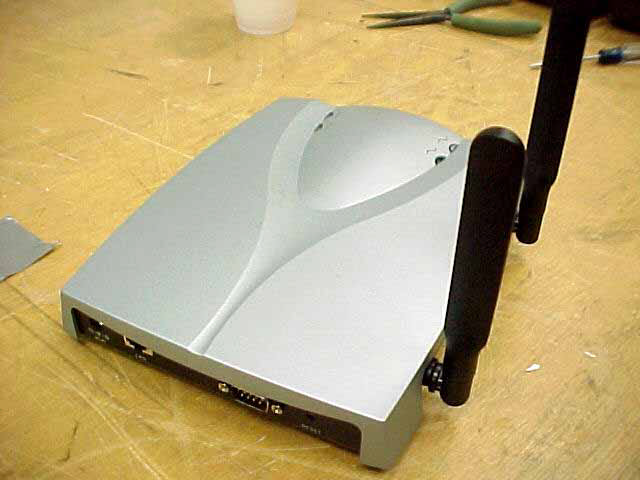

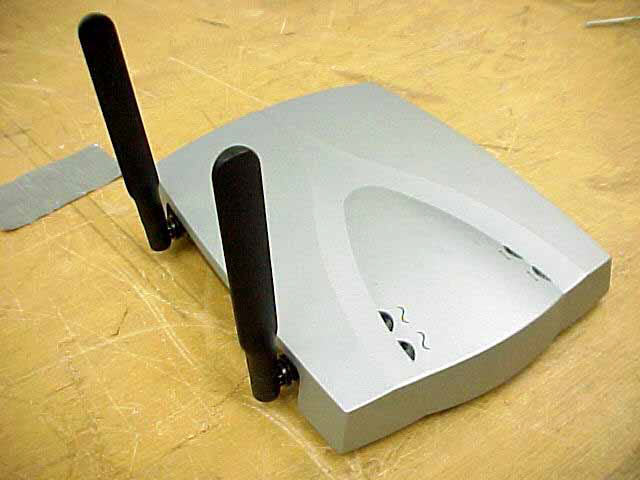

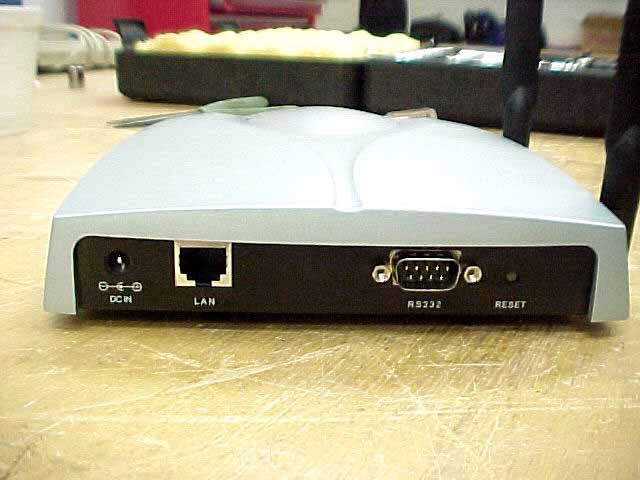

RCX-EE11ABG3802.11 a/b/g Emulation Engine

v2.3 Communication Machinery Corporation | 402 E. Gutierrez Street | Santa Barbara, CA. 93101 Phone: 1.805.879.1521| Fax: 1.805.564.7188 | Web: www.cmc.com Communication Machinery Corporation (CMC) ii 080104 Copyright & Trademark Notices Copyright 2004 by Communication Machinery Corporation (CMC). All rights reserved. This document may not be reproduced in whole or in part by any means without the written consent of CMC. EmulationEngine and vSTA are registered trademarks of Communication Machinery Corporation. The web-based user interface uses the GoAhead WebServer: Copyright (c) 2003 GoAhead Software, Inc. All rights reserved. Radio Frequency Interference Requirements 802.11a devices transmit in the 5 GHz band. 802.11b and 802.11g devices transmit in the 2.4 GHz band. FCC regulations require this product to be used indoors to reduce the potential for interference with (to or from) other devices that operate in the same frequency range. FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: !" Reorient or relocate the radio /TV receiving antenna. !" Increase the separation between the equipment and the radio/TV receiver. !" Connect the equipment to an outlet that is on a different circuit from where the radio/TV receiver is connected. !" Consult the dealer or an experienced radio/TV technician for help. Unless expressly approved by CMC, modifications to this product could void the user's authority to operate the equipment. RF Exposure Requirements To ensure compliance with FCC RF exposure requirements, the antenna used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or radio transmitter. Installers and end-users must follow the installation instructions provided in this guide. EmulationEngine 11a/b/g User's Guide 080104 iii TABLE OF CONTENTS CHAPTER 1: CHAPTER 1:CHAPTER 1: CHAPTER 1: Overview OverviewOverview Overview ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ .................................. .... .. 1 11 1- -- -1 11 1 Packaging Checklist ................................................................................... 1-1 Feature List .............................................................................................. 1-2 Files......................................................................................................... 1-3 System Requirements ................................................................................ 1-3 Hardware Characteristics ............................................................................ 1-4 General Usage Notes ................................................................................. 1-4 CHAPTER 2: CHAPTER 2:CHAPTER 2: CHAPTER 2: Connectors, LEDs & Antennas Connectors, LEDs & AntennasConnectors, LEDs & Antennas Connectors, LEDs & Antennas................................ ................................................................ ................................................................ ................................................................ ............................................................. .......................................................... ............................. 2 22 2- -- -1 11 1 Front Panel/LEDs ....................................................................................... 2-1 Back Panel................................................................................................ 2-2 Connectors ............................................................................................ 2-2 Antennas............................................................................................... 2-2 Reset Button.......................................................................................... 2-2 CHAPTER 3: CHAPTER 3:CHAPTER 3: CHAPTER 3: Installation InstallationInstallation Installation................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................. .. .3 33 3- -- -1 11 1 Connecting Directly to a Command PC ......................................................... 3-1 Connecting Through an Ethernet Hub/Switch ................................................ 3-1 Connecting to the Serial Port (Optional) ....................................................... 3-1 CHAPTER 4: CHAPTER 4:CHAPTER 4: CHAPTER 4: Initial Set…

Text truncated - open the document above for the full version.

EmulationEngine 11a/b/g User's Guide 080104 5-25 Traffic Source: Select Internal or External from the list box. In Internal mode, traffic is generated internally by each vSTA using ICMP Echo (Ping) Request/Reply packets. In External mode, packets coming into the EmulationEngine over 802.3 are mapped to virtual stations by source IP or MAC address and forwarded via 802.11. Packets coming back via 802.11 are remapped to the originating MAC address. Layer 2/Layer 3: If External is selected in the Traffic Source field, select one of these radio buttons to identify the external frames to be captured. If Layer 2 is selected, frames will be captured based on the source 802.3 MAC address. If Layer 3 is selected, frames will be captured based on the source IP address. For vSTAs configured at layer 3, IP and ARP packets generated from this host that contain the virtual station's IP address as a source will be translated at the MAC layer to appear as if sourced from the virtual station's MAC address. Target IP Address: Enter the target IP address where ICMP Echo (Ping) Requests should be sent. The default IP address (0.0.0.0) shown in this Communication Machinery Corporation (CMC) 5-26 080104 example dialog must be replaced by a valid IP address (e.g., 10.10.10.19). Packet Length: Specify the size of the ping data buffer (64...1024). The default is 1024. Count: Specify the total number of pings to be sent: 0...10000 (0=None). !" Click “Create” to create the group. !" Click “Cancel” to exit this dialog. vSTA->New Group->Runtime The Runtime section of the New Emulation Group dialog allows you to run a virtual station’s test multiple times. This is only applicable to internal traffic generation. After each iteration of a test, the state of the virtual station can be set to a “base state”. A user-defined delay between successive iterations is defined in milliseconds. Optionally, any results collected for the virtual station can be cleared at the start of each iteration. EmulationEngine 11a/b/g User's Guide 080104 5-27 Number of Iterations: Enter the number of times (1...10000) to repeat the virtual station’s task (Ping) or select the Infinite checkbox to continuously iterate indefinitely. Iteration Delay: Enter the delay (in milliseconds) to be introduced between iterations of the test. It can be set to a value in the range: 0...300000 milliseconds (5 minutes). Before Running Next Iteration->Reset vSTA State to: Select a state from the list box. Each virtual station in this group will be reset to the selected state (initialized, authenticated, or associated) at the end of each iteration. Before Running Next Iteration->Clear vSTA Results: Select this check box to clear test results before successive iterations of the test. RTS Threshold: Enter a value in the range 1...2346 to define the RTS threshold for the virtual station(s) in this group. Any frame to be transmitted by a virtual station that exceeds the RTS threshold, will require a successful RTS/CTS frame exchange before the frame is transmitted. The minimum value (1) effectively requires RTS/CTS for all transmit frames. The maximum value (2346) is the maximum 802.11 frame size and effectively disables RTS. Fragmentation Threshold: Enter a value in the range 256...2346 to define the fragmentation threshold for the virtual station(s) in this group. The fragmentation threshold will limit the number of bytes in any 802.11 frame transmitted by the virtual station(s). If this field is set to 2346 (i.e., the maximum 802.11 frame size), fragmentation is effectively disabled. !" Click “Create” to create the group. !" Click “Cancel” to close this dialog. vSTA->New Group->On Error The On Error section of the New Emulation Group dialog defines whether virtual stations should reconnect to the System Under Test during a test if the system de-authenticates or disassociates a virtual station. Communication Machinery Corporation (CMC) 5-28 080104 Persist: Select this checkbox to enable or disable persistence. When enabled, virtual stations in this group will remain persistent (connected) if the System Under Test de-authenticates or disassociates. If the EmulationEngine loses connection to a System Under Test, persistence will allow it to recover and continue the test at the point where it was interrupted. For example, if a virtual station is in a run or associated state and an 802.11 management frame (deauth or disassoc) is sent by the System Under Test and received by the EmulationEngine, the virtual station will attempt to return to the state it was in before the management frame was received. If the virtual station was running a ping test, the ping test will continue. If it was in an associated state, the virtual station will reissue the associate request. Retries: This field specifies the number of times the EmulationEngine should issue authentication and association requests before failing the operation. It can be a value in the range 0...10. EmulationEngine 11a/b/g User's Guide 080104 5-29 Timeout: This field specifies the timeout value (in milliseconds) for authentication and association requests. It can be set to a value in the range 250...60000 milliseconds (1 minute). !" Click “Create” to create the group. !" Click “Cancel” to close this dialog. vSTA->New Group->Encryption This section of the New Group dialog defines whether the virtual station will use encryption, the associated cipher to be used and the type of authentication (Open System or Shared Key) to be used for authenticating with the System Under Test. NOTE: The four shared keys for Wired Equivalency Privacy (WEP) encryption must be defined in the Encryption Defaults dialog in the Configuration side bar. Encryption: Select this checkbox to enable/disable encryption. Communication Machinery Corporation (CMC) 5-30 080104 Authentication: Select the authentication type: Open System or Shared Key. Cipher Selection: Reserved for future use. WEP is the only supported selection in this release. Shared …

Text truncated - open the document above for the full version.

EmulationEngine 11a/b/g User's Guide 080104 6-1 CHAPTER 6: The Command Line Interface (CLI) The CLI can be used to display and modify the configuration of the EmulationEngine from a PC that is connected via Telnet or the serial port. The CLI also includes commands to configure and run virtual stations, display statistics, and to access the System Under Test. The EmulationEngine maintains statistics and event log files that you can configure and display using CLI commands. CLI Usage Notes 1) CLI commands are not case sensitive (e.g., "set Date" is the same as "set date"). 2) You do not need to enter the entire command string to execute a command. Only the number of unique characters required to identify the command are needed (e.g., "se da" will execute the "set date" command because there are no other CLI commands that begin with “se” and no other set objects that begin with "da"). 3) Some parameters can be assigned very large values in the range: 0...2,147,483,647. Do not enter commas (,) for values larger than 999 (e.g., use 1000 rather than 1,000). 4) It is very important to keep a printed record of configuration parameters. See "Configuration Records" in Chapter 9. User Log-In The EE login prompt is displayed after you successfully establish a connection to the EmulationEngine. See “Initial Setup” in Chapter 4. When you have successfully established this connection, the CLI prompts you to enter a log in name and password. EE login: Admin Password: ** The default log in user name is "Admin". The default password is "EE". Both entries are case sensitive (i.e., the default user name is "Admin", not "admin"). After you enter a valid user name and password, the CLI displays a version banner, the current system time and status, and a CLI prompt. Communication Machinery Corporation EmulationEngine(tm) 11a/b/g Rev 2.3.0.a1 System date & time: THU JAN 01 00:00:20 2004 Use the "set date" or "set time" command to adjust EmulationEngine 11a/b/g software version 2.3.0.a1 WLAN mode .................... 802.11a WLAN MAC address ............. 00:02:8a:b6:1e:c9 WLAN address mask ............ ff:ff:ff:ff:00:00 LAN MAC address .............. 00:0b:16:00:00:57 BSSID of System Under Test ... 00:04:e2:38:a7:9c EE-SUT connection status ..... SUT not detected in most recent scan Power Management mode ........ Active (always awake) 0 vSTAs currently in the system. CMC_EE -> The CLI is now ready to accept your commands. Communication Machinery Corporation (CMC) 6-2 080104 NOTE: If the CLI displays the message “This EmulationEngine has not been Node Locked” after you enter the EE login name and password, see “Missing Key File” in Chapter 9, Troubleshooting. User Log-Off Use the quit command to log off from the CLI: CMC_EE -> quit After log-off, you must reopen the telnet connection to log in to the CLI. CLI Commands The “help” command will display a list of all CLI commands. Example: CMC_EE -> help List of EmulationEngine CLI commands: assoc -- Associate a vSTA with the SUT auth -- Authenticate a vSTA with the SUT acquireip -- Acquire an IP address for a vSTA releaseip -- Release a vSTA's IP address autoconf -- Autoconfig-init-auth-assoc N vSTAs autorun -- Run N configured/associated vSTAs clear bssid -- Clear BSSID for System Under Test clear evlog -- Clear event log file or buffer clear group -- Clear vSTA group data clear sntpserver -- Clear SNTP/NTP server IP address clear systemname -- Clear the EmulationEngine system name clear vsta -- Clear vSTA data conf -- Configure a vSTA deauth -- Deauthenticate a vSTA del group -- Delete a vSTA group del key -- Delete Encryption key del statfile -- Delete a vSTA statistics file del summfile -- Delete a vSTA statistics summary file del vsta -- Delete a vSTA disassoc -- Disassociate a vSTA exec -- Execute a command file ftp -- Software update via FTP get association -- Display Association Table get basic11b -- Display Basic 11b Rates get bssid -- Display BSSID of System Under Test get bsslist -- Display list of discovered BSSIDs get channel -- Display Radio Channel get config -- Display current EmulationEngine configuration get countrycode -- Display Country Code get ctsmode -- Display CTS mode (11g) get ctsrate -- Display CTS rate (11g) get ctstype -- Display CTS type (11g) get eemac -- Display Wireless LAN MAC Address get eemask -- Display Wireless LAN Address Mask get eestatus -- Display EmulationEngine status get evlog -- Display event log data get features -- Display authorized features get frequency -- Display Radio Frequency (MHz) get gateway -- Display Gateway IP Address get group -- Display information for a vSTA group get hardware -- Display Hardware Revisions get ipaddr -- Display IP Address get ipmask -- Display IP Subnet Mask get key -- Display Encryption Key EmulationEngine 11a/b/g User's Guide 080104 6-3 get keyentrymethod -- Display Encryption Key Entry Method get login -- Display Login User Name get pmmode -- Display Power Management Mode get power -- Display Transmit Power Setting get psinterval -- Display Power Save Listen Interval get rate -- Display Data Rate get shortpreamble -- Display Short Preamble (11b/11g) Usage get shortslottime -- Display Short Slot Time (11g) Usage get sntpserver -- Display SNTP/NTP Server IP Address get ssid -- Display Service Set ID get statfile -- Display vSTA statistics from file get station -- Display Station Status get summfile -- Display vSTA statistics summary from file get systemname -- Display the EmulationEngine system name get telnet -- Display Telnet Mode get tzone -- Display Time Zone Setting get uptime -- Display UpTime get version -- Display Firmware Version get vsta -- Display vSTA information get wirelessmode -- Display Wireless LAN Mode halt -- Halt a running vSTA help -- Display CLI Command List history -- Display the command line history init -- Initialize a configured vSTA join -- Join the EE with the System Under Test ping -- Ping quit -- Logoff reboot -- Reboot the EmulationEngine reset eemac -- R…

Text truncated - open the document above for the full version.

1 Chris Harvey From:Kyle Fujimoto [[email protected]] Sent:Wednesday, May 05, 2004 2:06 PM To:Chris Harvey; '[email protected]'; Mike Kuo Subject:Re: Additional Information needed AN04T3858/3859 FCC ID: RCX-EE11ABG3 Importance:High Chris and Mike, I have responded to the questions through the TCB website. Also, all of the exhibits you requsted have been uploaded through the website. Please look at these responses ASAP, the client would like to get their grant by either later day or Thursday. Thank You, Kyle Fujimoto Test Engineer -- Compatible Electronics, Inc. -- Brea Division Phone:(714) 579-0500 Fax: (714) 579-1850 [email protected] http://www.celectronics.com -----Original Message----- From: Chris Harvey <[email protected]> To: "'[email protected]'" <[email protected]> Cc: Mike Kuo <[email protected]>, Chris Harvey <[email protected]> Date: Wed, 28 Apr 2004 11:28:14 -0700 Subject: Additional Information needed AN04T3858/3859 FCC ID: RCX-EE11ABG3 > Dear Kyle, > > The review of the composite application for DTS and UNII approval for > FCC > ID: RCX-EE11ABG3 has been completed and the following items need to be > addressed before the review can be completed: > > Please provide photographs of the power supply that is provided with > this unit. > > It appears that only the RF board is shown in the schematics. Please > provide full schematics that include the Cavium RF board and Main > Board. > > The FCC has adopted new rules for UNII devices operating in the > 5.25-5.35GHz band. In ET Docket 03-122, the FCC is requiring these > devices to contain > Dynamic Frequency Selection. There is an interim test procedure in the > appendix of the Rules. The Rules can be found at: > http://hraunfoss.fcc.gov/edocs_public/attachmatch/FCC-03-287A1.doc 2 > > In accordance with FCC 15.407(c), does the EUT discontinue > transmission under the operational conditions stated in the Rule? > > The items indicated above must be submitted before processing can > continue on the above referenced application. Failure to provide the > requested information within 30 days of the original e-mail date may > result in application dismissal and forfeiture of the filing fee. > Also, please note > that partial responses increase processing time and should not be > submitted. > Any questions about the content of this correspondence should be > directed to > the e-mail address listed below the name of the sender. > > Best regards, > > Chris Harvey > [email protected]

Page 1 of 1 https://www.celectroni.../WorldClient.dll?Session=AEGXROQ&View=Message&Number=1535/5/04 Kyle, Below is the statement from our manufacturer for the required section 15.407 (c). Thanks, \Omar Omar: I already forwarded the schematic to your TCB. Here is the FCC compliant statement as required in 15.407 (c): "It is part of the design of Senao's 5354AP Aries radio that the transmitter circuit is normally disabled to prevent transmission in case of either absence of information to transmit or operational failure." This should complete your FCC certification. Best regards, Gary Wong and Herman Chang. Senao USA/EnGenius -----Original Message----- From: Kyle Fujimoto [mailto:[email protected] ] Sent: Wednesday, May 05, 2004 7:19 AM To: Omar Tarzi Subject: RE: Status of TCB Grant Omar, Thank you for the power supply photos. I have obtained the schematics from Scott for the main board. Those will be directly sent to CCS. As soon as we get the statement regarding 15.407 (c). I will sent those right away and let them know. Thank you, Kyle Fujimoto Test Engineer -- Compatible Electronics, Inc. -- Brea Division From: "Omar Tarzi" <[email protected]> To: "'Kyle Fujimoto'" <[email protected]> Date: 05/05/2004 10:06 AM Subject: RE: Status of TCB Grant

114 OLINDA DRIVE • •• • BREA, CALIFORNIA 92823 • •• • (714) 579-0500 • •• • FAX (714) 579-1850 April 5, 2004 Compliance Certifications Services 561F Monterey Road Morgan Hill, CA 95037 Subject: Request for Certification of the Communication Machinery Corporation EmulationEngine Model: RCX-EE11ABG3 FCC ID: RCX-EE11ABG3 Gentlemen: We have enclosed a package for the certification of the Communication Machinery Corporation EmulationEngine Model: RCX-EE11ABG3. This will be a composite application (for FCC Subpart C and FCC Subpart E) because the Equipment Under Test (EUT) contains an 802.11 a/b/g WLAN card. We have enclosed the completed Form 731 with the applicable exhibits. If you have any questions or need any additional information, please give me a call at (714) 579-0500. Sincerely, Kyle Fujimoto Test Engineer

Data Sheet ♦ ♦ ♦ ♦ ♦ ♦ ♦ o o o 802.11 Station Emulation. Create fully configurable Virtual Stations (vSTA™) that emulate 802.11 Wireless Local Area Network stations each with its own IP and MAC address. 64 Stations on a single emulator. Emulate 1 to 64 concurrent 802.11 users on a single small device, greatly reducing the cost, complexity and control issues of testing with multiple PCs. Communication Machinery Corporation Phone: 1.805.879.1521 Scalability and capacity testing of Wireless LANs and 802.11 products. Multi- station traffic load and stress testing of performance, end-user capacity and system scalability. 802.11 traffic is generated per individual vSTA. o Internal – Data traffic is generated by each vSTA in the EmulationEngine (Ping) and actively injected through the 802.11 vSTAs into AP and WLAN system under test. o External - Data is sourced from a third party load generator, injected over 802.3 Ethernet, mapped to each vSTA by either MAC or IP address, and forwarded over the WLAN by the emulator. Each vSTA is an individually authenticated, associated 802.11 station. Support for WEP, DHCP, RTS/CTS, Fragmentation. Support for 802.11a, b or g. Emulator comes in three product versions: EmulationEngine 11a: 802.11a support EmulationEngine 11b: 802.11b support EmulationEngine 11a/b/g: multi-mode emulator; selectable support for 11a, b or g Major System Components vSTA - Virtual 802.11 Station z Each vSTA has unique, user-configurable MAC and IP addresses. z VSTAs support 802.11 Authentication, Association, Deauthentication and Disassociation. z WLAN 802.11 frames are transmitted and received using configurable vSTA MAC and IP addresses. z vSTA traffic loading is generated or forwarded per individual vSTA. z Support for DHCP, RTS/CTS, Fragmentation, system level Power Save Mode and Transmit Power control. z Maintain persistent physical station state & perform Scan/Join portion of 802.11 association state machine. User Interface – Command and Control z Web-based user interface for command, control and configuration. z Command Line Interface (CLI) supports automation and scripting control. z User interacts with vSTAs in real-time. z Full user control of vSTA, load application attributes, statistics and monitoring Perl SDK – Application Programming Interface z Create Perl scripts that configure an EmulationEngine, vSTA, and perform other functions programmatically as provided by the EmulationEngine CLI. 402 E. Gutierrez Fax: 1.805.564.7188 Santa Barbara, CA. 93101 Web: www.cmc.com EmulationEngine™ Data Sheet z Collect time stamped (μSec) log/audit trail of commands, responses and notifications per each vSTA executed during testing. Communication Machinery Corporation Phone: 1.805.879.1521 402 E. Gutierrez Fax: 1.805.564.7188 Santa Barbara, CA. 93101 Web: www.cmc.com EEDashBoard™ - Monitor a Test z Collect and log performance data in real-time. z Graphically display system and vSTA statistics during test execution. z Export monitor data to PC in a comma-separated values (CSV) text file. EEScheduling™– vSTA Sequence Control z Inject vSTAs into a running test at a user pre-defined quantity and rate. z Emulates real world user loading environment for more accurate user-in-the-loop testing. EEScenario™ – Test Definition File z Logical construction encompassing key aspects of a multiple vSTA test run. z Aggregate vSTAs into logical Groups to simulate processes or other significant loading profiles. z Save within non-volatile memory in the EmulationEngine or to a PC for repeat tests and sharing of test set-up. Internal Mode – Traffic Generator, Ping z Fully configurable ICMP Echo Request/Reply traffic is sent to selectable hosts from each vSTA. z Separate receive and transmit processes use each individual vSTA’s IP address then increments vSTA statistics and computes packet round trip times. External Mode – 3 rd Party Traffic Integrator z Data traffic loading is applied from a 3 rd party traffic generator over emulator’s 802.3 Ethernet port and forwarded over the WLAN as 802.11 traffic by the emulator. z Data streams from the traffic generator are mapped to each vSTA in two selectable modes: o Layer 2 Capture: captures frames based on 802.3 traffic MAC source address and forwards through vSTA. o Layer 3 Capture: captures frames based on IP source address. EEAnalyst™ - Analyze Test Data z Collect test summary and individual vSTA statistics from test run. z View and print multiple types of reports by group or by vSTA. z Archive test statistics and data logs to PC as comma-separated values (CSV) file. Monitoring and Results - Statistics Counters z Counters from the following categories can be selected for viewing as monitors in the Web browser and as reports at the end of a test: o Management Counters o Ping Statistics o Signal Quality Indication o Frame Counts o Error Statistics EmulationEngine Dimensions L = 9.25 inches W= 6.38 inches H = 1.63 inches Ports (1) 10/100Base-T, RJ- 45(UTP) (1) RS-232 (DB9) (1) Power - 5V DC, 2.5A Standards IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.3 IEEE 802.3u IEEE 802.1d © Communication Machinery Corporation | Patent Pending No. 60/367,174 | 040904 Specifications Communication Machinery Corporation’s EmulationEngine™ product f is a valuable new category of testing tools. It enables 802.11 product developers, WLAN installers, and wireless network administrators to do capacity and stress testing of wireless networks and 802.11 products through direct and user-controlled emulation of multiple “virtual” wireless stations (vSTA™). amily ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ ♦ Wi-Fi Station Emulation (vSTA™) 802.11a, 802.11b or Multi-Mode 11a/b/g Emulator Up to 64 Concurrent Wi-Fi Users Per Emulator Test 802.11 Product Performance, Capacity and Scalability Multi-Station WLAN Load and Stress Testing vSTAs are Individually 802.11 Authenticated & Associated Supports WEP, DHCP, RTS/CTS, Fragmentation 802.11 Traffic is Generated Per Individual vSTA Integrates with 3 rd Party Network Tra…
