RCXGC617644802.11a/b/g Multi AP Emulator (Client Device)

IxWLAN ™ User Guide Release 6.20 Part No. 913-0073-03 Rev A May 2007 iiIxWLAN User Guide, Release 6.20 Copyright © 2007 Ixia. All rights reserved. This publication may not be copied, in whole or in part, without Ixia’s consent. RESTRICTED RIGHTS LEGEND: Use, duplication, or disclosure by the U.S. Government is subject to the restrictions set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and FAR 52.227- 19. Ixia, the Ixia logo, and all Ixia brand names and product names in this document are either trademarks or registered trademarks of Ixia in the United States and/or other countries. All other trademarks belong to their respective owners. The information herein is furnished for informational use only, is subject to change by Ixia without notice, and should not be con- strued as a commitment by Ixia. Ixia assumes no responsibility or liability for any errors or inaccuracies contained in this publica- tion. Part No. 913-0073-03 Rev A May 14, 2007 Corporate Headquarters Ixia Worldwide Headquarters 26601 W. Agoura Rd. Calabasas, CA 91302 USA +1 877 FOR IXIA (877 367 4942) +1 818 871 1800 (International) (FAX) +1 818 871 1805 [email protected] Web site: www.ixiacom.com General: [email protected] Investor Relations: [email protected] Training: [email protected] Support: [email protected] +1 877 367 4942 EMEA Ixia Europe Limited Globeside Business Park Building One, Unit A Marlow, SL7 1GJ United Kingdom +44 1869 356370 (FAX) +44 1869 356371 [email protected] Support: [email protected] +44 1869 356370 (Option 5) Asia Pacific Asia Pacific Representative Office New Shanghai International Tower, Suite 26E 360 Pudong Nan Rd Shanghai 200120 China +86 21 50543439 [email protected] Support: [email protected] +1 818 871 1800 (Option 1) Japan Ixia KK Aioi Sampo Shinjuku Building, 16th Floor 3-25-3 Yoyogi Shibuya-Ku Tokyo 151-0053 Japan +81 3 5365 4690 (FAX) +81 3 3299 6263 [email protected] Support: [email protected] +1 818 871 1800 (Option 1) India Ixia India No. 508, 6th Main 6th Cross ST Bed, Koramangala 4th Block Bangalore 560 034 India +91 80 25633570 (FAX) +91 80 25633487 [email protected] Support: [email protected] +91 80 32918500 IxWLAN User Guide, Release 6.20iii Table of Contents Chapter 1Introduction Introduction to IxWLAN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 Packaging Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4 WPA/RSN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6 Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8 System Needs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10 Hardware Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10 General Usage Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12 Feature Key Dependent Parameters. . . . . . . . . . . . . . . . . . 1-13 Chapter 2Installation Attaching the Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 Table of Contents ivIxWLAN User Guide, Release 6.20 Connecting Directly to a Command PC. . . . . . . . . . . . . . . . 2-2 Connecting Through an Ethernet Hub or Switch. . . . . . . . . 2-3 Connecting to the Serial Port. . . . . . . . . . . . . . . . . . . . . . . . 2-3 Chapter 3First Setup Using the Ethernet Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 Using the Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5 Chapter 4The Web-Based User Interface Startup and Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 Choosing and Creating a Scenario . . . . . . . . . . . . . . . . . . . 4-3 Using the Main Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14 vSTA Side Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25 IxWLAN Side Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-40 Monitors Side Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-55 Event Log Side Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-63 Reports Side Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-66 Configuration Side Bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-71 Menus and Tool Bars. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-78 IxWLAN User Guide, Release 6.20v Table of Contents Chapter 5The Command Line Interface (CLI) CLI Usage Notes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 User Login. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-3 User Logoff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 CLI Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4 System Under Test Commands. . . . . . . . . . . . . . . . . . . . . . . 5-7 Virtual Station Setup and Control Commands. . . . . . . . . . . 5-14 Statistics File Commands . . . . . . . . . . . . . . . . . . . . . . . . . . 5-52 Event Log Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-54 IxWLAN Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-59 802.11b/g Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-87 Administrative Mode Commands . . . . . . . . . . . . . . . . . . . . 5-91 Example Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-98 CLI Editor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-115 Chapter 6The Programming Interface (Perl) Chapter 7Statistics Counters Individual Virtual Station Counters . . . . . . . . . . . . . . . . . . . . 7-1 Summary Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7 Table of Contents viIxWLAN User Guide, R…

Text truncated - open the document above for the full version.

2007-06-21 To: Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue Sunnyvale, CA 94089 Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, _ Ixia______________ hereby authorize Bay Area Compliance Laboratory Corp to act as a laboratory for testing and test report generation for the following project: Model: IxWLAN SED-MR+, FCC ID: RCXGC617644; A test and measurement device that emulates up to 128 wireless stations in an IEEE 802.11 wireless LAN environment. This is a client device (programmed at the point of manufacture) without autonomous transmitting capability. We affirm that between BACL and Ixia, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. We also hereby authorize Lisa Tang (Sales Representative of Bay Area Compliance Laboratory Corp.) to act as Agent on our behalf in all matters relating to product certification submittal to Bay Area Compliance Corp., as a Certification Body for the purpose of performing product certification services for the above listed project(s). Sincerely, Al Cummins Sr. Compliance Engineer 26601 Agoura Rd Calabasas, CA 91302

Confidential Authorization 2007-06-21 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality for certification of FCC ID: RCXGC617644 To whom it may concern: In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Ruckus Wireless, Inc. hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Al Cummins Sr. Compliance Engr Ixia 26601 Agoura Rd Calabasas, CA 91302

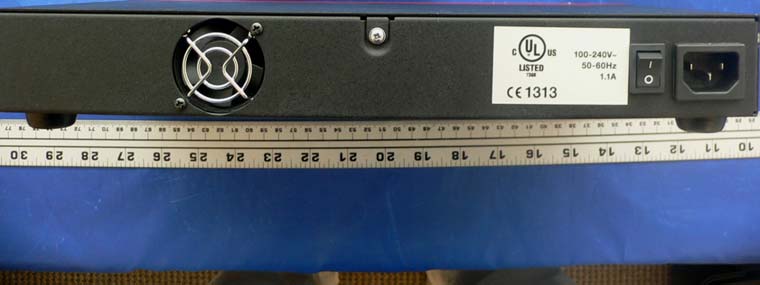

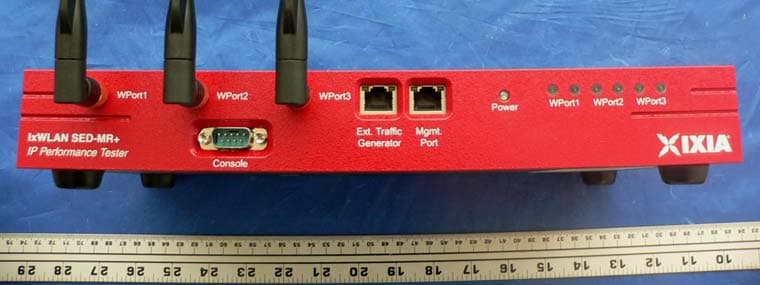

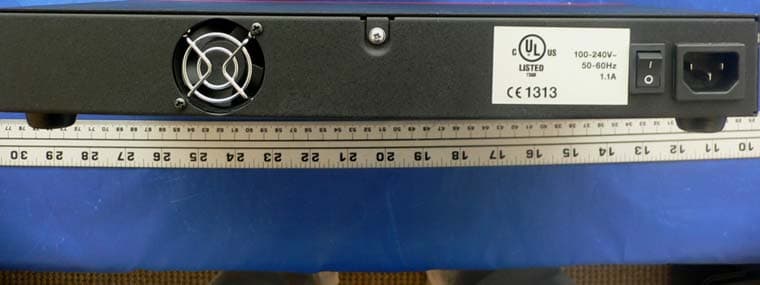

IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 50 of 62 FCC Part 15.247 Test Report EXHIBIT C - EUT PHOTOGRAPHS EUT – Top View EUT – Bottom View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 51 of 62 FCC Part 15.247 Test Report EUT – Front view with antennae EUT – Front view w/o antennae IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 52 of 62 FCC Part 15.247 Test Report EUT – Rear view

IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 46 of 62 FCC Part 15.247 Test Report EXHIBIT A - FCC ID LABEL INFORMATION FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code FCC ID Label Requirements as per FCC § 15.19 (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. Proposed FCC ID Label IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 47 of 62 FCC Part 15.247 Test Report Proposed Label Location on EUT As per FCC §15.17 (b)(4), the label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in Section 2.925(d) of this chapter. "Permanently affixed" means that the label is etched, engraved, stamped, silk-screened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable.

IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 53 of 62 FCC Part 15.247 Test Report EUT – Chassis cover off EUT- Main board (CPU) Component View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 54 of 62 FCC Part 15.247 Test Report EUT-Main board (CPU) Solder View EUT - Encryption Board 1 Component View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 55 of 62 FCC Part 15.247 Test Report EUT-Encryption Board 1 Solder View RF Module – component view with FCC label IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 56 of 62 FCC Part 15.247 Test Report EUT - RF Module component view with RF shield installed EUT - RF Module component view with RF Shielding Removed IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 57 of 62 FCC Part 15.247 Test Report EUT - RF Module solder view EUT- Flash Disk Drive Sub Circuit 1 Component View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 58 of 62 FCC Part 15.247 Test Report EUT- Flash Disk Drive Sub Circuit 1 Solder View EUT- Riser Sub Circuit 2 Component View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 59 of 62 FCC Part 15.247 Test Report EUT- Riser Sub Circuit 2 Solder View EUT-Transmitter Board with Network Board Component View Installed On Carrier Board IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 60 of 62 FCC Part 15.247 Test Report EUT- Encryption Board with Network Board Solder View Installed On Carrier Board EUT- Power Supply Sub Circuit 3 Component View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 61 of 62 FCC Part 15.247 Test Report EUT- Power Supply Sub Circuit 3 Solder View EUT- Power Supply Sub Circuit 3 Cover off View

IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 11 of 62 FCC Part 15.247 Test Report § 15.247 (i) and § 2.1091 - RF EXPOSURE According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 802.11b mode: Maximum peak output power at antenna input terminal: 22.724 (dBm ) Maximum peak output power at antenna input terminal: 187.24 (mW) Prediction distance: 20 (cm) Predication frequency: 2437(MHz) Antenna Gain (typical): 4.0 (dBi) antenna gain: 2.51 (numeric) Power density at predication frequency at 20 cm: 0.094 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 12 of 62 FCC Part 15.247 Test Report 802.11g mode: Maximum peak output power at antenna input terminal: 22.912 (dBm ) Maximum peak output power at antenna input terminal: 195.52 (mW) Prediction distance: 20 (cm) Predication frequency: 2462(MHz) Antenna Gain (typical): 4.0 (dBi) antenna gain: 2.51 (numeric) Power density at predication frequency at 20 cm: 0.098 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Result: Compliant. For 5745 – 5825 MHz : 802.11a Measurement Results Maximum peak output power at antenna input terminal: 20.012 (dBm ) Maximum peak output power at antenna input terminal: 100.277 (mW) Prediction distance: 20 (cm) Predication frequency: 5745(MHz) Antenna Gain (typical): 4.5 (dBi) antenna gain: 2.82 (numeric) Power density at predication frequency at 20 cm: 0.056 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm 2 ) Result: Compliant.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. (Rev.) FCC PART 15.247 MEASUREMENT AND TEST REPORT For IXIA 26601 W. Agoura Road Calabasas, CA 91302 Report Type: Supplemental Test Report Product Type: 802.11 a/b/g Multi AP Emulator (Client Device) Test Engineer: Dan Coronia Report Number: R0706045-247 Report Date: 2007-08-06 Reviewed By: Daniel Deng, RF Engineering Lead Prepared By: (63) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 FCC ID: RCXGC617644 IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 2 of 62 FCC Part 15.247 Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................5 EUT PHOTO.................................................................................................................................................................5 MECHANICAL DESCRIPTION.........................................................................................................................................6 OBJECTIVE...................................................................................................................................................................6 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................6 TEST METHODOLOGY..................................................................................................................................................6 MEASUREMENT UNCERTAINTY....................................................................................................................................6 TEST FACILITY.............................................................................................................................................................7 SYSTEM TEST CONFIGURATION ..........................................................................................................................8 JUSTIFICATION.............................................................................................................................................................8 EUT EXERCISE SOFTWARE..........................................................................................................................................8 SPECIAL ACCESSORIES.................................................................................................................................................8 EQUIPMENT MODIFICATIONS.......................................................................................................................................8 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................8 POWER SUPPLY INFORMATION.....................................................................................................................................8 EXTERNAL I/O CABLING LIST AND DETAILS................................................................................................................9 SUMMARY OF TEST RESULTS .............................................................................................................................10 § 15.247 (I) AND § 2.1091 - RF EXPOSURE ............................................................................................................11 MEASUREMENT RESULTS...........................................................................................................................................12 §15.203 - ANTENNA REQUIREMENT....................................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 §15.107 - CONDUCTED EMISSIONS ......................................................................................................................14 SECTION 15.107 CONDUCTED LIMITS:........................................................................................................................14 TEST SETUP................................................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE......................................................................................................................................................14 TEST SETUP BLOCK DIAGRAM...................................................................................................................................15 ENVIRONMENTAL CONDITIONS..................................................................................................................................16 SUMMARY OF TEST RESULTS.....................................................................................................................................16 §15.205 & §15.109 & §15.247(D) - RADIATED SPURIOUS EMISSIONS............................................................19 APPLICABLE STANDARD............................................................................................................................................19 T…

Text truncated - open the document above for the full version.

IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 48 of 62 FCC Part 15.247 Test Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Conducted Emissions –Front View Conducted Emissions – Rear View IXIA FCC ID: RCXGC617644 Report No.: R0706045-247 Page 49 of 62 FCC Part 15.247 Test Report Radiated Emissions - Front View Radiated Emissions - Rear View
