RF7POM00012.4GHz Transceiver Module

STL 2.4G transceiver module Technical Manual General ----------- The modules is a low power radio frequency module operating within the ISM 2.4 GHz frequency band. The radio transceiver is compatible with IEEE.802.15.4 standard with hardware acceleration for both the IEEE 802.15.4 MAC and AES security.. It also incoproates a 32-bit ARM7 core based MCU, 128 Kbyte FLASH memory and 96 Kbyte RAM. It is intended for use as a short range radio module for embedded applications. Features Summary - IEEE 802.15.4 standard compliant on-chip transceiver/modem - 2.4 GHz ISM Band operation - Programmable transmitter output power (-30 dBm to +4 dBm typical) - World-class receiver sensitivity -96 dBm typical receiver sensitivity using DCD mode (<1% PER, 20-byte packets) -100 dBm typical receiver sensitivity using NCD mode (<1% PER, 20-byte packets) Hardware acceleration for IEEE 802.15.4 applications MAC accelerator (sequencer and DMA interface) Advanced encryption/decryption hardware engine (AES 128-bit) Supports standard IEEE 802.15.4 signaling with 250 kbps data rate 32-bit ARM7TDMI-S CPU core with programmable performance up to 26 MHz (24 MHz typical) Extensive on-board memory resources — 128 Kbyte serial FLASH memory (will be mirrored into RAM) — 96 Kbyte SRAM — 80 Kbyte ROM built in voltage regulator UART and SPI interface for control and data interface GPIOs for general control RF Shield can to reduce interference 3.3V DC supply CONFIDENTIAL Block Diagram Fig. 1 Block Diagram RF Operation The RF radio interface provides for low cost and the high density as shown in Figure 2. The transceiver is a zero IF radio without intermediate frequency (IF)stage. An onboard balun along with a TX/RX switch allows direct connection to a single-ended 50-Ω antenna. The integrated PA provides programmable output power typically from -30 dBm to +4 dBm, and the RX LNA provides -96 dBm sensitivity. In addition, separate complementary PA outputs allow use of an external PA and/or an external LNA for extended range applications. The device also has onboard bypass capacitors and crystal load capacitors for the smallest footprint in the industry. All components are integrated into the package except the crystal and antenna. Figure 2. MC13224V RF Radio Interface Refer to Freescale MC13224V datasheet for details. Pin Assignements J1 Pin No.NameDirection 1UART1_RTSinput 2UART1_CTSoutput 3UART1_RXinput 4UART1_TXoutput 5KPI_3input/output 6KPI_4input/output 7KPI_5input/output J2 1VCCpower 2GNDground 3SPI_SS input 4SPI_MISO output 5SPI_MOSI input 6SPI_CLK output Fig. 3 Connectors and Pin Assignments J2 J1 Pin1 Pin 1 Electrical Specification DC 1.Supply voltage:2.0V – 3.6V 2.Off current: <= 1ma 3.standby current <=20 ma 4.Transmit current <= 40 ma 5.Receive current <= 30ma Receiver 1. Frequency : 2.420 GHz 2. Sensitivity for 1% Packet Error Rate (PER) : Non-coherent Differential Chip Detection (DCD) Typical -96 dBm Non-coherent Detection (NCD) Typical -100 dBm 3. Saturation (maximum input level) : Typical 10 dBm 4. Channel Rejection for 1% PER (desired signal -82 dBm) +5 MHz (adjacent channel) Typical 38 dB -5 MHz (adjacent channel) Typical 38 dB +10 MHz (alternate channel) Typical 57 dB -10 MHz (alternate channel) Typical 57 dB >= 15 MHz Typical 65 dB 5. Frequency Error Tolerance : Typical 300 kHz Transmitter 1. Frequency : 2.420 GHz 2. Nominal Output Power : -2 to +4.5 dBm 3. Error Vector Magnitude Pout @ -30 dBm : Typical 13% Pout @ 0 dBm : Typical 11% Pout @ +4 dBm : Typical 9 % 4. Output Power Control Range : Typical 35 dB Mechanical drawing Fig. 4 Mechanical Dimensions Installation Guide 1.The module can be mounted to the target product using a socket without soldering. 2.Please follow the pin assignments to connect the module to the socket on the target product. 3.Make sure that the specified supply voltage is not exceeded. 4.Make usre that the supply voltage is clean from noise and ripple. 5.Decoupling capacitor is recommended to be placed next to the Vcc pin. 6.Unused pins should be disconnected. 7.The module is self sufficient to function without the need for external components. 8.PCB traces for Vcc and Ground should be thick and short. 9.Make sure there is no metallic object placed directly on top and below the module after the module is installed. Important notes to third party user for 2.4G transceiver module The 2.4G transceiver Module complies with Part 15 of the FCC rules and regulations. Compliance with the labeling requirements, FCC notices and antenna usage guidelines is required. To fulfill FCC Certification, the third party user must comply with the following regulations: 1.The third party user must ensure that the text on the external label provided with this device is placed on the outside of the final product. Contains FCC ID: RF7POM0001 The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (i.) this device may not cause harmful interference and (ii.) this device must accept any interference received, including interference that may cause undesired operation. 2.The 2.4G transceiver Module may only be used with the onboard PCB antenna that have been tested and approved for use with this module . 3. The 2.4G transceiver Module have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Modifications not approved by STL could void the user's authority to operate the equipment. 4.Third party users must test final product to comply with unintentional radiators (FCC section 15.107 & 15.109) before declaring compliance of their final product to Part 15 of the FCC Rules.

Appendix B1 Letter of Agency for FCC Certification Date : 15 Sep 2010 To whom it may concern, Letter of Agency I, an officer of STL International Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Ms Esa Chiau Assistant Marketing Manager STL INTERNATIONAL LTD. Tung Kong Industrial Zone, Liu Mei Village, Yuen Zhou, Bolou, China.

Date : 15 Sep 2010 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: RF7POM0001 Request is hereby submitted by STL International Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and STL International Ltd. reserves the right to discern which parties can obtain access to these information: ∑ Schematics ∑ Detailed Block diagrams • ∑ Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of STL International Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Ms Esa Chiau Assistant Marketing Manager STL INTERNATIONAL LTD. Tung Kong Industrial Zone, Liu Mei Village, Yuen Zhou, Bolou, China.

Your company name with FCC ID of this device STL International Limited, FCC ID: RF7POM0001 would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Oct 07, 2010 The EUT meets the FCC antenna requirements; and photo of antenna are shown in the exhibit The EUT is compliant with FCC Part 15.249. Detailed instructions for maintaining compliance are given in the User Manual All inputs to the module is buffered through logic and microprocessor inputs The EUT was tested in a stand-alone configuration. Photos are shown in the exhibit N/A This transmitter is categorically excluded from routine environmental evaluation for RF exposure

Mechanical drawing Fig. 4 Mechanical Dimensions Installation Guide 1.The module can be mounted to the target product using a socket without soldering. 2.Please follow the pin assignments to connect the module to the socket on the target product. 3.Make sure that the specified supply voltage is not exceeded. 4.Make usre that the supply voltage is clean from noise and ripple. 5.Decoupling capacitor is recommended to be placed next to the Vcc pin. 6.Unused pins should be disconnected. 7.The module is self sufficient to function without the need for external components. 8.PCB traces for Vcc and Ground should be thick and short. 9.Make sure there is no metallic object placed directly on top and below the module after the module is installed.

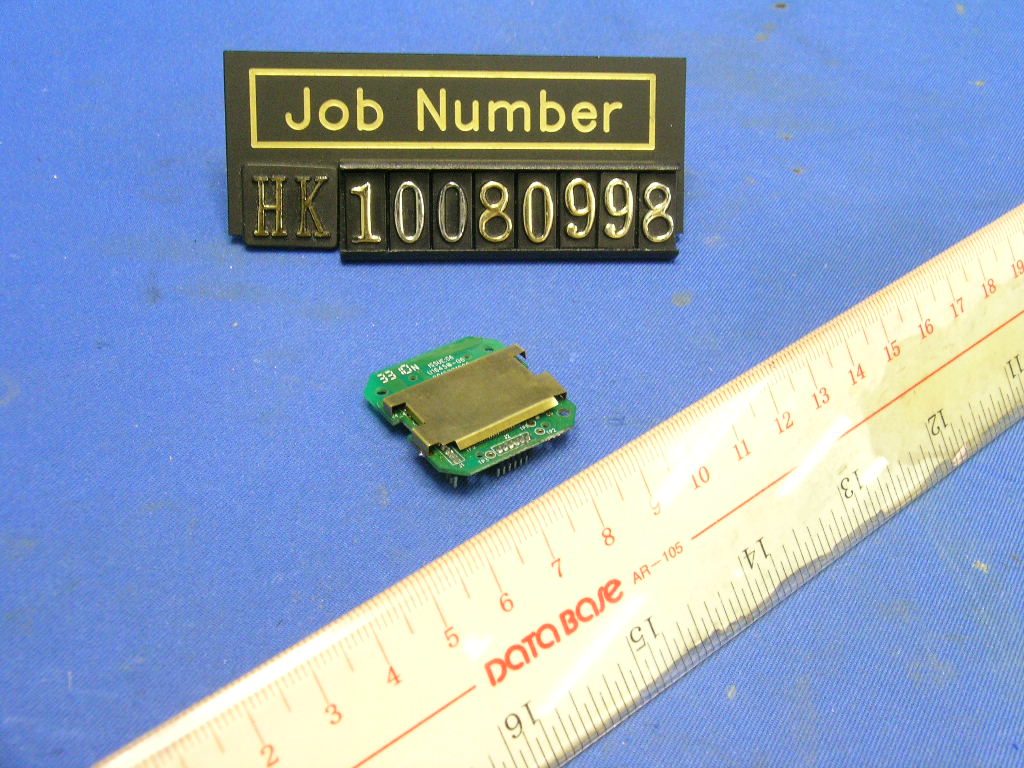

INTERTEK TESTING SERVICES External Photos FCC ID: RF7POM0001 external photos - 1 of 1

INTERTEK TESTING SERVICES Internal photos FCC ID: RF7POM0001 internal photos - 1 of 2 2.4GHz Transceiver Module Main PCB comp side 2.4GHz Transceiver Module Main PCB rear side INTERTEK TESTING SERVICES Internal photos FCC ID: RF7POM0001 internal photos - 2 of 2 2.4GHz Transceiver Module Oscillator PCB comp side

Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com November 19, 2010 STL International Ltd. Tung Kong Industrial Zone, Liu Mei Village, Yuen Zhou, Bolou, China. Tel.: 2499 8911 Fax: 3018 0754 Dear Esa Chiau: Enclosed you will find your file copy of an Original Grant of Part 15 Certification report (FCC ID: RF7POM0001). Model: 2.4G Transceiver Module. For your reference, TCB will normally take another 2 weeks for reviewing the report. Approval will then be granted when no query is sorted. Please contact me if you have any questions regarding the enclosed material. Sincerely, Nip Ming Fung, Melvin Supervisor Enclosure Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com List of Exhibits Exhibit Type File Description Filename Test Report Test Report report.pdf Operational Description Technical Description descri.pdf Test Setup Photo Radiated Emission Test Configuration Test Setup Photo AC Line Conducted Emission Test Configuration config photos.pdf Test Report Bandedge Plot be.pdf External Photos External Photo external photos.pdf Internal Photos Internal Photo internal photos.pdf ID Label/Location Info Label Artwork and Location label.pdf Block Diagrams Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf User Manual User Manual manual.pdf Cover Letter Letter of Agency letter of agency.pdf Cover Letter Confidentiality Request request.pdf Cover Letter Modular Approval Request modular.pdf Cover Letter Instruction instruction.pdf - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK10080998-1 Application for Original Grant of 47 CFR Part 15 Certification 2.4GHz Transceiver Module FCC ID: RF7POM0001 Prepared and Checked by: Approved by: Koo Wai Ip Nip Ming Fung, Melvin Lead Engineer Supervisor November 19, 2010 November 19, 2010 INTERTEK TESTING SERVICES Test Report Number: HK10080998-1 Page 1 of 20 FCC ID: RF7POM0001 GENERAL INFORMATION Applicant Name: STL International Ltd. Applicant Address: Tung Kong Industrial Zone, Liu Mei Village, Yuen Zhou, Bolou, China. FCC Specification Standard: FCC Part 15, October 1, 2009 Edition FCC ID: RF7POM0001 FCC Model(s): 2.4G Transceiver Module Type of EUT: Transceiver Description of EUT: 2.4GHz Transceiver Module Serial Number: N/A Sample Receipt Date: August 20, 2010 Date of Test: September 08-November 17, 2010 Report Date: November 19, 2010 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK10080998-1 Page 2 of 20 FCC ID: RF7POM0001 Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 6 2.3 Test Facility............................................................................................................. 6 3.0 System Test Configuration...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software......................................................................................... 9 3.3 Details of EUT and Description of Accessories...................................................... 10 3.4 Measurement Uncertainty ..................................................................................... 10 3.5 Equipment Modification ......................................................................................... 10 4.0 Test Results............................................................................................................ 12 4.1 Field Strength Calculation...................................................................................... 12 4.2 Radiated Emissions............................................................................................... 13 4.2.1 Radiated Emission Configuration Photograph ..................................................... 13 4.2.2 …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: RF7POM0001 emission - 1 of 1 Zigbee Module, Channel A Zigbee Module, Channel A

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: RF7POM0001 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: RF7POM0001 config photos (conducted emission) - 1 of 2 View 1 (Front) View 2 (Left) INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: RF7POM0001 config photos (conducted emission) - 2 of 2 View 3 (Right)
