1 SI398 “Treat and Train” Dog Training Device MANUAL 1. INTRODUCTION 1.1. General The Treat and Train is a device that assists a dog owner in training their dog to improve its behavior using positive reinforcement. Its primary intent is to decrease barking, jumping or other unruly behavior at the front door. The device consists of a remote controlled food dispenser that the dog owner can activate at will, and there are automatic modes that will dispense the dog food automatically at set intervals. A DVD video will be included for the user to understand how to use the training device effectively. 1.2 Material 1.2.1. ABS or polycarbonate construction. Materials should be resistant to UV light because it could be used outdoors. It should also be water resistant or rain/sprinkler proof. 1.3 Features 1.3.1. Easy set up and operation. 1.3.2. Rugged and stable design that will accept abuse from large dogs and weather. It won’t be easily pushed around or knocked over by the dog. Non marring rubber feet on base to resist sliding. The food should be well contained inside the device. 1.3.3. The food should only be visible from the outside of the device through the transparent top cover. 1.3.4. Other than the audible cues, the mechanical operation of the device should be quiet. Some dogs will be afraid of the machine if it is too noisy. 1.3.5. All controls should be located on the device where the dog will not be able to easily paw at the buttons. The timer LED should be visible from 20 feet away in all directions. 1.3.6. Easy to load with food. Should hold 2-3 cups of dog food. It should reliably dispense kibble down to the last few remaining pieces. 1.3.7. Easy to disassemble for cleaning. 1.3.8. Dispenser must accommodate and be capable of being adjusted to dispense dog kibble only one at a time. The kibble will range in size from 4 to 18 mm. This might be accomplished by the customer easily exchanging parts in the device. The device must work with semi-moist dog food to be used as a higher motivation for the dog. 1.3.9. The dispensing of the food is synchronized with an audible (to humans and dogs) cue that is easily distinguished from normal ambient. The volume of the cue is adjustable. The cue should be distinct, but not 2 irritating to people. It should also be immediate and reliable with the push of the dispense button on the remote. 1.3.10. The device can be set for manual operation or interval operation. The interval mode is used for working on a dog’s down stay. 1.3.11. The interval mode has options. One is that it will dispense treats automatically; the other is that it will audibly prompt the trainer to dispense the treat using the manual dispense at a certain interval. The trainer prompt is a different and distinct tone that is only to tell the trainer it is time to dispense. This allows the trainer to decide if the dog is behaving properly before dispensing the treat. 1.3.12. In the automatic interval mode, the device will have a sensor that automatically determines if the dog is sitting within 2 feet of the front of the machine before dispensing a treat. The machine will dispense treats at a regular or variable interval ranging from 3 seconds to 5 minutes. The sensor will have different sensitivity settings and the sensor can even be defeated so it will dispense treats automatically no matter what the dog is doing. A small LED on the dispenser will indicate that the sensor is sensing the dog or some object in front. This will be used to set the sensitivity level. 1.3.13. The intervals are set using a 12 position dial. The intervals are either regular or variable over an increasing range. 1.3.14. Starting an interval session in the regular interval mode also starts a session timer in the dispenser. 3-60 second intervals starts a 1 minute timer, 2 min and 5 min intervals starts a 2 min timer or a 5 minute timer respectively. During the interval session a bright LED should turn ON on the dispenser. When the timer finishes the LED should turn off and the Auto mode should stop because that interval session is complete. In the variable mode, there is no timer to start and stop the session. The trainer must stop the session manually by pressing the button again on the remote. 1.3.15. The mechanism should unclog any of the dispensing holes mechanically with each rotation. 1.3.16. There should be an IR interrupt or some other mechanism to assure that a kibble is actually dispensed. If the IR interrupt does not sense a kibble dropping, the feeder should continue to attempt to dispense several more times (without any additional audio cue) until it senses that the kibble has dropped. Or it will stop because there is a fault or there is no more kibble in the machine. 1.3.17. The remote has a “jackpot” feature where it will have the dispenser give the audible cue once, but then dispense treats rapidly. This is used for when the dog has performed especially well. This is accomplished by pressing and holding the manual dispense button on the remote. As long as the button is held, the device should continue to dispense treats. 1.3.18. The radio frequency remote should have at least a 100 feet range line of site. 1.3.19. The dispenser electronics should “go to sleep” after 30 minutes of inactivity if operating on batteries. After waking the unit up with remote input, it will respond immediately to any commands. If an adapter is being used, there should be no sleep mode. (Check power draw to see if 3 sleep mode is necessary.) The batteries should last at least 6 weeks of regular training. 1.3.20. The manual is very comprehensive giving many tasks to achieve certain behaviors, but primarily to reduce or eliminate barking, jumping or other unruly behaviors at the front door. There should be an overview listing of the steps in the manual with a short description of each step. 1.3.21. A separate “target” will be included for the dog to recognize as something to touch for training purposes. 1.3.22. The targ…

Text truncated - open the document above for the full version.

FCC ID Location FCC ID Label Sample FCC ID: RF7SI398

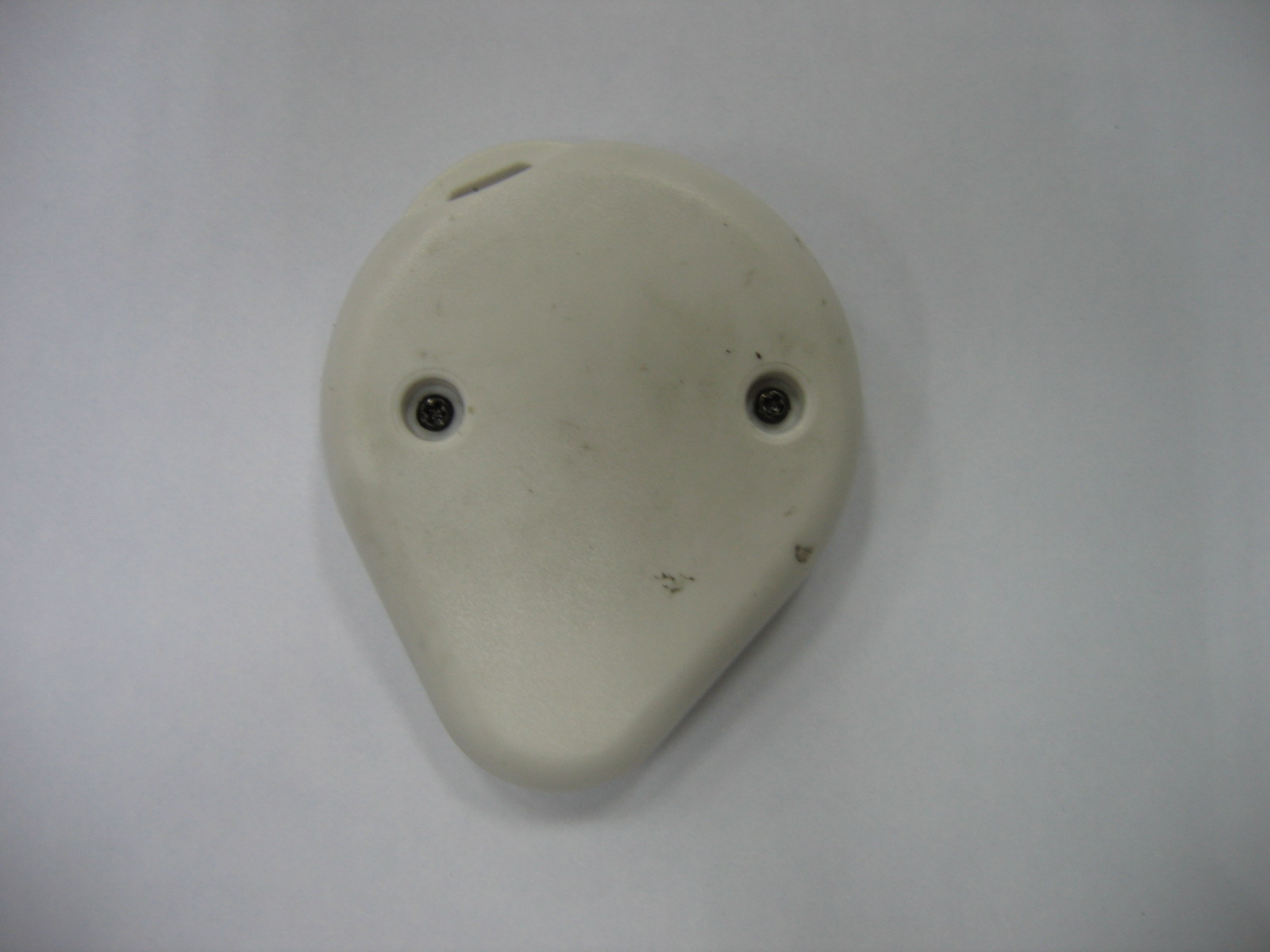

1 SI398 “Treat and Train” Operation Manual Functional Description 1. To turn on the device, first apply the battery or AC adaptor to the unit, and then switch the On/Off switch to the ‘On’ side. To turn off the device, switch the On/Off switch to ‘Off’ side will turn off the unit. 2. When the power is on, the power led will turn on with green light and it will show red color when in low battery. 3. There are two modes of operation in this unit, which are Manual and Auto mode operation. Press the Dispense button on the remote control will start manual operaton; the device will dispense a kibble and make a beep sound. 4. Press and hold the Dispense button will continously dispense the kiddle until you release the button. 5. Press the Session button on the remote control trigger auto operation. During auto operation, the session Led will be turned on. Press the Session button again will stop the auto operation. 6. There are three options in the Auto operation. They are Single treat; Multiple treat and Cue dispense. The slide switch next to the On/Off button can select these options. For single treat and multiple treat option, The machine will dispense treats at a regular or variable interval ranging from 3 seconds to 5 minutes. Single treat will dispense one kibble at a time and Multiple treats will dispense several kibbles at a time. For cue dispense option, it will only prompt to remind user to dispense kibble manually. 7. You can control the time interval for each treat by using a 12 positions dial. The table 1 shows all the timing for all setting. You can also choose between fix time interval or variable time interval by setting the slide swith on the botton of the panel. When fixed interval is selected, the auto operation will last from one minute to five minutes. And if variable interval is selected, it will remain in auto operation until user press the session button to force it to stop. 8. There is a Infra red sensor to detect if the dog is in front of the machine, the dog sensor led will be on if a dog is detected and it will turn off if it is out of range. When this function is enable during auto operation, and the dog is out of range for several seconds, The auto operation will stop. 9. The volume slide switch allows you to change the volume. 2 10. If the unit left idle for 30 minutes, it will go to Standby mode. The power led will be flashing. Press any button in the remote control will wake up the unit and start the corresponding function immediately. Table 1: Time interval Settings Setting Fix interval (n) Variable Lower Limit Variable Upper Limit (2n-3) 1 3 sec 3 sec 3 sec 2 5 sec 3 sec 7 sec 3 7 sec 3 sec 11 sec 4 10 sec 3 sec 17 sec 5 15 sec 3 sec 27 sec 6 20 sec 3 sec 37 sec 7 25 sec 3 sec 47 sec 8 30 sec 3 sec 57 sec 9 45 sec 3 sec 87 sec 10 60 sec 3 sec 1 min 57 sec 11 2 min 3 sec 3 min 57 sec 12 5 min 3 sec 9 min 57 sec

Report No.: GLEM0041102187RF Page: 1 of 14 FCC ID: RF7SI398 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEM0040112187RF Applicant : STL INTERNATIONAL LTD FCC ID : RF7SI398 Fundamental Frequency : 433.920MHz Equipment under Test (EUT): Name : Treat Team Technical Device for Dog Model : SI670 Standards : FCC PART 15, SUBPART C : 2004 (Section 15.231) Date of Receipt : 23 November 2004 Date of Test : 25 November to 14 December 2004 Date of Issue : 15 December 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID: RF7SI398 Report No.: GLEM0041102187RF Page: 2 of 14 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 CLIENT INFORMATION............................................................................................................................................ 3 3.2 DETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 DESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 TEST LOCATION...................................................................................................................................................... 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 TEST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 TEST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 TEST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions (Fundamental & Harmonics)....................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................... 9 4.3.3 Calculation Of Duty Cycle: ........................................................................................................................ 10 5 PHOTOGRAPHS - TEST SETUP........................................................................................................................ 12 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................13-14 FCC ID: RF7SI398 Report No.: GLEM0041102187RF Page: 3 of 14 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: STL INTERNATIONAL LTD Address of Applicant: TUNG KONG INDUSTRIAL ZONE.LIU MEI VILLAGE,YUEN ZHOU,BOLOU,PRC 3.2 Details of E.U.T. Product Name: Treat Team Technical Device for Dog (Transmitte Part) Model: SI398 Power Supply: Remote control part: 12V (1 x Alkaline Battery). Host Part: 120Vac/60Hz, AC/DC Adapter which supplied by the applicant. Adapter Input: 120 Vac, 60Hz 12W. Output: DC 6V, 500mA. (Model: MC162-060050) 3.3 Description of Support Units The EUT was tested as an independent unit: a 433.92MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID: RF7S…

Text truncated - open the document above for the full version.
