RF7SI727BLUVacuum Cleaner with Remote Control

FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 13 of 14 SGS-CSTC Standards Technical Services Ltd. 6 Photographs - EUT Constructional Details

Applicant: STL International Ltd. FCC ID: RF7SI727BLU Proposed Label Location on EUT EUT Bottom View FCC ID Location FCC ID: RF7SI727BLU

Applicant: STL International Ltd. FCC ID: RF7SI727BLU Proposed Label Location on EUT EUT Bottom View FCC ID Location FCC ID: RF7SI727BLU This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired o peration.

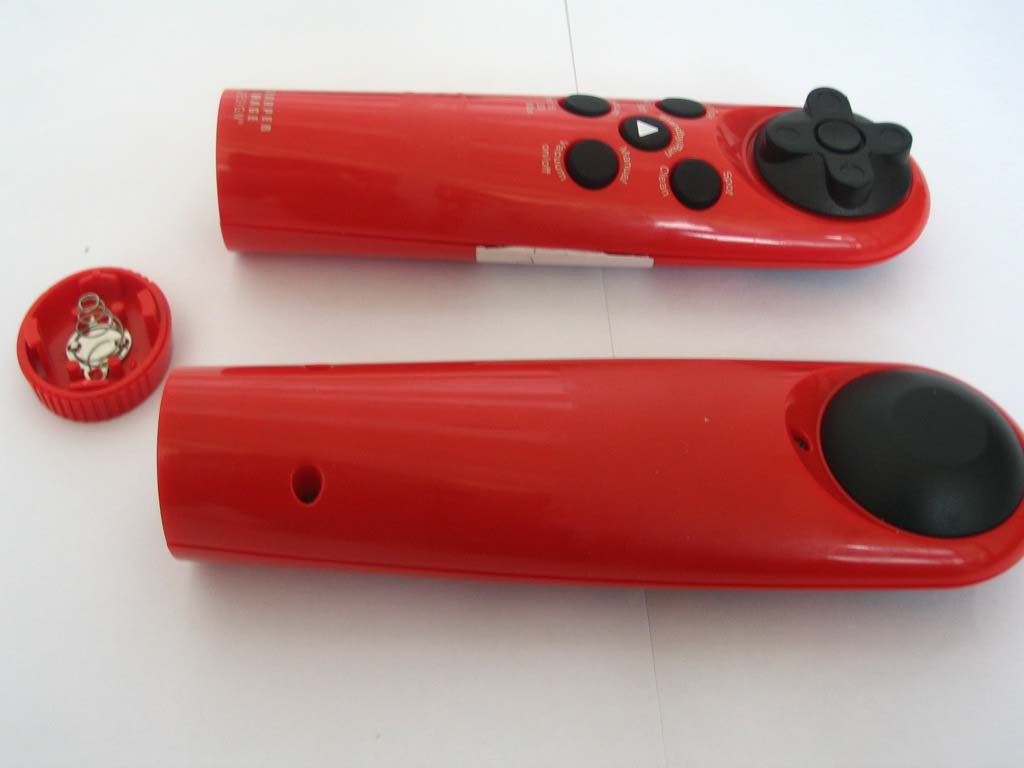

FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 13 of 14 SGS-CSTC Standards Technical Services Ltd. 6 Photographs - EUT Constructional Details FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 14 of 14 SGS-CSTC Standards Technical Services Ltd.

STL SI727 Circuit Description -------------------------------- A. MAIN unit ------------- 1. The main unit is controlled by the MCU U101. 2. T101 is a reset circuit to reset the MCU during power on. 3. When the START key is pressed, the MCU turns on the wheel motors, brush motor and vacuum motor and runs on the floor automatically. 4. When the bumper of the main unit hits something, the MCU detects by the IR sensors (PT6 or PT7) and then try to find a better way to run. 5. When the floor sensors of the main unit (PT1-PT4) detects a step, the MCU turns backward to prevent dropping out of the step. 6. When the Wall sensor of the main unit (PT5) detects the wall, the MCU controls the wheel motors to run along the wall. 7. The main unit can also be controlled by a remote control unit through the RF receiver T401, U402 and U101. 8. The MCU detects the voltage of the battery through ZD4 and T511. When the battery voltage is too low, the MCU stops running, turns on the low battery LED (red) and waiting for charge. 9. When the 18V adapter is connected to the main unit, the battery is charged through the current source (FET2, U500, T503, T504) and the Charger Controller IC U501. The Charger Controller IC U501 also sends a signal to the MCU when the battery is fully charged. B. REMOTE unit --------------- 1. When any key is pressed, the power control circuit turns on the power to the Encoder IC and the RF transmitter circuit for a few seconds. After timeout the power is cut off to save the battery power. 2. The Encoder IC U2 generates some codes to transmit to the main unit through the RF transmitter circuit T4. The frequency is 418.00MHz.

FCC ID: RF7SI727BLU

Report No.: GLEM0040600370HSE Page: 1 of 14 FCC ID: RF7SI727BLU Authorized Signature: Kent Hsu Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEM0040600370HS Applicant : STL INTERNATIONAL LTD FCC ID : RF7SI727BLU Fundamental Frequency : 418.000MHz Equipment under Test (EUT): Name : Vacuum Cleaner with Remote Control Model : SI727BLU Standards : FCC PART 15, SUBPART C : 2002 (Section 15.231) Date of Receipt : 23 June 2004 Date of Test : 26 June to 18 July 2003 Date of Issue : 23 July 2004 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Remarks: All tests and measurement equipments included in this report can be traceable to NIST or other national metrology institute. FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 2 of 14 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.........................................................................................................................................................1 2 CONTENTS .............................................................................................................................................................. 2 3 GENERAL INFORMATION.................................................................................................................................. 3 3.1 C LIENT INFORMATION............................................................................................................................................ 3 3.2 D ETAILS OF E.U.T. ................................................................................................................................................. 3 3.3 D ESCRIPTION OF SUPPORT UNITS........................................................................................................................... 3 3.4 T EST LOCATION...................................................................................................................................................... 3 3.5 O THER INFORMATION REQUESTED BY THE CUSTOMER.......................................................................................... 3 3.6 T EST FACILITY........................................................................................................................................................ 4 4 TEST RESULTS....................................................................................................................................................... 5 4.1 T EST INSTRUMENTS................................................................................................................................................ 5 4.2 E.U.T. OPERATION................................................................................................................................................. 5 4.3 T EST PROCEDURE & MEASUREMENT DATA........................................................................................................... 6 4.3.1 Radiated Emissions ...................................................................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................... 9 5 PHOTOGRAPHS - TEST SETUP........................................................................................................................ 12 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .........................................................................13-14 FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 3 of 14 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: STL INTERNATIONAL LTD Address of Applicant: TUNG KONG INDUSTRIAL ZONE.LIU MEI VILLAGE,YUEN ZHOU,BOLOU,PRC 3.2 Details of E.U.T. Product Name: Vacuum Cleaner with Remote Control (Transmitter Part) Model: SI727BLU Power Supply: 9.0Vdc ( 1 x ‘6F22’ Size Batteries). 3.3 Description of Support Units The EUT was tested as an independent unit: a 418MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 4 of 14 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facility is recognized, certified, or…

Text truncated - open the document above for the full version.

FCC ID No.: RF7SI727BLU Report No.: GLEM0040600370HSE Page: 12 of 14 SGS-CSTC Standards Technical Services Ltd. 5 Photographs - Test Setup
