RF7WFM-1Wireless Floor Mat

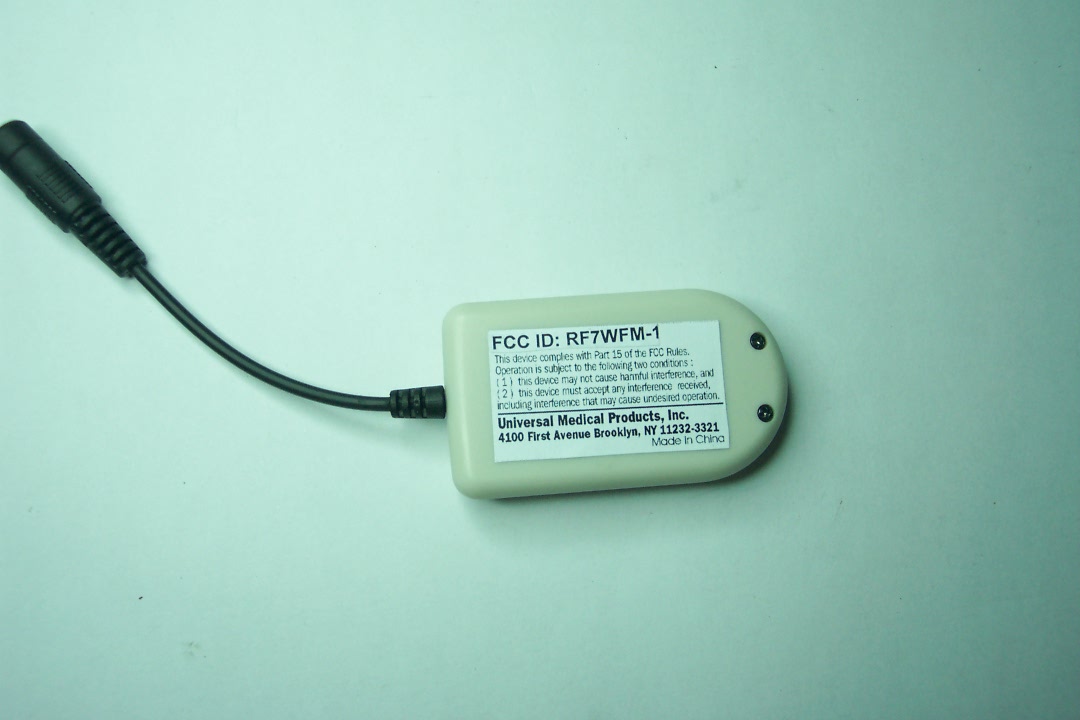

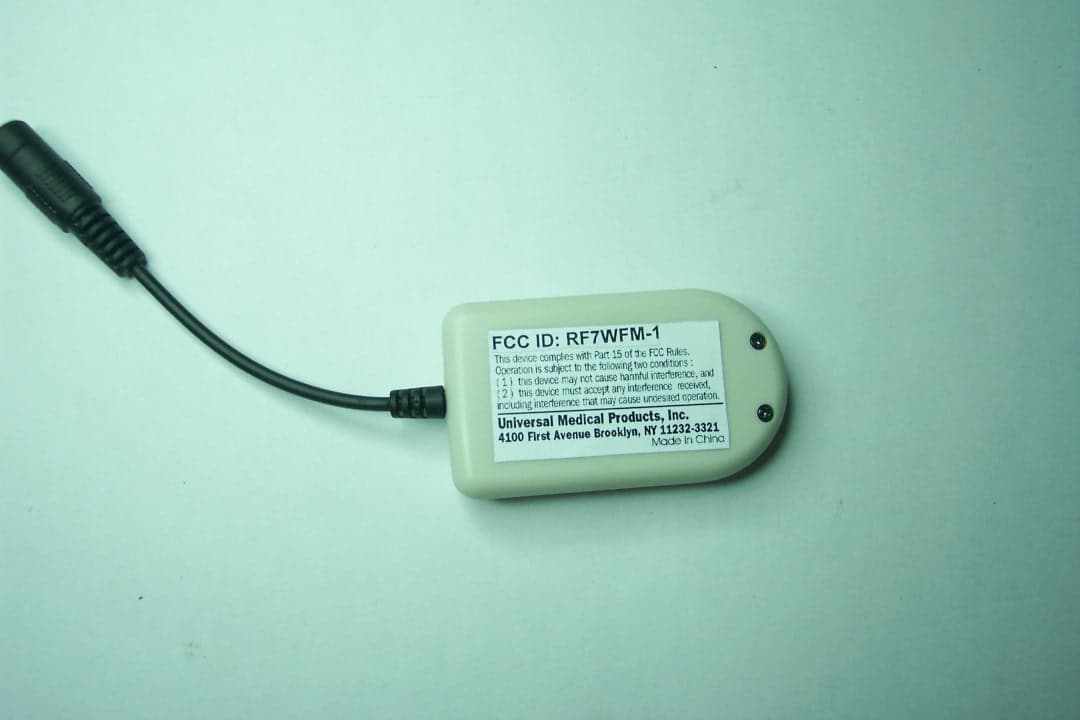

WFM-1 Wireless Floor Mat Transmitter User Manual The WFM-1 Wireless Floor Mat alarm transmitter works together with a pressure sensitive floor mat to send an alarm to a WR-1 or WR-2 Alarm Receiver when pressure is exerted on mat. This is to give caregiver warning that someone may try to exist a door way. 1. Installation 1.1 Connect the transmitter to the power cable of the floor mat. 1.2 Properly put the transmitter into the pocket of the floor mat. Keep the connecting cable as far way from the transmitter as possible 1.3 Program the transmitter ID into the WR-2 receiver. Refer to the Operation Procedure of WR-2 Receiver. 1.4 Position the floor mat in front of the door exit. 1.5 Test completion of installation by stepping over the mat to trigger an alarm. 1.6 Test opening and closing of doors to make sure that there is no obstruction to freely opening of doors. 2. Normal Operation 2.1 Do not put objects on top of mat surface. Doing this will defeat the alarm function. 2.2 Unplug the power cable if the alarm function is not required for a long period of time. 3. Transmitter Specification RF frequency: 915 Mhz ISM band transmitter Power: 3 V lithium battery NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV NTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER AUTHORITY TO OPERATE THE EQUIPMENT.

WFM-1 Wireless Floor Mat transmitter Principle of operation The WFM-1 Wireless Floor Mat Transmitter monitors the state of a pressure sensitive floor mat. When a pressure is exerted on the mat, the transmitter will transmit an alarm signal with an ID to give alert that someone is trying to go out an exit. The RF transmitter is a ChipCon CC1050 RF transmit only chip. The chip is programmed to work at 915Mhz ISM band and data rate is approximately 1K baud. DATA is encoded in Manchester format. The logic functions are controlled by a EMP78C138 micro controller unit (MCU) which communicates with the RF chip via IIC bus. The MCU is normally in Sleep mode for power saving purpose. When pressure is exerted on the mat, a signal will generate an interrupt to wake up the MCU. The MCU will then send out an alarm signal with an unique ID code to the Alarm Receiver. To ensure that the alarm is received, the same signal will be sent five times.

Report No.: 03.09.1628EF-1 Page: 1 of 12 FCC ID: RF7WFM-1 Authorized Signature: Kent Hsu Laboratory Manager SGS-CSTC Co.,Ltd. This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. 1/F., Building No. 1 Building, Agriculture Machinery Materials Co. Wushan Road, Shipai, Tianhe District,Guangzhou, China Telephone: +86 (0) 20 3848 1001 Fax: +86 (0) 20 3848 1006 [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : 03.09.1628EF-1 Applicant : STL INTERNATIONAL LTD FCC ID : RF7WFM-1 Fundamental Frequency : 915 MHz Equipment under Test (EUT): Name : WIRELESS FLOORMAT Model : WFM-1 Standards : FCC PART 15, SUBPART C : 2002 Date of Receipt : 10 September 2003 Date of Test : 12 to 18 September 2003 Date of Issue : 28 September 2003 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. FCC ID No.: RF7WFM-1 Report No.: 03.09.1628EF-1 Page: 2 of 12 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE........................................................................................................................................................ 1 2 CONTENTS ............................................................................................................................................................ 2 3 GENERAL INFORMATION................................................................................................................................ 3 3.1 CLIENT INFORMATION..................................................................................................................................... 3 3.2 DETAILS OF E.U.T. .......................................................................................................................................... 3 3.3 DESCRIPTION OF SUPPORT UNITS..................................................................................................................... 3 3.4 TEST LOCATION............................................................................................................................................... 3 3.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................... 3 3.6 TEST FACILITY................................................................................................................................................. 4 4 TEST RESULTS..................................................................................................................................................... 5 4.1 TEST INSTRUMENTS......................................................................................................................................... 5 4.2 E.U.T. OPERATION.......................................................................................................................................... 5 4.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 6 4.3.1 Radiated Emissions .................................................................................................................................... 6 4.3.2 Occupied Bandwidth .................................................................................................................................. 8 5 PHOTOGRAPHS - RADIATED EMISSION TEST SETUP............................................................................. 9 6 PHOTOGRAPHS - EUT CONSTRUCTIONAL DETAILS .......................................................................10-12 FCC ID No.: RF7WFM-1 Report No.: 03.09.1628EF-1 Page: 3 of 12 SGS-CSTC Standards Technical Services Ltd. 3 General Information 3.1 Client Information Applicant: STL INTERNATIONAL LTD Address of Applicant: TUNG KONG INDUSTRIAL ZONE.LIU MEI VILLAGE,YUEN ZHOU,BOLOU,PRC 3.2 Details of E.U.T. Product Name: WIRELESS FLOORMAT Model: WFM-1 Power Supply: 4.5V DC (3 x ‘LR44’ Button Cells) Power Cord: N/A- 3.3 Description of Support Units The EUT was tested as an independent unit: a 915MHz radio transmitter. 3.4 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Ltd., Guangzhou Safety & EMC Laboratory, 1/F, Building No. 1, Agriculture Machinery Materials Company Warehouse Ltd., Wushan Road Shipai, Tianhe District, Guangzhou, China. P.C. 510630. Tel: +86 20 3848 1001 Fax: +86 20 3848 1006 3.5 Other Information Requested by the Customer None. FCC ID No.: RF7WFM-1 Report No.: 03.09.1628EF-1 Page: 4 of 12 SGS-CSTC Standards Technical Services Ltd. 3.6 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • NVLAP – Lab Code: 200611-0 SGS-CSTC Standards Technical Services Co., Ltd., Guangzhou EMC Laboratory is recognized under the National Voluntary Laboratory Accreditation Program (NVLAP/NIST). NVLAP Code: 2000611-0. Effective through February 2, 2003. • ACA SGS-…
