RFSMPIO-FL300MP3 PLAYER

Using the MPIO UTILITY z °° ’ ’ ’ 1 z z z z z z z z z z z z Using the MPIO UTILITY Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Increase the separation between the equipment and receiver -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. **CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

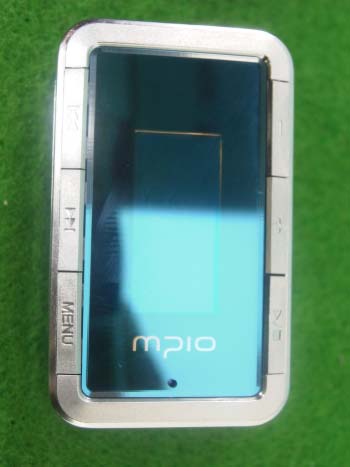

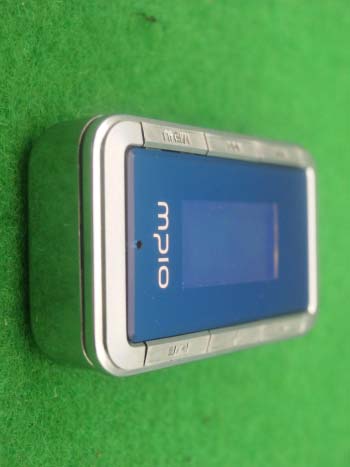

KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 1 of 4 External photo (front) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 2 of 4 External photo (Rear) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 3 of 4 External photo (Top Side) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 4 of 4 External photo (Bottom Side)

KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 1 of 1 Label location FCC Label Location

KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 1 of 1 CC ID Sample Label Model Number: MPIO-FL300 FCC ID: RFSMPIO-FL300 S/N: DIGITALWAY CO., LTD. Made in Korea F

KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 1 of 6 Internal photo (Front) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 2 of 6 Internal photo (Rear) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 3 of 6 Internal photo 2 (Front) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 4 of 6 Internal photo 2 (Rear) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 5 of 6 Internal photo 3 (Front) KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 6 of 6 Internal photo 3 (Rear)

KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 1 of 13 Test Report Test Report No.: KTI04EF06004 Registration No.: 99058 Applicant: Digitalway Co., Ltd. Applicant Address: Korea Design Center, 344-1 Ya’tap 1-dong, Bundang-gu, Seongnam City Gyeonggi-do, 463-828 Korea Product: MP3 Player FCC ID: RFSMPIO-FL300 Model No. MPIO-FL300 Receipt No.: 04-0612 Date of receipt:June 15, 2004 Date of Issue: June 28, 2004 Testing location Korea Technology Institute Co., Ltd. 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea Test Standards: FCC/ANSI. C63.4: 2001 Rule Parts: FCC Part 15, Class B Equipment Class: Computing Device Peripheral Test Result: The above-mentioned product has been tested with compliance. Tested by: H. Kim / Engineer Approved by: G. C. Min /President Signature Date Signature Date Other Aspects: Abbreviations: OK, Pass=passed Fail=failed N/A=not applicable - This test report is not permitted to copy partly without our permission. - This test result is dependent on only equipment to be used. - This test result is based on a single evaluation of one sample of the above mentioned. - This test report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S Government. - We certify this test report has been based on the measurement standards that is traceable to the national or international standards. KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 2 of 13 Contents 1. 2. 3. 4. 5. 6. Annex1 Annex2 Contents List of Tables List of Figures List of Photographs General Test Site 2.1 Location 2.2 List of Test and Measurement Instruments 2.3 Test Data 2.4 Test Environment Description of the tested samples 3.1 Rating and Physical characteristics 3.2 Submitted documents Measurement conditions 4.1 Modes of operation 4.2 List of peripherals 4.3 Uncertainty 4.4 Test Setup Emission Test 5.1 Conducted Emissions 5.2 Radiated Emissions Photographs of the Test Set-up Label Photographs of EUT 2 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 6 7 8 8 12 14 16 18~27 List of Tables Table 1 List of test and measurement equipment Table 2 Test Data. Conducted Emissions Table 3 Test Data. Radiated Emissions List of Figures Figure 1 Spectral Diagram, LINE-PE Figure 2 Spectral Diagram, Neutral-PE List of Photographs Photograph 1 Setup for Radiated Emissions Photograph 2 Setup for Conducted Emissions 4 11 13 9 10 14 15 KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 3 of 13 1. General This equipment has been shown to be capable of compliance with the applicable technical standards and was tested in accordance with the measurement procedures as indicated in this report. We attest to the accuracy of data. Korea Technology Institute Co., Ltd. performed all measurements reported herein. And were made under Chief Engineer’s supervisor. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. 2. Test Site Korea Technology Institute Co., Ltd. 2.1 Location 51-19, Sanglim3-Ri, Docheok-Myeun, Gwangju-Shi, Gyeungki-Do, Korea The Test Site is in compliance with ANSI C63.4/2001 for measurement of radio Interference. KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 4 of 13 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Conducted Emissions Kind of Equipment Type S/N Calibrated until Spectrum Analyzer R3261C 61720417 11.2004 Field Strength Meter ESPC 832827/011 9.2004 LISN KNW407 8-1157-2 10.2004 LISN EM-7823 115019 4.2005 Conducted Cable N/A N/A 11.2004 - Radiated Emissions Kind of Equipment Type S/N Calibrated until Field Strength Meter ESIB40 100093 3.2005 Spectrum Analyzer R3261C 61720417 11.2004 Pre Amplifier 8447D 2944A06874 11.2004 BiconiLog Antenna 3142B 1705 2.2005 Horn Antenna 3115 6443 6.2005 Open Site Cable N/A N/A 11.2004 Antenna Mast DETT-03 N/A N/A Antenna & Turntable controller DETT-04 91X519 N/A 2.3 Test Date Date of Application: June 15, 2004 Date of Test: June 17, 2004 2.4 Test Environment See each test item’s description. KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 5 of 13 3. Description of the tested samples The EUT is a MP3 Player. 3.1. Rating and Physical Characteristics °° 3.2. Submitted Documents - User’s Guide - Block Diagram KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 6 of 13 4. Measurement Conditions Testing Input Voltage: AC 220V 4.1 Modes of Operation The EUT was in the following operation mode during all testing; 1) File transfer each disk. 4.2 Additional Equipment DEVICE TYPE Manufacturer M/N S/N FCC ID PC COMPAQ COMPUTER CORPORATION EvoD5M 6F28KN8ZH110 - Monitor Samsung Electronics 750S P223HVAR502035 - Keyboard COMPAQ COMPUTER CORPORATION KB-9963 B26960GBUKKOVW - Mouse logitech M-S69 3892D101 - Mouse SEJIN ELECTRON INC.SMB-400 0CIM004047 GJJS965M3 Printer HEWLETT PACKARD C4569A SG6A7160PJ - 4.3 Uncertainty 1) Radiated disturbance Uc (Combined standard Uncertainty) = 1.8dB Expanded uncertainty U=KUc K = 2 U = 3.6dB 2) Conducted disturbance Uc = 0.88dB U = KUc=2 x Uc = 1.8dB KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 7 of 13 4.4 Test Setup Signal Line Power Line Monitor PC Printer MOUSE MOUSE Keyboard KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 8 of 13 5. EMISSION Test 5.1.Conducted Emissions Result: Pass The line-conducted facility is located inside a 2.3M x 3.5M x 5.5M shielded closure. The shielding effectiveness of the shielded room is in accordance with MIL-Std-285 or NSA 605- 05. A 1m x 1.5m wooden table 80cm high is placed 80cm away from the conducting ground plane and 40cm away from the sidewall of the shielded room. Electro-Metroics Model EM-7823 (9kHz- 30MHz)50ohm/50 uH Line-Impedance Stabilization Networks (LISN) are bonded to the shielded room. The EUT is powered from the Electro-Metroics LISN a…

Text truncated - open the document above for the full version.

KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 1 of 2 6. Photograph of the Test Set-Up Photograph 1 : Setup for radiated Emissions KTI04EF06004 FCC ID:RFSMPIO-FL300 Korea Technology Institute Co., Ltd. Page 2 of 2 Photograph 2 : Setup for Conducted Emissions
