RGQ-PEBBLE-WATCHBLUETOOTH Watch

Pebble E-Paper Watch for iPhone and Android 1 4 1 Version 1.0 Pebble Technology, Corp Nov 29, 2012 Page 1 of 4 1 1 2 3 4 5 6 1 Button A 2 Display 3 Charge Port 4 Button B 5 Button C 6 Button D Certifications and Safety Approvals • FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: Change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. CAUTION: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 2.5 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance." Pebble E-Paper Watch for iPhone and Android Version 1.0 Pebble Technology, Corp Nov 29, 2012 Page 2 of 4 Warranty For more information on about the One Year Limited Warranty, please visit www.getpebble.com/warranty. Quickstart Guide Each Pebble shipment includes: - One Pebble smartwatch - One Pebble USB charge cable • Charge Pebble Attach the curved end of the Pebble USB charge cable onto Pebble. Plug the other end of the cable into a USB port on a computer, laptop or USB wall charger. To obtain a full charge, leave Pebble connected for at least 2 hours. • Download smartphone app Pebble is compatible with the following iOS devices running at least iOS 5 or greater: - iPhone 3GS - iPhone 4 - iPhone 4S - iPhone 5 - iPod Touch 3rd to 5th generation Pebble is compatible with Android smartphones running Android OS 2.3.3 or higher. Download the Pebble App by visiting http://go.getpebble.com from the iOS or Android browser. • Bluetooth pairing Enable Bluetooth in iOS or Android settings. Perform a Bluetooth device scan. Pebble will show up with the name “Pebble XXXX” where XXXX is a unique identifier (the last 4 digits of the serial number imprinted on the back of the watch). After selecting the ‘Pair’ option, a confirmation prompt will be presented on the watch display. Press Button C to confirm the pairing. Then confirm the pairing on the smartphone side. • Open Pebble App After installing the Pebble App and pairing via Bluetooth, open the Pebble App on iOS or Android. After each reboot, the Pebble App needs to be opened. Pebble E-Paper Watch for iPhone and Android Version 1.0 Pebble Technology, Corp Nov 29, 2012 Page 4 of 4 1 Pebble Bluetooth Watch Pebble Bluetooth Watch ID for reference only ID for reference only 2012/11/27 Microlink Confidential 1 Key Features Key Features • ST ARM 32-bit CORTEX –M3 CPU • Panasonic PAN1316 Bluetooth EDR 2.1 (4.0 disable) module support SPP, AVRCP profile; The maximum power consumption is less than 15 mA and the average powerconsumption is about 1 uA • SHARP 1.26’,TFT LCD module with 144 × 168 resolution in a 24192-pixel stripe array • Waterproof to 5 ATM • Accelerometer and magnetometer sensor • Vibrator indicate • Display Backlight • LiPoly Battery (120mAh) • 4 function Key Form Factor Form Factor• Dimension: 5 0.33 mm X 32 mm X 8.44 mm • Weight: 39g • Operation System – TBD

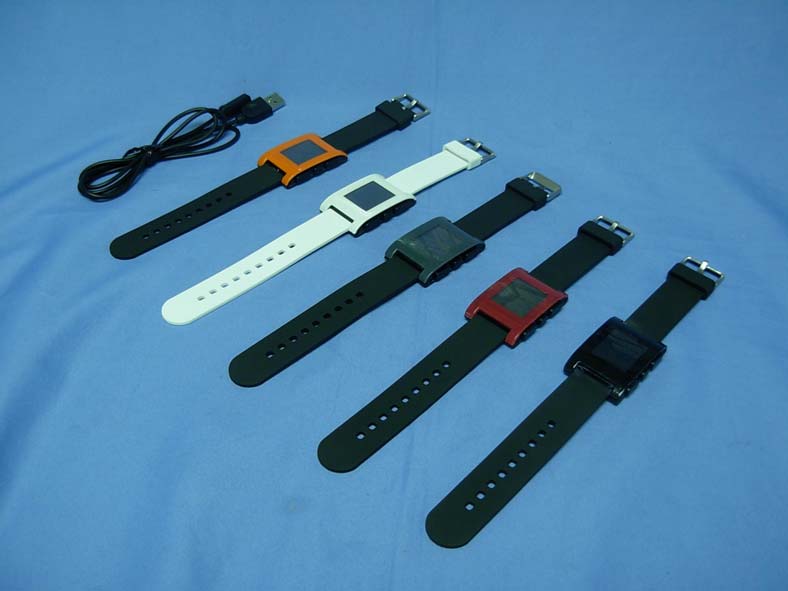

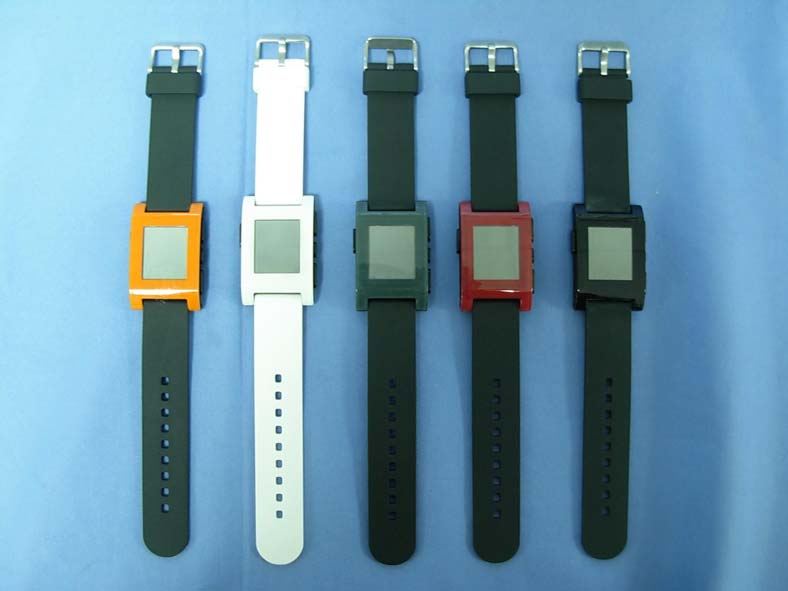

Report No：12B259R-RFUSP43V01 Page: 98 of 105 Attachement EUT Photograph (1) EUT Photo (2) EUT Photo Report No：12B259R-RFUSP43V01 Page: 99 of 105 (3) EUT Photo (4) EUT Photo

Laser engraved variable text Laser engraved text 4.5 mm 27.0 mm Laser engraved text Depth: 5μm (needs conrming) 11.75 mm 1.8 mm 1.1 mm 1.1 mm 10.35 mm 3.0mm3.75 mm Unique serial number for every unit. 12 characters. Font: Myriad Pro Size: 4.5 pt Rev 1.1 Rev 2.0 November 2, 2012 December 23, 2012 Serial number denition added FCC number changed and the word “Contains” was removed. Rev 1.0 Rev 0.1 Pebble Engraving Details October 29, 2012 Release August 31, 2012 Initial Release RevisionDateDescription Serial number: YMD XX C XXXXXX YMD: YearMonthDay, e.g. 2OD = 2012 Oct 13 For the Month (1-9, O, N and D), O, N, D representatives of Oct, Nov, Dec For the date, From A to W representatives of 10 to 31. XX: Product/Revision code # - e.g. EV, DV, PV, 01 C: Product color code value - 0-9 A-Z (omit I and O) XXXXXX: 6 character unique ID (second half of MAC address) Note: No spaces in engraved serial number. FCC ID: RGQ-PEBBLE-WATCH

FCC ID.: RGQ-PEBBLE-WATCH FCC ID AND DoC Label

Report No：12B259R-RFUSP43V01 Page: 100 of 105 (5) EUT Photo (6) EUT Photo Report No：12B259R-RFUSP43V01 Page: 101 of 105 (7) EUT Photo (8) EUT Photo Report No：12B259R-RFUSP43V01 Page: 102 of 105 (9) EUT Photo (10) EUT Photo Report No：12B259R-RFUSP43V01 Page: 103 of 105 (11) EUT Photo (12) EUT Photo Report No：12B259R-RFUSP43V01 Page: 104 of 105 (13) EUT Photo (14) EUT Photo Report No：12B259R-RFUSP43V01 Page: 105 of 105 (15) EUT Photo (MB) (16) EUT Photo (ANT)

Report No. 12B259R-RF-US-Exp Page: 1 of 3 RF Exposure Evaluation declaration Product Name ：BLUETOOTH Watch Model No. ：8471_41_01_50 FCC ID. ：ZUJ-MBT-53B1 Applicant : Pebble Technology Corporation Address : 639 High St, Palo Alto, CA 94301, United States Date of Receipt : 2012/11/15 Date of Declaration : 2012/12/11 Report No. : 12B259R-RF-US-Exp Report Version : V1.0 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 12B259R-RF-US-Exp Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to 1.1307(b)(1), system operating under the previsions of this section shall be operated in manner that ensure that the public is not exposed is not exposed to radio frequency energy level in excess of the Commission’s guideline. No SAR required for output power as below thresholds: f = GHz, d = Distance (between radiated device and the body) When d < 2.5cm, Output Power = (60/f) mW Ex: f = 2.4GHz, Output Power = (60/2.4) = 25mW (13.98dBm) 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 12B259R-RF-US-Exp Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product BLUETOOTH Watch Test Mode Mode 1: Transmit Test Condition RF Exposure Evaluation Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 6.2dBi or 4.17 in linear scale. Output Power into Antenna Channel Channel Frequency (MHz) Output Power to Antenna (mW) EIRP (mW) Output Power threshold (mW) (d < 2.5cm) 00 2402.00 2.36 9.84 24.98 39 2441.00 1.91 7.96 24.58 78 2480.00 1.70 7.08 24.19 Conclusion: No SAR evaluation required, since transmitter output power is below threshold.

Report No：12B259R-RFUSP43V01 Page: 1 of 105 Test Report Product Name：BLUETOOTH Watch Model No. ：8471_41_01_50 FCC ID. ：RGQ-PEBBLE-WATCH Applicant ： Pebble Technology Corporation Address ： 639 High St, Palo Alto, CA 94301, United States Date of Receipt：2012/11/15 Issued Date ：2012/12/11 Report No. ：12B259R-RFUSP43V01 Report Version ：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No：12B259R-RFUSP43V01 Page: 2 of 105 Test Report Certification Issued Date : 2012/12/11 Report No. : 12B259R-RFUSP43V01 Product Name ： BLUETOOTH Watch Applicant ： Pebble Technology Corporation Address ： 639 High St, Palo Alto, CA 94301, United States Manufacturer ： Fugang Electronic(Dongguan) Co., LTD Address ： Industry Street, Dong Keng, Dong Guan, Guang Dong, China. zip code: 523455 Model No. ： 8471_41_01_50 FCC ID. ： RGQ-PEBBLE-WATCH EUT Voltage : DC 3.7V (Power by Battery) Trade Name ： Pebble Applicable Standard ： FCC CFR Title 47 Part 15 Subpart C Section 15.247: 2011 ANSI C63.4: 2009 Test Result ： Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : ( Demi Chang / Engineering Adm. Specialist ) Tested By : ( Quale Tang / Engineer ) Approved By : ( Roy Wang / Manager ) Report No：12B259R-RFUSP43V01 Page: 3 of 105 Laboratory Information We, QuieTek Corporation, are an independent RF consultancy that was established the whole facility in our laboratories. The test facility has been accredited/accepted (audited or listed) by the following related bodies in compliance with ISO 17025 specified testing scopes: The related certificate for our laboratories about the test site and management system can be downloaded from QuieTek Corporation’s Web Site:http://www.quietek.com/tw/ctg/cts/accreditations.htm The address and introduction of QuieTek Corporation’s laboratories can be founded in our Web site : http://www.quietek.com/ If you have any comments, Please don’t hesitate to contact us. Our contact information is as below: HsinChu Testing Laboratory: No.75-2, 3rd Lin, Wangye Keng, Yonghxing Tsuen, Qionglin Shiang, Hsinchu County 307, Taiwan, R.O.C. TEL:+886-3-592-8858 / FAX:+886-3-592-8859 E-Mail : [email protected] LinKou Testing Laboratory: No.5-22, Ruishukeng, Linkou Dist., New Taipei City 24451, Taiwan, R.O.C. TEL : 886-2-8601-3788 / FAX : 886-2-8601-3789 E-Mail : [email protected] Suzhou Testing Laboratory: No. 99 Hongye Rd., Suzhou Industrial Park Loufeng Hi-Tech Development Zone., Suzhou,China. TEL : +86-512-6251-5088 / FAX : +86-512-6251-5098 E-Mail : [email protected] Taiwan R.O.C. : TAF, Accreditation Number: 1313 Germany : TUV Rheinland, Certificate No.: 10011438-2-2010 USA : FCC, Registration Number: 365520 Canada : IC, Submission No: 150981 Report No：12B259R-RFUSP43V01 Page: 4 of 105 TABLE OF CONTENTS Description Page 1. General Information........................................................................................................ 6 1.1. EUT Description ............................................................................................................. 6 1.2. Operational Description .................................................................................................. 8 1.3. Test Mode .......................................................................................................................9 1.4. Tested System Details .................................................................................................. 10 1.5. Configuration of tested System .................................................................................... 11 1.6. EUT Exercise Software ................................................................................................ 11 1.7. Test Facility...................................................................................................................12 2. Peak Power Output ...................................................................................................... 13 2.1. Test Equipment............................................................................................................. 13 2.2. Test Setup .................................................................................................................... 13 2.3. Test procedures ............................................................................................................ 13 2.4. Limits ............................................................................................................................ 13 2.5. Test Specification.......................................................................................................... 13 2.6. Test Result....................................................................................................................14 3. Radiated Emission ....................................................................................................... 23 3.1. Test Equipment............................................................................................................. 23 3.2. Test Setup .................................................................................................................... 23 3.3. Limits ............................................................................................................................ 24 3.4. Test Procedure ............................................................................................................. 24 3.5. Test Specification.......................................................................................................... 24 3.6. Test Result....................................................................................................................25 3.7. Test Photo ........................................................…
