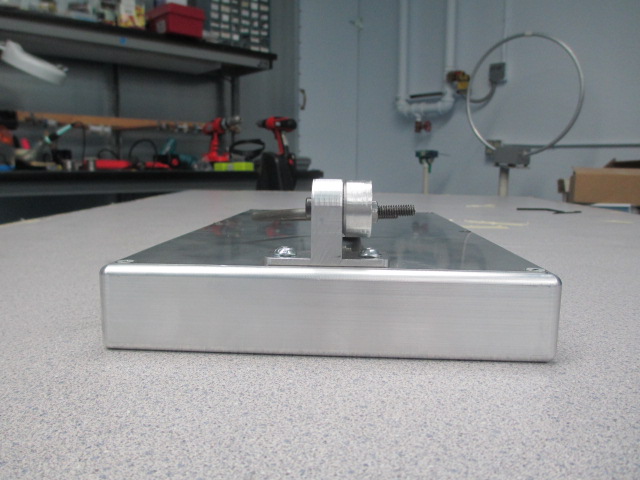

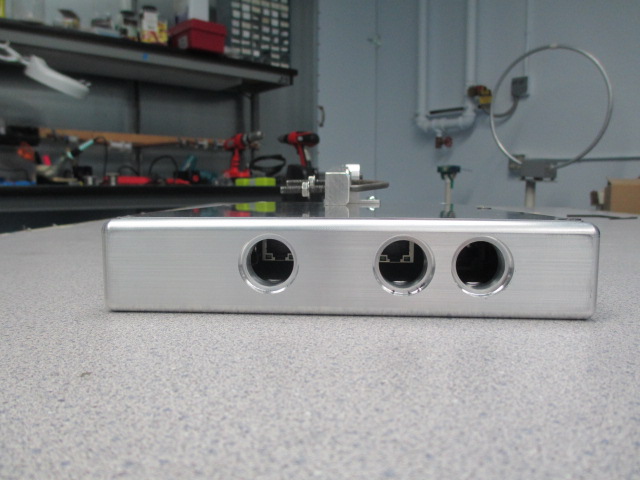

RHK-G5RL10Gen5 Repeater

1 | P a g e DigitalPath, Inc. 275 Airpark Boulevar CONFIDENTIAL © 2000 Gen Docu levard, Suite 500, Chico, CA 95973 | 800-676-PATH |ww 2000-2012 DigitalPath, Inc. All rights reserved Generation 5 ocumentation Manual: Software v Date: 5/2 |www.digitalpath.net ved al: Beta version 1 are version 5014 2/2013 2 | P a g e DigitalPath, Inc. 275 Airpark Boulevard, Suite 500, Chico, CA 95973 | 800-676-PATH |www.digitalpath.net CONFIDENTIAL © 2000-2012 DigitalPath, Inc. All rights reserved Table of Contents Logging into a repeater ............................................................................................ 9 1. How to login to relay point locally ................................................................. 9 Types of Gen 5 Repeaters ....................................................................................... 11 Generation 5 Device Modes ..................................................................................... 12 1. Uplink Router ............................................................................................. 12 2. Downlink Router ........................................................................................ 12 3. Downlink Bridge ......................................................................................... 12 4. Uplink Bridge ............................................................................................. 12 Configuring a Uplink Router .................................................................................... 13 Configuring The Backhaul – (Card 1) .................................................................... 14 Client IP .......................................................................................................... 14 Client Netmask: ............................................................................................... 14 Gateway: ........................................................................................................ 14 Configuring the Router – (Card 0, eth0, eth1) ....................................................... 14 Router IP: ....................................................................................................... 14 Router Netmask: ............................................................................................. 14 Configuring Card 1 (5 GHz directional uplink client) ............................................... 15 Upstream MAC: ............................................................................................... 16 Uplink frequency: ............................................................................................ 16 Uplink channel: ............................................................................................... 16 Uplink SSID: .................................................................................................... 16 Uplink Power: .................................................................................................. 16 Uplink Distance: .............................................................................................. 16 Uplink AutoAck: ............................................................................................... 16 Uplink Channel Width: ..................................................................................... 16 Uplink Mac: ..................................................................................................... 16 Site Survey: .................................................................................................... 17 Configuring Card 0 (5 GHz Omni AP) .................................................................... 18 Omni frequency: .............................................................................................. 19 3 | P a g e DigitalPath, Inc. 275 Airpark Boulevard, Suite 500, Chico, CA 95973 | 800-676-PATH |www.digitalpath.net CONFIDENTIAL © 2000-2012 DigitalPath, Inc. All rights reserved Omni Channel: ................................................................................................ 19 Omni SSID: ..................................................................................................... 19 Omni Power: ................................................................................................... 19 Omni Distance: ................................................................................................ 19 Omni AutoAck: ................................................................................................ 19 Omni Channel Width: ....................................................................................... 19 Omni Mac: ...................................................................................................... 19 Site Survey: .................................................................................................... 19 Power Child IP: ............................................................................................... 19 Description: ..................................................................................................... 19 Saving and Rebooting ......................................................................................... 20 Configuring a Downlink Router ................................................................................ 21 Configuring The Backhaul – eth0: ........................................................................ 22 Ethernet IP: .................................................................................................... 22 Ethernet Netmask: ........................................................................................... 22 Gateway: ........................................................................................................ 22 Parent IP: ....................................................................................................... 22 Configuring the Router – (Card 0, Card 1, eth1)........................…

Text truncated - open the document above for the full version.

DigitalPath, Inc 275 Airpark Blvd Ste 500 Chico, Ca 95973 Phone: (800)676-PATH 7/9/2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 15.203 for Professional Installation. Intended Use DigitalPath, Inc uses this product in an outdoor environment as a last mile wireless internet access product which is installed by trained technicians. Method of marketing DigitalPath, Inc utilizes the product on both a retail and wholesale basis to provide last mile internet access to local and national ISP’s. Sincerely, Brock Eastman, VP Engineering

7/4/2012 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Request for Permanent Confidentiality To whom it may concern: In accordance with 47CFR Section 0.457 and Section 0.459 pertaining to confidential material, we hereby request to hold permanently confidential all information contained within the below identified exhibits/document categories submitted pursuant to radio equipment certification requirements for FCC ID: RHK-G5RL10 1. Block Diagram 2. Operational Description 3. Schematics The above material contains trade secrets and proprietary information as specified by 47CFR 0.457(d) and technical data, which would customarily be guarded from competitors. The public disclosure of this information might be harmful to our company and provide unjustified benefits to our competitors. Sincerely, Brock Eastman VP Engineering DigitalPath, Inc

DigitalPath, Inc 275 Airpark Blvd Ste 500 Chico, Ca 95973 Phone: (800)676-PATH LETTER OF AUTHORIZATION 11/5/2012 To whom it may concern: We the undersigned, hereby authorize CKC Laboratories, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CKC Laboratories, Inc., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from DigitalPath, Inc. Sincerely, Brock Eastman, VP Engineering

DigitalPath, Inc Label Location & Information for the RHK-G5RL10 Label Contents Example: MODEL: G5RL10TG PN# RNA-007.01 FCC ID: RHK-G5RL10 This Class B device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Picture Date: 11/5/2012 Label Contents Example: MODEL: G5RL10 PN# RNA-007.01 FCC ID: RHK-G5RL10 This Class B device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Picture Date: 11/5/2012 Label Contents Example: MODEL: G5RL102X PN# RNA-007.012X FCC ID: RHK-G5RL10 This Class B device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Picture Date: 4/26/2013

Page 1 of 8 Report No: 92682-45 RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: Generation 5 Repeater Model: RHK-G5RL10 Report No.: 92682-45 Date of issue: September 5, 2012 PREPARED FOR: Digital Path 275 Air Park Blvd, Suite 500 Chico, CA 95973 PREPARED BY: C. Nicklas CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 Page 2 of 8 Report No: 92682-45 Purpose: To demonstrate compliance with United States RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) or Mobile equipment (devices used >20cm from the body) with power output below exemption levels and Mobile equipment, where Maximum Permissible Exposure (MPE) Calculations apply. United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 --- --- f/1500 30 1500-100,000 --- --- 1.0 30 * Plane wave equivalent power density Limit is calculated based on the mid-band frequency used in the operating frequency range. Exemption Level: Power output <60/f GHz (mW) Page 3 of 8 Report No: 92682-45 Canadian Compliance Requirements (RSS-102): RF Exposure Evaluation Limits Occupational / Controlled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1.0 600 4.9 --- 6 1.0-10 600/f 4.9/f --- 6 10-30 60 4.9/f --- 6 30-300 60 0.163 10 6 300-1500 3.54 f 0.5 0.0094*f 0.5 f/3 6 1500-15,000 137 0.364 50 6 15,000-150,000 137 0.364 50 616000/f 1.2 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-1.0 280 2.19 --- 6 1.0-10 280/f 2.19/f --- 6 10-30 28 2.19/f --- 6 30-300 28 0.073 2 6 300-1500 1.585 * f 0.5 0.0042 * f 0.5 f/150 6 1500-15,000 61.4 0.163 10 6 15,000-150,000 61.4 0.163 10 616000/f 1.2 *Power density limit applicable >100MHz Exemption Level: Frequency Range (MHz) Maximum Output Power (Conducted or EIRP) 0.003-1000 ≤ 200 mW 1000-2200 ≤ 100 mW 2200-3000 ≤ 20 mW 3000-6000 ≤ 10 mW Page 4 of 8 Report No: 92682-45 European Union Compliance Requirements (ICNIRP): RF Exposure Evaluation Limits Occupational / Controlled Exposure: Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.00082-0.065 610 24.4 --- 6 0.065-1.0 610 1.6/f --- 1.0-10 610/f 1.6/f --- 6 10-400 61 0.16 10 6 400-2000 3.0 * f 0.5 0.008 * f 0.5 f/40 6 2000-300,000 137 0.36 50 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (W/m 2 ) Averaging Time (minutes) 0.003-0.150 87 5.0 --- 6 0.150-1.0 87 0.73/f -- 6 1.0-10 87/f 0.5 0.73/f --- 6 10-400 28 0.073 2 6 400-2000 1.375 f 0.5 0.0037*f 0.5 f/200 6 2000-300,000 61 0.16 10 6 *Power density limit applicable >100MHz Exemption Level: Power output < 20mW 1 1 May vary by product type Page 5 of 8 Report No: 92682-45 Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. Device Operation: The Ethernet port is connected to a remote laptop via unshielded twisted pair. The Remote laptop is running test software to exercise the intended functionalities. The device has two identical radios installed with three chains each. For each radio, only two chains are transmitting, Chain 0 and Chain 2. Each radio connects to one antenna with one chain connected to the horizontal element in the antenna and the other chain connected to the vertical element of the antenna. The second radio is connected to a second antenna in the same fashion. The system firmware/software does not allow the two radios to transmit on the same frequency band at the same time. The system tested is the Digital Path Generation 5 Repeater Model RHK-G5RL10. The Generation 5 Repeater has multiple configurations that are defined in the table below with Product Codes. The different configurations cover the two main chassis for the Generation 5 Repeater plus the different options available. The 5GHZ Tri-Sector is a metal chassis using 17dBi Sector antennas. The 5GHz Panel is a plastic chassis with an integrated 18dBi Panel and either an integrated Omi Directional Antenna or external connectors to connect an external antenna to. The remaining differences in the configurations are if the device has GPS installed or not and for the Tri-Sector version, if there is a heater included or if the antennas are directed using shims. PRODUCT CODE DESCRIPTION G5RL10 5GHz Panel (18dBi) w/ integrated 10dBi Omni Directional Antenna G5RL10E 5GHz Panel w/ external connectors G5RL10G 5GHz Panel (18dBi) w/ integrated 10dBi Omni Directional Antenna w/ GPS G5RL10EG 5GHz Panel w/ external connectors w/ GPS G5RL10T 5GHz Tri-Sector (17dBi) G5RL10TG 5GHz Tri-Sector (17dBi) w/ GPS G5RL10TH 5GHz Tri-Sector (17dBi) w/ 48v Heater G5RL10THG 5GHz Tri-Sector (17dBi) w/ GPS and 48v Heater G5RL10TS 5GHz Tri-Sector (17dBi) w/ shims G5RL10TGS 5GHz Tri-Sector (17dBi) w/ GPS and shims G5RL10THS 5GHz Tri-Sector (17dBi) w/ 48v heater / shims G5RL10TGHS 5GHz Tri-Sector (17dBi) w/ GPS / 48v heater / shims Antenna Options Point to Multi-Point (PTMP): 17 Sector (UBNT) 20 Sector (UBNT) 11 Omni 18 Directional Panel Antenna Options Point to Point (PTP): 18 Directional Pan…

Text truncated - open the document above for the full version.

This report contains a total of 262 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. Digital Path TEST REPORT FOR Generation 5 Repeater Model: RHK-G5RL10 Tested To The Following Standards: FCC Part 15 Subpart C Sections 15.207 and 15.247 Report No.: 92682-22 Date of issue: September 6, 2012 This test report bears the accreditation symbol indicating that the testing performed herein meets the test and reporting requirements of ISO/IEC 17025 under the applicable scope of EMC testing for CKC Laboratories, Inc. We strive to create long-term, trust based relationships by providing sound, adaptive, customer first testing services. We embrace each of our customers’ unique EMC challenges, not as an interruption to set processes, but rather as the reason we are in business. Page 2 of 262 Report No.: 92682-22 TABLE OF CONTENTS Administrative Information ........................................................................................................................................... 3 Test Report Information ............................................................................................................................................ 3 Report Authorization ................................................................................................................................................. 3 Test Facility Information ............................................................................................................................................ 4 Site Registration & Accreditation Information .......................................................................................................... 4 Summary of Results ................................................................................................................................................... 5 Conditions During Testing.......................................................................................................................................... 5 Equipment Under Test ............................................................................................................................................... 6 Peripheral Devices ..................................................................................................................................................... 7 FCC Part 15 Subpart C .................................................................................................................................................... 8 15.31(e) Voltage Variations ....................................................................................................................................... 8 15.207 AC Conducted Emissions ................................................................................................................................ 9 -6dBc Occupied Bandwidth ..................................................................................................................................... 16 15.247(b)(3) RF Power Output ................................................................................................................................ 31 Bandedge ................................................................................................................................................................. 46 G5RL10E ............................................................................................................................................................... 48 G5RL10T-ALL ........................................................................................................................................................ 56 15.247(d) Conducted Spurious Emissions ............................................................................................................... 63 15.247(d) Radiated Spurious Emissions ................................................................................................................. 168 15.247(e) Power Spectral Density ......................................................................................................................... 233 Appendix A: Customer Provided Information ........................................................................................................... 248 EUT Software Settings During Testing ................................................................................................................... 249 Appendix B ................................................................................................................................................................. 251 Conditions During Testing...................................................................................................................................... 252 Equipment Under Test ........................................................................................................................................... 253 Peripheral Devices ................................................................................................................................................. 253 15.247(d) Radiated Spurious Emissions ................................................................................................................. 254 Supplemental Information ........................................................................................................................................ 261 Measurement Uncertainty .................................................................................................................................... 261 Emissions Test Details ............................................................................................................................................ 261 Page 3 of 262 Report No.: 92682-22 ADMINISTRATIVE INFORMATION Test Report Information REPORT PREPARED FOR: REPORT PREPARED BY: Digital Path 275 A…

Text truncated - open the document above for the full version.

Page 31 of 262 Report No.: 92682-22 15.247(b)(3) RF Power Output Test Conditions / Setup The power measurements were made using the automatic power capability of the spectrum analyzer using the measurement procedure detailed in KDB “558074 D01 DTS Meas Guidance v01” Section 5.2.1.2 Measurement Procedure PK2. The offset of the analyzer was set to correct for the cable and attenuator used during measurement. The units are in dBm. The limit is 1 Watt or 30dBm. Engineer Name: C. Nicklas Test Equipment Asset/Serial # Description Model Manufacturer Cal Date Cal Due 02668 Spectrum Analyzer E4446A Agilent 2/23/2011 2/23/2013 P05843 Cable 32022-2-29094K-48TC AstroLab 7/30/2010 7/30/2012 P05935 Attenuator 84A-10 Weinschel 10/19/2011 10/19/2013 P05913 Cable 32022-2-209094K- 48TC AstroLab 8/30/2011 8/30/2013 Cable P05913 was used for the following Chain 0 tests. 10MHz Channel Width, LO and MID Channels, 802.11a and 802.11n modulations. 20MHz Channel Width, MID Channel, 802.11a and 802.11n modulations. Cable P5843 was used for all other measurements. Plot Name Key C0 – Chain 0 C2 – Chain 2 LO – LO Channel MID – MID Channel HI – HI Channel a – 802.11a n – 802.11n 10M – System 10MHz Channel Width 20 M– System 20MHz Channel Width Page 32 of 262 Report No.: 92682-22 Test Data Power Measurements: 10MHz, 802.11a, 15.247 Rate Channel Chain 0 Chain 2 24 Mbps LO 24.83 26.02 MID 24.20 26.00 HI 23.67 22.16 Power Measurements: 10MHz, 802.11n, 15.247 Rate Channel Chain 0 Chain 2 13 MCS HT20 2S LO 24.70 26.15 MID 24.20 26.16 HI 23.80 22.25 Power Measurements: 20MHz, 802.11a, 15.247 Rate Channel Chain 0 Chain 2 36 Mbps LO 23.22 22.85 MID 24.31 25.56 HI 23.41 22.11 Power Measurements: 20MHz, 802.11n, 15.247 Rate Channel Chain 0 Chain 2 26 MCS HT20 2S LO 24.45 22.94 MID 24.41 25.94 HI 23.61 22.11 C0 10MHz, LOW CHANNEL, 802.11a Page 33 of 262 Report No.: 92682-22 C0 10MHz, MID CHANNEL, 802.11a C0 10MHz, HIGH CHANNEL, 802.11a Page 34 of 262 Report No.: 92682-22 C0 10MHz, LOW CHANNEL, 802.11n C0 10MHz, MID CHANNEL, 802.11n Page 35 of 262 Report No.: 92682-22 C0 10MHz, HIGH CHANNEL, 802.11n C0 20MHz, LOW CHANNEL, 802.11a Page 36 of 262 Report No.: 92682-22 C0 20MHz, MID CHANNEL, 802.11a C0 20MHz, HIGH CHANNEL, 802.11a Page 37 of 262 Report No.: 92682-22 C0 20MHz, LOW CHANNEL, 802.11n C0 20MHz, MID CHANNEL, 802.11n Page 38 of 262 Report No.: 92682-22 C0 20MHz, HIGH CHANNEL, 802.11n Page 39 of 262 Report No.: 92682-22 C2 10MHz, LOW CHANNEL, 802.11a C2 10MHz, MID CHANNEL, 802.11a Page 40 of 262 Report No.: 92682-22 C2 10MHz, HIGH CHANNEL, 802.11a C2 10MHz, LOW CHANNEL, 802.11n Page 41 of 262 Report No.: 92682-22 C2 10MHz, MID CHANNEL, 802.11n C2 10MHz, HIGH CHANNEL, 802.11n Page 42 of 262 Report No.: 92682-22 C2 20MHz, LOW CHANNEL, 802.11a C2 20MHz, MID CHANNEL, 802.11a Page 43 of 262 Report No.: 92682-22 C2 20MHz, HIGH CHANNEL, 802.11a C2 20MHz, LOW CHANNEL, 802.11n Page 44 of 262 Report No.: 92682-22 C2 20MHz, MID CHANNEL, 802.11n C2 20MHz, HIGH CHANNEL, 802.11n Page 45 of 262 Report No.: 92682-22 Test Setup Photos Page 46 of 262 Report No.: 92682-22 Bandedge Test Conditions / Setup Test Location: CKC Laboratories, Inc. • 1120 Fulton Place • Fremont, CA 94539 • (510) 249 - 1170 Customer: Digital Path Specification: Bandedge plot Work Order #: 92682 Date: 6/2/2012 Test Type: Radiated Scan Time: 09:51:29 Equipment: 5GHz Panel (18dBi) + Omni (11dBi), 5GHz Sector (20 dBi), 5GHz Tri-Sector (17dBi), 5GHz Panel (23 dBi), 5GHz Parabolic (33 dBi) Sequence#: 211 Manufacturer: Digital Path Tested By: E. Wong Model: G5RL10G, G5RL10E, G5RL10T S/N: EMI 2, EMI 3, EMI 1 Test Equipment: ID Asset # Description Model Calibration Date Cal Due Date T1 AN02668 Spectrum Analyzer E4446A 2/23/2011 2/23/2013 T3 AN03302 Cable 32026-29094K- 29094K-72TC 3/21/2012 3/21/2014 T4 ANP01210 Cable FSJ1P-50A-4A 3/15/2011 3/15/2013 T5 ANP05913 Cable 32022-29094K- 65TC 8/30/2011 8/30/2013 Note: The above test equipment table applies to Model: G5RL10E. ID Asset # Description Model Calibration Date Cal Due Date T1 AN02668 Spectrum Analyzer E4446A 2/23/2011 2/23/2013 ANP05935 Attenuator 84A-10 10/19/2011 10/19/2013 ANP05913 Cable 32022-29094K- 65TC 8/30/2011 8/30/2013 Note: The above test equipment table applies to Model: G5RL10T. Equipment Under Test (* = EUT): Function Manufacturer Model # S/N 5GHz Panel (18dBi) + Omni (11dBi) Digital Path G5RL10G EMI 2 5GHz Sector (20 dBi) Digital Path G5RL10E EMI 3 5GHz Tri-Sector (17dBi) Digital Path G5RL10T EMI 1 5GHz Panel (23 dBi) Digital Path G5RL10E EMI 3 5GHz Parabolic (33 dBi) Digital Path G5RL10E EMI 3 Support Devices: Function Manufacturer Model # S/N Laptop Computer HP ProBook 6565b 5CB13637ZF Laptop Power Supply HP 608428-002 F12941126327228 Page 47 of 262 Report No.: 92682-22 Test Conditions / Notes: The EUT installed on a pole as intended. DC power port is connected to a DC power supply via a CAT5 cable. The Ethernet port is connected to a remote laptop via unshielded twisted pair. The Remote laptop is running test software to exercise the intended functionalities. Receiver circuit and GPS receiver are active. G5RL10T 5GHz Omni (11 dBi) 5GHz Panel (18 dBi) 5GHz Sector (20 dBi) 5GHz Tri-Sector (17dBi) Point to Multi-Point Freq = 5725-5850MHz Freq: 5735MHz, 5785MHz, 5840MHz. BW = 10 MHz 802.11a: 24Mbps, TX power setting= 20.5, 20.5 802.11n: 13MCS HT20 2S,TX power setting= 20.5, 20.5 Freq: 5740MHz, 5785MHz, 5835MHz. BW= 20MHz 802.11a: 36 Mbps, TX power setting= 20.5, 20.5 802.11n: 26MCS HT20 2S, TX power setting= 20.5, 20.5 G5RL10E 5GHz Panel (23 dBi) 5GHz Parabolic (33 dBi) Point to Point 5725-5850MHz Freq: 5735MHz, 5785MHz, 5840MHz. BW = 10 MHz 802.11a: 24Mbps, TX power setting= 22,22, 802.11n: 13MCS HT20 2S,TX power setting = 22, 22 Freq: 5740MHz, 5785MHz, 5835MHz. BW= 20MHz 802.11a: 36 Mbps, TX power setting = 22, 22 802.11n: 26MCS HT20 2S, TX power setting=22, 22 Temperature: 21.9°C, Relative Humidity: 38-43%, Atmospheric Pressure: 101.5kPa Frequency range of measurement = Fundamental Measurement was performed…

Text truncated - open the document above for the full version.

Page 63 of 262 Report No.: 92682-22 15.247(d) Conducted Spurious Emissions Test Data Sheets Test Location: CKC Laboratories, Inc. • 1120 Fulton Place • Fremont, CA 94539 • (510) 249 - 1170 Customer: Digital Path Specification: 15.247(d) Conducted Spurious Emissions Work Order #: 92682 Date: 5/19/2012 Test Type: Conducted Emissions Time: 11:41:44 AM Equipment: 5GHz Tri-Sector (17dBi) Sequence#: 78 Manufacturer: Digital Path Tested By: C. Nicklas Model: G5RL10T 120V 60Hz S/N: EMI 1 Test Equipment: ID Asset # Description Model Calibration Date Cal Due Date AN02668 Spectrum Analyzer E4446A 2/23/2011 2/23/2013 T1 ANP01183 Cable CNT-195 10/24/2011 10/24/2013 Equipment Under Test (* = EUT): Function Manufacturer Model # S/N 5GHz Tri-Sector (17dBi)* Digital Path G5RL10T EMI 1 Support Devices: Function Manufacturer Model # S/N Test Conditions / Notes: 9kHz-30MHz Temperature: 22.7°C Relative Humidity: 38% Atmospheric Pressure: 101.4kPa LOW Channel, 24 Mbps data rate, 10MHz Channel width. Ext Attn: 0 dB Measurement Data: Reading listed by margin. Test Lead: Chain 0 # Freq Rdng T1 Dist Corr Spec Margin Polar MHz dBμV dB dB dB dB Table dBμV dBμV dB Ant 1 18.303M 40.3 +0.1 +0.0 40.4 83.1 -42.7 Chain 2 865.012k 39.2 +0.0 +0.0 39.2 83.1 -43.9 Chain 3 17.694M 38.9 +0.1 +0.0 39.0 83.1 -44.1 Chain 4 13.418M 37.2 +0.1 +0.0 37.3 83.1 -45.8 Chain 5 18.912M 36.8 +0.1 +0.0 36.9 83.1 -46.2 Chain Page 64 of 262 Report No.: 92682-22 6 9.140k 36.4 +0.0 +0.0 36.4 83.1 -46.7 Chain 7 15.434M 36.3 +0.1 +0.0 36.4 83.1 -46.7 Chain 8 1.910M 35.7 +0.0 +0.0 35.7 83.1 -47.4 Chain 9 19.706M 35.6 +0.1 +0.0 35.7 83.1 -47.4 Chain 10 14.153M 35.4 +0.1 +0.0 35.5 83.1 -47.6 Chain Page 65 of 262 Report No.: 92682-22 Test Location: CKC Laboratories, Inc. • 1120 Fulton Place • Fremont, CA 94539 • (510) 249 - 1170 Customer: Digital Path Specification: 15.247(d) Conducted Spurious Emissions Work Order #: 92682 Date: 5/19/2012 Test Type: Conducted Emissions Time: 11:43:45 AM Equipment: 5GHz Tri-Sector (17dBi) Sequence#: 79 Manufacturer: Digital Path Tested By: C. Nicklas Model: G5RL10T 120V 60Hz S/N: EMI 1 Test Equipment: ID Asset # Description Model Calibration Date Cal Due Date AN02668 Spectrum Analyzer E4446A 2/23/2011 2/23/2013 T1 ANP01183 Cable CNT-195 10/24/2011 10/24/2013 Equipment Under Test (* = EUT): Function Manufacturer Model # S/N 5GHz Tri-Sector (17dBi)* Digital Path G5RL10T EMI 1 Support Devices: Function Manufacturer Model # S/N Test Conditions / Notes: 9kHz-30MHz Temperature: 22.7°C Relative Humidity: 38% Atmospheric Pressure: 101.4kPa MID Channel, 24 Mbps data rate, 10MHz Channel width. Ext Attn: 0 dB Measurement Data: Reading listed by margin. Test Lead: Chain 0 # Freq Rdng T1 Dist Corr Spec M…
