RHK-G6CPEGen6 CPE

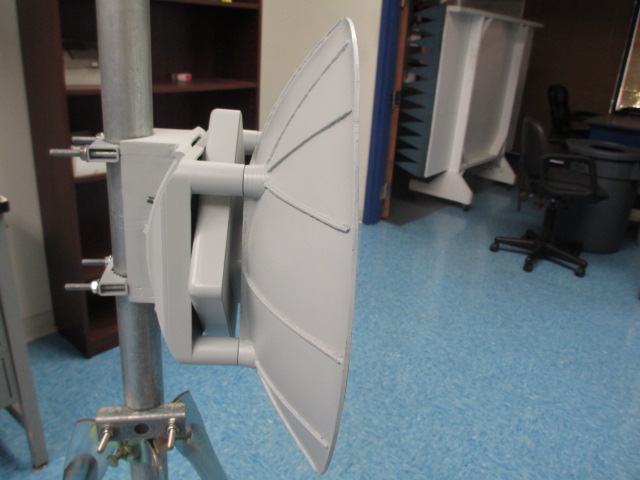

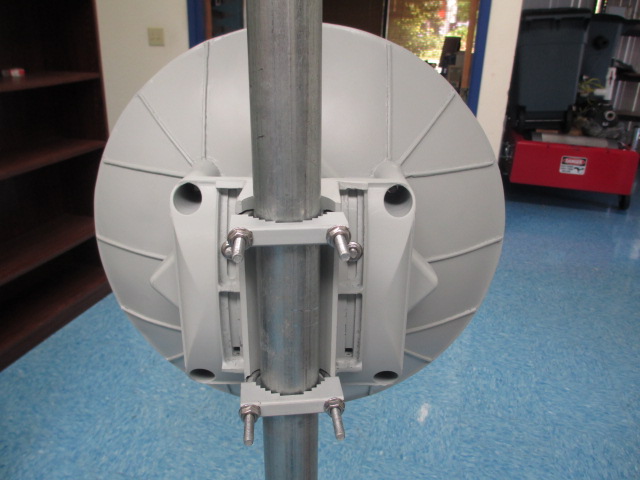

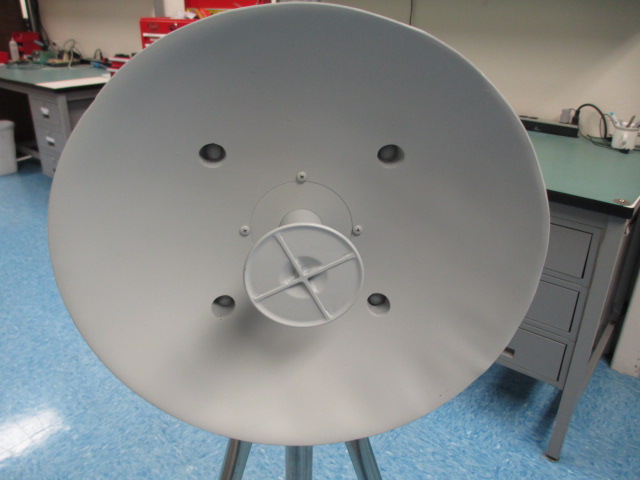

CPE INSTALLATION AND USER GUIDE Gen6 CPE – model 2X Users and Installation Manual V4 This guide covers the assembly and configuration of the 2xWireless CPE equipment. Introduction The 2xWireless customer premise equipment (CPE) wireless device is a high performing, all outdoor device designed to provide high capacity data transfer, low latency and low jitter. The 2xWireless CPE provides a full duplex wireless connection utilizing a patent pending Frequency Division Duplex – Time Division Duplexing FDD-TDD 802.11 protocol capable of connection distances up to 25 miles. The protocols used in the CPE deliver latency of less than 1ms, over 1 million packets per second, and up to 40 Mbps of data. Designed with performance in mind, 2xWireless CPE’s provide end users with increased throughput, better reliability, and a higher quality solution than many of the other wireless solutions on the market today. 2xWireless’ CPE’s are an easily deployed, affordable last mile solution for service providers. Contents Each 2xWireless CPE kit comes with the following components. Shielded Ethernet cable and grounding cable are not included in the CPE package. Remove all parts from packaging and inspect for damage and missing parts before beginning assembly. Qty - Description A (1) 16” Dish B (1) Radio Unit C (1) Mounting Bracket 1 D (1) Mounting Bracket 2 E (2) Steel Tooth Bracket F (4) 10-24 Phillips Machine Screws G (1) Power Supply H (1) Ethernet Patch Cable Qty - Description I (2) V-Bolts J (4) ¼”-20 Serrated Flange Nuts K (8) ¼”-20 Carriage Bolts L (8) ¼”-20 Hex Nuts M (8) ¼” Lock Washers N (8) ¼” Flat Washers O (1) Surge Suppressor CPE Assembly Instructions Assembly of the mounting bracket 1. Insert both V-bolts through the inside of mounting bracket 1. The completed step should look like this. 2. Insert (4) of the 1” carriage bolts through the flat side of mounting bracket 2 as shown. Seat the base of the carriage bolt into the square hole in the bracket. Place the 2 halves of the bracket together, the larger end of bracket A should be facing downwards. Bolt plastic brackets together using (4) flat washers, (4) lock washers, and (4) ¼”-20 hex nuts. Finger tighten only. These bolts will be tightened during installation and adjustment. Set the assembly aside. Assembly of the radio unit and reflector 3. Insert the feed horn of the radio unit through the hole of the reflector plate as shown. Orientation is not important at this time. 4. Attach the reflector to the radio unit with (4) 10-24 Phillips machine screws. Tighten the screws ¼ turn past snug. Final assembly 5. Bolt the reflector and radio assembly to the mounting bracket assembly with the remaining four 1” long ¼”-20 carriage bolts and the four Serrated flange nuts. Tighten the nuts ¼ turn past snug. Note: The cable entry port must be facing down to prevent water from entering the device. Improper installation will cause water damage and void the warranty. Installation and adjustment 6. Place assembly with bracket against pole and slide the two steel tooth brackets onto the V bolts as shown. For proper installation, the larger end of bracket A should be on the bottom and the cable entry point should be pointing down. The brackets are held in place with (4) flat washers, (4) split lock washers and (4) ¼”-20 hex nuts. Finger tighten at this time to allow azimuth adjustment of the CPE on the mounting pole during alignment. 7. Insert the cable through rubber grommet and terminate the cable end. The cabling for installation is standard EIA/TIA 586B. For reference, the wiring diagram is included below the programming information. 8. Insert the cable end into the CPE. The tab on the end should click when properly seated in the radio unit. Confirm the end is securely seated in the radio unit. Slide the rubber grommet into the cable entry point. It will fit snugly and recess into the case approximately ½ the thickness of the grommet. 9. Complete the wire run to the entry point of the building and install the surge suppressor per the instructions supplied with the surge device. 10. Connect the power cord with the power supply and insert it into a surge protected outlet or uninterruptible power supply (UPS). Connect the cable leading from the surge device to the power supply port marked ‘POE’. Connect the port labeled ‘LAN’ to a computer for programming with a standard patch cable. CAUTION: connecting any device other than the CPE to the POE port may cause damage. 11. When correctly installed and powered up the CPE will issue DHCP addresses in the 192.168.100.x subnet. CPE Login Instructions 1. Access the web interface via the default address: https://192.168.100.1:8000 2. At the log in prompt, enter the default username: admin and password: 2xw as shown below. 3. Choose the desired mode for the CPE to operate in. ‘Bridge’ mode will pass the network without any routing required. 4. click the choose button. 5. You will then be able to set your network information, which his self-explanatory, including site- surveys. 6. Wireless setup screen. Cable Pin outs An Industry Standard Ethernet pin-out is used in the installation of the CPE. Below is a picture depicting the cable pin-out for a straight-through cable. The image below conforms to the EIA/TIA industry standard for 568B. FCC Compliance & Installation Statement for FCC ID: RHK-G6CPE This is a Class B digital device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or tel…

Text truncated - open the document above for the full version.

DigitalPath, Inc 275 Airpark Blvd Ste 500 Chico, Ca 95973 Phone: (800)676-PATH LETTER OF AUTHORIZATION 11/5/2012 To whom it may concern: We the undersigned, hereby authorize CKC Laboratories, Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CKC Laboratories, Inc., on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from DigitalPath, Inc. Sincerely, Brock Eastman, VP Engineering

Digital Path Networks 275 Airpark Blvd Ste 500 Chico, Ca 95973 Phone: (800)676-PATH 7/2/2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Digital Path would like the following documents regarding this submission for FCC ID: RHK-G6CPE 1. GEN6_CPE_rev4_schematic.pdf (i.e., all schematics and block diagrams). 2. Operational Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. Sincerely, Brock Eastman, VP Engineering

DigitalPath, Inc 275 Airpark Blvd Ste 500 Chico, Ca 95973 Phone: (800)676-PATH PCII REASSESSMENT LETTER 2/21/2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: DigitalPath, Inc, hereby requests a Permissive Change Class II of the radio equipment certification for the gen6_cpe certification number, FCC ID: RHK- G6CPE. This product differs from the originally approved product in the following manor: (a) Associated digital circuitry. – No changes to any part component values, replaced some unavailable parts with a different manufacturer of the same or similar tolerance values (b) Functional capabilities. – Added a higher gain antenna reflector – previous product only contained a 24dBi antenna, now has a 29dBi antenna and added the 5150-5250MHz UNII band. The 5150-5250MHz band was added via a software change. (c) Antenna Characteristics. – N/A (d) Cosmetic differences – Plastic enclosure now contains a black dye to produce a grey color I do attest that the Field strength and/or RF Output readings remained the same or are lower than the originally approved product and that they did not increase therefore qualifying this product for this application type. Sincerely, Brock Eastman, VP Engineering

DigitalPath, Inc Label Location & Information for the RHK-G6CPE Label Contents Example: MODEL: G6CPE-2X FCC ID: RHK-G6CPE Serial # 0001-ENG This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Picture Date: 7/2/2013

RADIO FREQUENCY EXPOSURE REPORT FOR THE Device: GEN6 CPE Models: 2x-24 2x-29 Report No.: 96184-19 Date of issue: May 15, 2015 PREPARED FOR: Digital Path 275 Air Park Blvd, Suite 500 Chico, CA 95973 PREPARED BY: Eddie Mariscal CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 The test data contained in this report documents the observed testing parameters pertaining to and are relevant for only the sample equipment tested in the agreed upon operational mode(s) and configuration(s) as identified herein. Compliance assessment remains the client’s responsibility. This report may not be used to claim product endorsement by A2LA or any government agencies. This test report has been authorized for release under quality control from CKC Laboratories, Inc. Steve Behm Director of Quality Assurance & Engineering Services CKC Laboratories, Inc. Page 2 of 9 Report No: 96184-19 Purpose: To demonstrate compliance with United States, Canada and/or European Union RF Exposure requirements for Portable equipment (devices used ≤20cm from the body) or Mobile equipment (devices used >20cm from the body) with power output below exemption levels and Mobile equipment, where Maximum Permissible Exposure (MPE) Calculations apply. Device and Antenna Operating Configuration: Device operating at maximum output power with continuous transmission of modulated data. The present report is assessing compliance for two frequency bands of operation: 5150-5250MHz and 5725-5850MHz. Operation in the band of 5150-5250MHz refers to report 96184-9A. Operation in the band of 5750-5845MHz refers to the report 96184-10A. For each frequency band of operation, there are two possible antennas that may be used; one with gain 24dBi and the other with gain 29dBi. Depending on which antenna is used, the power will be adjusted accordingly as noted in the referenced test reports. Test Procedure: This equipment is evaluated in accordance with the guidelines set forth in OET Guide 65 & ANSI C95.1 for the US, Health Canada Safety Code 6 & RSS 102 for Canada and EN 62479 or EN 62311 for EU. Other Considerations: Report considers stand-alone configurations only. Simultaneous transmissions are not evaluated. RF Exposure limits are calculated at the mid-point of the operating band. Referenced Test Reports: The following test reports were referenced in conjunction with this assessment: 96184-9A 96184-10A Page 3 of 9 Report No: 96184-19 RF Exposure Assessment Applicability: Limit Used ☒ General Population / Uncontrolled Exposure ☐ Occupational / Controlled Exposure Equipment operational details: Config # Operating Frequency (MHz) Measured Output Power (dBm) Antenna Gain (dBi) Antenna Type / Configuration EIRP (dBm) 1 5180-5245 19.44 24 Parabolic Dish 43.44 2 5180-5245 16.02 29 Parabolic Dish 45.02 3 5730-5845 23.32 24 Parabolic Dish 47.32 4 5730-5845 22.32 29 Parabolic Dish 51.32 MPE Calculation: 2 4d EIRP DensityPower   Given: EIRP in mW or W and d in cm or m Config # Distance (cm) US (1.1310) Canada (RSS-102) EU (ICNIRP) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) Power Density (W/m 2 ) Limit (W/m 2 ) 1 80 0.27 1 NA NA NA NA 2 80 0.40 1 NA NA NA NA 3 80 0.67 1 NA NA NA NA 4 104 1.00 1 NA NA NA NA Page 4 of 9 Report No: 96184-19 Summary: Exemptions: In the case the equipment meets compliance requirements by exemption the product is approved for stand-alone use under mobile or portable conditions without further evaluation. Exemption requires any additional collocation or simultaneous transmission requirements (including necessary separation distances) have been met according to the intended use of the equipment. MPE Calculation Results: In the case the equipment meets compliance by MPE Calculations the product is approved for use under mobile conditions without further testing under the condition that any additional collocation or simultaneous transmission requirements (including necessary separation distances) have been met. It is assumed that the manufacturer shall design the equipment such that the minimum separation distance of 20cm (or greater, as listed above) is met or that the manufacturer provides a protection guide (or installation instructions) to the end user such that the antenna(s) may be installed in accordance with the manufacturer’s instructions in such a manor to maintain the minimum separation distance. General Comments: The Absorption and distribution of Electromagnetic energy in the body is a very complex phenomena that depends on the mass, shape and physiological condition of the body; the orientation of the body with respect to the fields; and, the electrical properties of the body and the environment. Variables that may play a substantial role in possible biological effects are those that characterize the environment (including but not limited to: ambient temperature, air velocity, relative humidity and body insulation); and those that characterize the individual (including but not limited to: age, gender, activity level and existing debilitation or disease). Because innumerable factors may interact to determine specific biological effects of exposure to electromagnetic fields, any protection guide should consider both intended and unintended operational environments and provide guidance for installation and use of the product such that proper separation distances can be maintained. (ANSI C95.1) Page 5 of 9 Report No: 96184-19 RF Exposure Limits United States Compliance Requirements (1.1310): RF Exposure Evaluation Limits Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1 6 300-1500 --- --- f/300 6 1500-100,000 --- --- 5.0 6 RF Exposure Evaluation Limits General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Po…
