RII24RFMDLV012.4GHz 15dBm GFSK Transceiver module

MD7121-F06 2.4GHz 15dBm FSK/GFSK Transceiver 1. General Description: The MD7121-F06 module is designed for 2.GHz ISM band with dBm output power wireless application using AMIC-COM A7121GFSK transceiver and PA AP1110 RFIC. This module features a fully programmable frequency synthesizer by SPI. The data rate is 3Mbps. 2. Electrical Specification Item Specification Remark Supply voltage 3.3V +/-0.1(V) Current consumption 15uA @ Sleep mode (Sleep current includes power consumption of LDO) 1.7mA @ Standby-mode 11mA @ Synthesizer mode 105mA @ Tx power = dBm 36mA @ Rx mode ISM Band Frequency 24 – 24MHz ISM band Transmit output power dBm @ Maximum Power setting Typical Rx sensitivity -95dBm (Typical) @ 1M mode, Dev = 250K BER <=1E-3, FSK Modulation GFSK Interface 20pin 1,27mm header PCB Dimension 29(L) x 29(W) x 0.8(H) mm 3 without antenna Operation Temperature 0~50C o FCC Statement： This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Please notice that if the FCCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC ID:RII24RFMDLV01， IC： 8102A-24RFMDLV01” any similar wording that expresses the same meaning may be used. The antenna(s) must not be co-located or operating in conjunction with he antennas used for this transmitter as shown in this filing must be any other antenna or any other antenna or transmitter except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. IC Statement: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard. (1) cet appareil ne peut pas causer l’intervention, et (2) cet appareil doit accepter de l’intervention, y compris l’intervention qui peut causer l’opération non désirée de. This Class【B】 digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.

Cover Letter-Modular Approval FCC ID: RII24RFMDLV01 Data: Feb. 01, 2012 Gentlemen: There’s an 2.4GHz 15dBm GFSK Transceiver module that would like to have your authorization as a modular approval. The specific product as below, 2.4GHz 15dBm GFSK Transceiver module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 Released: June 26, 2000 by cross-reference list below. Company Unifat Technology Ltd Model Name 2.4GHz 15dBm GFSK Transceiver module Model Number KMD7121-06 FCC ID RII24RFMDLV01 Requirement of Public Notice DA00 1407 ‐ Reference to KMD7121-06 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see external photographs.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs, it is integrated in chip A7121. Please see schematics.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the KMD7121-0 6 Please see schematics.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The KMD7121-06 meets the FCC antenna requirements. It has a u nique connector. Please see external p hotographs.pdf 5. The modular transmitter must be tested in a stand alone ‐ configuration, i.e., the module must not be inside another device during testing. The KMD7121-06 was tested in a stand alone‐ Configuration via a external MCU. Please see conducted setup phot ographs.pdf and spurious setup ‐ 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of KMD7121-06 is cle arly indicated. Please see the label.pdf Please notice that if the FCC identification number is not visible when the nodule is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: RII24RFMDLV01” or “Contains FCC ID: RII24RFMDLV01” 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The KMD7121-06 is compliant with all a pplicable FCC rules. Detail instructions are given in the Users Manual. Please see User manual.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The KMD7121-06 comply with applicable RF exposure requirements. Please see SAR Not Required. pdf

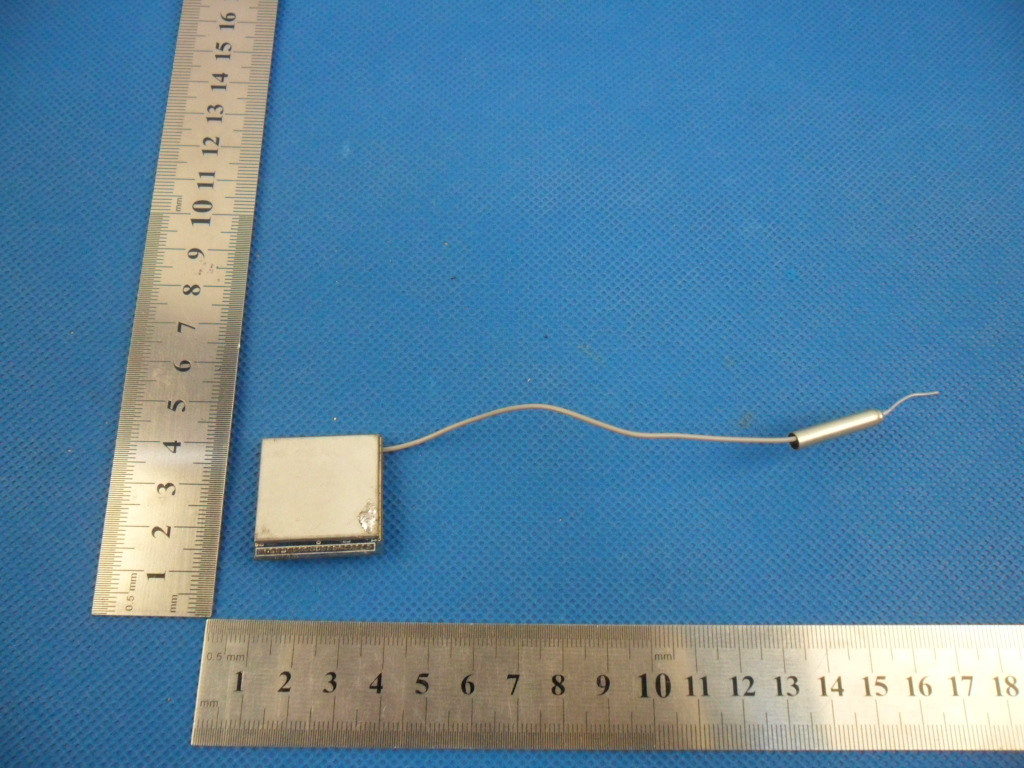

1 Photographs - EUT Constructional Details (Test Model No.: KMD7121-06)

Label Location：

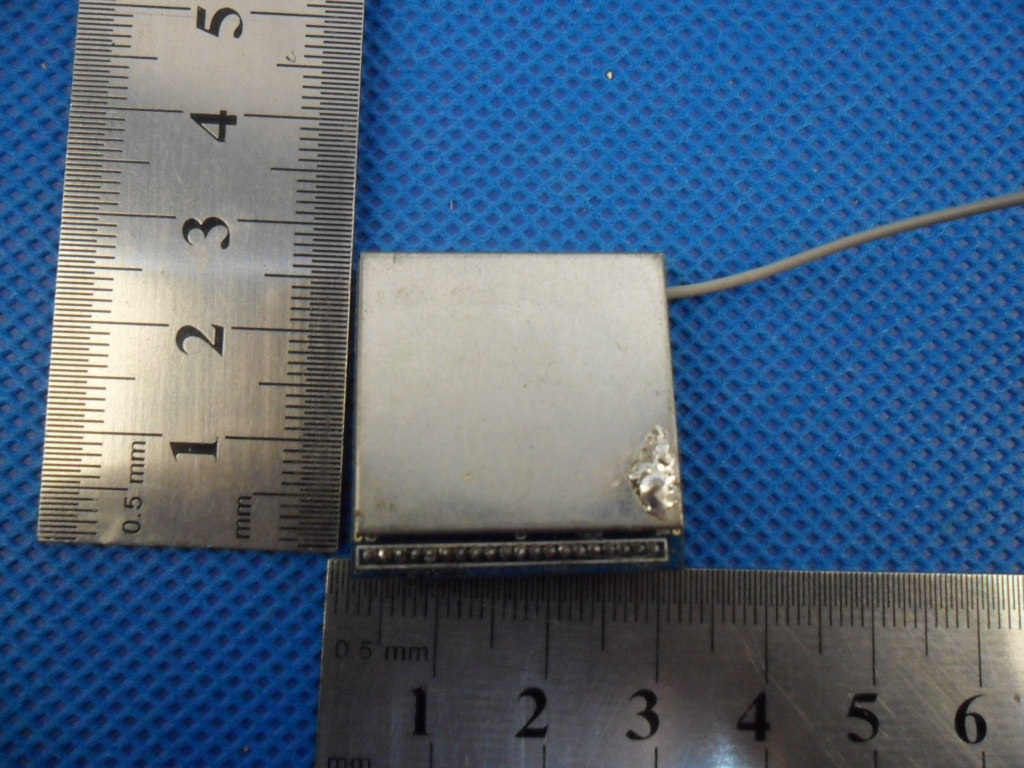

1 Photographs - EUT Constructional Details (Test Model No.: KMD7121-06)

SGS-CSTC Standards Technical Services Co., Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM111000445302 Page: 1 of 3 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 1 RF Exposure Evaluation declaration Application No.: SZEM1110004453RF Applicant: Unifat Technology Ltd Address of Applicant: 7/F, Sui Hong Ind. Bldg, 547-549 Castle Peak Rd, Kwai Chung, N.T, H.K. Manufacturer/Factory: New Spirit Electronic Technology Development (Shenzhen) Co., Ltd. Address of Manufacturer/ Factory: 4/F., East Block, Shengtang Building, No. 1 Tairan Ninth Road, Chegongmiao, Futian District, Shenzhen, China FCC ID: RII24RFMDLV01 Fundamental Carrier Frequency: 2414.250MHz~2464.875MHz Equipment Under Test (EUT): Name: 2.4GHz 15dBm GFSK Transceiver module Model No.: KMD7121-06 Date of Receipt: 2011-12-30 Date of Test: 2011-12-30 to 2012-03-16 Date of Issue: 2012-03-19 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM111000445302 Page: 2 of 3 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” 2 RF Exposure Evaluation 2.1 Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 300 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4* Pi * R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: SZEM111000445302 Page: 3 of 3 “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of l…

Text truncated - open the document above for the full version.

Authorized Signature: Jack Zhang EMC Laboratory Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the SGS PRODUCT CERTIFICATION MARK.. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEM111000445301 Page : 1 of 38 1 Cover Page FCC REPORT Application No: SZEM1110004453RF Applicant: Unifat Technology Ltd Product Name: 2.4GHz 15dBm GFSK Transceiver module Operation Frequency: 2414.250MHz to 2464.875MHz FCC ID: RII24RFMDLV01 Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247:2010 Date of Receipt: 2011-12-30 Date of Test: 2011-12-30 to 2012-03-16 Date of Issue: 2012-03-19 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEM111000445301 Page : 2 of 38 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE...................................................................................................................................................... 1 2 CONTENTS.......................................................................................................................................................... 2 3 TEST SUMMARY................................................................................................................................................ 3 4 GENERAL INFORMATION................................................................................................................................ 4 4.1 CLIENT INFORMATION................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T............................................................................................................... 4 4.3 TEST ENVIRONMENT AND MODE................................................................................................................... 5 4.4 DESCRIPTION OF SUPPORT UNITS............................................................................................................... 6 4.5 TEST FACILITY.............................................................................................................................................. 6 4.6 TEST LOCATION............................................................................................................................................ 6 4.7 OTHER INFORMATION REQUESTED BY THE CUSTOMER............................…

Text truncated - open the document above for the full version.

1 Photographs - Test Setup Photo (Test Model No.: KMD7121-06) Radiated Emission
