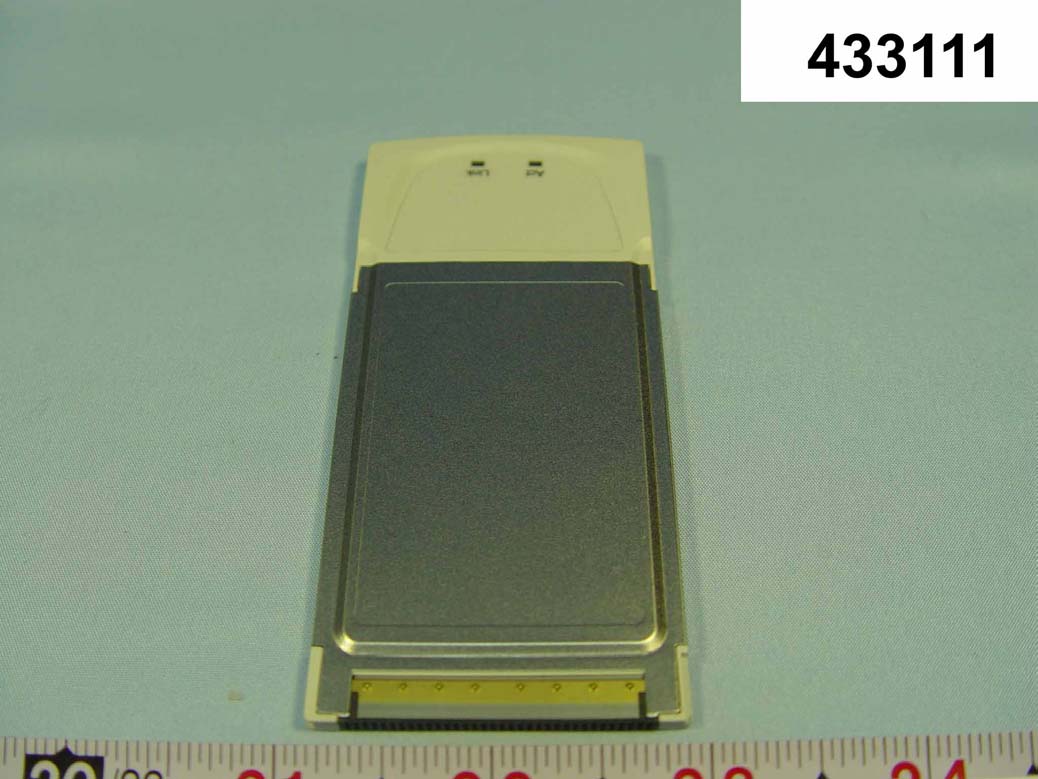

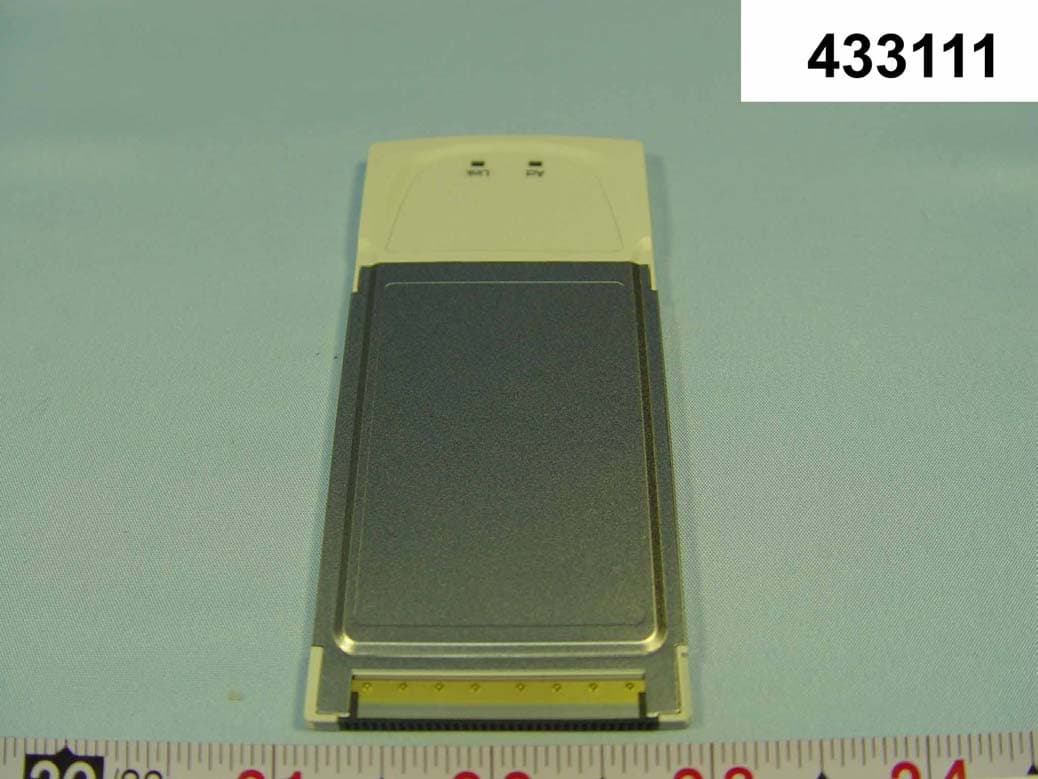

RIW-ZWX-G160IEEE 802.11g PCMCIA CARD BUS

Zinwell Corporation
IEEE 802.11g PCMCIA CARD BUS - FCC ID RIW-ZWX-G160 - Zinwell Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 08, 2004
Application Purpose
Original Equipment
Date of Application
Aug 08, 2004
Equipment Note
IEEE 802.11g PCMCIA CARD BUS
Frequency Range
2412.00000000 - 2462.00000000
Company
Zinwell Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗
↗

Internal Photos

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wireless LAN Device Series WLAN Cardbus Adapter 802.11g 54Mbps Cardbus Adapter User’s Manual Version. 1.00 (02.18.2004) 1 Notice “ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Shielded interface cables must be used in order to comply with emission limits. 2 This EUT is incompliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 Contents 1 Introduction....................................................................................... 4 1.1 Package Contents ........................................................................................................ 4 1.2 System Requirements.................................................................................................. 4 2 Quick Installation.............................................................................. 5 3 Installation Procedures Under MS Windows.................................. 6 3.1 Installing the Application and Drivers under Windows 98SE/Me/2000(at least SP3 Version)/XP .......................................................................................................................... 6 3.2 Uninstall the Driver/Application.............................................................................. 13 4 Configuration & Monitor Utility ..................................................... 17 4.1 Quick step-by-step start to connect site................................................................... 17 4.2 System tray................................................................................................................. 20 4.3 Main dialog box of Utility ......................................................................................... 20 4.4 General ....................................................................................................................... 21 4.5 Setting .........................................................................................................................23 4.6 Security.......................................................................................................................24 4.7 Site Survey ................................................................................................................. 25 4.8 Profile .........................................................................................................................26 4.9 Info.............................................................................................................................. 27 4 1 1 I I n n t t r r o o d d u u c c t t i i o o n n This Cardbus device is a Wireless LAN Adapter with a rate of 1,2,5.5,11Mbps operating in the ISM band using DSSS, confirming the IEEE802.11b standard. A rate of 6,9,12,18,24,36,48 and 54 Mbps operating in the ISM band using Orthogonal Frequency Division Multiplexing (OFDM) transmission, conforming the IEEE 802.11g standard. For these card currently provides Device Drivers for Microsoft Windows ® 98SE/Me/2000/XP. 1.1 Package Contents Before you do anything, open your package and verify it includes: z 802.11g 54Mbps Cardbus Adapter z Setup Utility CD containing User’s Manual z Quick Guide 1.2 System Re…

Text truncated - open the document above for the full version.

External Photos

FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255

ID Label/Location Info

Label Placement: Label

Internal Photos

FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B1 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT Internal FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B2 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B3 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B4 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B5 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B6 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B7 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433111 SPORTON International Inc. PAGE NUMBER : B8 OF B8 TEL : 886-2-2696-2468 ISSUED DATE : July 22, 2004 FAX : 886-2-2696-2255

Test Report

FCC TEST REPORT Report No. :F433111 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : IEEE 802.11g PCMCIA Card Bus Model No. : 1. ZPlus-G160 2. VD870G FCC ID : RIW-ZWX-G160 Filing Type : Certification Applicant : ZINWELL CORPORATION 2, Wen-Hua Road, Hsinchu Industrial Park, Hsinchu Hsien 303, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RZW-FortiWiFi-60 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : July 22, 2004 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant ................................................................................................................................................................................... 2 1.2 Manufacturer............................................................................................................................................................................. 2 1.3 Basic Description of Equipment under Test............................................................................................................................... 2 1.4 Feature of Equipment under Test................................................................................................................................................. 3 2 Test Configuration of Equipment under Test ...............................................................................................4 2.1 Test Manner.............................................................................................................................................................................. 4 2.2 Description of Test System ....................................................................................................................................................... 4 2.3 Connection Diagram of Test System ......................................................................................................................................... 5 3 Operation of Equipment under Test ..............................................................................................................6 4 General Information of Test............................................................................................................................7 4.1 Test Voltage.............................................................................................................................................................................. 7 4.2 Standard for Methods of Measurement ..................................................................................................................................... 7 4.3 Test in Compliance with ............................................................................................................................................................ 7 4.4 Frequency Range Investigated.................................................................................................................................................. 7 4.5 Test Distance............................................................................................................................................................................ 7 5 Report of Measurements and Examinations ................................................................................................8 5.1 List of Measurements and Examinations ................................................................................................................................... 8 5.2 6dB Bandwidth.......................................................................................................................................................................... 9 5.3 Power Spectral Density ........................................................................................................................................................... 17 5.4 Band Edges Measurement ...................................................................................................................................................... 25 5.5 Peak Output Power ................................................................................................................................................................. 33 6. Test of Conducted Emission ........................................................................................................................35 6.1. Major Measuring Instruments .................................................................................................................................................. 35 6.2. Test Procedures...................................................................................................................................................................... 35 6.3. Test Result of Conducted Emission......................................................................................................................................... 36 7. Test of Radiated Emission......................................................…

Text truncated - open the document above for the full version.

Test Report

FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 43 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 7.4.2 Test Mode: Mode 2 (11b TX CH06) ‚ Test Distance : 3 m ‚ Temperature : 26 °C ‚ Relative Humidity :53 % ‚ Emission level (dBuV/m) = 20 log Emission level (uV/m) ‚ Corrected Reading : Probe Factor + Cable Loss + Read Level - Preamp Factor = Level ■ The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and 4 fundamental frequency. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 44 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 45 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 Remark: #3 and 4 fundamental frequency. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 46 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 Remark: Frequency from 6000MHz to 25000MHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 47 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 „ Field strength of fundamental and harmonics Frequency Antenna CableReading Preamp Limits Emission Margin Detect Polarity Factor Loss Factor ( MHz ) ( dB/m ) ( dB )( dBuV )(dB) ( dBuV/m ) ( dBuV/m ) ( dB ) Mode 2438.000 H 28.45 3.37 77.19 44.32 - 109.01 - Peak 2438.000 H 28.45 3.37 69.35 44.32 - 101.17 - AV 2438.000 V 28.47 3.38 69.25 44.32 - 101.10 - Peak 2438.000 V 28.47 3.38 61.63 44.32 - 93.48 - AV 4876.000 H 32.70 4.80 12.71 45.60 74.00 50.21 -23.79 Peak 4874.000 V 32.70 4.80 16.27 45.60 74.00 53.77 -20.23 Peak 4874.000 V 32.70 4.80 12.06 45.60 54.00 49.56 -4.44 AV 7311.000 V/H - - - - - - - AV/Peak 9748.000 V/H - - - - - - - AV/Peak 12185.000 V/H - - - - - - - AV/Peak 14622.000 V/H - - - - - - - AV/Peak 17059.000 V/H - - - - - - - AV/Peak 19496.000 V/H - - - - - - - AV/Peak 21933.000 V/H - - - - - - - AV/Peak 24370.000 V/H - - - - - - - AV/Peak Remark: 1. The emission emitted by the EUT is too low to be measured except the emission listed above, 2. Reading = Reading on SA-Preamp Factor Test Engineer : Jay FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 48 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 7.4.3 Test Mode: Mode 3 (11b TX CH11) ‚ Test Distance : 3 m ‚ Temperature : 26 °C ‚ Relative Humidity :53 % ‚ Emission level (dBuV/m) = 20 log Emission level (uV/m) ‚ Corrected Reading : Probe Factor + Cable Loss + Read Level - Preamp Factor = Level ■ The test that passed at minimum margin was marked by the frame in the following table. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 49 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 50 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 Remark: #3 and 4 fundamental frequency. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 51 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 52 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 53 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 54 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 Remark: #3 and 4 a fundamental frequency. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 55 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 Remark: Frequency from 6000MHz to 25000MHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 56 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 „ Field strength of fundamental and harmonics Frequency Antenna CableReading Preamp Limits Emission Margin Detect Polarity Factor Loss Factor ( MHz ) ( dB/m ) ( dB )( dBuV ) (dB) ( dBuV/m ) ( dBuV/m ) ( dB ) Mode 2460.120 H 28.47 3.38 77.28 44.32 - 109.13 - Peak 2460.120 H 28.47 3.38 69.75 44.32 - 101.60 - AV 2462.000 V 28.47 3.38 73.03 44.32 - 104.88 - Peak 2462.000 V 28.47 3.38 65.60 44.32 - 97.45 - AV 4926.000 H 33.04 4.85 16.63 45.64 74.00 54.52 -19.48 Peak 4926.000 H 33.04 4.85 5.91 45.64 54.00 43.80 -10.20 AV 4924.000 V 33.04 4.85 19.38 45.64 74.00 57.27 -16.73 Peak 4924.000 V 33.04 4.85 15.89 45.64 54.00 53.78 -0.22 AV 7386.000 V/H - - - - - - - AV/Peak 9848.000 V/H - - - - - - - AV/Peak 12310.000 V/H - - - - - - - AV/Peak 14772.000 V/H - - - - - - - AV/Peak 17234.000 V/H - - - - - - - AV/Peak 19696.000 V/H - - - - - - - AV/Peak 22158.000 V/H - - - - - - - AV/Peak 24620.000 V/H - - - - - - - AV/Peak Remark: 1. The emission emitted by the EUT is too low to be measured except the emission listed above, 2. Reading = Reading on SA-Preamp Factor Test Engineer : Jay FCC TEST REPORT Report No. :F433111 SPORTON International Inc. FCC ID : RIW-ZWX-G160 TEL : 886-2-2696-2468 Page No. : 57 of 80 FAX : 886-2-2696-2255 Issued Date : July 22, 2004 7.4.4 Test Mode: Mode 4 (11g TX CH01) ‚ Test Distance : 3 m ‚ Temperature : 26 °C ‚ Relative Humidity :53 % ‚ Emission level (dBuV/m) = 20 log Emission level (uV/m) ‚ Corrected Reading : …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC TEST REPORT Report No. : F462917 SPORTON International Inc. Page No. : C1 of C4 TEL : 886-2-2696-2468 Issued Date : July 22, 2004 FAX : 886-2-2696-2255 Conducted Emission Front View Rear View APPENDIX C. Setup Photographs FCC TEST REPORT Report No. : F462917 SPORTON International Inc. Page No. : C2 of C4 TEL : 886-2-2696-2468 Issued Date : July 22, 2004 FAX : 886-2-2696-2255 Side View FCC TEST REPORT Report No. : F462917 SPORTON International Inc. Page No. : C3 of C4 TEL : 886-2-2696-2468 Issued Date : July 22, 2004 FAX : 886-2-2696-2255 Spurious Radiation Front View Rear View FCC TEST REPORT Report No. : F462917 SPORTON International Inc. Page No. : C4 of C4 TEL : 886-2-2696-2468 Issued Date : July 22, 2004 FAX : 886-2-2696-2255 Frequency Stability

Contact Information

Applicant

Jeff Huang(Engineer)
[email protected]886-3-5979050Fax: 886-3-5978857

Test Firm

Sporton International, Inc.W. Huang
[email protected]8862692468Fax: 8862692255

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz22.00 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
