RIW-ZWX-G250WLAN USB2.0 PEN-TYPE ADAPTER

Zinwell Corporation
WLAN USB2.0 PEN-TYPE ADAPTER - FCC ID RIW-ZWX-G250 - Zinwell Corporation
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Dec 08, 2003
Application Purpose
Original Equipment
Date of Application
Dec 08, 2003
Equipment Note
WLAN USB2.0 PEN-TYPE ADAPTER
Frequency Range
2412.00000000 - 2462.00000000
Company
Zinwell Corporation
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

Cover Letter(s)

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗
↗

Schematics

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Wireless LAN Device Series WLAN USB Pen-Type Adapter ZPlus-G250 User’s Manual Version. 1.01 (10.27.2003) 1 Notice “ Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: o Reorient or relocate the receiving antenna. o Increase the separation between the equipment and receiver. o Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. o Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Shielded interface cables must be used in order to comply with emission limits. 2 This EUT is incompliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C 3 Contents 1 Introduction..........................................................................................4 1.1 Package Contents........................................................................................................4 1.2 System Requirements..................................................................................................4 2 Quick Installation................................................................................5 3 Installation Procedures Under MS Windows..................................6 3.1 Installing the Application and Drivers under Windows 98SE/Me/2000/XP..........6 3.2 Uninstall the Driver/Application..............................................................................13 4 Configuration & Monitor Utility.......................................................17 4.1 Quick step-by-step start to connect site...................................................................17 4.2 System tray.................................................................................................................20 4.3 Main dialog box of Utility.........................................................................................20 4.4 General.......................................................................................................................21 4.5 Profile.........................................................................................................................22 4.6 About..........................................................................................................................24 4 1 1 I I n n t t r r o o d d u u c c t t i i o o n n This USB device is a Wireless LAN Adapter with a rate of 6,9,12,18,24,36,48 and 54 Mbps operating in the ISM band using Orthogonal Frequency Division Multiplexing (OFDM) transmission, conforming the IEEE 802.11g standard. For these card currently provides Device Drivers for Microsoft Windows ® 98SE/Me/2000/XP. 1.1 Package Contents Before you do anything, open your package and verify it includes: l ZPlus-G250 Adapter l USB Cable l Setup Utility CD containing User’s Manual l Quick Start Guide 1.2 System Requirements l Operating System: Microsoft Windows ® 98SE/Me/2000/XP. l Desktop/notebook PC with CD-ROM drive and USB interface. 5 2 2 Q Q u u i i c c k k I I n n s s t t a a l l l l a a t t i i o o n n This section provides a quick step by step guide on how to install your Wireless LAN USB Adapter. Please follow the steps described below and refer to the appropriate sections for further details: l Power on the computer. l Please make sure that you don’t insert your WLAN USB adapter yet. l Install the drivers and application: 1. Insert the given Installation CD into your CD-ROM drive. 2. Click “Install/Uninstall software” button to install. 3. Follow the installation instructions from the InstallShield Wizard by pressing the “Next” button. 4. Choose the appropriate of installation, according to your needs (Application, Drivers) 5. If you want to set the path of your choice, select “Browse” and then “Next”. 6. Then setup wizard will help you finalize the rest steps. 7. Push the “OK” button, and then reboot system. 8. The installation will be completed after reboot. l Insert your WLAN USB adapter. l The “Add New Hardware Wizard” automatically loads the Drivers. l Refer to sections 3 for more details on the installation and configuration under Microsoft Windows ® 98SE/Me/2000/XP respectively. Section 4 gives detailed instructions on …

Text truncated - open the document above for the full version.

External Photos

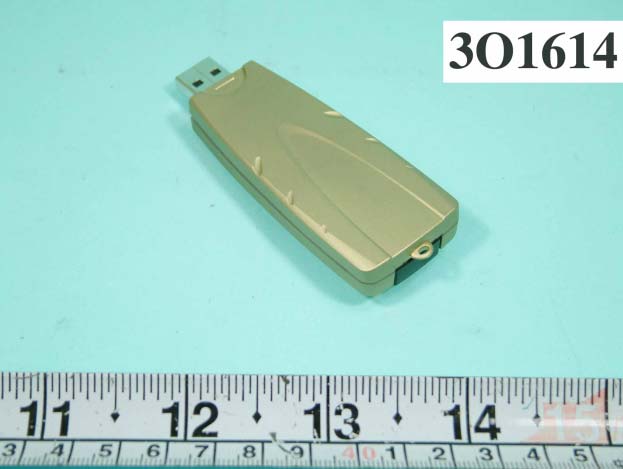

FCC ID: RIW-ZWX-G250 Number 1 FRONT SIDE OF EUT FCC ID: RIW-ZWX-G250 Number 2 REAR SIDE OF EUT FCC ID: RIW-ZWX-G250 Number 3 USB CABLE 1

ID Label/Location Info

Note: 1.Material: 2.Printing: 3.Beforeproduction,thesamplemustbeapprovedbyEngineering Department. ZWX-G250 OCT.03,2003 1/1 LABELFORSET TETORON TETORON Silverbackgroundblacktext Silverbackgroundblacktext FCCID:RIW-ZWX-G250 ModelNo:ZPlus-G250 FCCID:RIW-ZWX-G250 ModelNo:ZPlus-G250 FCCID:RIW-ZWX-G250 ModelNo:ZPlus-G250

Internal Photos

FCC ID: RIW-ZWX-G250 Number 1 MECHANICAL CONSTRUCTION FCC ID: RIW-ZWX-G250 Number 2 MECHANICAL CONSTRUCTION FCC ID: RIW-ZWX-G250 Number 3 MECHANICAL CONSTRUCTION FCC ID: RIW-ZWX-G250 Number 4 MECHANICAL CONSTRUCTION FCC ID: RIW-ZWX-G250 Number 5 MECHANICAL CONSTRUCTION FCC ID: RIW-ZWX-G250 Number 6 MECHANICAL CONSTRUCTION 1 2 FCC ID: RIW-ZWX-G250 Number 7 FRONT SIDE OF MAIN BOARD FCC ID: RIW-ZWX-G250 Number 8 REAR SIDE OF MAIN BOARD FCC ID: RIW-ZWX-G250 Number 9 FRONT SIDE OF ANTENNA FCC ID: RIW-ZWX-G250 Number 10 REAR SIDE OF ANTENNA

Operational Description

FCC ID:RIW-ZWX-G250 Description of Operation EUT is a USB Wireless LAN Adapter with 11 channels. This device provided twelve kind of transmitting speed 1, 2, 5.5, 11Mbps in IEEE 802.11b and 6, 9, 12, 18, 24, 36, 48, 54Mbps in IEEE 802.11g. The modulation of this device are DBPSK, DQPSK,CCK in 802.11b mode and BPSK, QPSK, 16-QAM, 64-QAM in 802.11g mode. The device adapts direct sequence spread spectrum and orthogonal frequency division multiplexing system. The antenna is an external antenna with I-PEX connector. This USB Wireless LAN Adapter is an IEEE 802.11b/g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operating in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the USB Wireless LAN Adapter transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b/g network.

RF Exposure Info

©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 SAR Test Report Test Report No O3O1614-F Specific Absorption Rate (SAR) Test Report for ZINWELL CORPARATION on the WLAN USB 2.0 Pen-Type Adapter FCC ID: RIW-ZWX-G250 Report No.: O3O1614-F Date of Testing: Oct. 29 , 2003 Date of Report: Nov. 07, 2003 Date of Review: Nov. 12, 2003 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 SAR Test Report Test Report No O3O1614-F Table of Contents 1. Statement of Compliance ............................................................................................................................................ 1 2. Administration Data............................................................................................................................................................. 2 2.1 Testing Laboratory............................................................................................................................................................ 2 2.2 Details of Applicant .......................................................................................................................................................... 2 2.3 Application Details ........................................................................................................................................................... 2 3. General Information ........................................................................................................................................................... 3 3.1 Description of EUT........................................................................................................................................................... 3 3.2 Applied Standards............................................................................................................................................................. 5 3.3 Device Category and SAR Limits. ................................................................................................................................... 5 3.4 Test Conditions . ............................................................................................................................................................... 6 3.4.1 Ambient Conditions. ................................................................................................................................................ 6 3.4.2 Test Configuration. .................................................................................................................................................. 6 4. Specific Absorption Rate (SAR) .......................................................................................................................................... 7 4.1 Introduction ................................................................................................................................................................ 7 4.2 SAR definition.................................................................................................................................................................. 7 5. SAR Measurement System................................................................................................................................................... 8 5.1 DASY4 E-Field Probe System-------------------------------------------------------------------------------------------------------9 5.1.1 ET3DV6 E-Field Probe Specification --------------------------------------------------------------------------------------10 5.1.2 ET3DV6 E-Field Probe Calibration ----------------------------------------------------------------------------------------10 5.2 Data Acquisition Electronic (DAE) System ----------------------------------------------------------------------------------------11 5.3 Robot ------------------------------------------------------------------------------------------------------------------------------------11 5.4 Measurement Server -------------------------------------------------------------------------------------------------------------------12 5.5 SAM phantom --------------------------------------------------------------------------------------------------------------------------12 5.6 Data Storage and Evaluation --------------------------------------------------------------------------------------------------------12 5.6.1 Data Storage -------------------------------------------------------------------------------------------------------------------14 5.6.2 Data Evaluation -----------------------------------------------------------------------------------------------------------------14 5.7 Test Equipment List -------------------------------------------------------------------------------------------------------------------17 6. Tissue Simulating Liquids.................................................................................................................................................... 18 7. Uncertainty Assessment .............................................................................................................................................. 20 8. SAR Measurement Evaluation ............................................................................................................................................ 22 8.1 Purpose for System Performance Check -------------------------------------------------------------------------------------------22 8.2 Equipments Set up ---------------------------------------------------------------------------------------------------------------------22 8.3. Validation R…

Text truncated - open the document above for the full version.

Schematics

55 44 33 22 11 D D C C B B A A 型號 :ZPlus-G250 產品名稱 :WLAN USB2.0 Pen-type Adapter AVCC VDDEXTXO VDDVCO VCCIO VCCIO BUS_POWER VDDRF VCCCORE VCCIO + C86 4.7 uF - CER U21 LT3411 1 2 3 48 7 6 5 9 10 SHDN SYNC/MODE SGND SW PGOOD SVIN PVIN PGND VFB ITH L1 39nH R31 0 R59255K C246.8pF C110nF C56.8pF APVDENGRSCALE SHEET CODESIZE DWG NODWG TITLE REV NA 3 of 4 Tawei Tai A 4 1.0 Envara USB_G_only POWER SUPPLY SECTION ZINWELL DATE + C106 1uF U19 LP3981 1234 8765 VOUT< 0 >VINNC< 0 >VOUT< 1> NC< 1 > VEN BYPASS GND C62 10nF + C4 1uF R60 750K R57 100K + C82 1uF C4510nF L4 4.7 uH U17 LTC3406ES5-1.8 4 12 5 3 VIN RUNGND VFB SW + C6 4.7uF C19810nF + C12422 uF C526.8pF L15 4.7 uH R6NA C79 33nF L19 39nH + C8322uF L14 39nH C44 6.8pF R35 316K / 1% R7 0 + C72 47uF C77 22 pF + C12322 uF C4910nF R36 634K / 1% C14 22 pF C6410nF R6113K C2510nF C13 1 nF C4110nF U14 LP3985IM5-2.8 321 54 /SHDNGNDIN OUT BP R58210K C42 6.8pF C15 6.8pF + C784.7 uF - CER 55 44 33 22 11 D D C C B B A A EN202 ANALOG POWER NETS FILTER DEBUG ONLY They are optional switching output to control various type of RF swi tches. With a T/R switch that perform also TX RX switching and Antenna diversity switching we use only the LNASEL, and LNASEL_N. (This is done in Min iPci) 型號 :ZPlus -G250 產品名稱 :WLAN USB2.0 Pe n-type Adapter DATA0DATA1DATA2DATA3DATA4DATA5DATA6DATA7DATA8DATA15DATA14DATA13DATA12DATA11DATA10DATA9ADD21ADD20ADD19EN_CS#EN_OE#EN_WR#EN_DRQ1EN_DRQ2EN_EOTEN_READY EN_IRQ#PA24ON_N RST# TXI_P 1 TXI_N 1 RXIF_P 1 LOCK_DET 1 RFCTRL_DATA1 1CLK20 1 TXQ_N 1 RFCTRL_DATA2 1RFCTRL_SLE 1 RF_START 1 CALDET_P 1 PA24ON 1 CALDET_N 1 TXQ_P 1 RXIF_N 1 RFCTRL_CLK 1 RST# 1 CLK80 1 DATA1DATA2DATA3DATA4DATA5DATA6DATA7DATA8DATA9DATA10DATA11DATA12DATA13DATA14DATA15DATA0ADD19ADD20ADD21EN_CS#EN_OE#EN_WR# EN_DRQ1EN_DRQ2EN_EOTEN_READY EN_IRQ#PA24ON_N VCCCORE VCCCORE AVCC VCCIO VCCIO VCCIO AVCC VCCCORE VCCIO VCCIO VCCCORE VCCIO VCCIO VCCIO C59100nF C85100nF + C57 4.7uF APVDENGRSCALE SHEET CODESIZE DWG NODWG TITLE REV NA 2 of 4 Tawei Tai A 4 1.0 Envara USB_G _only MAC ( EN 202 ) ZINWELL DATE C102100nF R39 0 C84100nF U18 M95640WMN 1234 5678 /SW/QVSS D C /HOLD VCC C6710nF R37 1.2K C53 10nF R43 1K C87100nF +C962.2uF R40 0 C101100nF C6010nF R50 0,NA C9510nF C9410nF C70100nF C10510nF R4110K C80 100nF + C984.7uF C97100nF C9910nF C7510nF C10410nF C55100nF U16 EN202 V1 U2 G2G4 H3H2H4H5 J3J4J5 K1K2K3K4K5 L3L4L5 M1M2M3M4M5 P5 E16 L16L15 U3 W1 E19E17E14 P1 N5 P3 W2 R3 P2P4 N4R4 T3T2T1 V3 N3 W3 T4 U4 V4 W4 R5U5 T5 R6U6 V6 T6 W6 R7U7 T7 W8 U8 V8 T8 R8U9 T9 R9 W10 V10 U10 T10 R10U11 T11 R11 M19 M16 B19R13R14 P18 P17 R18 R17 T18 T19 V19 U18 K19 V11 W11 R12 K18 U12 T12 W13 V13 W14 U14 V14 T14 H16 H15 H18 H19 H17 D10E8E9E7D9E6D8A2A3D5B5C5A5D6B6C6C10A14D11B15C11A15C12C16C15D16C13B18D15A19D14C17C4A6B14B17D12C9B10C8D7C7B8A8C18E13D17E10E11E12A10E15C14D13F3E1E2F5F4G3G5D4C3B2A1D1D2D3E5E4B3E3H1G1 U16 V15 U15 T15 W18 W17 T13 U13 M15 M18 N16 V17 V18 W16 W19 N19 L17 G16 F19 G15 G17 F18 E18 F15 F16 F17 J15 J16 J17 K15 K16 K17 A7 A11 A16 F1 G19 L19 L1 R1 W9 W15 A4 A12 A13 A9 B1 A18 C1 D19 J1 J19 N1 U1 W5 W7 W12 N18 N15 B4 B7 B9 B11 B12 B13 B16 A17 C2 C19 D18 F2 G18 J2 J18 L2 L18 M17 N2 R2 V2 V5 V7 V9 V12 V16 N17 P19 P15 T16 U17 R15 P16 U19 R16 R19 T17 SDCLKSDWEnADDR0ADDR1ADDR2ADDR3ADDR4ADDR5ADDR6ADDR7ADDR8ADDR9ADDR10ADDR11ADDR12ADDR13ADDR14ADDR15ADDR16ADDR17ADDR18ADDR19ADDR20ADDR21SDCKEREADYDACK2DACK1SDBA1nSDBA0nDEOTnDREQ2DREQ1MEMBE3nMEMBE2nMEMWEnSDRASnSDCSnMEMOEnSRAMCSnFLSHCSnSDDQM0nSDDQM3nSDDQM2nSDDQM1nSDCASnSDADDR10DATA0DATA1DATA2DATA3DATA4DATA5DATA6DATA7DATA8DATA9DATA10DATA11DATA12DATA13DATA14DATA15DATA16DATA17DATA18DATA19DATA20DATA21DATA22DATA23DATA24DATA25DATA26DATA27DATA28DATA29DATA30DATA31 CLK20 CLK80 SYSRSTn LEDSTATUS LEDACTIVE RXIF_P RXIF_N TXI_P TXI_N TXQ_P TXQ_N CALDET_P CALDET_N ANTSEL PA5ON PA24ON RFSTART LOCKDET RFSW1_P RFSW1_N RFSW2_P RFSW2_N RFC_DATA1 RFC_DATA2 RFC_CLK RFC_ENn TMS TCK TDI TRSTn TDO CBAD0CBAD1CBAD2CBAD3CBAD4CBAD5CBAD6CBAD7CBAD8CBAD9 CBAD10CBAD11CBAD12CBAD13CBAD14CBAD15CBAD16CBAD17CBAD18CBAD19CBAD20CBAD21CBAD22CBAD23CBAD24CBAD25CBAD26CBAD27CBAD28CBAD29CBAD30CBAD31 CBC_BE0nCBC_BE1nCBC_BE2nCBC_BE3n CBPAR CBFRAMEn CBIRDYn CBTRDYn CBDEVSELn CBSTOPn CBPERRnCBSERRn CBREQn CBGNTn CBCLK CBLOCKn CBINTn CBRSTn CBCLKRUNn CBSTSCHG IDSEL PMEn MIITXCLK MIITXD0MIITXD1MIITXD2MIITXD3 MIITXENMIITXER MIICRS MIICOL MIIMDC MIIMDIO MIIRXCLK MIIRXD0MIIRXD1MIIRXD2MIIRXD3 MIIRXDVMIIRXER UART_IN UART_OUT GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 GPIO9 GPIO10 MGPIO0 MGPIO1 MGPIO2 MGPIO3 MGPO4 MGPO5 SPICSn SPICLK SPIMOSI SPIMISO TEST_MODE DBG0 DBG1 DBG2 DBG3 DBG4 DBG5 DBG6 DBG7 DBG8 DBG9 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 1.8V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V 3.3V PLL_APWR PLL_DPWR GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND GND PLL_DGND RX_D33V RX_A33V CAL_D33V CAL_A33V TX_A33V RX_AGND CAL_AGND TX_AGND TX_DGND DAC_BIAS C5810nF C91 100nF C81100nF C90 10nF R64 47 C5610nF C9310nF C8910nF D1 LED0603-GREEN R251.2K R63 47 C7110nF + C924.7uF +C54 4.7uF C68 100nF R62 47 C8810nF + C73 4.7uF C74100nF R65 47 C76 100nF 55 44 33 22 11 D D C C B B A A LOOP FI LTER reserved,but asclose as possible reserved,but asclose as possible 型號 :ZPlus -G250 產品名稱 :WLAN USB2.0 Pe n-type Adapter LOCK_DET 2 RXIF_P 2 CALDET_N 2 CALDET_P 2 RXIF_N 2 TXQ_P 2 TXI_N2 TXQ_N 2 RFCTRL_SLE2 RFCTRL_DATA1 2 RFCTRL_CLK 2 RFCTRL_DATA2 2 TXI_P 2 CLK80 2 CLK20 2 TXQ_P 2 TXI_N 2 TXQ_N 2 TXI_P 2 RF_START 2 RST# 2 PA24ON PA24ON_N PA24ON 2 VDDVCO VDDRF VDDEXTXO VDDRF VCCIO TXI_N TXQ_N TXQ_P TXI_P C3 22pF C23 22pF R11 62 R30 0 L3 3.3nH C1910pF U6 LDB212G4005C-001 123 456 UNBALGNDBAL1 BAL2 GND NC R230,NA C50 3.3nF R22 1.1K C30 22pF U8 LF1608-B2R4KCB 123 456 GNDINGND GND OUT GND C651nF R32 24.9 Y2 XO-20MHz 5*3.5 32 14 OUTGND EN VCC R14 43 C17 1nF R160 APVDENGRSCALE SHEET CODESIZE DWG NODWG TITLE REV NA 1 of 4 Tawei Tai A 4 1.0 Envara USB_G _only RF site ( EN303 ) ZINWELL DATE U13 EN313 123456978 1011121314 15 16 17 18 19 20 21 22 23 24 25 …

Text truncated - open the document above for the full version.

Test Report

FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : WLAN USB2.0 Pen-Type Adapter Model No. : ZPlus-G250 FCC ID : RIW-ZWX-G250 Filing Type : Certification Applicant : ZINWELL CORPARATION 2, Wen-Hua Road, Hsinchu Industrial Park, Hsinchu Hsien 303, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. FCC ID : RIW-ZWX-G250 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Nov. 07, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2 Manufacturer ...................................................................................................................................................................................2 1.3 Basic Description of Equipment under Test ....................................................................................................................................2 1.4 Feature of Equipment under Test .....................................................................................................................................................3 2 Test Configuration of Equipment under Test ...............................................................................................5 2.1 Test Manner ....................................................................................................................................................................................5 2.2 Description of Test System .............................................................................................................................................................5 2.3 Connection Diagram of Test System ..............................................................................................................................................7 3 Operation of Equipment under Test ..............................................................................................................8 4 General Information of Test............................................................................................................................9 4.1 Test Voltage ....................................................................................................................................................................................9 4.2 Standard for Methods of Measurement...........................................................................................................................................9 4.3 Test in Compliance with ..................................................................................................................................................................9 4.4 Frequency Range Investigated .......................................................................................................................................................9 4.5 Test Distance ..................................................................................................................................................................................9 5 Report of Measurements and Examinations ..............................................................................................10 5.1 List of Measurements and Examinations ......................................................................................................................................10 5.2 6dB Bandwidth ..............................................................................................................................................................................11 5.3 Peak Output Power .......................................................................................................................................................................12 5.4 Power Spectral Density .................................................................................................................................................................13 5.6 Test of Conducted Emission ...........................................................................................................................................................14 5.7 Test of Radiated Emission ............................................................................................................................................................23 5.8 Band Edges Measurement............................................................................................................................................................41 5.9 Antenna Requirements .................................................................................................................................................................43 6 Antenna Factor & Cable Loss ......................................................................................................................44 7 List of …

Text truncated - open the document above for the full version.

Test Report

FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 1 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 1.1. Comments6dB Emission bandwidth>500kHz -CH01 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 2 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH06 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 3 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH11 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 4 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH 01( 802.11g) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 5 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH06 (802.11g) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 6 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH11 (802.11g) Comments All emissions in any 100kHz bandwidth outside the band edge are attenuated more then 20dB from the carrier. FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 7 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 1.2. Power Density -CH01 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 8 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH06 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 9 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH11 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 10 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH 01 (802.11g) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 11 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH06 (802.11g) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 12 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH11 (802.11g) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 13 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 1.4 Band Edges Measurement -CH01 FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 14 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH11 (802.11b) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 15 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH01 (802.11g) FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. Page No. : 16 of 16 TEL : 886-2-2696-2468 Issued Date : Nov. 07, 2003 FAX : 886-2-2696-2255 -CH 11 (802.11g)

Test Setup Photos

FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. FCC ID : RIW-ZWX-G250 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued : Nov, 07, 2003 1.1. Photographs of Conducted Powerline Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. FCC ID : RIW-ZWX-G250 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued : Nov, 07, 2003 SIDE VIEW FCC TEST REPORT Report No. : F3O1614 SPORTON International Inc. FCC ID : RIW-ZWX-G250 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued : Nov, 07, 2003 1.2. Photographs of Radiated Emission Test Configuration z The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW

Contact Information

Applicant

Jeff Huang(Engineer)
[email protected]886-3-5979050Fax: 886-3-5978857

Test Firm

SPORTON International IncKathy Lin
[email protected]886-2-2696-2468Fax: 886-2-2696-2255

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz35.00 mW
Grant Notes
Power listed is conducted. SAR compliance has been established in the laptop computer(s) configurations with USB connectors as tested in this filing, and can be used in laptop computer(s) with substantially similar physical dimensions, construction, and electrical and RF characteristics. Compliance of this device in all final host configurations is the responsibility of the Grantee. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The highest reported SAR level is: Body: 0.52 W/kg.
