Wireless LAN Device Series WLAN PCI Adapter ZPlus-G361 User’s Manual Version. 1.00 (03.08.2004) 1 Notice “ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: † Reorient or relocate the receiving antenna. † Increase the separation between the equipment and receiver. † Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. † Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Shielded interface cables must be used in order to comply with emission limits. 2 This EUT is incompliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter CAUTION: 1. To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. 2. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 3 Contents 1 Introduction....................................................................................... 4 1.1 Package Contents ........................................................................................................ 4 1.2 System Requirements.................................................................................................. 4 1.3 LED Description .......................................................................................................... 4 2 Quick Installation.............................................................................. 5 3 Installation Procedures Under MS Windows.................................. 6 3.1 Installing the Application and Drivers under Windows 98SE/Me/2000/XP .......... 6 3.2 Uninstall the Driver/Application.............................................................................. 13 4 Configuration & Monitor Utility ..................................................... 17 4.1 Quick step-by-step start to connect site................................................................... 17 4.2 System tray................................................................................................................. 20 4.3 Main dialog box of Utility ......................................................................................... 20 4.4 General ....................................................................................................................... 21 4.5 Setting .........................................................................................................................23 4.6 Security.......................................................................................................................23 4.7 Site Survey ................................................................................................................. 25 4.8 Profile .........................................................................................................................26 4.9 Info.............................................................................................................................. 27 4 1 1 I I n n t t r r o o d d u u c c t t i i o o n n This PCI device is a Wireless LAN Adapter with a rate of 1,2,5.5,11Mbps operating in the ISM band using DSSS, confirming the IEEE802.11b standard. A rate of 6,9,12,18,24,36,48 and 54 Mbps operating in the ISM band using Orthogonal Frequency Division Multiplexing (OFDM) transmission, conforming the IEEE 802.11g standard. For these card currently provides Device Drivers for Microsoft Windows ® 98SE/Me/2000/XP. 1.1 Package Contents Before you do anything, open your package and verify it includes: z ZPlus-G361 PCI Adapter z 2dBi Antenna z Setup Utility CD containing User’s Manual z Quick Guide 1.2 System Requirements z Operating Sys…

Text truncated - open the document above for the full version.

REVISION ZONE REV DESCRIPTION DATE APPROVED B B l l o o c c k k D D i i a a g g r r a a m m 01 - Aug. 2 , 04 . PROJECT NO. ZWX-G361 DWG TITLE ZWX-G361 802.11g PCI DRAWN Ta w e i Ta i DWG NO . ENGR Ta w e i Ta i REV USED ON APVD By 01 SHEET 1 OF 1 Tx / RxSwitch 3.0V to 2.8V 93C46 SAW Filter 3.3V to 3.0V 2412MHz ~ 2484MHz Link Control 32bit 3.3V Antenna OSC LED Display 374MHz 2412MHz ~ 2484MHz Rx Power Amplify Tx 3.3V to 1.8V Activity 40MHz 802.11g WLAN Chip RF1091 ZWX-G361 802.11g PCI Band-PassFilter 2412MHz ~ 2484MHz EEPROM Power Convert PCI I/F RT2560 374MHz RT2525 2412MHz~2484MHz 2412MHz ~ 2484MHz RF Transceiver Channel Number 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Channel Frequnecy (MHz) 2412 2417 2422 2427 2432 2437 2442 2447 2452 2 457 2462 2467 2472 2484

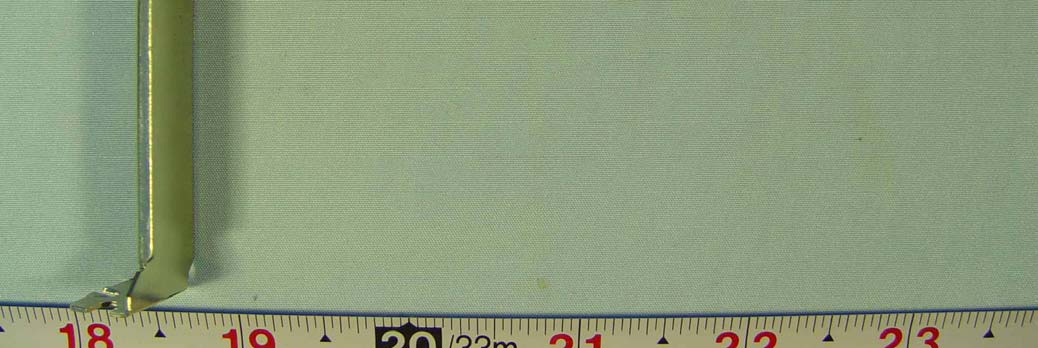

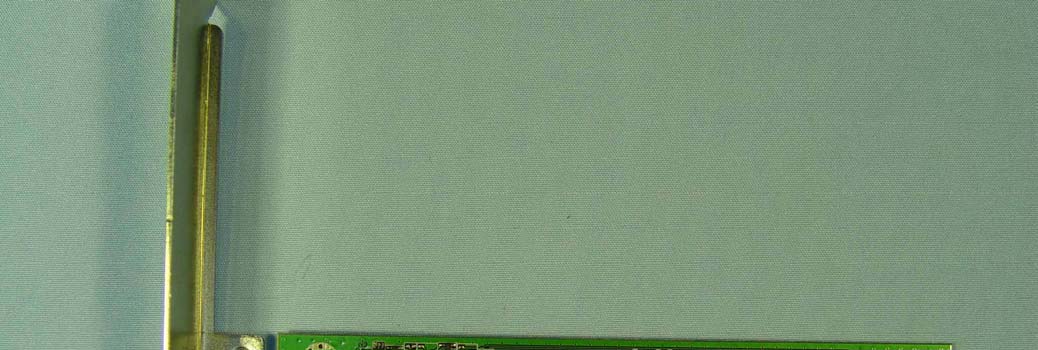

FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT External FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255

Label Placement: Label

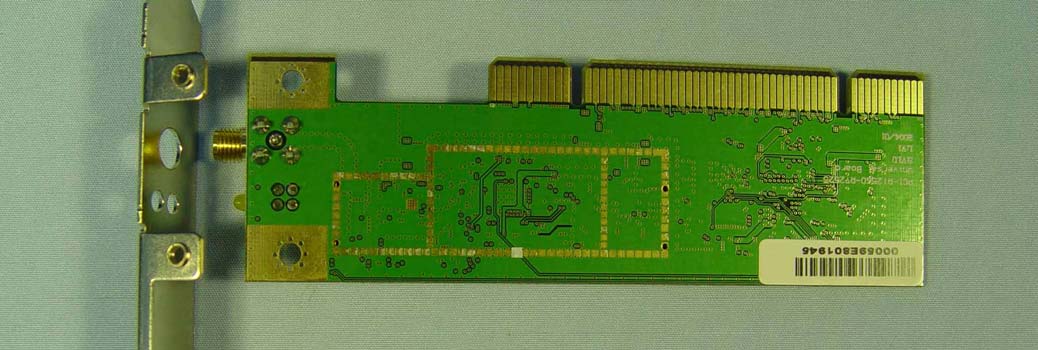

FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : B1 OF B2 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT Internal FCC TEST REPORT REPORT NO. : F433112 SPORTON International Inc. PAGE NUMBER : B2 OF B2 TEL : 886-2-2696-2468 ISSUED DATE : July 26, 2004 FAX : 886-2-2696-2255

FCC ID: Description of Operation ZWX-G361 is a PCI Wireless LAN Card with 11 channels. The standards of IEEE 802.11g and IEEE 802.11b. This device provided automatic fallback of transmitting speed 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM, CCK, QPSK and BPSK. The device adapts direct sequence spread spectrum modulation. The antenna is 2dBi gain Dipole with detachable reverse SMA connector. This ZWX-G361 is an IEEE 802.11g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the ZWX-G361 transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11g and 802.11b network.

55 44 33 22 11 D D C C B B A A S G D R210 R211 150-ohm240-ohm 100-ohm180-ohm Note Use74LVC1G08 UseBSS84 GND GND GND VCC1 VBB TSSI VB2 GND GND VB1 TR_SWN PA_RFIN PA_PEG PAPEI PA_OUT BPF_OUT RFIN PA_OUT BPF_IN SW10SW9SW8 GND 3.3VDMTR_SWN MTR_SW TR_SW LNA1TR_SWN VCCA GND PH PA_PE_G 3.3VD VCCPA GND GND GND ANTE2E CVIN GND ANTE2 GND GND GND GND GND GND GND GND GND GND GND PA_RFO GND GND GND GND GND GND GND VCCA GND GND GND GND GND 3.3VD GND GND 3.3VD CVIN VCCPA GND GND U7 BPF-MF2450B-01124501U213210 2 4 3 1 BI BO G G C341C/NI 12 C78C/NI 12 R211 180 1 2 R12 1K/NI 1 2 C328 3.9pF 12 R40 1K/NI 12 R212 1K 1 2 C340C/NI 12 C6 1.2pF/NI 12 C330 10uF 12 C46 1pF 12 C249 1.5pF/NI 12 C324 0.1uF 1 2 SD Q1 BSS84/NI 1 32 C329 10pF 12 C74 10pF 1 2 U6HWS-314 321 654 OUT1 GND OUT2 VC2INVC1 L41 27nH/0603 1 2 APVDENGRSCALE SHEET CODESIZE DWG NODWG TITLE REV NA 3 of 5 Jason A 4 3.0 Ralink PCI_G_only ZINWELL DATE PA and TX/RX L1 0 ohm/SB 1 2 C331 100pF 12 C1902.2nH/NI 12 C323 10pF 1 2 L32.2nH 1 2 R169 3.3K/NI 12 R222 4.7K 1 2 G V U37 74LVC1G08/SC-70 12 45 3 G V U36 74LVC1G04/SC70 2 45 31 L46 10nH/0603 1 2 R220 1K 12 U5 AP1091 1234 8 7 6 5 9101112 13 14 15 16 17 RF INGNDDECT_VDECT_OUT NC GND VB2 VB1 NC RFOUTRFOUTRFOUT VCC1 VCC1 NC NC GND R219 1K 12 U4 SMA_5P-RA 5 2 1 3 4 SD Q4 BSS138/NI 1 23 R15 1K/NI 1 2 R210 240 1 2 C325 100pF 12 R216 4.7K/NI 12 G V U35 74LVC1G08/SC-70 12 45 3 C327 2.7pF 12 C248 1.8pF/NI 12 C43 10pF 1 2 C256 100pF/NI 12 TSSI TR_SWN TR_SW PA_RFIN RFIN LNA1 PA_PE_G 55 44 33 22 11 D D C C B B A A Link/TX GNTBCBE3B 1.8VD RADIO_PD#PA_PE_GLNA0LNA1SYNDATARFRX_PETR_SWSYNCLKRF_LE-G# GND3.3VDMRSTBGNDGND GND GND GND 1.8VD 3.3VD GND 3.3VD 3.3VD CBE3B IDSEL CCLKTRDYBCBE2BCLKRUNBFRAMEBIRDYBDEVSELBSTOPB GND1.8VD AD27 AD20 AD17 AD29 AD16 AD30 AD22 AD21 AD15AD14 AD25 AD24 AD26 AD31 AD18 AD[0..31] AD13AD8 AD23 AD28 AD19 AD2AD0AD3AD1AD6AD5AD7 GND3.3VDGND 3.3VDGND GND GND LED_LKACT# 3.3VA GND 3.3VA 3.3VA 3.3VD 3.3VA GND GND GND 1.8VDGND3.3VDGNDGND3.3VD3.3VDGNDGNDGNDGND3.3VD RXBB_I+TX_BB_Q-TX_BB_Q+TX_BB_I-TX_BB_I+AGC 3.3VA GND 1.8VA 1.8VA IDSEL IREF 3.3VD BYP_PLL GND ITSSI TSSI GND GND 1.8VA GND VREFNVREFP VREF01VREF25P 1.8VD 1.8VD 1.8VD VREF25N MCLK_20M 3.3VD LD_FORFTX_PETR_SWN 3.3VDGNDGND1.8VD3.3VD INTAB INTAB MRSTB GNTB REQB REQB GND 1.8VD GND GND GND GND EESK EESK 3.3VD EEDI EEDI GND EEDO EEDO EECS EECS ORG PERRBPARCBE1BSERRB AD11AD9AD10AD12 3.3VD CBE0B AD4 GNDGND GND GND GND 1.8VA GND GND GND 3.3VA GND 3.3VD 3.3VD1.8VD GND CLKRUNB 3.3VD3.3VD REQB 3.3VD RF_LE-G# PERRBDEVSELBSTOPBINTABFRAMEB GND MRSTBSERRBGNTB 3.3VD TRDYBIRDYB 1.8VA RXBB_Q+ 3.3VA GND GND GND GND GND VCCD OV+ OSC20 GND 40MI GND RX_BB_Q-RX_BB_Q+RX_BB_I-RX_BB_I+ RXBB_Q-RXBB_I- RFTXDIS# LED_RDY# 3.3VD 3.3VD3.3VD3.3VD 3.3VD 3.3VD3.3VD 3.3VD 3.3VD3.3VD3.3VD LD1_GNLD2_YN GND GND GND GND 3.3VD 3.3VD 1.8VA 1.8VD 3.3VD 3.3VA GND GND VCCD GND 3.3VD GND GND GND GND C164 0.1uF 12 RA4RA 4.7K*4 1357 2468 5x7U3 OSC/5x7/40MHz 14 23 NCV+ GND OUT C252 10pF 12 C302 1uF 1 2 C317 5pF 12 C303 1uF 1 2 C301 1uF 1 2 RA3RA 4.7K*4 1357 2468 R224 820 1 2 R208 1K 1 2 APVDENGRSCALE SHEET CODESIZE DWG NODWG TITLE REV NA 4 of 5 Jason A 4 3.0 Ralink PCI_G_only ZINWELL DATE WLAN MAC+BBP - RT2560 C172 0.1uF 12 C1730.1uF 12 C167 0.1uF 12 C3114.7uF/10V 12 R115 1K 1 2 C2610.1uF 12 C299 0.1uF 12 C1650.1uF 12 C318 5pF 12 C3070.1uF 12 R163 4.7K 1 2 R225 820 1 2 C336 4.7uF/10V 12 RA2RA 4.7K*4 1357 2468 C2981uF 12 D3 LED2X1-DIP 1 2 3 4 C3100.1uF 12 R223 820 1 2 C206 5.6pF 12 R207 820 1 2 C265 0.1uF 12 B9BK1608TS102 12 U30 93C46 1234 5678 CS SK DI DO GNDN/CN/CVDD C1660.1uF 12 D1 LED/1208SV/NI 1 2 R226 820 1 2 R206 4.7K 1 2 C337 0.1uF 12 C2600.1uF 12 C3084.7uF/10V 12 R167 0 ohm 12 C300 1uF 1 2 R192 1K 1 2 C319 270pF 1 2 R191 1K/NI 1 2 D2 LED/1208SV/NI 1 2 R205 4.7K 1 2 C178 0.1uF 1 2 U31 RT2560-BGA180 E4 F5 D1 E1 F1 G1 G5 L4 G4 K1 M2 H5 N3 H1 J1 M1 N1 L5L6K6 A8 N7 M3 K7M7L8P8N8K8M8K9P10L10P11N11 A12 C9 B11A13 M10M11M12N12L11L12P13 N13 L13 P14 M13 N14 P12 K11 M14 L14 J12 K14 K13 J11 H11 J13 H12 J14 H13 H14 G11 G12 G14 G13 F11 F14 E8 E9 F12 F13 E14 E11 D10 D14 E12 E13 C14 A11B10 B9 D9D8 A10 A9B8 C8 B7 C7 A7E7 D7C6 A6 D6 E6A5A4B6A3B4 C5 B5A2A1B3 C13 B2B1 C1C2 F4 C3 D4 D5 D3 D2 E5 E2 F3 E3 G3 F2 H3 G2 H4 J4 P1 H2 J3 J2 K3 L1 K2 K4 L2 L3 C4 B12A14 C10 C11 B13 B14 D11 C12 D12 D13 K12 N10L9M9P9N9L7P7P6P5 N6 P4N2P3M6P2M5N5M4N4 E10 F10 G10H10 J10 K10 K5 J5 GPIO0 TEST_EN RFTXI_P RFTXI_N RFTXQ_P RFTXQ_N AGC VSS33A IREF VREFP VCC33A TSSI VSS33D RFRXI_P RFRXI_N RFRXQ_P RFRXQ_N GNDSH TR_PE RF_LD VSS18 RF_LE_G VCC33A RF_CLK VDDIO RF_DATA RF_PE TR_SW_P TR_SW_N GNDIO RADIO_PE PA_PE_G ANSEL_P ANSEL_N VDDIO EEDOEEDIEESKEECS SCAN_EN GNDIO INTA_N RST_N VDD18 VDDIO GNT_N REQ_N GNDIO AD[31] AD[30] AD[29] VSS18 AD[28] AD[27] AD[26] VDDIO AD[25] AD[24] CBE[3]_N IDSEL GNDIO AD[23] AD[22] AD[21] AD[20] AD[19] AD[18] VDD18 AD[17] AD[16] VDDIO CLK_PCI GNDIO CBE[2]_N FRAME_N IRDY_N CLKRUN_N TRDY_N GNDIO DEVSEL_N STOP_N VDDIO PERR_NGNDIOSERR_NPARCBE[1]_NAD[15]AD[14]VDDIOAD[13]GNDIOAD[12]AD[11]AD[10]AD[9]VDDIOAD[8]CBE[0]_NAD[7]AD[6]AD[5]AD[4]VDD18GNDIOAD[3]AD[2]VDDIOAD[1]AD[0] PLLAVDD LD_LK_ACT_NLED_RDY_NGPIO7GPIO6 GNDIO GPIO5 GPIO4 VDDIO GPIO3 GPIO2 GPIO1 VCC18A VSS18A VCC18A VSS18A VCC18A VSS18A VCC18A VSS18A GNDSH_DAC VDDIOA VCC33A VSS33A VCC33A VSS33A VREFN VCC33A VSS33A VCC33A VSS33A VSS18VDD18BYP_PLLPLLDVDD PLLDVSS PLLTAVSS PLLTAVDD PLLAVSS PLLAVDD PLLCLK VSS18 VSS18 AGC_LNA1AGC_LNA0 VDD18 PA_PE_A VSS18 RF_LE_A VREF025N VREF025P VREF_1_0 NC VCC33D VSS33D VCC33D VSS33D VCC33D VSS33D VCC33D VSS33D VCC33D GNDM GNDM GNDMGNDM GNDM GNDM GNDMGNDM R140 127 1 2 R141 127 1 2 AD[0..31] IDSEL CBE3B GNTB INTABREQB MRSTB TX_BB_I+TX_BB_Q+TX_BB_I-TX_BB_Q- RADIO_PD#PA_PE_GLNA0LNA1SYNDATARFRX_PETR_SWSYNCLKRF_LE-G# CCLK IRDYB FRAMEB TRDYBCBE2BSTOPB DEVSELB AGCTSSIIREF RFTX_PELD_FOTR_SWN PERRBSERRB PAR CBE1BCBE0B 40MI RX_BB_Q-RX_BB_I+RX_BB_Q+RX_BB_I- 55 44 33 22 11 D D C C B B A A 2.8V 3.0V 2 1 I GO 1.8V 3 @300mA @300mA @300mA @300mA VCCA RADIO_PD# VCCB BYP2 3.3VA3.3VD 1.8VA 1.8VD 3.3VI 3.3VDRVCCD GND GND GND GND BYP1 GND GND GND GND GND …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. :F433112 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR Part 15 Subpart C Equipment : IEEE802.11g PCI WLAN Card Trade Name : ZINWELL/ VTECH Model No. : ZPlus-G361/ VD850G FCC ID : RIW-ZWX-G361 Filing Type : Certification Applicant : ZINWELL CORPROATION 2, Wen-Hua Road, Hsinchu Industrial Park Hsinchu Hsien 303, Taiwan ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant ................................................................................................................................................................................... 2 1.2 Manufacturer............................................................................................................................................................................. 2 1.3 Basic Description of Equipment under Test............................................................................................................................... 2 1.4 Feature of Equipment under Test................................................................................................................................................. 3 2 Test Configuration of Equipment under Test ...............................................................................................4 2.1 Test Manner.............................................................................................................................................................................. 4 2.2 Description of Test System ....................................................................................................................................................... 4 2.3 Connection Diagram of Test System ......................................................................................................................................... 5 3 Operation of Equipment under Test ..............................................................................................................6 4 General Information of Test............................................................................................................................7 4.1 Test Voltage.............................................................................................................................................................................. 7 4.2 Standard for Methods of Measurement ..................................................................................................................................... 7 4.3 Test in Compliance with ............................................................................................................................................................ 7 4.4 Frequency Range Investigated.................................................................................................................................................. 7 4.5 Test Distance............................................................................................................................................................................ 7 5 Report of Measurements and Examinations ................................................................................................8 5.1 List of Measurements and Examinations ................................................................................................................................... 8 5.2 6dB Bandwidth.......................................................................................................................................................................... 9 5.3 Power Spectral Density ........................................................................................................................................................... 16 5.4 Band Edges Measurement ...................................................................................................................................................... 23 5.5 Peak Output Power ................................................................................................................................................................. 29 6. Test of Conducted Emission ........................................................................................................................30 6.1. Major Measuring Instruments .................................................................................................................................................. 30 6.2. Test Procedures...................................................................................................................................................................... 30 6.3. Test Result of Conducted Emission......................................................................................................................................... 31 7. Test of Radiated Emission.......................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 38 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: Frequency from 5GHz to 25GHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 39 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 „ Field strength of fundamental and harmonics Frequency Antenna CableReading Preamp Limits Emission Margin Detect Polarity Factor Loss Factor ( MHz ) ( dB/m ) ( dB )( dBuV )(dB) ( dBuV/m ) ( dBuV/m ) ( dB ) Mode 2412.000 H 28.41 3.35 72.21 44.34 - 103.97 - Peak 2412.000 H 28.41 3.35 64.63 44.34 - 96.39 - AV 2412.000 V 28.41 3.35 81.37 44.34 - 113.13 - Peak 2412.000 V 28.41 3.35 73.27 44.34 - 105.03 - AV 4824.000 V/H - - - - - - - AV/Peak 7236.000 V/H - - - - - - - AV/Peak 9648.000 V/H - - - - - - - AV/Peak 12060.000 V/H - - - - - - - AV/Peak 14472.000 V/H - - - - - - - AV/Peak 16884.000 V/H - - - - - - - AV/Peak 19296.000 V/H - - - - - - - AV/Peak 21708.000 V/H - - - - - - - AV/Peak 24120.000 V/H - - - - - - - AV/Peak Remark: 1. The emission emitted by the EUT is too low to be measured except the emission listed above, 2. Reading = Reading on SA-Preamp Factor Test Engineer : Jay FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 40 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 7.4.2 Test Mode: Mode 2 (802.11b TX CH06) ‚ Test Distance : 3 m ‚ Temperature : 26 °C ‚ Relative Humidity :53 % ‚ Emission level (dBuV/m) = 20 log Emission level (uV/m) ‚ Corrected Reading : Probe Factor + Cable Loss + Read Level - Preamp Factor = Level ■ The test that passed at minimum margin was marked by the frame in the following table. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 41 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 42 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: The “X” represent a fundamental frequency. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 43 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: Frequency from 5GHz to 25GHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 44 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 45 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 46 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: The “X” represent a fundamental frequency. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 47 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: Frequency from 5GHz to 25GHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 48 of 50 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 „ Field strength of fundamental and harmonics Frequency Antenna CableReading Preamp Limits Emission Margin Detect Polarity Factor Loss Factor ( MHz ) ( dB/m ) ( dB )( dBuV )(dB) ( dBuV/m ) ( dBuV/m ) ( dB ) Mode 2436.000 H 28.43 3.37 78.51 44.33 - 110.31 - Peak 2436.000 H 28.43 3.37 69.25 44.33 - 101.05 - AV 2438.000 V 28.45 3.37 86.56 44.32 - 118.38 - Peak 2438.000 V 28.45 3.37 79.05 44.32 - 110.87 - AV 4874.000 V/H - - - - - - - AV/Peak 7311.000 V/H - - - - - - - AV/Peak 9748.000 V/H - - - - - - - AV/Peak 12185.000 V/H - - - - - - - AV/Peak 14622.000 V/H - - - - - - - AV/Peak 17059.000 V/H - - - - - - - AV/Peak 19496.000 V/H - - - - - - - AV/Peak 21933.000 V/H - - - - - - - AV/Peak 24370.000 V/H - - - - - - - AV/Peak Remark: 1. The emission emitted by the EUT is too low to be measured except the emission listed above, 2. Reading = Reading on SA-Preamp Factor Test Engineer : Jay FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 49 of 79 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 7.4.3 Test Mode: Mode 3 (802.11b TX CH11) ‚ Test Distance : 3 m ‚ Temperature : 23 °C ‚ Relative Humidity :51 % ‚ Emission level (dBuV/m) = 20 log Emission level (uV/m) ‚ Corrected Reading : Probe Factor + Cable Loss + Read Level - Preamp Factor = Level ■ The test that passed at minimum margin was marked by the frame in the following table. Remark: The “X” represent a fundamental frequency. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 50 of 79 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: Frequency from 5GHz to 25GHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 51 of 79 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: The “X” represent a fundamental frequency. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 52 of 79 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 Remark: Frequency from 5GHz to 25GHz, the emission emitted by the EUT is too low to be measured. FCC TEST REPORT Report No. :F433112 SPORTON International Inc. FCC ID : RIW-ZWX-G361 TEL : 886-2-2696-2468 Page No. : 53 of 79 FAX : 886-2-2696-2255 Issued Date : July 26, 2004 „ Field …

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F433112 SPORTON International Inc. Page No. : C1 of C5 TEL : 886-2-2696-2468 Issued Date : July 26, 2004 FAX : 886-2-2696-2255 Photographs of Conducted Emission Test Configuration FRONT VIEW APPENDIX C. Photographs of Setup FCC TEST REPORT Report No. : F433112 SPORTON International Inc. Page No. : C2 of C5 TEL : 886-2-2696-2468 Issued Date : July 26, 2004 FAX : 886-2-2696-2255 REAR VIEW FCC TEST REPORT Report No. : F433112 SPORTON International Inc. Page No. : C3 of C5 TEL : 886-2-2696-2468 Issued Date : July 26, 2004 FAX : 886-2-2696-2255 SIDE VIEW FCC TEST REPORT Report No. : F433112 SPORTON International Inc. Page No. : C4 of C5 TEL : 886-2-2696-2468 Issued Date : July 26, 2004 FAX : 886-2-2696-2255 Photographs of Radiated Emission Test Configuration FRONT VIEW FCC TEST REPORT Report No. : F433112 SPORTON International Inc. Page No. : C5 of C5 TEL : 886-2-2696-2468 Issued Date : July 26, 2004 FAX : 886-2-2696-2255 REAR VIEW
