RKS-PPT8866PDA with 802.11b WLAN & Bluetooth

PPT 8800 with Windows Mobile 2003 for Pocket PCs 6315302a.fm Page -1 Monday, December 15, 2003 8:59 AM F i n a l PPT 8800 © 2003 SYMBOL TECHNOLOGIES, INC. All rights reserved. Symbol reserves the right to make changes to any product to improve reliability, function, or design. Symbol does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Symbol products might be used. An implied license only exists for equipment, circuits, and subsystems contained in Symbol products. Symbol, the Symbol logo and Spectrum24 are registered trademarks of Symbol Technologies, Inc. Bluetooth is a trademark of Bluetooth SIG, Inc. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Symbol Technologies, Inc. One Symbol Plaza Holtsville, N.Y. 11742-1300 http://www.symbol.com Patents This product is covered by one or more of the following U.S. and foreign Patents: U.S. Patent No. 4,593,186; 4,603,262; 4,607,156; 4,652,750; 4,673,805; 4,736,095; 4,758,717; 4,760,248; 4,806,742; 4,816,660; 4,845,350; 4,896,026; 4,897,532; 4,923,281; 4,933,538; 4,992,717; 5,015,833; 5,017,765; 5,021,641; 5,029,183; 5,047,617; 5,103,461; 5,113,445; 5,130,520; 5,140,144; 5,142,550; 5,149,950; 5,157,687; 5,168,148; 5,168,149; 5,180,904; 5,216,232; 5,229,591; 5,230,088; 5,235,167; 5,243,655; 5,247,162; 5,250,791; 5,250,792; 5,260,553; 5,262,627; 5,262,628; 5,266,787; 5,278,398; 5,280,162; 5,280,163; 5,280,164; 5,280,498; 5,304,786; 5,304,788; 5,306,900; 5,324,924; 5,337,361; 5,367,151; 5,373,148; 5,378,882; 5,396,053; 5,396,055; 5,399,846; 5,408,081; 5,410,139; 5,410,140; 5,412,198; 5,418,812; 5,420,411; 5,436,440; 5,444,231; 5,449,891; 5,449,893; 5,468,949; 5,471,042; 5,478,998; 5,479,000; 5,479,002; 5,479,441; 5,504,322; 5,519,577; 5,528,621; 5,532,469; 5,543,610; 5,545,889; 5,552,592; 5,557,093; 5,578,810; 5,581,070; 5,589,679; 5,589,680; 5,608,202; 5,612,531; 5,619,028; 5,627,359; 5,637,852; 5,664,229; 5,668,803; 5,675,139; 5,693,929; 5,698,835; 5,705,800; 5,714,746; 5,723,851; 5,734,152; 5,734,153; 5,742,043; 5,745,794; 5,754,587; 5,762,516; 5,763,863; 5,767,500; 5,789,728; 5,789,731; 5,808,287; 5,811,785; 5,811,787; 5,815,811; 5,821,519; 5,821,520; 5,823,812; 5,828,050; 5,848,064; 5,850,078; 5,861,615; 5,874,720; 5,875,415; 5,900,617; 5,902,989; 5,907,146; 5,912,450; 5,914,478; 5,917,173; 5,920,059; 5,923,025; 5,929,420; 5,945,658; 5,945,659; 5,946,194; 5,959,285; 6,002,918; 6,021,947; 6,029,894; 6,031,830; 6,036,098; 6,047,892; 6,050,491; 6,053,413; 6,056,200; 6,065,678; 6,067,297; 6,082,621; 6,084,528; 6,088,482; 6,092,725; 6,101,483; 6,102,293; 6,104,620; 6,114,712; 6,115,678; 6,119,944; 6,123,265; 6,131,814; 6,138,180; 6,142,379; 6,172,478; 6,176,428; 6,178,426; 6,186,400; 6,188,681; 6,209,788; 6,209,789; 6,216,951; 6,220,514; 6,243,447; 6,244,513; 6,247,647; 6,308,061; 6,250,551; 6,295,031; 6,308,061; 6,308,892; 6,321,990; 6,328,213; 6,330,244; 6,336,587; 6,340,114; 6,340,115; 6,340,119; 6,348,773; 6,380,949; 6,394,355; D305,885; D341,584; D344,501; D359,483; D362,453; D363,700; D363,918; D370,478; D383,124; D391,250; D405,077; D406,581; D414,171; D414,172; D418,500; D419,548; D423,468; D424,035; D430,158; D430,159; D431,562; D436,104. Invention No. 55,358; 62,539; 69,060; 69,187, NI-068564 (Taiwan); No. 1,601,796; 1,907,875; 1,955,269 (Japan); European Patent 367,299; 414,281; 367,300; 367,298; UK 2,072,832; France 81/03938; Italy 1,138,713 rev. 06/02 6315302a.fm Page 0 Monday, December 15, 2003 8:59 AM F i n a l 1 Quick Reference Introduction Congratulations on your purchase of Symbol Technologies’ PPT 8800 with Windows ® Mobile 2003 Software for Pocket PCs. Its unique combination of features make this product superior for use in a wide range of applications. These features include: •Small rugged lightweight form factor •Microsoft ® Windows ® Mobile software •RF communication via Symbol’s Spectrum24 ® wireless net- work and/or Bluetooth™ •Printing support •Scanning capability •Standard 6-key and 15-key backlit keypad configurations •Transflective color LCD display with digitizer. About This Guide This guide describes how to set up and use the terminal. The term PPT 8800 Series refers to the batch, Spectrum24 and Bluetooth versions of the terminal. Specific topics covered include: •Accessories on page 2 •Parts of the Terminal on page 3 •Getting Started on page 5 •Scanning on page 14 •Using a Headset on page 15 •Resetting the Terminal on page 15 •Host Communications on page 17 •Maintenance on page 19 •Troubleshooting on page 20 •Regulatory Information on page 27 •Warranty on page 25 •Service Information on backcover. 6315302a.fm Page 1 Monday, December 15, 2003 8:59 AM F i n a l 2 PPT 8800 The PPT 8800 with Windows Mobile 2003 Software for Pocket PCs 2003 Product Reference Guide (p/n 72-63154-XX) details the applications available for the terminal. For the latest version of this guide, visit: http://www.symbol.com/manuals. Accessories The following optional accessories will be available from Symbol: •Spare lithium-ion rechargeable battery •Larger capacity lithium-ion rechargeable battery kit •Single-Slot Serial Cradle •Four-Slot Serial Cradle •Four-Slot Ethernet Cradle •Holster(s) or case •Stylus or tethered stylus •Serial charging cable •Universal cable cup for attachable cables: -attachable power supply and line cord -Printer cable options -DEX cable -Auto charging cable -USB cable •Pistol grip handle •Magnetic stripe reader •UBC adapter •Vehicle cradle. 6315302a.fm Page 2 Monday, December 15, 2003 8:59 AM F i n a l 3 Quick Reference Parts of the Terminal Keypad Right Scan Trigger Scan LED LCD Display Scan Window…

Text truncated - open the document above for the full version.

Xscale Main Battery Voltage Sensing Compact Flash Flash-ROM64MB IrDA 115.2kbps LCD 320x240 Transflective TFT Temperature Sensing Toshiba 1Chip Micro Computer LED Driver Typ. 21.6V 32bit 100MHz bus LED Backlight Typ. 324mW Touch Panel LCD Module Speaker Headphone Backup Battery Voltage Sensing E2PROM Proton HP Opt Mecha Assy Photo Diode Appendix A Block Diagram CPU Power Supply LSI Merci Reset Generation UCB1400 CODEC IrD A F.F.UART AC97 PWM0 LCD Controller PCMCIA Controller LED(GRN/AMB) Battery Charging circuit SP Power AMP MIC AMP AC97 Touch panel Controller D/A A/D Keypad Bus Buffer LCD Timing Conversion LSI RS-232C Power Supply circuit I2S MIC UART Ext5V S24 BACKLIGHT SMK Connector 14PIN USB USB 2002.11.25 OLYMPUS Rev 1.5 Bluetooth SD-RAM64MB BT_UART Vibrator GPIO [  ] GPIO [ 54 ] DEBUG CON L R JTAG

Attention: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: LETTER OF AGENT AUTHORIZATION FCC ID: RKS-PPT886 To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. To act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely,

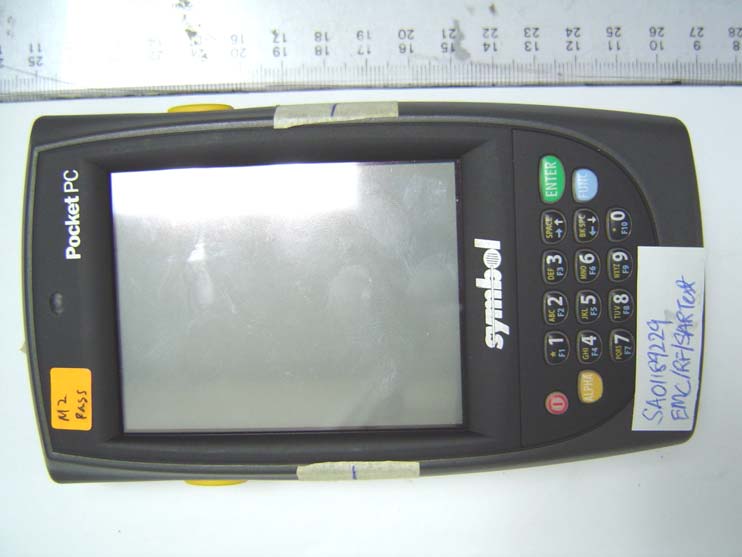

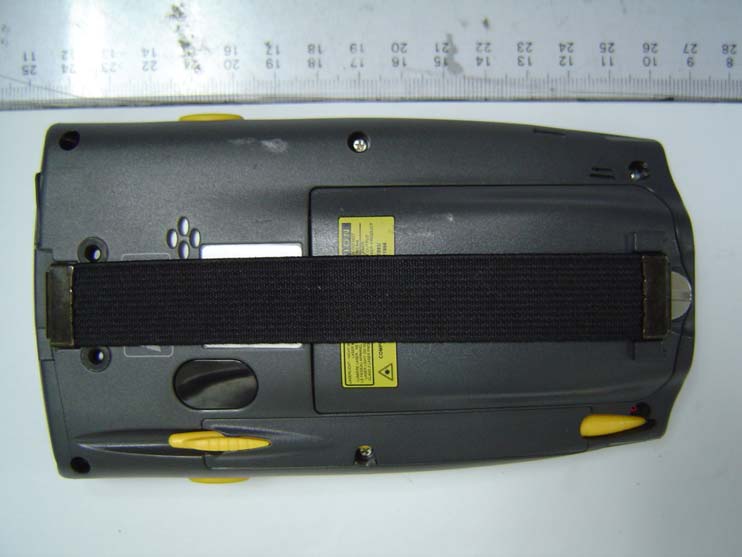

Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 56S040250/05 EUT Front View EUT Rear View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 56S040250/05 EUT PHOTOGRAPHS EUT Left View EUT Right View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 56S040250/05 EUT PHOTOGRAPHS EUT Top View EUT Bottom View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 56S040250/05 EUT PHOTOGRAPHS EUT Rear View (Battery Cover Removed) EUT Rear View (Battery Covered and Battery Removed) Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 56S040250/05 EUT PHOTOGRAPHS EUT Battery Front View EUT Battery Rear View

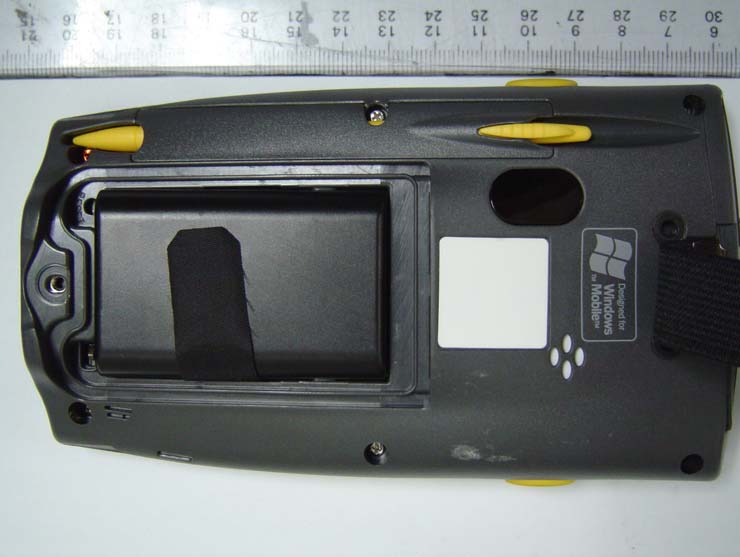

Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 56S040250/05 EUT PHOTOGRAPHS EUT Rear View (Battery Cover Removed) EUT Rear View (Battery Covered and Battery Removed)

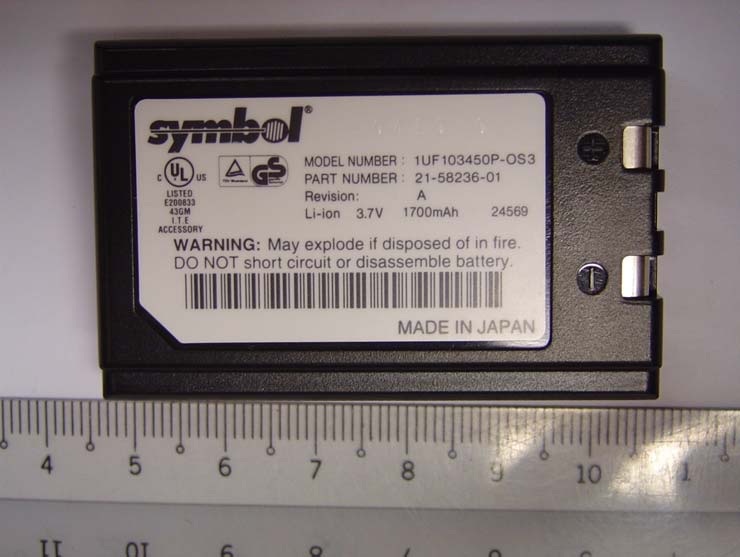

Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT Battery Front View EUT Battery Rear View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Overall Internal View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Internal View (With RF Shield Attached) RF Shield Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Internal View (RF Shield Removed for RF Module) RF Module Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Internal View (RF Module Removed) Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Front Housing Internal View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Rear Housing Internal View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Main Board PCB – Top View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Main Board PCB – Bottom View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Keypad Module – Top View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT Keypad Module – Bottom View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT RF Module – Top View EUT RF Module – Bottom View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT RF Module Overall Internal View Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT RF Module – Top View RF Antenna Product: Handheld Pocket PC with Bluetooth & 802.11b WLAN Model: PPT8866-R3BZ00WW & PPT-R3BZ10WW FCC ID: RKS-PPT8866 Internal Photo 56S040250/05 EUT PHOTOGRAPHS EUT RF Module – Bottom View

PPT8866 Operational Description PPT8866 is a lightweight, rugged Pocket PC handheld Personal Data Assistant. It has a scanning feature, data processing function and Bluetooth communication feature. This PDA is powered by a 3.3V battery. This is designed to operate at frequencies between 2.402GHz and 480GHz with the Bluetooth modulation of Gaussian Frequency Shift Keying (GFSK). In addition, there is a wireless LAN designed to communicate at 2.4GHz and a high-speed of 11Mbps data transfer.

TEST REPORT Your Ref: Date: 28 May 2004 Our Ref: 56S040250/01 Page: 1 of 26 DID: +65-6885 1476 Fax: +65-6774 1459 NOTE: This report is issued subject to PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme Head Office: PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline:+65 6885 1333 • Fax:+65 6775 9725 • Email: [email protected] • Website: www.psbcorp. com Regional Offices: Bangkok • Guangzhou • Jakarta • Kuala Lumpur • Shanghai • Taipei COMPLIANCE REPORT ON TESTING IN ACCORDANCE WITH SAR (SPECIFIC ABSORPTION RATE) REQUIREMENTS Supplement C (Edition 01-01) FCC OET Bulletin 65 (Edition 97-01) OF A PDA [ Model: PPT8866-R3BZXXXX ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation 1 Science Park Drive, Singapore 118221 PREPARED FOR Tan Kok Shiung Olympus Technologies S'pore Pte Ltd 41 Science Park Road #04-10, The Gemini Singapore Science Park 2 SINGAPORE 117610 Tel: (65) 68702542Fax: (65) 68702508 JOB NUMBER 56S040250 TEST PERIOD 13 May 2004 and 18 May 2004 PREPARED BYAPPROVED BY ____________________ Gary Ng Ah Chye Associate Engineer ____________________ Daniel Yeo Senior Engineer 56S040250/01Olympus Technologies S'pore Pte LtdPage 2 of 26 PDA [ Model: PPT8866-R3BZXXXX ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS Test Setup EUT Photographs ANNEX C-TISSUE SIMULANT DATA SHEETS ANNEX D-SAR VALIDATION RESULTS ANNEX E-MEASUREMENT UNCERTAINTY ANNEX F-SAR PROBE CALIBRATION CERTIFICATES ANNEX G-REFERENCES 56S040250/01Olympus Technologies S'pore Pte LtdPage 3 of 26 PDA [ Model: PPT8866-R3BZXXXX ] TEST SUMMARY The product was tested in accordance with the following standards. Test Results Summary Test StandardsDescriptionPass / Fail SAR Measurement – Wireless Lan Mode (Device at Flat Phantom) Pass > • Supplement C (Edition 01-01) to FCC OET Bulletin 65 (Edition 97-01) • ANSI/IEEE Standard C95.1-1993 SAR Measurement – Bluetooth Mode (Device at Flat Phantom) Pass > Note: 1. The worst-case SAR value was found to be 0.740W/kg which is lower than the maximum limit of 1.60 W/kg, over 1g of tissue . >Based on spatial peak uncontrolled exposure / general population level: Head: 1.60 W/kg, over 1g of tissue. Body: 1.60 W/kg, over 1g of tissue. Modifications No modifications were made. 56S040250/01Olympus Technologies S'pore Pte LtdPage 4 of 26 PDA [ Model: PPT8866-R3BZXXXX ] DEVICE DESCRIPTION DEVICE DESCRIPTION Description The Equipment Under Test (EUT) is a PDA Device CategoryPortable Device Exposure EnvironmentGeneral Population/Uncontrolled exposure Test Device TypeIdentical Prototype ModelPPT8866-R3BZXXXX Brand NameSymbol Serial NumbersSA01189229 FCC IDN/A DEVICE OPERATING CONFIGURATION Frequency Measured Wireless Lan Mode 2412Mhz 2442Mhz 2472Mhz Bluetooth Mode 2402Mhz 2441Mhz 2480Mhz Operating Temperature Tolerance 10 ~ 35 Degree Celsius Operating Voltage Tolerance 3.6 to 4.30V DC Continuous Transmission Tolerance The EUT is able to transmit for about 45 minutes at the maximum power under fully battery charged condition. Rated Output Power Wireless Lan Mode 10dBm Maximum Bluetooth Mode 4dBm Maximum Antenna TypeInternal double static c-coupling diversity antenna EUT Crest Factor1.0 Input Power7W for the condition where CPU is running full capacity, maximum sound output, maximum backlight brightness, RF communication and scanning application on. AccessoriesCharger MANUFACTURER Manufacturer Address Celestica Electronics (S) Pte Ltd Blk 33 #04-05 Marsiling Ind. Est. Road 3 SINGAPORE 739256 DID68662334 Fax63682193 56S040250/01Olympus Technologies S'pore Pte LtdPage 5 of 26 PDA [ Model: PPT8866-R3BZXXXX ] DEVICE OPERATING CONDITION DEVICE OPERATING CONDITION For Wireless Lan Mode, the EUT was put into operation by selecting the self test programme file " T24CE Test", followed by selecting the frequency channel. For Bluetooth Mode, the EUT was put into operation by selecting the self test programme file " BT Sar Test", followed by selecting the frequency channel. For every SAR measurement, the EUT was set to maximum output power level using fully charged battery. TEMPERATURE AND HUMIDITY Wireless Lan Mode Ambient Temperature: 23 ± 1 0 C Tissue Temperature: 23 ± 1 0 C Humidity:59% to 62% Bluetooth mode Ambient Temperature: 24 ± 1 0 C Tissue Temperature: 24 ± 1 0 C Humidity:57% to 60% 56S040250/01Olympus Technologies S'pore Pte LtdPage 6 of 26 PDA [ Model: PPT8866-R3BZXXXX ] TEST RESULTS The measurement results were obtained with the EUT tested in the conditions described in this report (Annex A). Wireless Lan Mode Table 1 – Body Worn Position SAR Test Results, device without belt clip (15mm spacing). SAR (W/kg), over 1g Tissue Device Test Channel & Frequency Phantom Configuration Device Test Positions Antenna Position 2412MHz2442MHz2472MHz Flat Phantom EUT Rear To Phantom Fixed 0.0380.0300.039 Effective Radiated Power (dBm) Before Test15.915.114.8 Effective Radiated Power (dBm) After Test15.715.014.5 Wireless Lan Mode Table 2 – Body Worn Position SAR Test Results, device without belt clip(Touching). SAR (W/kg), over 1g Tissue Device Test Channel & Frequency Phantom Configuration Device Test Positions Antenna Position 2412MHz2442MHz2472MHz Flat Phantom EUT Front Touched Phantom Fixed 0.7400.5350.502 Flat Phantom EUT Rear Touched Phantom Fixed 0.0970.0730.054 Effective Radiated Power (dBm) Before Test15.915.114.8 Effective Radiated Power (dBm) After Test15.715.014.5 Remarks: 1. All modes of operations were investigated and the worst-case SAR levels are reported. 2. A …

Text truncated - open the document above for the full version.

TEST REPORT Your Ref: Date: 6 Jul 2004 Our Ref: 56S040250/05 Page: 1 of 77 DID: +65-6885 1449 Fax: +65-6777 6409 NOTE: This report is issued subject to PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme Head Office: PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline:+65 6885 1333 • Fax:+65 6775 9725 • Email: [email protected] • Website: www.psbcorp.com Regional Offices: Bangkok • Guangzhou • Jakarta • Kuala Lumpur • Shanghai • Taipei TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (10m Anechoic Chamber) PREPARED FOR Mr Foong Foo Kong Olympus Technologies Singapore Pte Ltd 41 Science Park Road #04-10 The Germini Singapore Science park 2 Singapore 117610 Tel : (65) 6870 2541 Fax : (65) 6870 2508 JOB NUMBER 56S040250 TEST PERIOD 27 April 2004 – 04 July 2004 PREPARED BY APPROVED BY ____________________ Desmond Poon Engineer ____________________ Deng Jun Hong Assistance Vice President FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC PARTS 15B & C : 2003 OF A HANDHELD POCKET PC WITH BLUETOOTH & 802.11b WLAN [ MODEL : PPT8866-R3BZ00WW & PPT8866-R3BZ10WW ] [ FCC ID : RKS-PPT8866 ] 56S040250/05 Olympus Technologies Singapore Pte Ltd Page 2 of 77 Handheld Pocket PC with Bluetooth & 802.11b WLAN [ Model : PPT8866-R3BZ00WW ] [ FCC ID: RKS-PPT8866 ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT LIST EUT OPERATING CONDITION TEST RESULTS ANNEX A - TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B - EUT PHOTOGRAPHS / DIAGRAMS ANNEX C - USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS ANNEX D - FCC LABEL & POSITION 56S040250/05 Olympus Technologies Singapore Pte Ltd Page 3 of 77 Handheld Pocket PC with Bluetooth & 802.11b WLAN [ Model : PPT8866-R3BZ00WW ] [ FCC ID: RKS-PPT8866 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary The following tests were tested when EUT was operating in Bluetooth test mode. FCC Paragraphs Descriptions Pass / Fail 15.107, 15.207 Conducted Emissions Pass 15.205 Radiated Emissions (Restricted Band Requirements) Pass 15.109, 15.209 Radiated Emissions (Spurious Emissions) Pass Carrier Frequency Separation Pass 15.247 (a)(1) Spectrum Bandwidth (20dB Bandwidth Measurement) Pass Number of Hopping Frequencies Pass 15.247 (a)(1)(iii) Average Frequency Dwell Time Pass 15.247 (b)(1) Maximum Peak Power Pass 15.247 (c) RF Conducted Spurious Emissions & Band Edge Compliance at the Transmitter Antenna Terminal Pass 15.247 (d) Peak Power Spectral Density Pass Notes 1. Three channels as listed below, which respectively represent the lower, middle and upper channels of the equipment under test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the Bluetooth test mode Transmit Channel Frequency (GHz) Channel 0 2.402 Channel 39 2.441 Channel 78 2.480 2. All the measurements in section 15.247 were done based on conducted measurements. 3. The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. Modifications No modifications were done. 56S040250/05 Olympus Technologies Singapore Pte Ltd Page 4 of 77 Handheld Pocket PC with Bluetooth & 802.11b WLAN [ Model : PPT8866-R3BZ00WW ] [ FCC ID: RKS-PPT8866 ] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary The following tests were tested when EUT was operating in 802.11b WLAN test mode. FCC Paragraphs Descriptions Pass / Fail 15.107, 15.207 Conducted Emissions Pass 15.205 Radiated Emissions (Restricted Band Requirements) Pass 15.109, 15.209 Radiated Emissions (Spurious Emissions) Pass 15.247 (d) Peak Power Spectral Density Pass 15.247 (a)(2) Spectrum Bandwidth (6dB Bandwidth Measurement) Pass 15.247 (b)(3) Maximum Peak Power Pass 15.247 (c) RF Conducted Spurious Emissions & Band Edge Compliance at the Transmitter Antenna Terminal Pass 15.247 (d) Peak Power Spectral Density Pass Notes 1. The channels as listed below, under the different configurations were tested for 802.11b WLAN Transmit Channel Frequency (GHz) Modulation Data Rate Channel 1 2.412 DBPSK 1Mbps Channel 7 2.442 DBPSK 1Mbps Channel 13 2.472 DBPSK 1Mbps Channel 1 2.412 DQPSK 2Mbps Channel 7 2.442 DQPSK 2Mbps Channel 13 2.472 DQPSK 2Mbps Channel 1 2.412 CCK 5.5Mbps Channel 7 2.442 CCK 5.5Mbps Channel 13 2.472 CCK 5.5Mbps Channel 1 2.412 CCK 11Mbps Channel 7 2.442 CCK 11Mbps Channel 13 2.472 CCK 11Mbps 2. All the measurements in section 15.247 were done based on conducted measurements. 3. The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. Modifications No modifications were done. 56S040250/05 Olympus Technologies Singapore Pte Ltd Page 5 of 77 Handheld Pocket PC with Bluetooth & 802.11b WLAN [ Model : PPT8866-R3BZ00WW ] [ FCC ID: RKS-PPT8866 ] PRODUCT DESCRIPTION Description : The Equipment Under Test (EUT) is a Handheld Pocket PC with Bluetooth and WLAN. The handheld PC enables the users to have wireless transmission using Bluetooth or WLAN besides uses as a normal handheld PC. Note: Only Bluetooth or WLAN can be activated at one time and no co-transmission for the handheld pocket PC. Manufacturer : Celestica Electronics (S) Pte Ltd Model Number : PPT8866-R3BZ00WW FCC ID : RKS-PPT8866 Serial Number : SA0118922 (for RF conducted tests) SA0118922C (for conducted and radiated spurious emissions tests…

Text truncated - open the document above for the full version.

56S040250/05 TABLE OF CONTENTS Set Up Photo Conducted Emissions Setup (Front View) Conducted Emissions Setup (Rear View) 56S040250 56S040250 56S040250/05 Radiated Emissions Setup (Front View) Radiated Emissions Setup (Rear View) 56S040250 56S040250 56S040250/05 Carrier Frequency Separation Measurement Test Setup 56S040250 56S040250/05 Spectrum Bandwidth Measurement Test Setup 56S040250 56S040250/05 Number of Hopping Frequencies Measurement Test Setup 56S040250 56S040250/05 Average Frequency Dwell Time Measurement Test Setup Plot 13 – Channel 39 Maximum Peak Power Measurement Test Setup 56S040250 56S040250 56S040250/05 RF Conducted Spurious & Band Edge Measurement Test Setup Peak Power Spectral Density Measurement Test Setup 56S040250 56S040250 56S040250/05 TEST RESULTS Spectrum Bandwidth Measurement Test Setup Maximum Peak Power Measurement Test Setup 56S040250 56S040250 56S040250/05 RF Conducted Spurious & Band Edge Measurement Test Setup Peak Power Spectral Density Measurement Test Setup 56S040250 56S040250 56S040250/05 EUT Front View
