RKS-R1018Handheld WinCE Device w/ Bluetooth & 802.11b WLAN

Quick Reference Guide R1018 Series © 2004 OLYMPUS TECHNOLOGIES SINGAPORE PTE LTD. All rights reserved. Olympus reserves the right to make changes to any product to improve reliability, functionality or design. Olympus does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. No license is granted, either expressly or by implication, estoppel, or otherwise under any patent right or patent, covering or relating to any combination, system, apparatus, machine, material, method, or process in which Olympus products might be used. An implied license only exists for equipment, circuits and subsystems contained in Olympus products. Olympus and the Olympus logo are registered trademarks of Olympus Technologies Singapore Pte Ltd. Other product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Olympus Technologies Singapore Pte Ltd 41 Science Park Road #04-17/18 The Gemini Singapore Science Park 2, Singapore 117610 www.olympus-ost.com Patents This product is covered by one or more of the following Singapore or foreign Patents and Registered Designs: Singapore Patent No. 200401460-1 Singapore Registered Design No. D2003/1055/C 1 Table of Content Introduction Model Configuration ........................................ 3 Accessories .................................................... 3 Parts of the R1018 series ............................... 4 Getting Started Charging the Battery ....................................... 5 Starting the R1018 ......................................... 5 Aligning the Screen ......................................... 6 Using the Keypad and the Side Button ........... 7 Using the Stylus .............................................. 8 Initiating the Screen ....................................... 9 Input Methods ............................................... 10 Turn on and off the Backlights ...................... 10 Using the Headset ........................................ 10 Resetting Your R1018 Terminal Performing a Soft Rest ................................. 11 Performing a Hard Rest ................................ 11 Host Communications Using the USB Sync Cable ........................... 13 Using wireless communications Establishing Active Sync via IrDA ................. 14 Browsing Internet via IrDA ............................ 14 Establishing Active Sync via Bluetooth ......... 15 Connecting to the GPRS mobile phone via Bluetooth ................................................. 15 Connecting to the Bluetooth access point .... 18 Browsing Internet via WiFi ............................ 19 2 Using Online Help ....................................... 22 Maintaining the R1018 ................................ 23 Troubleshooting ......................................... 24 Regulatory and Warning Information ....... 28 Service Information .................................... 33 Introduction Thank you for your purchase of R1018 terminal. This guide describes how to set up and use the terminal. The term R1018 refers to the entire batch. Model Configuration R1018-xx20-yyy-zz: This is a basic handy terminal of the series with color display, WiFi and Bluetooth radio function. Note: “xx” shows memory configuration and “yyy” shows software configuration. (“zz” is for optional.) Accessories Each R1018 operates on a 1500 mAh Lithium Polymer built-in battery. The following are the accessories included together with your purchase: • AC Adapter • USB Sync Cable • Stylus AC Adapter USB Sync Cable Stylus 3 Parts of the R1018 Series LCD Display LED Mic Keypad Communication Port Audio Connector Side Button Reset Switch IrDA Port Speaker Stylus 4 5 Getting Started Before you can use your R1018, perform these basic setup procedures: • Charge the battery • Start the R1018 Charging the Battery Before using your R1018 for the first time, charge the built-in Lithium-Polymer battery for about 3 hours using the USB Sync Cable with AC Adapter attached. Follow these same procedures to recharge the battery. When the battery is fully used up, charge within 72 hours to prevent any data loss. • Connect the AC Adapter to the USB Sync Cable. • Insert the USB Sync Cable to the Communication Port found at the bottom of the R1018. • Plug the AC Adapter into a wall outlet and turn on a wall outlet, if applicable. • The Terminal Status LED turns RED to indicate charging. • The LED will turn GREEN after the battery is fully charged. This will take approximately 3 hours. Starting the R1018 Press the Power Button to turn the R1018 on or standby. In case where the Power Button is pressed for the first time, the booting splash screen will be displayed for about 30 seconds. Aligning the Screen Remove the Stylus from its storage silo on the back of the R1018. To align your R1018, the cursor on the touch screen needs to be aligned with the tip of your Stylus. • Tap and hold the center of each target that appears on the screen with the tip of the Stylus. • Tap anywhere on the screen to finish to the setting. Press & hold stylus on the center of the target. Repeat as the target moves around the screen. + Target Note: The process will repeat if it detects an inaccuracy. These screens also appear every time you perform a hard reset. 6 Using the Keypad and Side Button Power Enter Cursor F3 F2 F1 F4 Key Action Power Press Power to either set the R1018 to standby or ON mode. F1 Press F1 to start Word Pad. F2 Press F2 to start Internet Explorer. F3 Press F3 to start Media Player. F4 Press F4 to display Inbox. F2+F4 Enable Wireless LAN. Enter Press Enter after entering data or a command. Cursor Press cursor keys to move the cursor left, right, up and down on the screen. Side Button Press Side Button to launch Bluetooth application. 7 8 Using the Stylus The Stylus selects items and enters information. The Stylus functions as a mouse. • Tap: Touc…

Text truncated - open the document above for the full version.

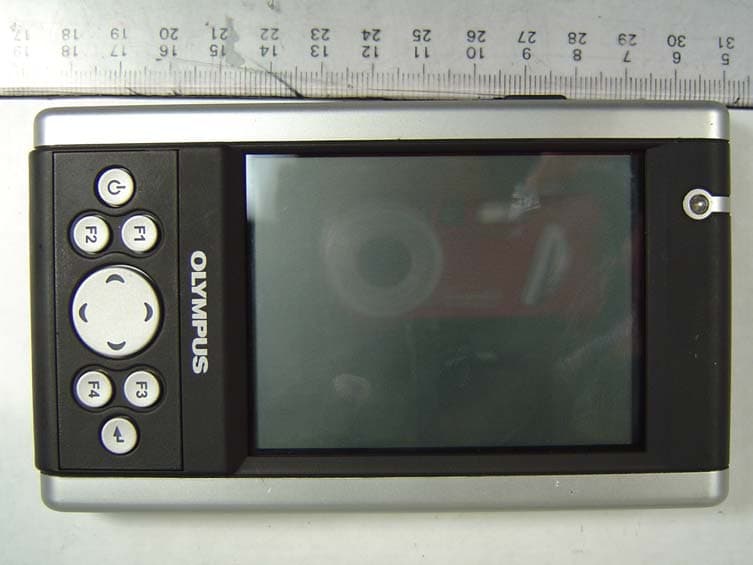

TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Front View EUT Rear View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Left View EUT Right View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Top View EUT Bottom View

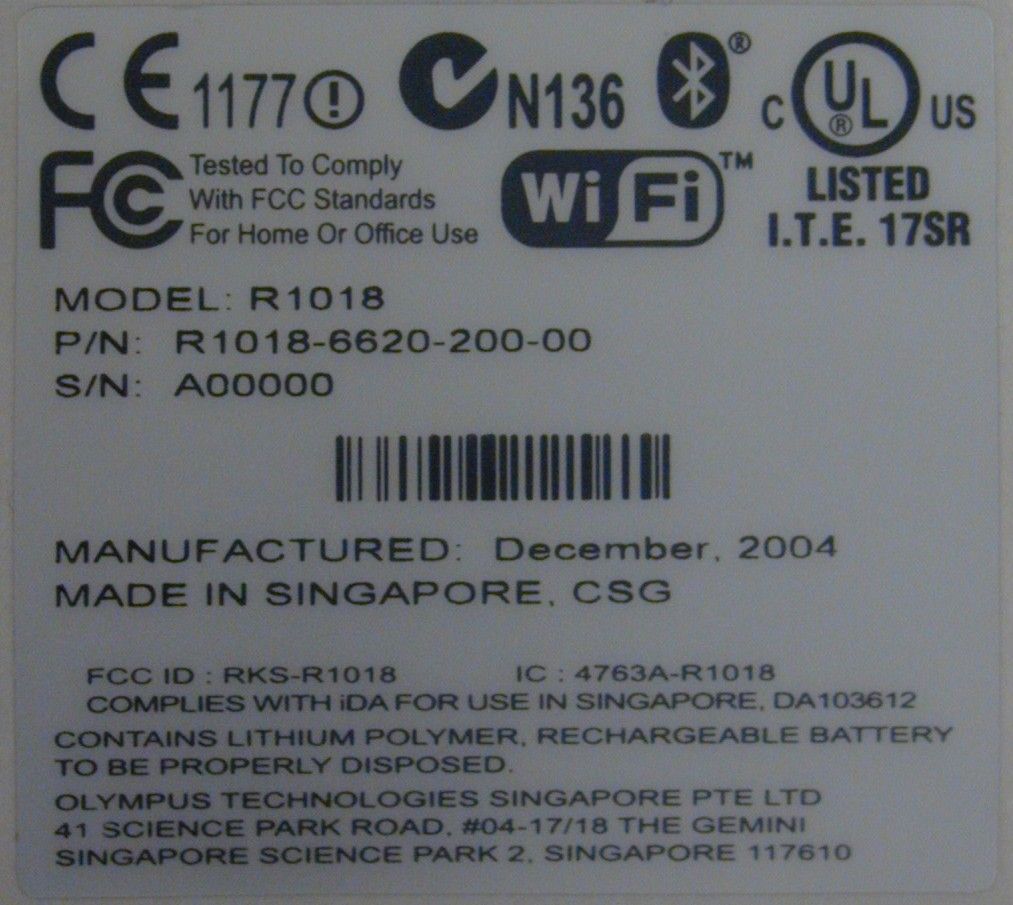

FCC LABEL & POSITION ANNEX D 56S040964/01 Labelling requirements per Section 2.925 & 15.19 The label shown will be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Physical Location of FCC Label and ID on EUT FCC ID Location FCC Label Location

TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Rear View (Rear Cover Removed) TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Rear Cover TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT Rear View (Rear Cover and Battery Removed) TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Battery Front View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Battery Rear View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Battery Circuit Component View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Battery Circuit Trace View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Battery (With Cover Opened) TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Main PCB Component View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Main PCB Trace View (With RF Shield Attached Battery Removed) RF Shield TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Main PCB Trace View (With Battery And RF Module Removed) RF Module R emoved TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Front Housing Internal View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Front Housing Internal View (With Display Removed) TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Display Module – Front View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Display Module – Rear View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Keypad – Front View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Keypad – Rear View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Keypad Flexible Circuit – Front View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Keypad Flexible Circuit – Rear View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Cradle Port Connector – Top View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT RF Module Overall Component View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT RF Module Overall Trace View TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT RF Module Overall Component View (With Shield Removed) WiFi PortBluetooth Port TEST PHOTOGRAPHS / DIAGRAMS ANNEX B 56S040964/01 EUT PHOTOGRAPHS EUT Adapter (Front View) EUT Adapter (Rear View) 56S040964 56S040964

TEST REPORT Your Ref: Date: 30 Dec 2004 Our Ref: 56S040964/01Page: 1 of 77 DID: +65-6885 1449Fax: +65-6777 6409 NOTE: This report is issued subject to PSB Corporation's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2001-0212-A LA-2001-0213-F LA-2001-0214-E LA-2001-0215-B LA-2001-0216-G LA-2001-0217-G The results reported herein have been performed in accordance with the laboratory’s terms of accreditation unde r the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme Head Office: PSB Corporation • Testing Group • 1 Science Park Drive Singapore 118221 • Hotline:+65 6885 1333 • Fax:+65 6775 9725 • Email: [email protected] • Website: www.psbcorp.com Regional Offices: Bangkok • Guangzhou • Jakarta • Kuala Lumpur • Shanghai • Taipei FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC PARTS 15B & C : 2004 OF A HANDHELD WinCE DEVICE WITH BLUETOOTH & 802.11b WLAN [ MODEL : R1018] [ FCC ID : RKS-R1018 ] TEST FACILITY Telecoms & EMC, Testing Group, PSB Corporation Pte Ltd 1 Science Park Drive, Singapore 118221 FCC REG. NO. 90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) IND. CANADA REG. NO. IC 4257 (10m Anechoic Chamber) PREPARED FOR Mr Foong Foo Kong Olympus Technologies Singapore Pte Ltd 41 Science Park Road #04-10 The Germini Singapore Science park 2 Singapore 117610 Tel : (65) 6870 2541Fax : (65) 6870 2508 JOB NUMBER 56S040964 TEST PERIOD 10 Dec 2004 – 30 Dec 2004 PREPARED BYAPPROVED BY ____________________ Desmond Poon Engineer ____________________ Deng Jun Hong Assistance Vice President 56S040964/01Olympus Technologies Singapore Pte LtdPage 2 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT LIST EUT OPERATING CONDITION TEST RESULTS ANNEX A-TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B-EUT PHOTOGRAPHS / DIAGRAMS ANNEX C-USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS ANNEX D-FCC LABEL & POSITION 56S040964/01Olympus Technologies Singapore Pte LtdPage 3 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary The following tests were tested when EUT was operating in Bluetooth test mode. FCC ParagraphsDescriptionsPass / Fail 15.107, 15.207Conducted EmissionsPass 15.205Radiated Emissions (Restricted Band Requirements)Pass 15.109, 15.209Radiated Emissions (Spurious Emissions)Pass Carrier Frequency SeparationPass 15.247 (a)(1) Spectrum Bandwidth (20dB Bandwidth Measurement)Pass Number of Hopping FrequenciesPass 15.247 (a)(1)(iii) Average Frequency Dwell TimePass 15.247 (b)(1)Maximum Peak PowerPass 15.247 (c)RF Conducted Spurious Emissions & Band Edge Compliance at the Transmitter Antenna Terminal Pass 15.247 (d)Peak Power Spectral DensityPass Notes 1.Three channels as listed below, which respectively represent the lower, middle and upper channels of the equipment under test (EUT) were chosen and tested. For each channel, the EUT was configured to operate in the Bluetooth test mode Transmit Channel Frequency (GHz) Channel 02.402 Channel 392.441 Channel 782.480 2.All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. Modifications No modifications were done. 56S040964/01Olympus Technologies Singapore Pte LtdPage 4 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary The following tests were tested when EUT was operating in 802.11b WLAN test mode. FCC ParagraphsDescriptionsPass / Fail 15.107, 15.207Conducted EmissionsPass 15.205Radiated Emissions (Restricted Band Requirements)Pass 15.109, 15.209Radiated Emissions (Spurious Emissions)Pass 15.247 (d)Peak Power Spectral DensityPass 15.247 (a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement)Pass 15.247 (b)(3)Maximum Peak PowerPass 15.247 (c)RF Conducted Spurious Emissions & Band Edge Compliance at the Transmitter Antenna Terminal Pass 15.247 (d)Peak Power Spectral DensityPass Notes 1.The channels as listed below, under the different configurations were tested for 802.11b WLAN Transmit Channel Frequency (GHz)ModulationData Rate Channel 12.412DBPSK1Mbps Channel 72.442DBPSK1Mbps Channel 132.472DBPSK1Mbps Channel 12.412DQPSK2Mbps Channel 72.442DQPSK2Mbps Channel 132.472DQPSK2Mbps Channel 12.412CCK5.5Mbps Channel 72.442CCK5.5Mbps Channel 132.472CCK5.5Mbps Channel 12.412CCK11Mbps Channel 72.442CCK11Mbps Channel 132.472CCK11Mbps 2.All the measurements in section 15.247 were done based on conducted measurements. 3.The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. Modifications No modifications were done. 56S040964/01Olympus Technologies Singapore Pte LtdPage 5 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] PRODUCT DESCRIPTION Description: The Equipment Under Test (EUT) is a Handheld WinCE device with Bluetooth and WLAN features. The handheld device enables the users to have wireless transmission using Bluetooth or WLAN besides uses as a normal handheld PDA. Note: Bluetooth and WLAN can co-transmitted at one time for the handheld device. Manufacturer: Olympus Technologies Singapore Pte Ltd Model Number: R1018 FCC ID: RKS-R1018 Serial Number: 256-009 (for RF conducted tests) A00009(for conducted and radiated spurious emissions tests) Microprocessor: Motorola MX1-L200MHz Operating / Transmitting Frequency : Bluetooth 2.402GHz to 2.480GHz 79 channels. Starting at 2.402MHz with subsequent channel at 1MHz interval from the preceding channel. 802.11b WLAN 2.412GHz to 2.472GHz…

Text truncated - open the document above for the full version.

56S040964/01 Olympus Technologies Singapore Pte Ltd Page 10 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS Conducted Emissions Setup (Front View) Conducted Emissions Setup (Rear View) 56S040964 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 19 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS Radiated Emissions Setup (Front View) Radiated Emissions Setup (Rear View) 56S040964 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 20 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS FCC Part 15C (15.247(a)(1)) Carrier Frequency Separation Results Operation Mode: Bluetooth The EUT shows compliance to the requirements of this section, which states the adjacent carrier frequencies must be separated by a minimum of 25kHz or the 20dB bandwidth of the hopping channel, whichever is greater. Adjacent Channels Channel Separation (MHz) 0 and 1 (2.402GHz and 2.403GHz) 1.040 38 and 39 (2.440GHz and 2.441GHz) 1.025 39 and 40 (2.441GHz and 2.442GHz) 1.020 77 and 78 (2.479GHz and 2.480GHz) 1.025 Please refer to the attached Plots 1 - 4 for details. Tested by: DP Notes 1. Environmental Conditions Temperature 23 o C Relative Humidity 58% Atmospheric Pressure 1030mbar Carrier Frequency Separation Measurement Test Setup 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 23 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS FCC Part 15C (15.247(a)(1)) Spectrum Bandwidth (20dB Bandwidth Measurement) Results Operation Mode: Bluetooth The EUT shows compliance to the requirements of this section, which states that the 20dB bandwidth of the hopping channel shall be the channel frequency separation by a minimum of 25kHz or the 20dB bandwidth of the hopping channel, whichever is greater. Channel Channel Frequency (GHz) 20dB Bandwidth (MHz) 0 2.402 0.720 39 2.441 0.720 78 2.480 0.730 Note: The EUT is a Bluetooth device, which supports no overlapping for each channel. Please refer to attached Plots 5 - 7 for details. Tested by: DP Notes 1. Environmental Conditions Temperature 23 o C Relative Humidity 58% Atmospheric Pressure 1030mbar Spectrum Bandwidth Measurement Test Setup 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 26 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS FCC Part 15C (15.247(a)(1)(iii)) Number of Hopping Frequencies Results Operation Mode: Bluetooth The EUT shows compliance to the requirements of this section, which states the number of hopping frequencies shall be at least 75. The EUT was found to have 79 hopping frequencies. Please refer to the attached Plots 8 - 11 for details. Tested by: DP Notes 1. Environmental Conditions Temperature 23 o C Relative Humidity 58% Atmospheric Pressure 1030mbar Number of Hopping Frequencies Measurement Test Setup 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 29 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS FCC Part 15C (15.247(a)(1)(iii)) Average Frequency Dwell Time Results Operation Mode: Bluetooth The EUT shows compliance to the requirements of this section, which states the average time of occupancy on any frequency shall not be greater than 0.4 seconds within a period of 0.4second multiplied by the number of hopping channels employed. EUT hopping rate = 1600 hops/data packet length/s Number of EUT hopping frequencies = 79 hops DH1 packet was used as a transmission packet Average Frequency Dwell Time = measured time slot length (l) x hopping rate (h) / number of hopping frequencies x 30 seconds period Channel Channel Frequency (GHz) Measured Time Slot Length for DH5 Packet (ms) Average Frequency Dwell Time (s) Average Occupancy Limit (s) 0 2.402 0.625 0.3798 0.4 39 2.441 0.625 0.3798 0.4 78 2.480 0.625 0.3798 0.4 Please refer to the attached Plots 12 – 14 for details. Tested by: DP Notes 1. Environmental Conditions Temperature 23 o C Relative Humidity 58% Atmospheric Pressure 1030mbar Average Frequency Dwell Time Measurement Test Setup 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 32 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS FCC Part 15C (15.247(b)(1)) Maximum Peak Power Results Operation Mode: Bluetooth The EUT shows compliance to the requirements of this section, which states the peak power of an intentional radiator (EUT) shall not exceed 30dBm (1 Watt). The maximum peak power for Channels 0, 39 and 78 at 2.402GHz, 2.441GHz and 2.480GHz respectively were investigated and found below 30dBm (1Watt). Channel Channel Frequency (GHz) Maximum Peak Power (W) Limit (W) 0 2.402 0.001307 1 39 2.441 0.001973 1 78 2.480 0.002229 1 Tested by: DP Notes 1. Environmental Conditions Temperature 23 o C Relative Humidity 58% Atmospheric Pressure 1030mbar 2. Power analyser of Universal Radio Communication Tester was used for power measurement with peak detection as mode of measurement. The power analyser mode supports a wideband power measurement ranging from 100kHz to 2700MHz. Maximum Peak Power Measurement Test Setup 56S040964 56S040964/01 Olympus Technologies Singapore Pte Ltd Page 33 of 77 HANDHELD WinCE DEVICE WITH BLUETOOTH & WiFi [ MODEL : R1018 ] [ FCC ID:RKS-R1018] TEST RESULTS FCC Part 15C (15.247(c)) RF Conducted Spurious Emissions & Band Edge Compliance at the Transmitter Antenna Results Operation Mode: Bluetooth The EUT shows compliance to the requirements of this section, which states in any 100kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator (EUT) is operating, the RF power that is produced by the intentional radiator shall be at least 20dB below that in the 100kHz bandwidth within the band that contains the highest level of desired power. The RF …
