RKVSAM200TRAudio Streaming Module

SAM-200-TR Steaming Audio Module 1 Ver. 0.12j 12/22/2009 PRELIMINARY USER MANUAL SUBJECT TO CHANGE WITHOUT NOTICE Copyright © 2009 Aerielle, LLC All Rights Reserved. SAM-200-TR i2i ® Streaming Audio Module DESCRIPTION The SAM-200 is an RF module for digital streaming of CD-quality audio (48KHz, 16-bit stereo) from simple analog inputs and outputs. It is fully self-contained with easy-to-use interface signals and options, to minimize time- to-market for wireless audio applications. Stereo line inputs and line or headphone outputs are available. Inputs have ALC level matching and level/impedance selection for line, instrument, and microphone signals. Audio outputs have mute and volume level control. Internal voltage regulation provides flexible management of power for embedding in existing or new products. Channel selection is available through direct addressing or sequential toggling with a single button/input. Output volume is controllable with simple switches. FEATURES • 2.4GHz Digital CD-Quality Digital Audio • Range 60+ Feet • 8 Consumer Channels + 8 Professional • Coexists with WiFi and Bluetooth • Simple Analog Audio I/O • Simple Control Pins • On-Board Voltage Regulation • ALC Audio Inputs • Headphone or Line Outputs • Microphone and Musical Instrument Inputs • Compatible with i2i Stream ® Consumer Products WIRELESS APPLICATIONS • Headphones • Remote Speakers • Musical Instruments • Microphone • Audio for Electronic Gaming • PC Audio Streaming SAM-200-TR Steaming Audio Module 2 Ver. 0.12j 12/22/2009 PRELIMINARY USER MANUAL SUBJECT TO CHANGE WITHOUT NOTICE Copyright © 2009 Aerielle, LLC All Rights Reserved. PRODUCT VARIANTS Product Variant SAM-200-TR Transceiver with Tx/Rx control line, audio input and output SAM-200-TX Transmitter without Tx/Rx or vol ctrl, audio input only SAM-200-RX Receiver without Tx/Rx or input level sel, audio output only ABSOLUTE MAXIMUM RATINGS Parameter Min Typ Max Unit Supply Voltage, V IN -0.3 -- +13.5 V Voltage range at control pin -0.3 -- V IN + 0.3 V Voltage range at audio pin -0.3 -- V IN + 0.3 V ESD Contact Discharge -2 -- +2 kV Storage temperature range -40 -- +85 °C Operating temperature range -10 -- +60 °C ELECTRICAL CHARACTERISTICS Symbol Parameter Min Typ Max Unit V IN Supply Voltage 3.8 5.0 9.5 V V IH Input Logic Voltage High 2.0 -- 3.6 V V IL Input Logic Voltage Low -- -- 0.8 V I TX Current Consumption, Tx -- 77 -- mA I RX Current Consumption, Rx -- 50 -- mA Bw Occupied Bandwidth 2400 -- 2483.5 MHz P TX Transmission Power 14 16 18 dBm S RX Rx Sensitivity -- -83 -- dBm SAM-200-TR Steaming Audio Module 3 Ver. 0.12j 12/22/2009 PRELIMINARY USER MANUAL SUBJECT TO CHANGE WITHOUT NOTICE Copyright © 2009 Aerielle, LLC All Rights Reserved. AUDIO CHARACTERISTICS Parameter Value Sample Rate 48Ksps Bit Depth (stereo) 16bits Frequency Response 20Hz – 20KHz +/-3dB Signal-to-Noise Ratio (SNR) >90dB Total Harmonic Distortion (THD) 0.007% @ 1KHz Stereo Separation >75dB Latency (source to destination, constant) 18ms Headphone power output, 32-ohm load (16-ohm load) 15mW (30mW) Line Output Level Selectable over I2C QUICK-CONNECT PINOUT The Quick-Connect port is a row of 2mm-spaced holes (0.75mm dia) suitable for soldered wires or header for quick-and-easy connections for dedicated boards. Input and output pins’ mode and format are customizable on board with solder jumpers, and can be factory-configured. No. Name Tx Rx Xcvr I/O Description 1 VCC T R X PWR +4 to 9V power supply input 2 GND T R X PWR Ground connection 3 AUDIO_LP T X I O Audio In/Out, Left, Headphone or Bal + 4 AUDIO_LM T X I O Audio In/Out, Left, Headphone Gnd or Bal - 5 AUDIO_RP T X I O Audio In/Out, Right, Headphone or Bal + 6 AUDIO_RM T X I O Audio In/Out, Right, Headphone Gnd or Bal - 7 CHSEQ T R X I Sequence the channel sel. on each negative transition 8 VOLUP (I2C_CLK) R X I Volume up on each negative transition or I2C Clock 9 VOLDN (I2C_DAT) R X I Volume down on each negative transition or I2C Data 10 RESET T R X I Reserved, leave open or tie to VCC 11 TEST T R X I Reserved, leave open or tie to VCC 12 GND T R X PWR Ground Connection SAM-200-TR Steaming Audio Module 4 Ver. 0.12j 12/22/2009 PRELIMINARY USER MANUAL SUBJECT TO CHANGE WITHOUT NOTICE Copyright © 2009 Aerielle, LLC All Rights Reserved. MAIN CONNECTOR PINOUT The module’s main connector is a dual-row pin header located on the bottom of the board, with two rows of 17 pins spaced on a 0.050” grid. No. Name Tx Rx Xcvr I/O Description 1 VCC T R X PWR +4 to 9V power supply input 2 GND T R X PWR Ground connection 3 L_IN T X I Audio input, headphone-level left 4 R_IN T X I Audio input, headphone-level, right 5 LINE_L_IN T X I Audio input, line-level, left (balanced + L) 6 LINE_L_GND T X I Audio input, line-level gnd, left, (balanced – L) 7 LINE_R_IN T X I Audio Input, line-level, right (balanced + R) 8 LINE_R_GND T X I Audio input, line-level gnd, right (balanced – R) 9 GND T R X PWR Ground connection 10 GND T R X PWR Ground connection 11 L_OUT R O Audio output, headphone, left 12 R_OUT R O Audio output, headphone, right 13 LINE_L_OUT R O Audio output, line-level, left (balanced + L) 14 LINE_L_GND R O Audio output, line-level, left, gnd (balanced – L) 15 LINE_R_OUT R O Audio output, line-level, right (balanced + R) 16 LINE_R_OUT R O Audio output, line-level, right, gnd (balanced - R) 17 GND T R X PWR Ground connection 18 GND T R X PWR Ground connection 19 IN_SEL T R X I Audio input select line (0 = headphone, 1 = line/bal) 20 OUT_SEL T R X I Audio output select line (0 = headphone, 1 = line/bal) 21 TX_RX X I Tx/Rx select: 1 = Rx, 0 = Tx (N/U on Tx and Rx models) 22 CH0 T R X I Channel select bit 0 23 CH1 T R X I Channel select bit 1 24 CH2 T R X I Channel select bit 2 25 CHSEQ T R X I Sequence the channel sel. on each negative transition 26 CHSEL R X I Select channel range: 1 = Consumer, 0 = Professional 27 VOLUP R X I Volume up: inc. volume one step each negative transition 28 VOLDN R X I Volume dn: dec. volume one step each negative tra…

Text truncated - open the document above for the full version.

190 s. whisman road, bldg. b | mountain view, ca 94041 | tel: 650.967.4047 | fax: 413.581.6020 | www.aerielle.com FCC Confidential Authorization October 26, 2009 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Aerielle Technologies, Inc. hereby requests long‐term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, John Glissman Chief Technical Officer Aerielle Technologies Inc 190 S. Whisman Road, Bldg. B Mountain View, CA 94041

190 s. whisman road, bldg. b | mountain view, ca 94041 | tel: 650.967.4047 | fax: 413.581.6020 | www.aerielle.com January 12, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 To Whom It May Concern: The 2.4 GHz RF module FCC ID: RKVSAM200TR is seeking FCC authorization as a module transceiver. The EUT meets the requirements for modular approval as details in FCC Public Notice DA 001407 ‘Part 15 Unlicensed Modular Transmitter Approval’. Compliance to each of the requirements is described below: 1) All shielding necessary to comply with the emission requirements and limits of Part 15 is provided on the RKVSAM200TR module at the time of manufacture. No additional shielding is required to meet these requirements. 2) All user modulation/data inputs are buffered by either the CODEC or the embedded controller incorporated into the RKVSAM200TR module. 3) The RKVSAM200TR module contains on-board voltage regulators to regulate the supplied battery voltage down to the voltages required for module operation. 4) The RKVSAM200TR module will always be used with one of a family of approved antennas. The antenna is of either a printed PCB type, or an approved external antenna permanently attached to the device enclosure. In none of these cases is the antenna or cable/connector accessible to the end user. All approved antennas have been tested with the radio module as part of the modular approval, with test results included in the application report. Any antennas added to the approved family of antennas will be done through a Class II permissive change. 5) The RKVSAM200TR module is battery operated, and was tested for compliance in a stand-alone configuration as shown in the application report. 190 s. whisman road, bldg. b | mountain view, ca 94041 | tel: 650.967.4047 | fax: 413.581.6020 | www.aerielle.com 6) A label containing the FCC ID of the RKVSAM200TR module will be attached to the module. As the module will be incorporated into the enclosure of the host device and not visible to the end user, the statement “Contains FCC ID: RKVSAM200TR” will appear on the external label attached to the product containing the radio module. The specifics of this labeling requirement are outlined in the supplied product manual. 7) All parameters determining compliance with the emission requirements of Part 15 are controlled by a microprocessor embedded into the RKVSAM200TR module. Selection of RF functions under user control is limited to Transmit/Receive and the selection of one of eight predetermined RF channels. 8) The RKVSAM200TR Radio module complies with all applicable Part 15 RF Exposure requirements, as demonstrated in the application Test Report. Please advise if any additional explanation is required. Regards, John Glissman Chief Technical Officer Aerielle Technologies, Inc.

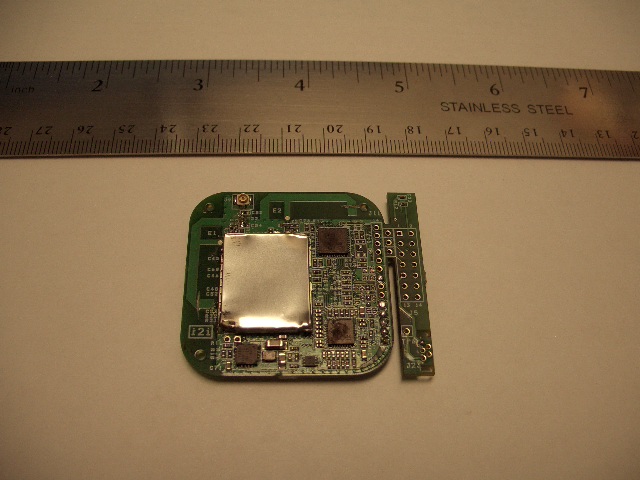

Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 44 of 47 FCC Part 15.247 Test Report 14 Exhibit C- EUT Photos 14.1 EUT – Front View 14.2 EUT – Rear View Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 45 of 47 FCC Part 15.247 Test Report 14.3 EUT – Embed to the Enclosure View (Integral Antenna) 14.4 EUT – Embed to the Enclosure View (External Antenna)

Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 38 of 47 FCC Part 15.247 Test Report 12 Exhibit A – FCC Equipment Labeling Requirements 12.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123. Where: XXX—Grantee Code, 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 12.2 FCC ID Label Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 39 of 47 FCC Part 15.247 Test Report 12.3 FCC ID Label Location Label here

Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 46 of 47 FCC Part 15.247 Test Report 14.5 EUT – Front View without Shielding 14.6 EUT – PCB Rear View Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 47 of 47 FCC Part 15.247 Test Report 14.7 EUT – External Antenna View ***** END OF REPORT *****

Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 37 of 47 FCC Part 15.247 Test Report 11 FCC §15.247(i) & § 2.1091 - RF Exposure 11.1 Applicable Standard According to §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm): 19.24 Maximum peak output power at antenna input terminal (mW): 83.94 Prediction distance (cm): 20 Prediction frequency (MHz): 2412 Maximum Antenna Gain, typical (dBi): 5.0 Maximum Antenna Gain (numeric): 3.16 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.05279 Power density of prediction frequency at 20.0 cm (W/m 2 ): 0.5279 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 11.3 Test Result FCC: The power density level at 20 cm distance is 0.05279mW/cm 2 , which is below the uncontrolled exposure limit of 1.0 mW/cm².

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15.247 TEST AND MEASUREMENT REPORT For Aerielle, Inc. 625 Ellis Street, Suite 206, Mountain View, CA 94043, USA FCC ID: RKVSAM200TR Report Type: Original Report Product Type: 2.4 GHz Streaming Audio Module Test Engineer: Dennis Huang Report Number: R0910063-247 Report Date: 2009-10-09 Reviewed By: Boni Baniqued Sr. RF Engineer Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 2 of 47 FCC Part 15.247 Test Report TABLE OF CONTENTS 1 General Information ......................................................................................................................................... 5 1.1 Product Description for Equipment under Test (EUT) ....................................................................... 5 1.2 Mechanical Description of EUT ......................................................................................................... 5 1.3 EUT Photo........................................................................................................................................... 5 1.4 Objective ............................................................................................................................................. 5 1.5 Related Submittal(s)/Grant(s) ............................................................................................................. 6 1.6 Test Methodology ............................................................................................................................... 6 1.7 Measurement Uncertainty ................................................................................................................... 6 1.8 Test Facility......................................................................................................................................... 6 2 System Test Configuration............................................................................................................................... 7 2.1 Justification ......................................................................................................................................... 7 2.2 EUT Exercise Software....................................................................................................................... 7 2.3 Special Accessories ............................................................................................................................. 7 2.4 Equipment Modifications .................................................................................................................... 7 2.5 Local Support Equipment................................................................................................................... 7 2.6 EUT Internal Configuration and Details ............................................................................................. 7 2.7 Interface Ports and Cabling ................................................................................................................. 7 3 Summary of Test Results.................................................................................................................................. 8 4 FCC §15.203 - Antenna Requirement ............................................................................................................. 9 4.1 Applicable Standard ............................................................................................................................ 9 4.2 Results ................................................................................................................................................. 9 5 FCC §15.207 - Conducted Emissions .............................................................................................................. 10 5.1 Applicable Standard .......................................................................................................................... 10 5.2 Test Results ....................................................................................................................................... 10 6 FCC §15.247(a)(2) – 6 dB Occupied Bandwidth ............................................................................................ 11 6.1 Applicable Standard .......................................................................................................................... 11 6.2 Measurement Procedure.................................................................................................................... 11 6.3 Test Setup Block Diagram ................................................................................................................ 11 6.4 Test Equipment List and Details ....................................................................................................... 11 6.5 Test Environmental Conditions......................................................................................................... 11 6.6 Test Results ....................................................................................................................................... 12 7 FCC §15.247(b) - Peak Output Power............................................................................................................. 14 7.1 Applicable Standard ........................................................................................…

Text truncated - open the document above for the full version.

Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 40 of 47 FCC Part 15.247 Test Report 13 Exhibit B - Test Setup Photographs 13.1 Radiated Emission 30 MHz-1 GHz (EUT with External Antenna) – Front View 13.2 Radiated Emission 30 MHz-1 GHz (EUT with External Antenna) – Rear View Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 41 of 47 FCC Part 15.247 Test Report 13.3 Radiated Emission above 1 GHz (EUT with External Antenna) – Front View 13.4 Radiated Emission above 1 GHz (EUT with External Antenna) – Rear View Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 42 of 47 FCC Part 15.247 Test Report 13.5 Radiated Emission 30 MHz-1 GHz (EUT with Integral Antenna) – Front View 13.6 Radiated Emission 30 MHz-1 GHz (EUT with Integral Antenna) – Rear View Aerielle, Inc. FCC ID: RKVSAM200TR Report Number: R0910063-247 Page 43 of 47 FCC Part 15.247 Test Report 13.7 Radiated Emission above 1 GHz (EUT with Integral Antenna) – Front View 13.8 Radiated Emission above 1 GHz (EUT with Integral Antenna) – Rear View
