RL9-HCB02Bluetooth Headset

Headset – Hands Free User’s Guide .Feature . include Headset Profile .include Hands Free Profile . 3 key operation (Volume up ,Volume down,on/off /answer call /end call) . Microphone Mute function .Voice dialing function Led Indicator : Stanby mode : Green led flash every 3 second Pairing mode : Green Led on ,Red Led flash every 0.5 second Link mode :Green Led flash every 1 second Voice talking mode : Green Led toggle every 0.5 second Battery low: Red Led flash every 3 second Charging mode : Red led on Off mode : Red Led and Green Led off. .Turn on: in off mode Press and hold “on key” 1 second Speaker beep 2 tones(short tone+short tone) and Led indicate as stanby mode .Turn off: in on mode Press and hold “on key 1.5 second Speaker beep 2 tones :( long tone +short tone) .Enter pair mode (pair as Headset mode): step 1 : enter off mode step 2: Press and hold “on key” 3 seconds Speaker beep 2 times: First time: beep same as turn on beep tones. (after press and t hold key 1 second) Second time : beep 4 short tones (after press and hold key 3 second) Delay 3 second Led indicate as pairing mode Search device by phone with bluetooth feature. Enter Pin Code : 1234 .Enter pair mode (pair as Hands free mode): step 1: enter Headset pair mode step 2: press “on key” Speaker beep 2 short low tones delay 3 seconds led indicate as pairing mode Exit pair mode: In Hands free mode press “on key” delay 3 seconds Led indicate as Stanby mode Voice Dial : in stanby mode press “on key” Microphone Mute: in voice talking mode press “volume up and down key” Speaker will beep a short low tone every 3 seconds Press “volume up and down key” again exit mute mode. Volume up : press “volume up key” if reach maxinum volume speaker beep 2 short tones Volume down : press “volume down key” if reach mininum volume speaker beep 2 short tones Battery Charge: Battery in Charging mode : Red Led always on Battery charged full mode : Red led off. Battery Low: If battery low in stanby mode led indicate as battery low In voice talking mode speaker beep short high tone every 30 second Operation mode flow: Stanby mode Off mode On mode Headset Pair mode Hands free pair mode Federal Communications Commission (FCC) Statement Note 1 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Note 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

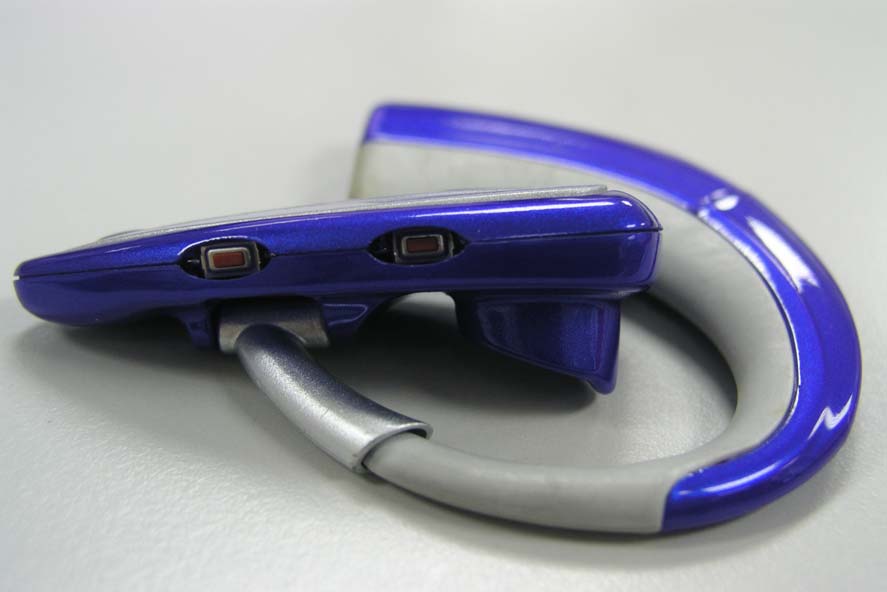

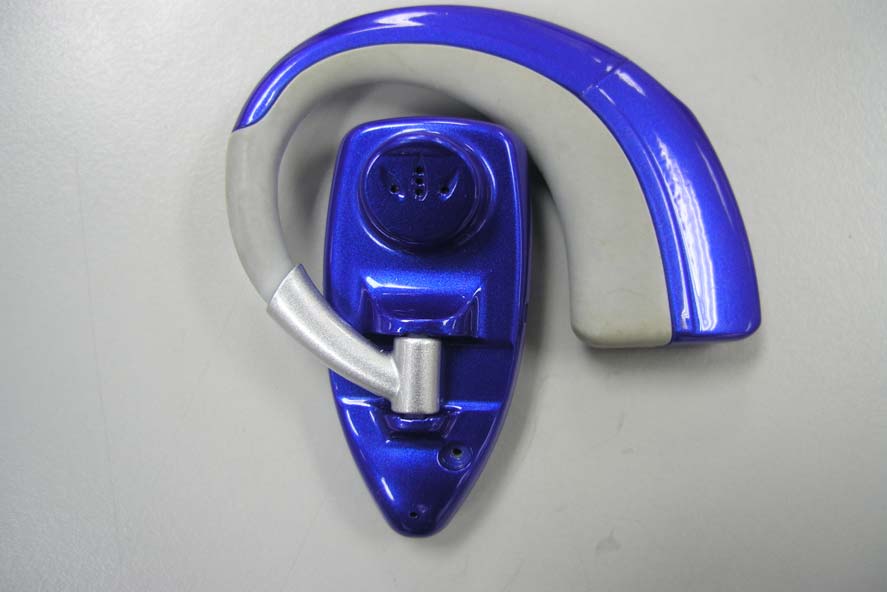

REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 EXTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All of EUT Front View of EUT REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Right View of EUT REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Left View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Huey Chiao International Co., Ltd. FCC ID: RL9-HCB02 FCC ID: RL9-HCB02 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT Internal of EUT -1 REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT -2

REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 25, 2003 Page: 1 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Bluetooth Headset Model Name: HCB-02 Brand Name: N/A FCC ID: RL9-HCB02 REPORT NO: ER/2003/B0007 ISSUE DATE: Nov. 25, 2003 Prepared for Huey Chiao International Co., Ltd. 5F, No. 649-1, Chung-Cheng Rd., Hsin-Chuang City, Taipei Hsien, Taiwan, R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. TEL: 886-2-22993939 FAX: 886-2-22982698 Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 25, 2003 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Huey Chiao International Co., Ltd. 5F, No. 649-1, Chung-Cheng Rd., Hsin-Chuang City, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test: Bluetooth Headset BRAND NAME: N/A FCC ID Number: RL9-HCB02 MODEL No.: HCB-02 Model Difference: N/A File Number: ER/2003/B0007 Date of test: Nov. 07, 2003 ~ Nov. 20, 2003 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Nov. 25, 2003 Willis Chen Approved By Date Nov. 25, 2003 Vincent Su REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 25, 2003 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION .........................................................................................................5 1.1 Product Description ............................................................................................................................5 1.2 Related Submittal(s) / Grant (s) ..........................................................................................................5 1.3 Test Methodology ...............................................................................................................................5 1.4 Test Facility.........................................................................................................................................5 1.5 Special Accessories .............................................................................................................................5 1.6 Equipment Modifications....................................................................................................................5 2. SYSTEM TEST CONFIGURATION ............................................................................................6 2.1 EUT Configuration .............................................................................................................................6 2.2 EUT Exercise ......................................................................................................................................6 2.3 Test Procedure.....................................................................................................................................6 2.4 Configuration of Tested System..........................................................................................................7 3. SUMMARY OF TEST RESULTS .................................................................................................8 4. DESCRIPTION OF TEST MODES ..............................................................................................8 5. CONDUCTED EMISSION TEST..................................................................................................9 5.1 Standard Applicable ............................................................................................................................9 5.2 EUT Setup...........................................................................................................................................9 5.3 Measurement Procedure......................................................................................................................9 5.4 Measurement Equipment Used: ........................................................................................................10 5.5 Measurement Result..........................................................................................................................10 6. PEAK OUTPUT POWER MEASUREMENT............................................................................13 6.1 Standard …

Text truncated - open the document above for the full version.

REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photos REPORT NO: ER/2003/B0007 ID: RL9-HCB02 DATE: Nov. 20, 2003 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
