RL9-HS889Bluetooth Stereo Device

1H Bluetooth Stereo Headset HS889 User Guide Notice before using Thank you for purchasing our Bluetooth Stereo Headset HS889. First of all, please check to find everything in your package and carefully study the user guide to know the function details. HS889 is developed by the innovative Bluetooth wireless technology, enabled to connect the Bluetooth mobile phone/ audio devices with Stereo Gateway (HS-T809/T819/T829/T839)/or any Bluetooth device which is with Bluetooth V1.1/V1.2 and supports Bluetooth A2DP (Audio Advance Distribution Profile). Package List Please check the product you purchased. Refer to the below package list to make sure there is no shortage or defect inside. The complete package includes the following items: ◆ HS889 Bluetooth Stereo Headset ................................1 ◆ User Guide .................................................................1 ◆Warranty Card ..............................................................1 ◆ Two in one Charger (travel charger head +USB Cable, input:AC100-240V,50/60Hz, output: DC5.1V,120mA) ..1 If you find any shortage, please contact the retailer shop which you purchase this product from. 1 Button_3 (Indicator) Button_4 Button_5 Button_6 Button_1 Button_2 DC JACK MIC Earphone port 2 The headset comes with a built-in rechargeable battery. Prior to using the headset, it is recommendable to charge the battery fully for the first time. It takes 1 hour to recharge fully. In charging : green indicator Fully recharged: green indicator will shut off Low-battery indication When low battery, indicator shows slow red flash instead of slow blue flash 1. 2. 3. Product Instruction 3 Battery recharging 4 Power On/Off Power on : press and hold the function button (button 4) for 3 seconds, the power will turn on after the indicator flashes blue 3 times fast with 1 voice of “Du----“. Power off : press and hold the function button (button 4) for 5 seconds until you see a 3 second blue light or a voice of “Du—Bi—“, no light on indicator when power off. 1. 2. 5S 5 Pairing When headset is power off, press and hold the function button (button 4) for 5 seconds until you see indicator shows two color flash (blue and red ), or a voice of “ Du— Du—“, to get pairing mode. (If headset is not paired within 60 seconds, it will power off automatically) Password: 8888 (remark: the headset must be paired with another Bluetooth device has A2DP profile before you use it for the first time.) 1. 2. 1m 6 Answer call When incoming call, headset will ring and indicator shows fast blue flash, press function button (button 4) to answer the call. While answering the call, indicator keeps blue flash. 1. 2. 7 Redial last number Under standby mode, press and hold function button (button 4) for 3 seconds to redial, indicator keeps blue flash when talking. 3S 8 Voice dialing Under standby mode, press function button (button 4) to process voice dialing, indicator keeps blue flash when talking. ( To check user guide of your mobile phone to get its voice dialing procedure.) 9 Refuse call When coming call, press and hold function button (button 4) for 3 seconds to refuse the call. 3S 10 Transfer call When talking, press and hold function button (button 4) for 3 seconds to transfer the call from mobile phone to headset or from headset to mobile phone. (Refer to your mobile phone user guide for process of transferring call from mobile phone to headset) 3S 11 End calls When talking is over, press function button (button 4) to end call. After ending call, indicator keeps slow blue flash in standby mode. 12 Putting HS889 in standby mode Headset is in standby mode when in below three situations: 1.Already paired and power on. 2.When Complete pairing 3.After ending call When headset is in standby mode, you can answer call without re-power on. 13 Locally adjust volume on HS889 When talking, you can adjust volume by button 1( - volume) or button 2 (+ volume). Remotely adjust volume by mobile phone When talking, you can adjust headset volume remotely by mobile phone’s volume key. + - 14 Control music of MP3 Button 5 : previous song Button 6 : next song Button 3 : pause / play Button 3 : press and hold for 3 seconds to stop playing Button 2 : increase volume Button 1: decrease volume Button 4 : answer incoming call 15 Specification Product Model No. : HS889 Frequency Band : 2.4GHz ~ 2.4835GHz, ISM Band Talking / Standby Time : Up to 12 hours / Up to 200 hours Supporting Profile : Headset & Handsfree Profile Advance Audio Distribution Profile (A2DP) Audio / Video Romote Control Profile (AVRCP) Bluetooth Specification: Bluetooth V1.2 compliant, class II Power Rating : 1mW Connection : Peer to peer Data Encryption : 128 bits encrypted Power Consumption : 30Ma ( while talking); <1Ma (while standby) Power Capacity : Rechargeable Li-Polymer battery 120mAh Power Supply : 5V DC, 100-240V AC adapter Operation Temperature: -10 ~ 55 °C Storage Temperature: -20 ~ 60 °C Operation Moisture: 10% ~ 90% (non-concrete status) Weight : 17.7g Size : 55mm(L)*25mm(W)*26mm(H) Working Range: 10 meters Streaming time : 5-6 hours 16 Wearing 17 Working range 6m 10m Optimal performance Limited performance Button_3 (Indicator) Button_4 Button_5 Button_6 Button_1 Button_2 Company Website Please visit our company website to know more product details. www.huey-chiao.com www.hcb8.com 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the lim- its for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there i…

Text truncated - open the document above for the full version.

2006/06/10 09:40:05 Gain Pattern Comparison Report Frequency,Polarization : See Legend Units : dBi Test Report Note X-AXIS MAX GAIN:-0.51dBi CIT Chamberadmin No.Se quence PolarizationFrequency(MHz)PeakAngPeak AverageDateAdjust 0 00001114.00Horizontal 2,441.00 80.00-0.51-7.28 2006/6/10 0.00 1 00001111.00Vertical 2,441.00 164.00-13.11-21.27 2006/6/10 0.00 Q-RP v1.5 1 www.QuieTek.com TEL : FAX :+886-2-8792-6808+886-2-8792-6628 2F , No.345, Xinhu 2nd RD., Neihu District , Taipei City, 114 Taiwan , R.O.C. QuieTek Corp.

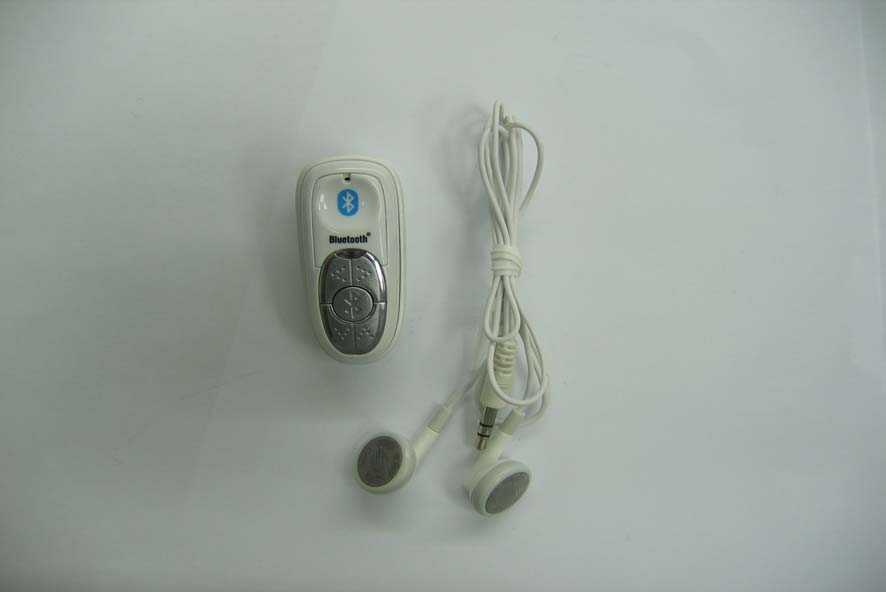

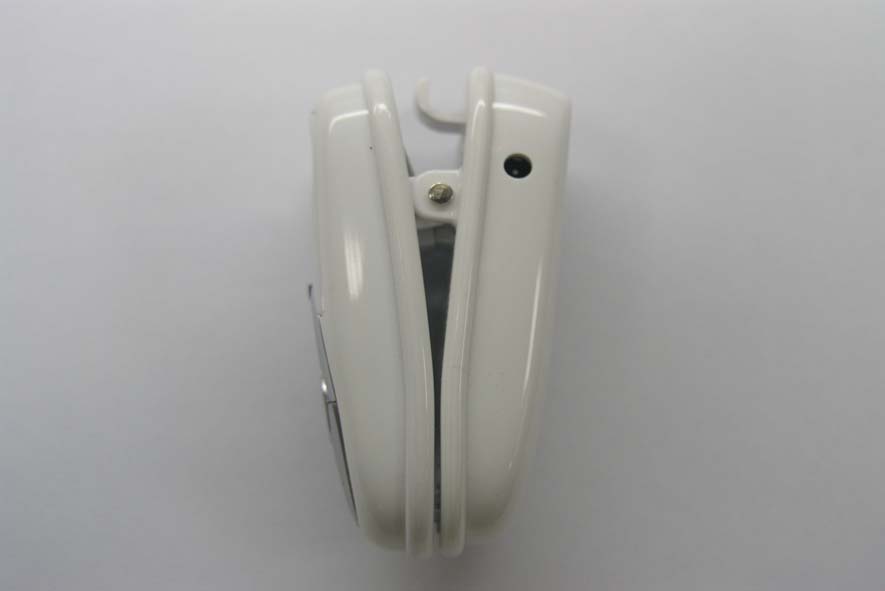

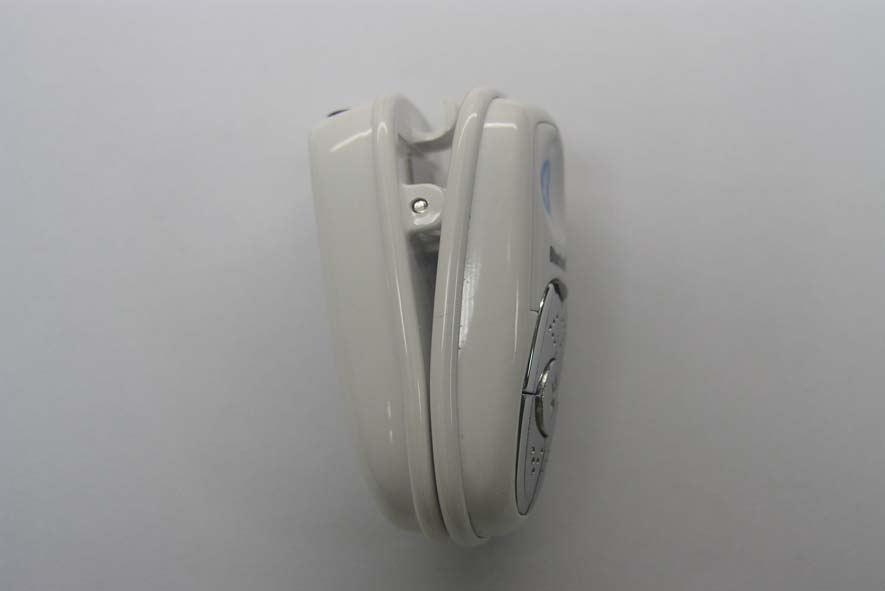

Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 2 PHOTOGRPHS OF EUT Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Front View of EUT Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Back View of EUT Left View of EUT Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Right View of EUT Top View of EUT Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Bottom View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: HUEY CHIAO INTERNATIONAL CO., LTD. FCC ID: RL9-HS889 20mm 30mm

Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 3 PHOTOGRPHS OF EUT Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT-1 Open View of EUT-2 Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT – 1 Internal of EUT – 2 Antenna

RF EXPOSURE STATEMENT 1. Standard Applicable According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result: This is a portable device and the Max peak output power is 3.72dBm (0.00236W) lower than low threshold 60/fGHz mW (24.48mW), d<2.5cm in general population category. The SAR measurement is not necessary.

Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 Page: 1 of 55 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the con- tent or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意 此條款列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面 許可，不可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: BLUETOOTH STEREO DEVICES Brand Name: HUEY CHIAO Model Name: HS889 FCC ID: RL9-HS889 Report No.: EF/2006/50012 Issue Date: Jul. 17, 2006 FCC Rule Part: §15.247 Prepared for: HUEY CHIAO INTERNATIONAL CO., LTD. 5F, NO. 649-1, CHUNG-CHENG ROAD, HSIN- CHUANG CITY, TAIPEI HSIEN, TAIWAN R.O.C. Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 Page: 2 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: HUEY CHIAO INTERNATIONAL CO., LTD. 5F, NO. 649-1, CHUNG-CHENG ROAD, HSIN- CHUANG CITY, TAIPEI HSIEN, TAIWAN R.O.C. Equipment Under Test: BLUETOOTH STEREO DEVICES Brand Name: HUEY CHIAO FCC ID Number: RL9-HS889 Model No.: HS889 Model Difference: N/A File Number: EF/2006/50012 Date of test: May. 30, 2006 ~ Jul. 14, 2006 Date of EUT Received: May. 30, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By: Date Jul. 17, 2006 Danny Yeh Prepared By: Date Jul. 17, 2006 Gigi Yeh Approved By: Date Jul. 17, 2006 Vincent Su Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 Page: 3 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 Jul. 17, 2006 Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 Page: 4 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GEN…

Text truncated - open the document above for the full version.

Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw APPENDIX 1 PHOTOGRPHS OF SET UP Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Radiated Emission Set up Photo Report No EF/2006/50012 FCC ID: RL9-HS889 Issue Date: Jul. 17, 2006 This document is issued by the Company subject to its General Conditions of Service printed overleaf or available on request and accessible at www.sgs.com. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. Unless otherwise stated, the results shown in this test report refer only to the sample(s) tested. This document cannot be reproduced except in full, without prior approval of Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law. 此報告是遵循本公司訂定之通用服務條款所製作發放, 請注意此條款 列印於背面，亦可在www.sgs.com 中查閱。將本公司之義務，免責，管轄權皆明確規範之。除非另有說明，此報告結果僅對檢驗之樣品負責。本報告未經本公司書面許可，不 可部份複製。對本報告內容或外觀之任何未經授權之變更、偽造、竄改皆屬非法，違犯者將會被依法追訴。 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Conducted Emission Set Up Photos
