4 1 Introduction What is Bluetooth wireless technology? The Bluetooth wireless technology makes it possible to connect any compatible and stationary communications device without using cable.The technology is based on a radio link that offers fast and reliable transmission of voice and data information. It does not require a line-of- sight connection in order to establish communication. Bluetooth wireless technology uses a globally available frequency range intended to ensure communication compatibility worldwide Preparing the Headset To be able to use the Headset together with a mobile phone, you need to have a phone with Bluetooth technology, or a phone with a Bluetooth adapter connected to it. Charging The Headset comes with a built-in rechargeable battery. The battery is not fully charged when you buy the Headset. We recommend that you charge the Headset to full power before use. Power on while charging: Whenever the charger plugs in the Headset , the indicator will turn red . When the charging is completed, the red indicator will shut off. NOTE: When the battery is low, if the power is on, it will flash both red & blue light; if power off, no indicator light will be shown. * The charging time: 1-2 hours. Compatible charger: You can attach the following charging to HCB-08 * Travel charger CHT-03. * Plug-In saver charger CHP-06 Turning the Headset On or Off To turn the Headset On Press the Button 3 for 3 seconds until you hear two short tones, the Headset indicator flashes blue light per 3 seconds. Storage of Headset 1. Store the HCB-08 with power off and safely protected. 2. Avoid storage at high temperatures (above 60°C/134°F)- such as in a hot vehicle or in direct sunlight. (storage at high temperature can degrade performance and reduce battery life.) Don't expose the Headset to rain or other liquids. Packing list .Bluetooth Headset (HCB-08)---------------1 .Travel charger(CHT-03)---------------------1 .Instruction------------------------------------1 .Panels------------------------------------------2 Selected parts .Neck strap-------------------------------------1 .Plug-In save charger(CHP-06)--------------1 - Indicator Light Chart Power Off : LED Off Power On: BLUE flash every 3 seconds. Standby Mode: BLUE flash every 2 seconds In Use: BLUE flash twice every 2 seconds. Low Battery : RED flash In charging w/power on : RED light and BLUE flash In charging w/power off: LED Off. Pairing Mode: LED BLUE with RED flash FCC Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter . Notice: Any changes or modification not expressly approved by the party responsible could void the user’s authority to operate the device. Front Ear hook Back 1 button 2 button 3 button Indicator light Mic Speaker Volume button Volume button 1 button Volume button 2 3 Adjusting the volume You can adjust the Headset listening volume during a call. To increase the volume press the + key To decrease the volume, press the - key Answering calls To answer a call using the Headset Button 3. When the Headset rings, press ( a quick tap) on the Button 3 once. Ending calls To end the call press(a quick tap) on the Button 3. Can hear the Switch off tone Or use the NO key on the phone. To make a call using voice dialing Please confirm the voice dial of the mobile phone is open. 1. Make sure the phone and the Headset are turn on and within range of each other. 2. Ensure voice dialing function of your phone is turned on. 3. Press (a quick tap) on the Button 3 once, you will hear the two short tones, waiting for voice dial signal (with some phones, the signal may not be clear) then make voice dial by saying a voice tag that has been restored to a phone number. ( To some mobile phones, you will probably not hear a signal or only a very weak signal tone coming from Headset speaker. The signal sound is different with allphones.) 4.To end the call press(a quick tap) on the Button 3. Can hear the shut tone Or use the NO key on the phone. To make a call using the phone key 1.Make sure the phone and the Headset are on and within range of each other. 2.Input the number as you normally would. 3.When the call has been set up , the sound is automatically transferred to the Headset.( Note: If you use Siemens or Panasonic phone, when the call is set up, you have to press(a quick tap) on the Button 3 once.) 4.To end the call press(a quick tap) on the Button 3. Can hear the switch off tone Or use the NO key on the phone. To make a re-dial 1.Press a quick tap on Button 2, the re-dial will process automatically. 2.In redialing, to cut off the redial, press(a quick tap) Button 3 can hear a short tone. Specification .Operation current consumption : 30mA .Stand-by current consumption: 1mA .Battery (Li-polymer): 170mAh .Frenquency : 2.4GHz .Channels: 79 .Channel intervals : 1 MHz .Distances: indoor 5 m; outdoor 5-10 m .Talking time:5-6 hours .Stand-by time : 150 hours .Weight : 15g To turn the Headset Off Press and hold the Button 3 for 2-3 seconds you can hear two short tones. The Headset indicator light is switched off. Pairing the Headset With a Bluetooth phone or other device, you must pair the Headset with the device before you use the Headset for the first time. “Pairing" with a Bluetooth phone 1. Ensure Headset is off. 2. Press the Button 3, don't release the Button around 5 seconds and see a “blue indicator light with flashing red light" in pairing mode. 3. Follow your Bluetooth phone's instruction for the pairing process. Usually, choose the menu of "Connect"or "Setting" to select option”Bluetooth". When your phone is in the stage of searching a Bluetooth device, Your phone will find “HCB-08”, please confirm the selection. 4.When the phone asks for Password or PIN number, key in the …

Text truncated - open the document above for the full version.

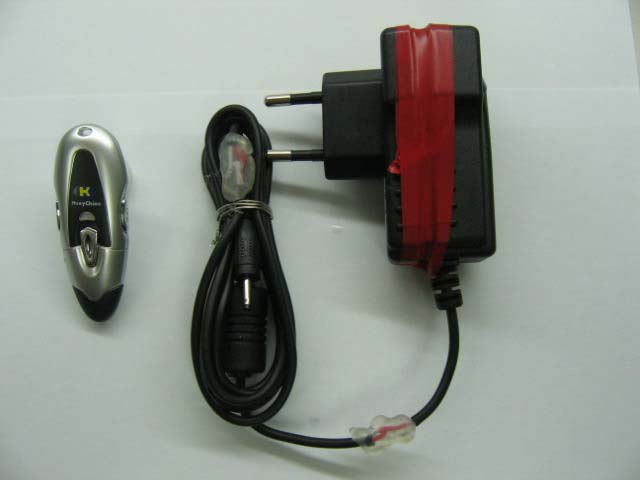

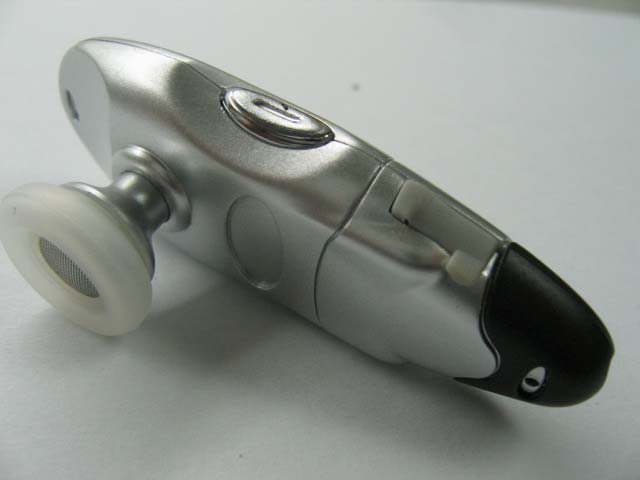

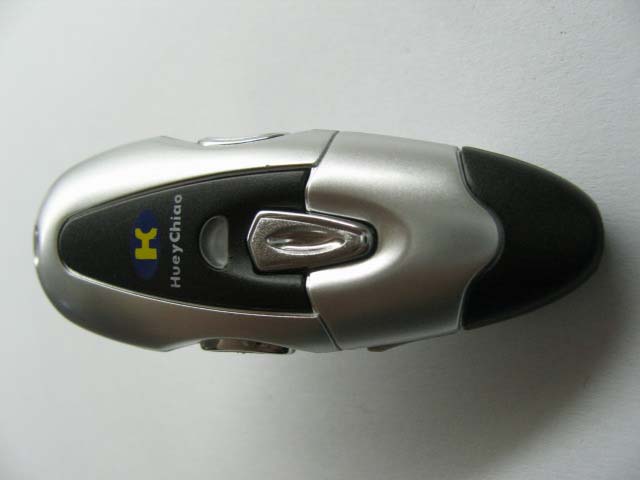

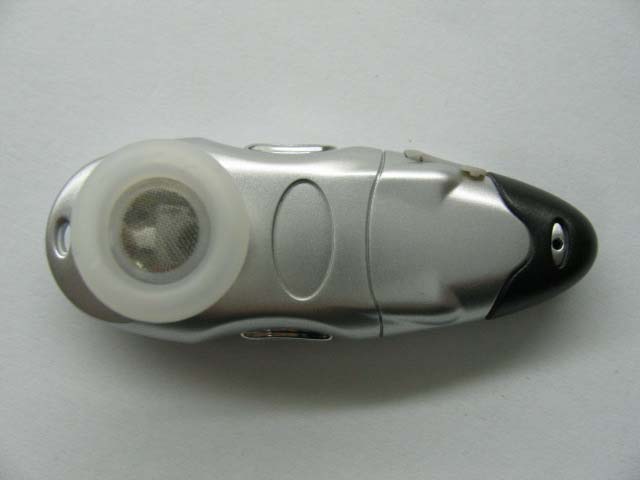

REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 2 PHOTOGRPHS OF EUT REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA All View of EUT Front View of EUT REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Back View of EUT Left View of EUT REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Right View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Huey Chiao International Co., Ltd FCC ID: RL9-HCB08 FCC ID: RL9-HCB08 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 PHOTOGRPHS OF EUT REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Open View of EUT Internal of EUT REPORT NO: ER/2005/20018 ID: RL9-HCB08 DATE: Apr. 08, 2005 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT

REPORT NO: ER/2005/20018 ID:RL9-HCB08DATE:Apr. 08, 2005 Page: 1 of 54 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd.No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司t (886-2) 2299-3939f (886-2) 2298-2698www.sgs.com.tw 0513 ILACMRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product Name: Bluetooth Headset Brand Name: N/A Model Name: HCB08; HCBXX (XX from 01 to 99) Model Differences: Variant in exterior looks. FCC ID: RL9-HCB08 Report No.: ER/2005/20018 Issue Date: Apr.15, 2005 FCC Rule Part: §15.247 Prepared for: Huey Chiao International Co., Ltd 5f, No. 649-1 Chung-Cheng Rd., Hsin-Chuan City, Taipei Hsiem, Taiwan R.O.C Prepared by: SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2005/20018 ID:RL9-HCB08DATE:Apr. 08, 2005 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd.No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司t (886-2) 2299-3939f (886-2) 2298-2698www.sgs.com.tw 0513 ILACMRA VERIFICATION OF COMPLIANCE Applicant: Huey Chiao International Co., Ltd. 5f, No. 649-1 Chung-Cheng Rd., Hsin-Chuan City, Taipei Hsiem, Taiwan R.O.C Equipment Under Test: Bluetooth Headset Brand Name: N/A FCC ID Number: RL9-HCB08 Model No.: HCB08; HCBXX (XX from 01 to 99) Model Difference: Variant in exterior looks. File Number: ER/2005/20018 Date of test: Feb. 25, 2005 ~ Apr. 10, 2005 Date of EUT Received: Feb. 24, 2005 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd.The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.247 The test results of this report relate only to the tested sample identified in this report. Test By:Date Apr. 08, 2005 Willis Chen Approved ByDate Apr. 08, 2005 Vincent Su REPORT NO: ER/2005/20018 ID:RL9-HCB08DATE:Apr. 08, 2005 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd.No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路134號 台灣檢驗科技股份有限公司t (886-2) 2299-3939f (886-2) 2298-2698www.sgs.com.tw 0513 ILACMRA Table of Contents 1.GENERAL INFORMATION.........................................................................................................6 1.1.Product Description............................................................................................................................6 1.2.Related Submittal(s) / Grant (s)..........................................................................................................6 1.3.Test Methodology...............................................................................................................................6 1.4.Test Facility........................................................................................................................................6 1.5.Special Accessories............................................................................................................................6 1.6.Equipment Modifications...................................................................................................................6 2.SYSTEM TEST CONFIGURATION............................................................................................7 2.1.EUT Configuration.............................................................................................................................7 2.2.EUT Exercise......................................................................................................................................7 2.3.Test Procedure....................................................................................................................................7 2.4.Configuration of Tested System.........................................................................................................8 3.SUMMARY OF TEST RESULTS.................................................................................................9 4.DESCRIPTION OF TEST MODES..............................................................................................9 5.CONDUCTED EMISSION TEST...............................................................................................10 5.1.Standard Applicable..........................................................................................................................10 5.2.EUT Setup........................................................................................................................................10 5.3.Measurement Procedure...................................................................................................................10 5.4.Measurement Equipment Used:........................................................................................................11 5.5.Measurement Result.........................................................................................................................11 …
