RLQAT100Audio FM Transmitter

FCC STATEMENT: “Modifications not authorized by the manufacturer may void users authority to operate this device” NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. FCC ID: RLQAT100 MADE IN CHINA This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:8-Jul-2004 Sheet of File:F:\\PCB\luo文件夹板Drawn By: Step-up DC/DC converters circuit LPFVCO BH1417F Transmission frequency selection ANT PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

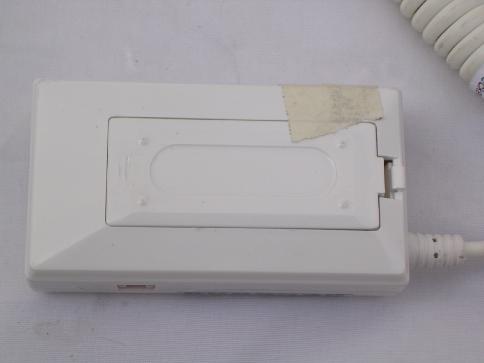

PHOTOGRAPH OF THE PRODUCT FRONT VIEW OF THE PRODUCT REAR VIEW OF THE PRODUCT

PHOTOGRAPH OF THE PRODUCT INNER CIRCUIT TOP VIEW INNER CIRCUIT BOTTOM VIEW

Circuit Description The 88.1, 88.3, 88.5, 88.7, 88.9, 106.7, 106.9, 107.1, 107.3, 107.5, 107.7 and 107.9MHz IC oscillator drives the base of IC2 the final/buffer amplifier. The modulation provided by Audio Input. The output of IC2 has the matching network consisting of L5 and C23 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3 Volt ("AAA"size battery x 2) primary battery

1234 A B C D 4321 D C B A Title NumberRevisionSize A4 Date:22-Oct-2004Sheet of File:F:\\PCB\luo文件夹板Drawn By: 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15 15 16 16 17 17 18 18 19 19 20 20 21 21 22 22 IC2 HF1417F C6 2200pF C7 150pF C10 2200pF C11 150pF C8 10uF C24 27PF C25 27PF C27 0.1uF C26 10uF 18T VCC Y1 7.6MHZ C21 0.01uF C22 1000PF R16 56K C23 1000PF R13 56K R15 56K ANT R5 7.5K C20 33PF L2 5.5T(H)C31 33PF C18 82PF VD1 KV-1471E R12 10K Q1 2SD2142K R11 20K R10 100 C17 100uF C16 0.047uF R7 2.2K R9 3.3k C15 2200PF R8 3.3K C13 10uF R6 10K C14 330PF VCC VCC L-inR-in R14 3.3K C5 1uF C9 1uF L5 0.22uH 1 1 2 2 3 3 IC1 XC6371A501PR 123 654 K2 VCC L1 101uH C4 1000pF C3 220uFC2 0.1u C1 100uF VCC R2 20K R4 20K K1 B+ C12 1uF L3 6.5T(L) D1 BAS40 C28 0.1uF C29 1uF C30 1uF K3 VCC 18T R19 27 R1 20K R18 1.8K R20 1.8K R3 20K R17 2.2K B LED C32 33PF L-in L4 0 PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 1 of 19 No. : HM152208 This report shall not be reproduced unless with prior written approval from the Hong Kong Standards and Testing Centre. 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Applicant: Zhongshan K-mate Electronics Co., Ltd. Fu Wan Industrial Zone, Sun Wen East Road, Zhongshan, China Description of Samples: Model name: Audio FM Transmitter Model no.: AT-100 Brand name: N/A FCC ID: RLQAT100 Date Samples Received: 2004-08-06 Date Tested: 2004-10-12 Investigation Requested: FCC Part 15 Subpart C Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- K C Lee, EMC for Chief Executive 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 2 of 19 No. : HM152208 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). CONTENT: Cover Page 1 of 19 Content Page 2-3 of 19 1.0 General Details 1.1 Test Laboratory Page 4 of 19 1.2 Applicant Details Page 4 of 19 Applicant HKSTC Code Number for Applicant Manufacturer 1.3 Equipment Under Test [EUT] Page 5 of 19 Description of EUT operation 1.4 Date of Order Page 5 of 19 1.5 Submitted Samples Page 5 of 19 1.6 Test Duration Page 5 of 19 1.7 Country of Origin Page 5 of 19 1.8 Additional Information of EUT Page 6 of 19 2.0 Technical Details 2.1 Investigations Requested Page 7 of 19 2.2 Test Standards and Results Summary Page 7 of 19 3.0 Test Results 3.1 Emission Page 8-13 of 19 3.2 Bandwidth Measurement Page 14-16 of 19 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 3 of 19 No. : HM152208 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). Appendix A List of Measurement Equipment Page 17 of 19 Appendix B Photographs Page 18-19 of 19 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 4 of 19 No. : HM152208 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.0 General Details 1.1 Test Laboratory The Hong Kong Standards and Testing Centre Ltd. EMC Laboratory 10 Dai Wang Street, Taipo Industrial Estate New Territories, Hong Kong Telephone: 852 2666 1888 Fax: 852 2664 4353 1.2 Applicant Details Applicant Zhongshan K-mate Electronics Co., Ltd. Fu Wan Industrial Zone, Sun Wen East Road, Zhongshan, China HKSTC Code Number for Applicant ZHK002 Manufacturer Zhongshan K-mate Electronics Co., Ltd. Fu Wan Industrial Zone, Sun Wen East Road, Zhongshan, China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 5 of 19 No. : HM152208 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.3 Equipment Under Test [EUT] Description of Sample Model Name: Audio FM Transmitter Manufacturer: Zhongshan K-mate Electronics Co., Ltd. Brand Name: N/A Model Number: AT-100 Input Voltage: 3Vd.c (“AAA” size battery x 2) 1.3.1 Description of EUT Operation The Equipment Under Test (EUT) is a Zhongshan K-mate Electronics Co., Ltd., Audio FM Transmitter. The transmitter is a 3 button transmitter. The EUT continues to transmit while button is being pressed. Modulation by IC. and type is frequency modulation. 1.4 Date of Order 2004-08-06 1.5 Submitted Sample(s): 3 Samples per model 1.6 Test Duration 2004-10-12 1.7 Country of Origin China 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 6 of 19 No. : HM152208 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 1.8 Additional Information of EUT Submitted Not Available User Manual Part List Circuit Diagram Printed Circuit Board [PCB] Layout Block diagram FCC ID Label 香 港 標 準 及 檢 定 中 心 Hong Kong Standards and Testing Centre Date : 2004-10-20 TEST REPORT Page 7 of 19 No. : HM152208 香港新界大埔工業村大宏街10號 10 Dai Wang Street, Taipo Industrial Estate, N.T., Hong Kong Tel: (852) 2666 1888 Fax: (852) 2664 4353 Homepage: www.hkstc.org E-mail: [email protected] For full text of “Conditions of Issuance of Test Report”, please refer to overleaf or refer to the website of STC: www.hkstc.org (the section “Application and Quotation”). 2.0 Technical Details 2.1 Invest…

Text truncated - open the document above for the full version.

TEST SET UP PHOTOGRAPH OF THE PRODUCT MEASUREMENT OF RADIATED EMISSION TEST SET UP
