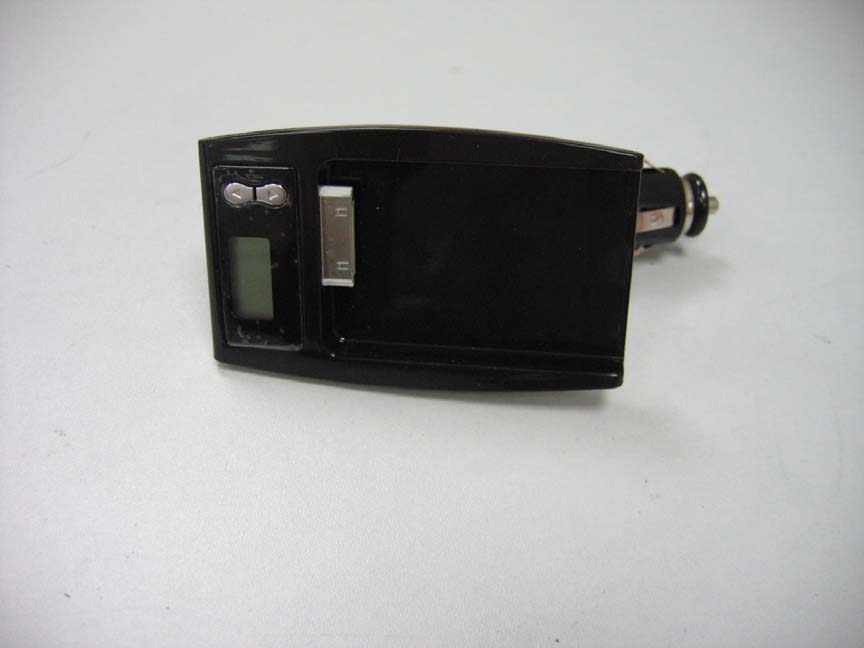

AT600 Valuable Car Combo For Nano Transmitter, Charger and Holder 3in1 *LCD displays frequency clearly with blue background light even at night *Up to 100 transmitting frequencies are afford for your choice *Automatically memory last used frequency *The cigarette lighter can be replace freely *Specially design holder for nano with case or not AT600 is multifunction and easy to use, just plug it into cigarette socket and put your iPod nano into the holder, select the frequency of AT600, and turn your car stereo to the same FM frequency. Then you can listen to your music through any car stereo wirelessly. For your convenience, the cigarette light can be replaced freely and blue background light let you adjust frequency easily. Specification: Operation Voltage: 12V Function Range: 3meters Response Frequency: 15Hz—20KHz Receive Frequency: 88.1MHz—107.9MHz (200kHZ step) Operation Temperature: -20°C～70°C Transmit Power: <0dBm Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment FCC ID: RLQAT600 Made in China This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, Including interference that may cause undesired operation

Block Diagram

1234 A B C D 4 321 D C B A Title NumberRevisionSize A4 Date:6-May-2006 Sheet of File:F:\\PCB\BTKS01文件夹板Drawn By: VOLT REGULATOR LPFVCO BH1415F MCU ANT 12V DC battery PDF created with pdfFactory trial version www.pdffactory.com

Operational Description

Circuit Description The 88.1-107.9MHz IC oscillator drives the base of IC2 the final/buffer amplifier. The modulation provided by Audio Input. The output of IC2 has the matching network consisting of C23 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source There is no external antenna. There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 12 Volt DC battery.

Schematics

AT600.sch-1 - Fri May 26 09:44:08 2006原理图 PDF created with pdfFactory Pro trial version www.pdffactory.com

Test Report

Report No.: GLEMO060400795AVI Page: 1 of 15 FCC ID: RLQAT600 Authorized Signature: Jeff Zhao Manager This report refers to the General Conditions for Inspection and Testing Services, printed overleaf This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. Member of the SGS Group (Société Générale de Surveillance) SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 FCC TEST REPORT Application No. : GLEMO060400795AV Applicant: Zhongshan K-mate Electronics Co.,Ltd. FCC ID: RLQAT600 Fundamental Carrier Frequency : 88MHz to 108MHz Equipment Under Test (EUT): Name: FM Transmitter,holder & car charger for iPod Nano Model: AT600 Band Name: Not supply by client Standards: FCC PART 15.239: 2006 Please refer to section 2 for further details. Date of Receipt: 23 May 2006 Date of Test: 22 May 2006 Date of Issue: 23 May 2006 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO060400795AVI Page: 2 of 15 FCC ID: RLQAT600 2 Test Summary Test Test Requirement Stanadard Paragraph Result Radiated Emission (30MHz to 1000MHz) FCC PART 15 :2006Section 15.239 PASS Occupied Bandwidth FCC PART 15 :2006Section 15.239 PASS SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO060400795AVI Page: 3 of 15 FCC ID: RLQAT600 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION...................................................................................................................................4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 DESCRIPTION OF SUPPORT UNITS................................................................................................................... 4 4.4 STANDARDS APPLICABLE FOR TESTING........................................................................................................... 4 4.5 TEST LOCATION................................................................................................................................................ 4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 4 4.7 TEST FACILITY................................................................................................................................................... 5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS.......................................................................................................................................... 6 5.2 E.U.T. OPERATION........................................................................................................................................... 6 5.3 TEST PROCEDURE & MEASUREMENT DATA..................................................................................................... 7 5.3.1 Radiated Emissions................................................................................................................................... 7 5.3.2 Occupied Bandwidth..........................................................................................................................13-15 SGS-CSTC Standards Technical Services Ltd. Report No.: GLEMO060400795AVI Page: 4 of 15 FCC ID: RLQAT600 4 General Information 4.1 Client Information Applicant Name:Zhongshan K-mate Electronics Co.,Ltd. Applicant Address: 3/F B1 Building Fuwan Ind. Zone Sun wen East Road,Zhongshan,China 4.2 General Description of E.U.T. Product Name: FM Transmitter,holder & car charger for iPod Nano Model: AT600 Power Supply: By car charger or 12.0V DC when connect iPod Nano Power Cord: N/A- 4.3 Description of Support Units The EUT was tested as a peripheral unit:it must connet to an iPod Nano and setup correctly. The transmitter have 100 channels in the 88.1MHz between 107.9MHz with 200KHz channel spacing can in exchange for choice . 4.4 Standards Applicable for Testing The customer requested FCC tests for a FM transmitter for iPod Nano. The standard used was FCC PART 15, SUBPART C (2006) section 15.239. 4.5 Test Location All tests were performed at:- SGS-CSTC Standards Technical Services Co., Lt…
