RMZ-A6Bluetooth Earphone

In‐ear Bluetooth earphone Quick Start Guide V1.0_150326 IN-EAR BLUETOOTH EARPHONE MODEL NO.: A6 Specification - Product size: 342X49X28mm - battery capacity: 3.7V/90mAh - charge couple：micro USB - charging voltage：DC5V - charging time：1.5H - play time: 4-5H - Power Rating：3mW*2 - Speaker Impedance：16Ω - frequency response：20Hz～20KHz - receive distance: 10m - Other: A2DP、HFP、HSP、 1(.) Button 2 Multifunctional Button 3 (..) Button 4 Mode / Charging LED 5 Micro USB socket 6 MIC hole In‐ear Bluetooth earphone Quick Start Guide V1.0_150326 Charging The Bluetooth Earphone 1. Open the rubber seal cover (5). 2. Connect the Bluetooth Earphone’s Micro USB socket (5) with the Computer’s USB port through USB cable. 3. The Charging LED (4) will turn ON in red light; the rechargeable battery is in charging. 4. The Charging LED (4) red light will be in blue when the rechargeable battery is fully charged. 5. Low battery: the Charging LED (4) will be blinking in red. Bluetooth Earphone pairing / Reconnecting 1. Power on: Press and hold the multifunctional button (2) for 3 seconds and the Mode LED (4) will be blinking in blue and red alternately, the device is turned ON and goes into searching / paring / reconnect mode. 2. Now, turn ON the Bluetooth function on your mobile phone. 3. Search for “A6” and select it to pair, there will be a short beep means Bluetooth Speaker is connected with mobile phone. 4. The Bluetooth Speaker will be reconnecting automatically if your mobile phone has been paired. (Depend on the of mobile phone’s type and configuration, manual reconnection may require on some devices) . 1. If pairing is successful, the Mode LED (4) light will switch to slow blink in blue. 2. Power off: Press and hold the multifunctional button (2) and Mode LED (4) will in red and turn off. 5. If Bluetooth Speaker not connected with mobile phone in 5minutes, it will turn off automatically. Bluetooth Earphone Control Function 3. In playing music, press multifunctional button (2) to pause music, press it once again to play. 4. Press and hold the (..) button (3) to increases the volume level. 5. Press and hold the (.) button (1) to decreases the volume level. 6. Press the (..) button (3) to play next music file. 7. Press the (.) button (1) to play previous music file. Bluetooth Earphone Control Function Hand free function and calling 8. Press multifunctional button (2) to pick up the call if you want. 9. Press multifunctional button (2) again to hand up the call when finished 10. Press and hold 2 seconds multifunctional button (2) to reject the call. 11. Double press multifunctional button (2) quickly to dial the last call no. In‐ear Bluetooth earphone Quick Start Guide V1.0_150326 FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

DATE : August 24, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: RMZ-A6 Product Name: Bluetooth Earphone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this August 24, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Judy Zhu Signature Printed Title: Manager On behalf of : Richen Industrial Co.,Ltd Telephone: 0755-83268139

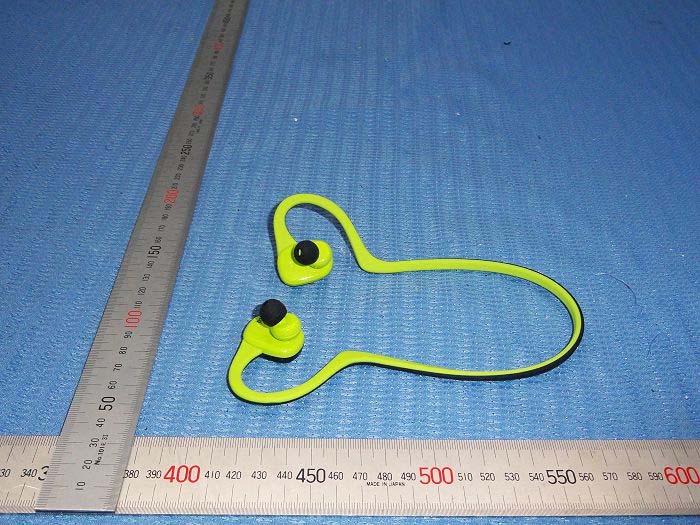

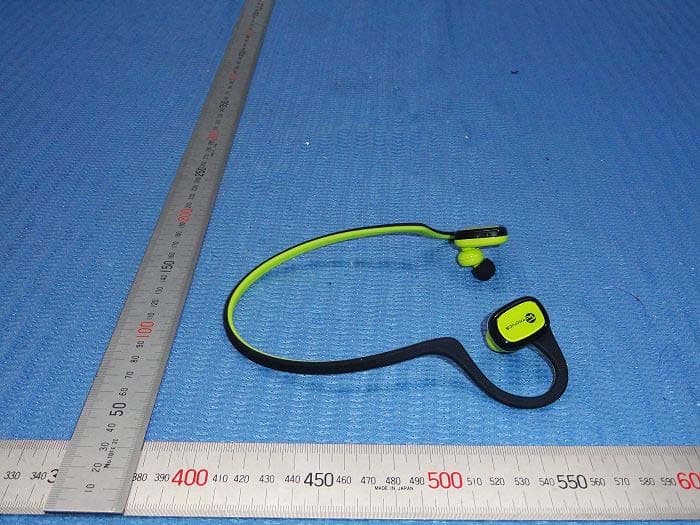

Outside view Outside view

FCC ID: RMZ-A6

Mark Location: FCC ID Label Location

Inside view Inside view Inside view

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =9.354/5 * 1.56= 2.92, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

Report No: FCC 1508100-02 File reference No: 2015-08-24 Applicant: Richen Industrial Co., Ltd. Product: Bluetooth Earphone Model No: A6 Trademark: ILE Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10,FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: August 24, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1508100-02 Page 2 of 45 Date: 2015-08-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with “Quality Law of People’s Republic of China” Clause 19. The testing quality system of our laboratory meet with ISO/IEC-17025 requirements, which is approved by CNAL. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAL-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAL/AC01:2002 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:2005 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.: 899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration IC No.: 5205A-02. Report No: FCC1508100-02 Page 3 of 45 Date: 2015-08-24 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT ........................................................................................... 4 1.4 Submitted Sample.............................................................................................. 4 1.5 Test Duration................................................................................................... 5 1.6 Test Uncertainty............................................................................................... 5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification.............................................................................................7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition....................................................................................9 5.5 Conducted Emission Limit.....…
