S6 Instruction Manual Thank you for choosing our product. Please read the instruction manual before using and keep it properly for your reference. ■Main features and Technical Parameters ·Product Model：S6 ·Dimensions：：181MM*74MM*31MM ·Unit Weight:：240G ·Built-in Lithium battery: 3.7V/1000mAh ·Charge Jack：Micro USB ·Charge Voltage：DC5V ·Charge Current：500mA ·Charger Time：About 2.5hour ·Playing Time: About 8hours at 70%volume ·Audio Output Power: 3W*2 ·Speaker：4Ω3W*2 ·Frequency Response：100Hz～20KHz ·10 meters operation range ·Bluetooth version：BK8000L; Bluetooth v2.1+EDR/ A2DP/ AVRCP/ HFP ■Product Illustration Key functions：1) Status Indicator / 2) Multifunction Button/ 3) Volume （+）/ 4) Volume（-）/ 5 )Power on/ 6 )MIC /7)Charging Indicator/ 8) MICRO Charging plug/ 9) LINE IN Port ■Operating Instructions Power on：Long press for 2 seconds until one blue indicator is on Power off：Long press for 3 seconds until one red indicator is on Pairing：Long press for until red and blue light flash quickly Bluetooth name:S6 Volume adjustment：Press and hold "+" button to increase the volume ； Press and hold "-" button to decrease the volume Song choosing：Press "+" button to play next music； Press "-" button to play previous music Play/Pause：Press to pause the music, pressagain to resume play Answer /End the call：Press to answer the call, and pressagain to end the call and resume play music， Reject an incoming call：Long press for 2s Tail number redial： Press twice quickly, then it will dial the latest dial number ■LED indictor Low battery： When battery is lower than20%, red light on Charging：When the product is charging, red light will be on，when the charging is finish, Red light will on off. Bluetooth has connected：Blue light flash slowly Bluetooth automatic connect ： Blue light is on Bluetooth pair ： Red light and blue light flash FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐Reorient or relocate the receiving antenna. ‐‐Increase the separation between the equipment and receiver. ‐‐Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐Consult the dealer or an experienced radio/TV technician for help.

DATE : Sep 23, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: RMZ-S2S6 Product Name: Bluetooth Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Sep 23, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Judy Zhu Signature Printed Title: Manager On behalf of : Richen Industrial Co.,Ltd Telephone: 0755-83268139

Statement We Richen Industrial Co., Ltd. Hereby Declare that The product Bluetooth Speaker , models no. S2, S6 are all identical in interior structure, electrical circuits and components, and ONLY appearance is different for the marketing requirement. Your assistance on this matter is highly appreciated. Dated this Sep 23, 2015 Agency agreement expiration date: Usually Give 8 - 12 Months By: Judy Zhu Signature Printed Title: Manager On behalf of : Richen Industrial Co.,Ltd Telephone: 0755-83268139

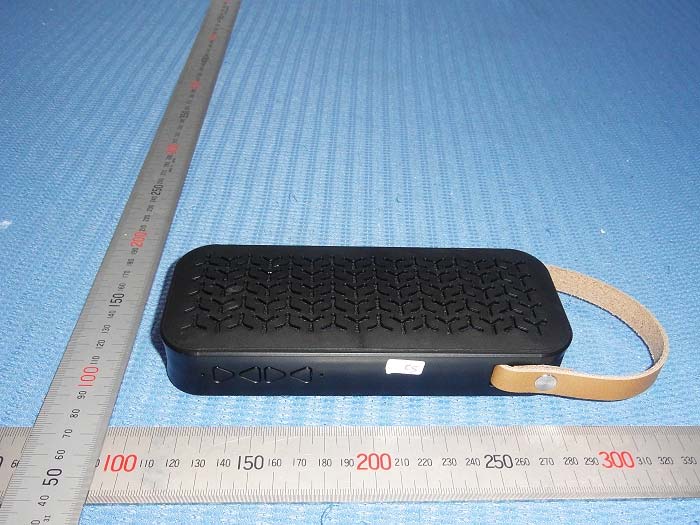

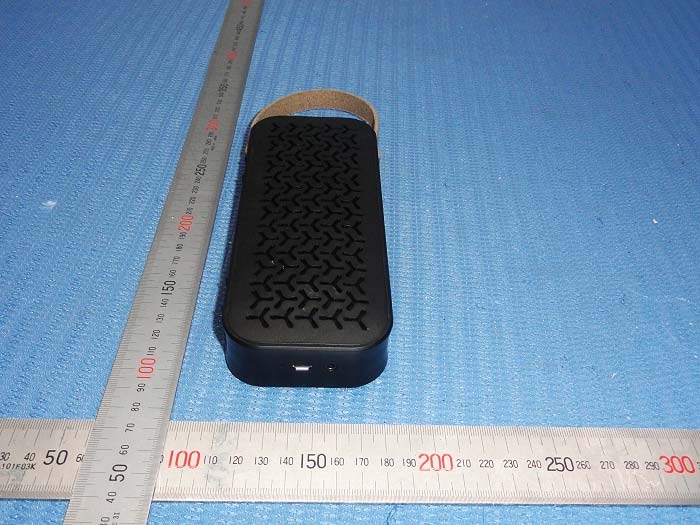

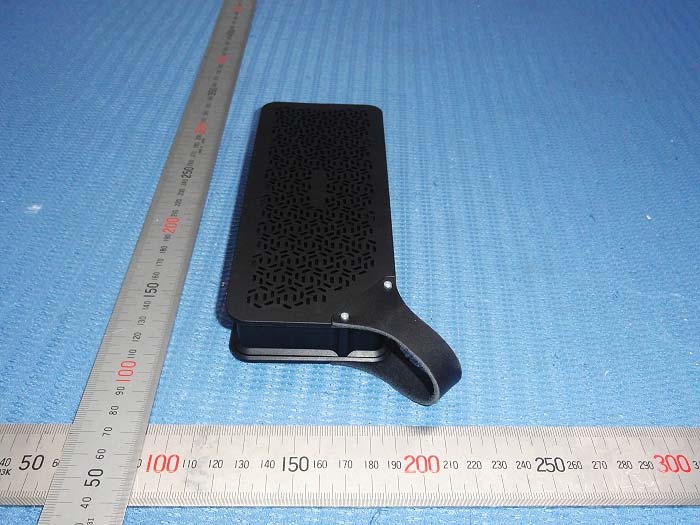

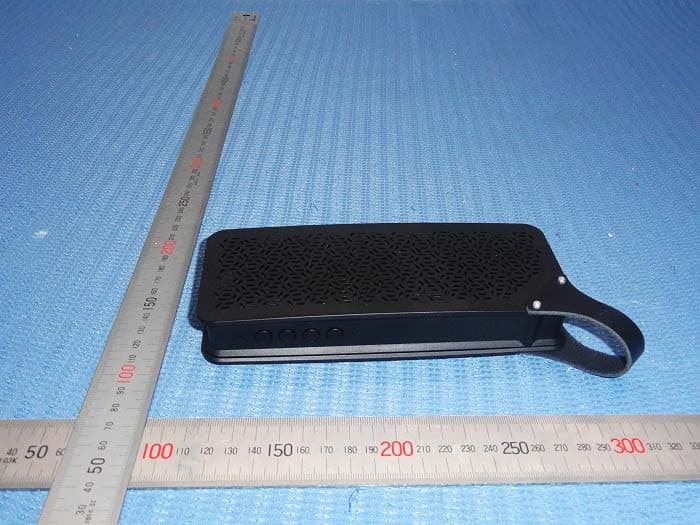

Outside view Outside view Outside view Outside view

Mark Location: FCC ID Label Location

ILE Bluetooth Speaker Model: S2 I/P: 5V ; Internal Battery: 3.7 V FCC ID: RMZ‐S2S6 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [f(GHz)] =0.15/5 * 1.57= 0.05, this value is less than 3.0 for 1-g SAR and  7.5 for 10-g extremity SAR.  The SAR measurement is not necessary. 0.14/5 * 1.58= 0.04

Report No: FCC 1509114 File reference No: 2015-09-25 Applicant: Richen Industrial Co., Ltd. Product: Bluetooth Speaker Model No: S2,S6 Trademark: ILE Test Standards: FCC Part 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10, FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: September 25, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No.: FCC1509114 Page 2 of 82 Date: 2015-09-25 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No.: FCC1509114 Page 3 of 82 Date: 2015-09-25 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition....................................................................................9 5.5 Conducted Emission Limit..................................…
