RMZ-BTS59Bluetooth Speaker

WIRELESS PORTABLE SPEAKER 产品使用手册 简体中文 简体中文 目录 使用前使用中 包装盒内物品 02 02 04 05 0606 07 07 08 控制键 产品功能 入门指南 电子设备配对 与其他音频设备配合适用 对讲电话功能 LED状态 接听/拒绝来电 0102 使用前 03 使用前04 使用前 05 使用中06 使用中 07 使用中08 使用中 09 10 播放/暂停 音量减/下一曲 音量增/上一曲 充电配对指示灯 电源开关(ON /OFF) 辅助设备接入(LINE IN)端口 无线便携式音箱 使用无线便携式音箱和支持蓝牙的设备,您可以无线 播放音乐或使用对讲电话功能. 请检查您的设备是否支持蓝牙 非A2DP和其他非蓝牙设备可使用3.5mm音频线连接. 注意:使用3.5mm音频线连接设备时,对讲电话功能不 能使用. 注意:当音箱充电时,音箱顶部的LED指示灯会同时显示蓝色 和红色.充电完成后,LED指示灯只会显示蓝色. 注意:A01在任何给定的时间内只能与一个电子设备配对. *A2DP:高级音频分发模式 HSP:耳机模式 HFP:免提模式 可充电锂离子电池 电话对讲功能 LINE IN 端口,用于其他音乐播放 高达8小时的电池使用时间 启动设备上的蓝牙功能 确保您的便携式蓝牙音箱已充满电或将其连接到电源,同 时需打开电源开关. 设备将自动寻找,此时音箱顶部的LED灯开始闪烁. 蓝牙设备上将出现”S201” 如果设备配对成功,LED灯将停止闪烁. 蓝牙2.1 with A2DP/HFP/HSP 然后将USB线另一端插入PC/MAC 的USB端口或 USB电源适配器 将音频线的一端连接到您的个人电子设备,另一端插入 音响背面附属设备接入端口(LINE IN)端口. 充电激活启用 音频输出接口(LINE OUT)端口 USB充电(DC IN )端口 MICRO SD卡 其他信息 产品规格参数 适用于任何智能手机的无线便携式音箱,平板电脑,MP3播放器, 有蓝牙功能的PC或MAC 包装盒内物品控制键 USB线 S201 用户手册音频线 产品功能 入门指南电子设备配对 同其他音频设备配合使用 LED同步指示灯(顶面) LED充电指示灯(顶面) LED状态 产品规格参数 关闭电源 LED灯不亮 打开电源 LED灯亮(蓝色) 配对模式 LED灯慢闪烁(蓝色) 配对成功 LED灯常亮(蓝色) 充电过程中 LED灯交替闪烁(蓝色/红色) 充电完成 LED灯亮(红蓝色同时亮) 接听电话-按( )键 拒绝来电-长按( )键2秒. 结束通话-按( )键. 产品名称 电池规格 输入 充电时间 使用时间 频率 失真度 无线蓝牙音响 可充电式锂电池 5V/1000mAh 大约 小时 在 音量大小下大约 个小时 100Hz-20KHz 信噪比 喇叭 产品尺寸 工作条件 摆放温度 储存湿度 蓝牙版本 ≥75dB 4Ω2W 205.5L*56.5W*66.5H mm <85%，Temp:-20°C to 60°C -10°C-45°C 75% BLUETOOTH V2.1+EDR 对讲电话功能 S201 1 1 2 3 4 5 6 7 8 9 10 2 3 6 7 8 9 10 5 4 将迷你USB线插入直流输入(DC IN )端口 如需要音箱和蓝牙无线设备共同使用时必须进行配对. 要启用音箱,打开位于音箱背后的电源开关. WIRELESS PORTABLE SPEAKER PRODUCT MANUAL ENGLISH ENGLISH Catalog Before useIn use goods in box 02 02 04 05 0606 07 07 08 keys product function Product function Operate Guide Operate Guide Electronic device pairing Electronic device pairing Other audio equipment with applicable Intercom function Intercom function LED statement LED statement The answer / reject a call 0102 before use 03 before use04 before use 05 in use06 in use 07 in use08 in use 09 10 play/pause volume down / FF volume up / REW charge / pairing indication light power key (ON /OFF) LINE IN Wireless portable speaker The use of wireless portable speakers and Bluetooth device, you can use the wireless music or intercom function. Please check your device is Bluetooth support Non A2DP and other non Bluetooth device can use 3.5mm audio line connection. Notice: use 3.5mm audio line connecting equipment, i ntercom function Can not be used. Notice: when the speaker when charging, LED indicates the exhibit of lanterns speaker at the top while show blue and red. After charging, LED indicator will display only the blue. Note: the A01 can only be used at any given time and an electronic device pairing. and the blue transmission distances is :10m *A2DP :Advanced audio distribution mode HSP :Headset mode HFP :Hands free mode Recharge Lion battery Telephone intercom function LINE IN ,For other music resources 5 hours of battery life Trun on the initiating device Bluetooth function Make sure that the Bluetooth portable speakers you have been charged or be connected to the power supply, also need to open the switch. Trun on your Bluetooth device, the device will automatically find, LED lamp at the speaker at the top began flashing. Bluetooth devices will be show "S201" If the equipment is the pairing is successful, the LED light will stop flashing. BLUETOOTH 2.1 with A2DP/HFP/HSP Then the USB port or USB power adapter USB line, the other end is inserted into the PC/MAC Connect the audio line to the end of your personal electronic device, the other end is inserted into the audio back accessory equipment access ports (LINE IN) port. Battery chargingEnabled LINE OUT DC IN MICRO SD card Other info Product specifications Product specifications Applicable to any intelligent mobile phone tablet computer, the MP3 player, With the Bluetooth function PC or MAC Goods in boxKeys USB Cable S201 USE MANUALAudio line With other audio equipment used LED synchronous indicating lamp (top) LED charging indicator (top) Turn off the power No bright Turn on the power bright (blue) Pairing mode Twinkle(blue ) Pairing successful bright (blue ) In the process of charging Twinkle (blue and red in turn) The charging is completed bright (blue and red) Answer the phone-push( ) Reject a call- push( ) 2 seconds End the call-push( ). Product descripe Battery spec DC IN Battery charger time Battery use time frequency THD wireless portable speaker Recharge Lion battery 3.7V1800mAh 5V/1000mAh about 3-4 hours about 5hours under 70% volume play music 100Hz-20KHz THD+N15% (3.2W) THD+N15% (3.2W) S/N: Speaker Product size Operate temperature Storage temperature Storage Humidity Bluetooth version ≥75dB 4Ω2W 205.5L*56.5W*66.5H mm <85%Temp:-20°C to 60°C -10°C-45°C 75% BLUETOOTH V2.1+EDR S201 1 1 2 3 4 5 6 7 8 9 10 2 3 6 7 8 9 10 5 4 The mini USB cable into the DC input (DC IN) port The need for common use must be paired as speakers and Bluetooth wireless equipment. To enable the speaker, turn on the power switch is located behind the speakers (3.7V,1800mAh) 3-4 70% 5

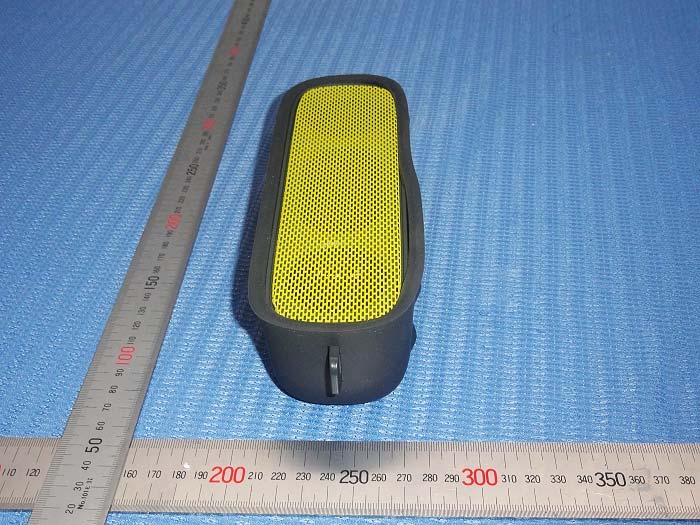

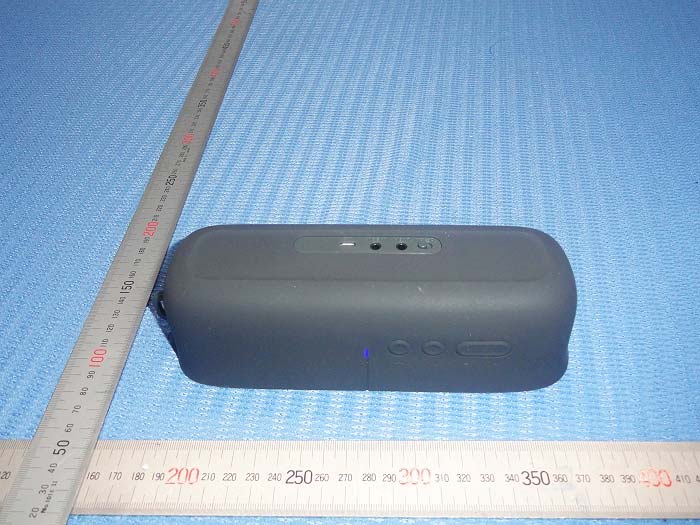

Outside view Outside view

Label Location

ILE Bluetooth Speaker Model No.: BTS-59 Internal Battery: 3.7V Input: 5 V FCC ID: RMZ-BTS59 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Inside view Inside view Inside view

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =1.396/5 * 1.57= 0.44, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

ISO/IEC17025Accredited Lab. Report No.: FCC 1505178 File reference No.: 2015-06-01 Applicant: Richen Industrial Co., Ltd. Product: Bluetooth Speaker Model No.: BTS-59 Trademark: ILE Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.10&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: June 01, 2015 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TESTING LABORATORIES Room 512-519, 5/F., East Tower, Building 4, Anhua Industrial Zone, Futian District, Shenzhen, Guangdong, China Tel (755) 83448688, Fax (755) 83442996, E-Mail:[email protected] Report No: FCC1505178 Page 2 of 79 Date: 2015-06-01 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No: FCC1505178 Page 3 of 79 Date: 2015-06-01 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the SHENZHEN TIMEWAY TESTING LABORATORIES. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the SHENZHEN TIMEWAY TESTING LABORATORIES. to his customer. Supplier or others persons directly concerned. SHENZHEN TIMEWAY TESTING LABORATORIES. will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The SHENZHEN TIMEWAY TESTING LABORATORIES. reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition....................................................................................9 5.5 Conducted…
