RNE00614TXWireless Rain Gauge Transmitter

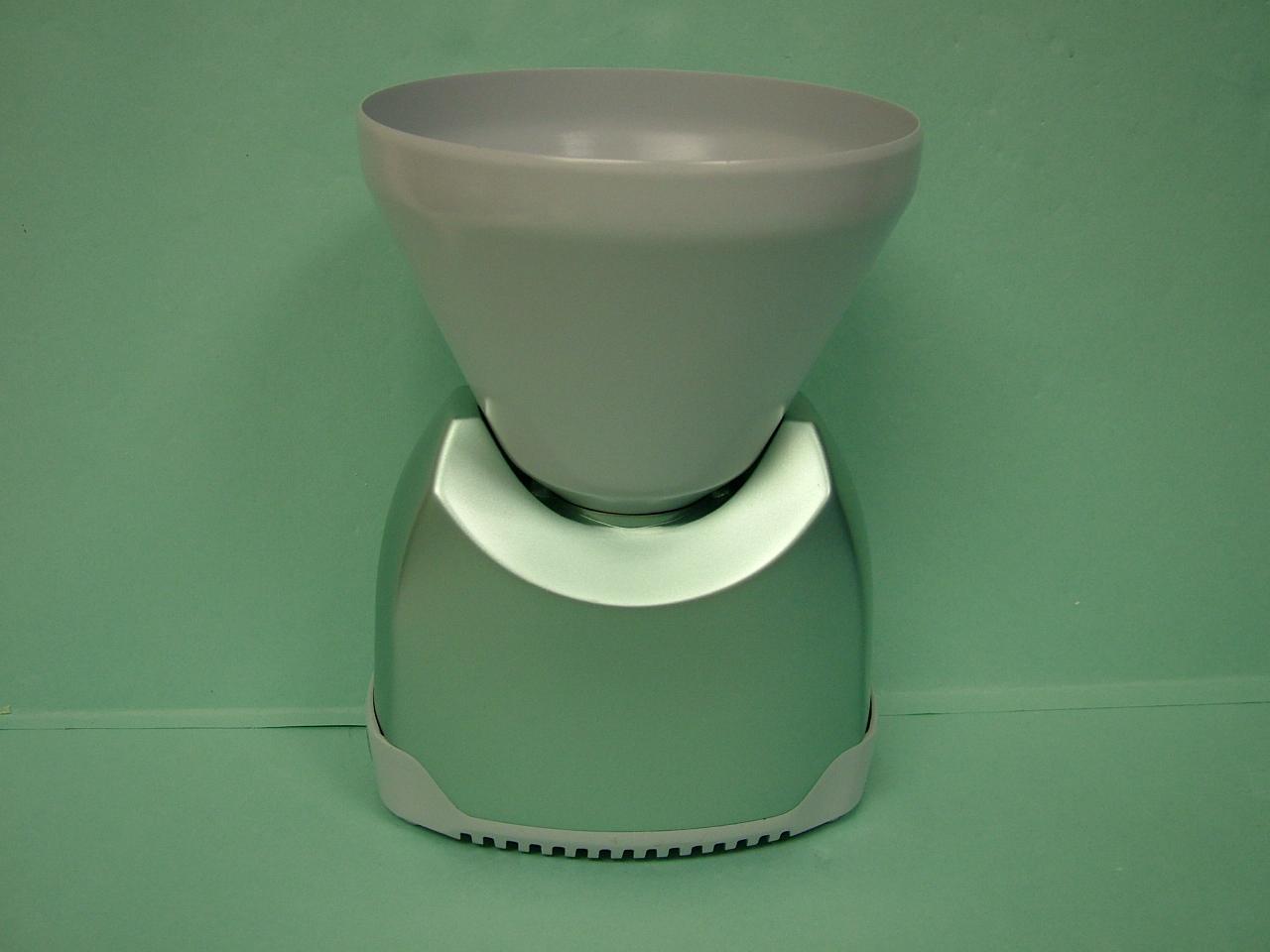

Page 1 of 1 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix B Date: 2007-05-16 Test report no.: 60.880.7.018.01 Model no.: 00614 (Tx) Photos of EUT – External EUT Photos

RX: DC 4.5V 3x AA TX: DC 3.0 V 2x AA IC : 6608A-00614TX

Page 1 of 5 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix C Date: 2007-05-16 Test report no.: 60.880.7.018.01 Model no.: 00614 (Tx) Photos of EUT – Internal EUT Photos Page 2 of 4 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.880.7.018.01 Model no.: 00614 (Tx) Page 3 of 4 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.880.7.018.01 Model no.: 00614 (Tx) Page 4 of 4 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Test report no.: 60.880.7.018.01 Model no.: 00614 (Tx)

Page 26 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong

Date: 2007-05-16TEST REPORT No.: 60.880.7.018.01 Page 1 of 36 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Applicant: Chaney Instrument Co. AB 29/F Hai Ying Building, South Caitian Road, Futian District, Shenzhen China Description of Samples: Model name: Wireless Rain Gauge ( Transmitter ) Brand name: Nil Model no.:00614 (Transmitter) FCCID:RNE00614TX Date Samples Received: 2007-05-02 Date Tested: 2007-05-02 to 2007-05-16 Investigation Requested: FCC Part 15 Subpart C, Section 15.231 Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks:---- Checked by:Approved by:- Prudence PoonVictor Kwan Project ManagerManager Telecom departmentTelecom department Page 2 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONTENT: Cover Page 1 of 32 Content Page 2-3 of 32 1.0 General Details 1.1Test Laboratory Page 4 of 32 1.2Applicant Details Page 4 of 32 1.3Equipment Under Test [EUT] Page 5-6 of 32 1.4 Related Submittal(s) Grants Page 6 of 32 2.0 Technical Details 2.1Investigations Requested Page 7 of 32 2.2Test Standards and Results Summary Page 7 of 32 3.0 Test Methodology 3.1Radiated Emission Page 8 of 32 3.2Field Strength Calculation Page 8 of 32 3.3Conducted Emission Page 8 of 32 4.0 Test Results 4.1Radiated Emission of Fundamental Frequency Page 9-10 of 32 4.2Spurious Radiated Emission Page 11-23 of 32 4.3Conducted Emission Page 24 of 32 4.4Bandwidth Measurement Page 25-26 of 32 4.5Average Factor Page 27-31 of 32 Page 3 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 5.0List of Measurement Equipments Page 32 of 32 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Page 4 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.0 General Details 1.1 Test Laboratory Hong Kong Productivity Council HKPC Building, 78 Tat Chee Avenue, Kowloon Tong, Hong Kong Registration Number: 90656 1.2 Applicant Details Applicant Chaney Instrument Co. AB 29/F Hai Ying Building, South Caitian Road, Futian District, Shenzhen, China Manufacturer Chaney Instrument Co. AB 29/F Hai Ying Building, South Caitian Road, Futian District, Shenzhen, China Page 5 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.3 Equipment Under Test [EUT] Description of EUT Model Name:Wireless Rain Gauge ( Transmitter ) Brand Name: Nil Model Number: 00614 (Transmitter) FCCID: RNE00614TX Rating:3.0Vd.c. ( 2 x “ AAA” size batteries ) Antenna Type:Integral Operated Frequency:433.992MHz No. of Channel:1 Accessories and Auxiliary Equipment:None EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a transmitter operated at 433.992MHz to detect the rainfall of the surrounding and transmit this information to the wireless rain gauge. Periodic Operation of EUT The transmitter transmits signal for every 16 seconds, that mean the silence period must not less than 16 seconds. Each data packet is continuously transmitting for approximate 100ms in one transmission, it activated automatically shall cease transmission within 1 seconds after activation. So the EUT is deemed to fulfill FCC section 15.231( e ). According to section 15.231(e), the EUT shall be provided with a means for automatically limiting operation so that the duration of each transmission shall not be greater than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission but in no case less than 10 seconds. Page 6 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.4Related Submittal(s) Grants This is a single application for certification of the transmitter. Page 7 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2006 and ANSI C63.4: 2003 for FCC Verification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPass Failed N/A Radiated Emission of Carrier Frequency FCC 47CFR 15.231ANSI C63.4:2003 N/A Radiated Emission, 30MHz to 5GHz FCC 47CFR 15.231ANSI C63.4:2003 Class B Conducted Emission on AC, 0.15MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2003 Class B Bandwidth Measurement FCC 47CFR 15.231ANSI C63.4:2003N/A Note: N/A - Not Applicable Page 8 of 32 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 3.0 Test Methodology 3.1 Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On a standard emission test site with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration Number: 90656. 3.2 Field Strength Calculation The field strength at 3 m was established by adding the meter reading of the spectrum analyzer to the factors associated with antenna correction factor, cable loss, preamplifiers and filter attenuation. The equation is expressed as follow: FS = R + System Fac…

Text truncated - open the document above for the full version.

Page 1 of 1 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix A Date: 2007-05-16 Test report no.: 60.880.7.018.01 Model no.: 00614 (Tx) Photo of Test Setup – Radiated Emission Front side Back side
