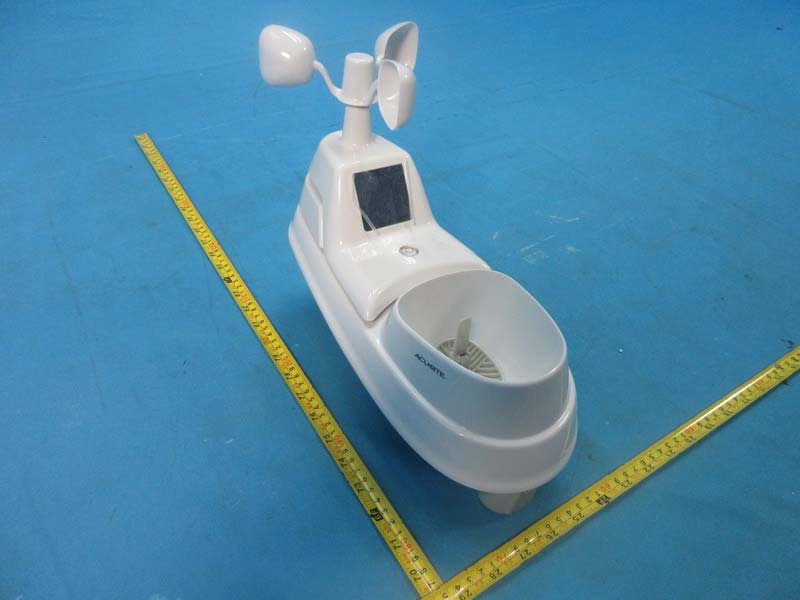

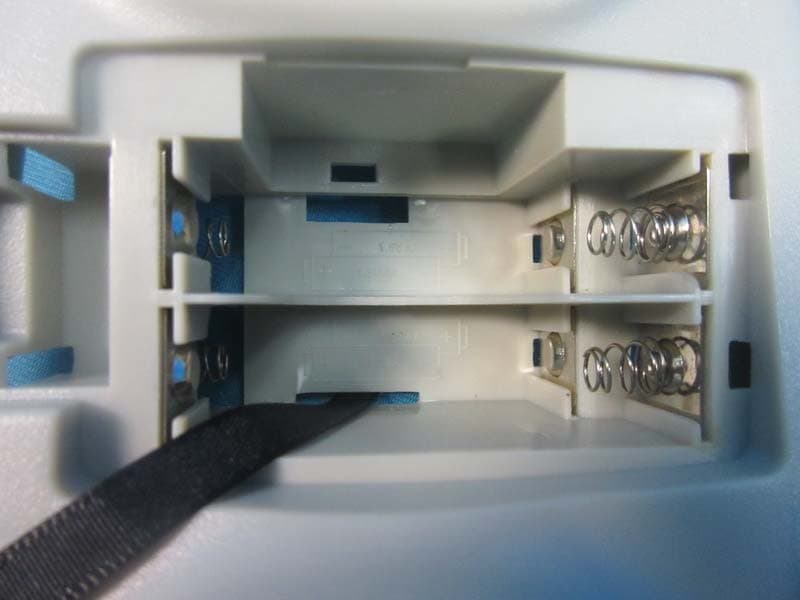

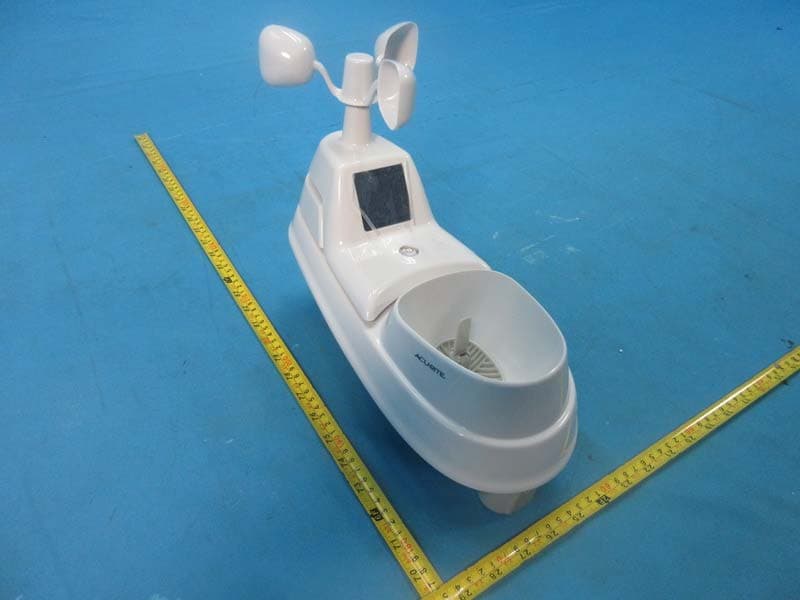

RNEVN1TXCA2Professional Weather Center

Instruction Manual SAVE THIS MANUAL FOR FUTURE REFERENCE. Questions? Contact Customer Support at (877) 221-1252 or visit www.AcuRite.com. CONTENTS Unpacking Instructions ...........2 Package Contents ..................2 Product Registration ...............2 Features & Benefits: 5-in-1 .......3 Features & Benefits: Display ....4 Setup ....................................7 5-in-1 Sensor Setup ................7 Display Unit Setup .................8 AcuRite Connect ....................9 Set the Time, Date & Units .....10 Backlight Settings ..................10 Placement Guidelines ............11 5-in-1 Sensor Installation ........12 Using the Weather Center .....13 Rainfall Tracking ...................14 Weather Ticker .....................15 Troubleshooting ....................16 Care & Maintenance .............19 Calibration ..........................20 Specifications ........................21 FCC Information ...................21 Customer Support ................22 Warranty.............................22 Professional Weather Center model 02064C / 999143 23 Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference. Unpacking Instructions Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove. Package Contents 1. Display unit with tabletop stand 2. 5-in-1 sensor 3. Sensor mounting bracket 4. Mounting hardware 5. Power adapter 6. USB cable 7. 4 alkaline batteries 8. Instruction Manual Features & Benefits PRODUCT REGISTRATION Register online to receive 1 year warranty protection www.AcuRite.com IMPORTANT PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE ► Register a Product 7 2 1 8 10 5 6 11 43 5-in-1 SENSOR 1. Rainfall Collector Funnel 2. Solar Cell Panel Converts sunlight into power to run int ernal aspirating fan. Internal Aspirating Fan (not shown) Draws ambient air into sensor to reduce solar radiation heating, resulting in more accurate t emperature measurement. 3. A-B-C Switch ID code that must match display’s A-B-C switch to ensure units synchronize. 4. Battery Compartment 5. Temperature & Humidity Sensors (internal) 6. Mounting Point 7. Wind Speed Anemometer 8. Wind Direction Vane 9. Mounting Bracket 10. Mounting Hardware Includes anchors & screws. Qty Diameter Length 5 #4 3/4” 1 #4 1/2” 1 #6 1/2” 11. Debris Filter Pr e-installed to prevent debris from entering the rain gauge. 9 45 Features & Benefits Display Unit 1. Previous 2 Wind Directions 2. Backlight Button For momentary backlight and dimmer settings. 3. Current Wind Speed 4. Current Wind Direction 5. Peak Wind Speed Highest speed from the last 60 minutes. 6. High Wind Speed Icon Indicates peak wind speed is greater than 50 MPH (81 KPH). 7. Current Indoor Temperature Arrow icon indicates direction temperature is trending. 8. High Indoor Humidity Icon Indicates indoor humidity level is greater than 75% RH. 9. Current Indoor Humidity Arrow icon indicates direction humidity is trending. 10. Humidity Level Indicator Indicates a high, low, or ideal indoor humidity comfort level. 11. Low Indoor Humidy Icon Indicates indoor humidity level is below 16% RH. 12. Display Low Battery Icon 13. Clock 14. Rainfall Displays rainfall total for TODAY, this WEEK, or this MONTH. 15. Today’s Rain Indicator Illustrates rainfall collection up to 1 inch (25 mm). 16. 12 to 24 Hour Weather Forecast Self-Calibrating Forecasting pulls data from your 5-in-1 sensor to generate your personal forecast. 17. Rainfall History Displays historical rainfall totals (see page 14). 18. Barometric Pressure Arrow icon indicates direction pressure is trending. 19. “ “ Button Changes the rainfall data being displayed (#17). 20. “ ” Button For setup preferences and manually cycling through Weather Ticker messages. 21. “ ” Button for setup preferences. 22. “ ” Button For setup preferences and manually cycling through Weather Ticker messages. 23. “ ” Button Changes the WEATHER SELECT category (#25) being displayed. 24. Weather Ticker TM Streams real-time data (see page 15). 25. WEATHER SELECT Displays high/low records and seasonal data (see page 13). 26. AUTO DIM Icon Indicates display is in auto-dimming brightness mode. (see page 10) 27. Date 28. Current Outdoor Humidity Arrow icon indicates direction humidity is trending. 29. Average Wind Speed Taken from all wind speed readings over the past 2 minutes. 30. 5-in-1 Sensor Signal Strength 31. Sensor Low Battery Icon 32. Current Outdoor Temperature Arrow icon indicates direction temperature is trending. 143275 6 29 31 24 26 27 28 30 32 8 9 11 12 14 15 17 18 16 10 13 1920212223 25 67 A B C SETUP 5-in-1 Sensor Setup 1 A-B-C Switch Set to match display unit 2 Install Batteries 4 AA Batteries 3 Rain Gauge Stabilizer Remove and discard Set the A-B-C Switch Locate the A-B-C switch inside the battery compartment. Set the A-B-C switch to A, B or C. You must select the same letter choices for both the sensor and the display unit in order for the units to synchronize. Install or Replace Batteries Batteries MUST be installed for this product to operate. AcuRite recommends high quality alkaline or lithium batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended. The 5-in-1 sensor requires lithium batteries in low temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use lithium batteries in the 5-in-1 sensor for temperatures below -4ºF / -20ºC. 1. Slide off the battery compartment cover. 2. Insert 4 x AA batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment. 3. Replace the battery cover. Remove Rain Gauge Stabilizer Locate and remove the rain gauge stabilizer (plastic tab) taped into the bottom of the sensor. The rain gauge will not function until this is removed. 2 3 1 Back of Display Unit 3 4 BACK OF DISPLAY U…
