RNE01194TXWireless Charging Forecaster

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 10 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 10 centimètres entre le radiateur et votre corps. Part 18 The interference potential of the device could cause the interference to the system whose fundamental is 110 KHz to148 KHz. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Increase the separation between the equipment and any other radio device. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. The device prevent from using with damping environment. Use only in according with described instruction in order not to damange the device. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 15 cm from all persons.

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 10 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 10 centimètres entre le radiateur et votre corps. Part 18 The interference potential of the device could cause the interference to the system whose fundamental is 110 KHz to148 KHz. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Increase the separation between the equipment and any other radio device. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. The device prevent from using with damping environment. Use only in according with described instruction in order not to damange the device. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 15 cm from all persons.

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Canada Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. The device meets the exemption from the routine evaluation limits in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure, users can obtain Canadian information on RF exposure and compliance. Le dispositif rencontre l'exemption des limites courantes d'évaluation dans la section 2.5 de RSS 102 et la conformité à l'exposition de RSS-102 rf, utilisateurs peut obtenir l'information canadienne sur l'exposition et la conformité de rf. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 10 centimeters between the radiator and your body. Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même temps qu'aucune autre antenne ou émetteur. Cet équipement devrait être installé et actionné avec une distance minimum de 10 centimètres entre le radiateur et votre corps. Part 18 The interference potential of the device could cause the interference to the system whose fundamental is 110 KHz to148 KHz. This device complies with Part 18 of the FCC Rules. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Increase the separation between the equipment and any other radio device. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. The device prevent from using with damping environment. Use only in according with described instruction in order not to damange the device. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 15 cm from all persons.

Declaration of Authorization We Name: Chaney Instrument Co. Address: Flat 09,19/F.,Metro Centre Phase I, 32 Lam Hing Street, Kowloon Bay, City: Kowloon, Hong Kong State: N/A Country: China Declare that: Name Representative of agent: Ms. Rose Liu Agent Company name: BTL Inc. Address: No.3 Jinshagang 1st Road, Shixia, Dalang Town City: Dong Guan Country: China is authorized to apply for Certification and signing related do cuments of the following product(s), including 731 form(s): Product description: Wireless Charging Forecaster Type designation: 01194L, 01193, 01193M Trademark: ACURITE FCC ID : RNE01194TX on our behalf. Date: 2020-10-28 City: Kowloon, Hong Kong Name: Victor Mak Function: Project Manager - Digital Products Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal C ommunication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 <2020-10-28> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID RNE01194TX Model name 01194L, 01193, 01193M For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-ter m confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, (Signed) Name: Victor Mak Company: Chaney Instrument Co. Address: Flat 09,19/F.,Metro Centre Phase I, 32 Lam Hing Street, Kowloon Bay, Kowloon, Hong Kong, China. Phone: +852-35829826 Fax: +852-28890331 E-Mail: [email protected]

Model Declaration Letter We, the undersigning company Company Name: Chaney Instrument Co. Address: Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay, Kowloon, Hong Kong,China. Hereby confirm that the following products: Product description: Wireless Charging Forecaster Type designation: 01194L, 01193, 01193M, Trademark: ACURITE That All vers ions of the Model 01194L, 01193 and 01193M are electrically equal except the following difference: 1. The model 01194L, 01193 and 01193M are Only differ in model name and pack aging. Date: 2020-10-28 Name: Victor Mak Telephone: +852-35829826 E-mail: [email protected] Signature:

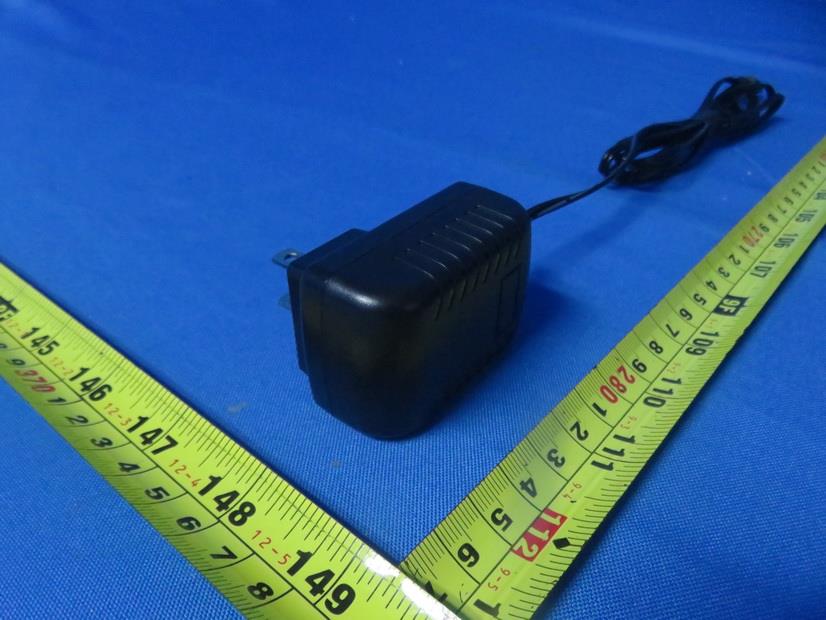

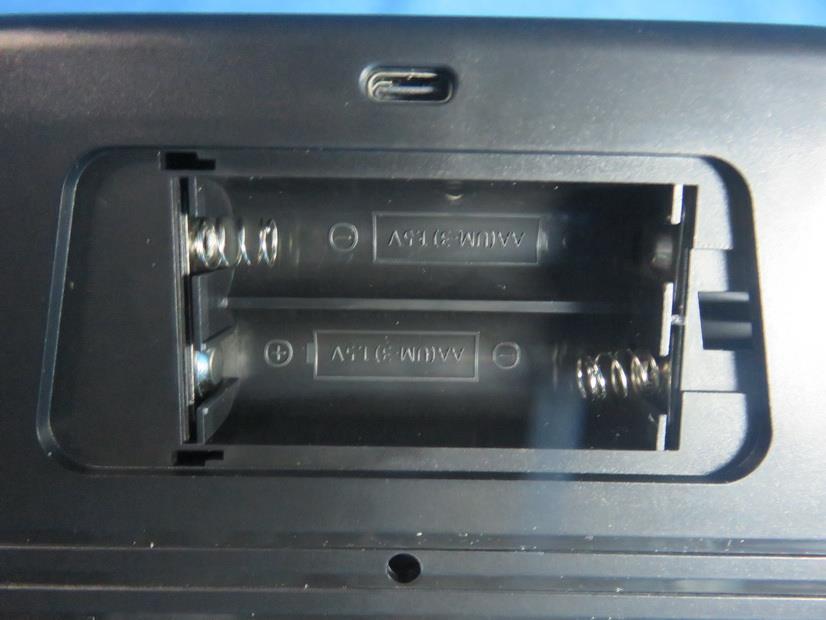

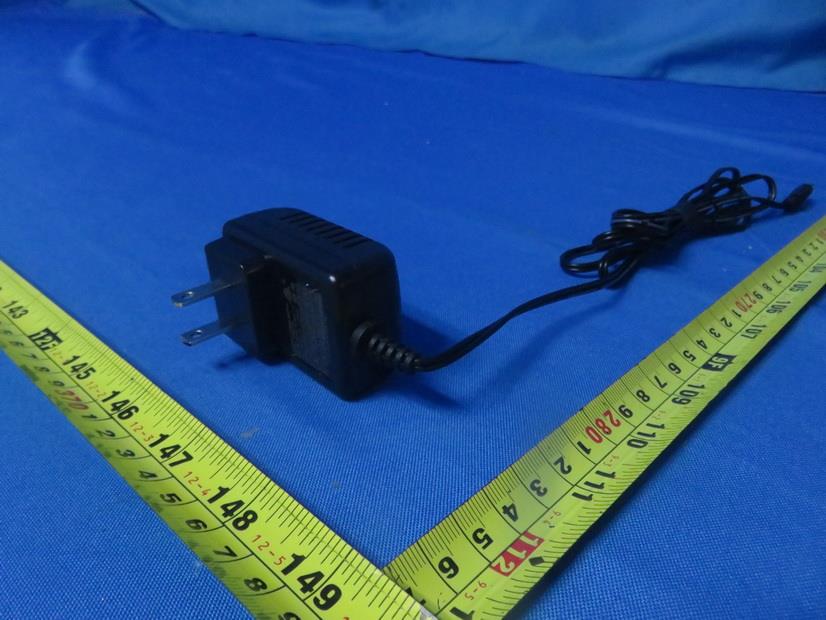

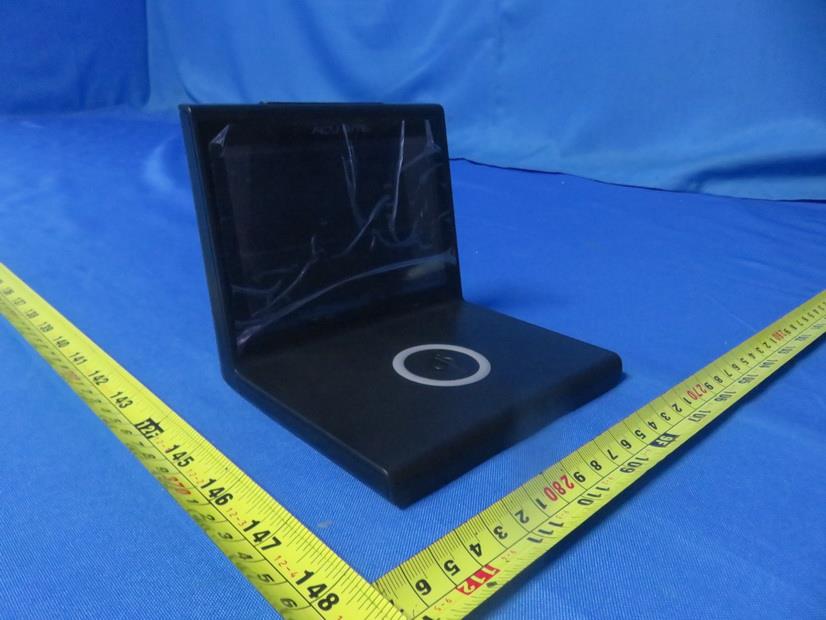

Project No.: 2009C236 Page 2 of 15 Project No.: 2009C236 Page 3 of 15 Project No.: 2009C236 Page 4 of 15 Project No.: 2009C236 Page 5 of 15

Project No.: 2009C236 Page 2 of 15 Project No.: 2009C236 Page 3 of 15 Project No.: 2009C236 Page 4 of 15 Project No.: 2009C236 Page 5 of 15

Project No.: 2009C236 Page 2 of 15 Project No.: 2009C236 Page 3 of 15 Project No.: 2009C236 Page 4 of 15 Project No.: 2009C236 Page 5 of 15

Label Location

Project No.: 2009C236 Page 6 of 15 Project No.: 2009C236 Page 7 of 15 Project No.: 2009C236 Page 8 of 15 Project No.: 2009C236 Page 9 of 15 Project No.: 2009C236 Page 10 of 15 Coil Antenna(WPT) Project No.: 2009C236 Page 11 of 15 Project No.: 2009C236 Page 12 of 15 Project No.: 2009C236 Page 13 of 15 NFC RX Antenna Project No.: 2009C236 Page 14 of 15 Project No.: 2009C236 Page 15 of 15

Report No.: BTL-FCCP-2-2009C236 Page 1 of 10 Human Exposure Report Project No. : 2009C236 Equipment : Wireless Charging Forecaster Brand Name : ACURITE Test Model : 01194L Series Model : 01193, 01193M Applicant : Chaney Instrument Co. Address : Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay,Kowloon, Hong Kong,China. Manufacturer : Chaney Instrument Co. Address : Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay,Kowloon, Hong Kong,China. Factory : Chaney Instrument Co. Address : Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay,Kowloon, Hong Kong,China. Date of Receipt : Sep. 27, 2020 Date of Test : Sep. 28, 2020 ~ Oct. 16, 2020 Issued Date : Nov. 04, 2020 Report Version : R01 Test Sample : Sample No.: DG2020092729 Standard(s) : 47 CFR PART 1, Subpart I, Section 1.1310 KDB680106 D01 RF Exposure Wireless Charging Apps v03 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-2-2009C236 Page 2 of 10 Table of Contents Page REPORT ISSUED HISTORY 3 1 . GENERAL INFORMATION 4 1.1 TEST FACILITY 4 2 . TEST RESULTS 4 2.1 LIMITS 4 2.2 MEASUREMENT DATA 5 3 . MEASUREMENT INSTRUMENTS LIST 6 4 . TEST PHOTOS 7 Report No.: BTL-FCCP-2-2009C236 Page 3 of 10 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Oct. 28, 2020 R01 Updated the data of page 5. Nov. 04, 2020 Report No.: BTL-FCCP-2-2009C236 Page 4 of 10 1. GENERAL INFORMATION 1.1 TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's test firm number for FCC: 357015 BTL's designation number for FCC: CN1240 2. TEST RESULTS 2.1 LIMITS For 47 CFR PART 1, Subpart I, Section 1.1310: Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (m/W/cm 2 ) Averaging time (minutes) (A) Limits for Occupational / Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100000 / / 5 6 (B) Limits for General Population / Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310 (use the 300kHz limits for 150kHz: 614V/m, 1.63A/m). For KDB680106 D01: For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Report No.: BTL-FCCP-2-2009C236 Page 5 of 10 2.2 MEASUREMENT DATA Electric Field Emissions Test Position(20cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Top 2.64 614 Test Position(15cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Top 2.85 614 Front Side 2.13 614 Back Side 2.38 614 Left Side 2.45 614 Right Side 2.73 614 Bottom 2.67 614 Note: The maximum Probe Measure Results of this EUT is 2.85 V/m, less than 307 V/m(614 *50%). Magnetic Field Emissions Test Position(20cm) Probe Measure Results (A/m) Limit (A/m) intermediate charge Top 0.028 1.63 Test Position(15cm) Probe Measure Results (A/m) Limit (A/m) intermediate charge Top 0.056 1.63 Front Side 0.045 1.63 Back Side 0.064 1.63 Left Side 0.032 1.63 Right Side 0.021 1.63 Bottom 0.034 1.63 Note: The maximum Probe Measure Results of this EUT is 0.064 A/m, less than 0.815 V/m(1.63*50%). Remark: 1. The EUT has the maximum average output power when the support unit is in low power and being charged by EUT. 2. The transfer system includes only single primary. The transfer system desinged by Wireless Power Consortium (WPC). The main purpose is Provide convenient and universal wireless charging for mobile phones and other portable electronic devices. Under the Qi standard, the transmission and reception use flat inductors to transmit energy by inductive coupling. Report No.: BTL-FCCP-2-2009C236 Page 6 of 10 3. MEASUREMENT INSTRUMENTS LIST Human Exposure Item Kind of Equipment Manufacturer Type No. Serial No. Calibrated until 1 EM Radiation Meter N/A EMR-30 E-081 Apr. 14, 2021 Remark: “N/A” denotes no model name, serial no. or calibration specified. All calibration period of equipment list is one year. Report No.: BTL-FCCP-2-2009C236 Page 7 of 10 4. TEST PHOTOS Front Side(15 cm) Back Side(15 cm) Report No.: BTL-FCCP-2-2009C236 Page 8 of 10 Left Side(15 cm) Right Side(15 cm) Report No.: BTL-FCCP-2-2009C236 Page 9 of 10 Top(20 cm) Bottom(15 cm) Report No.: BTL-FCCP-2-2009C236 Page 10 of 10 Top(15 cm) End of Test Report

Report No.: BTL-FCCP-1-2009C236 Page 1 of 30 FCC Radio Test Report FCC ID: RNE01194TX This report concerns: Original Grant Project No. : 2009C236 Equipment : Wireless Charging Forecaster Brand Name : ACURITE Test Model : 01194L Series Model : 01193, 01193M Applicant : Chaney Instrument Co. Address : Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay,Kowloon, Hong Kong,China. Manufacturer : Chaney Instrument Co. Address : Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay,Kowloon, Hong Kong,China. Factory : Chaney Instrument Co. Address : Flat 09,19/F.,Metro Centre Phase I,32 Lam Hing Street, Kowloon Bay,Kowloon, Hong Kong,China. Date of Receipt : Sep. 27, 2020 Date of Test : Sep. 28, 2020 ~ Oct. 16, 2020 Issued Date : Nov. 04, 2020 Report Version : R01 Test Sample : Sample No.: DG2020092729 Standard(s) : FCC Part15, Subpart C (15.209) ANSI C63.10-2013 The above equipment has been tested and found compliance with the requirement of the relative standards by BTL Inc. Prepared by : Simon Ling Approved by : Ethan Ma Add: No.3, Jinshagang 1st Road, Shixia, Dalang Town,Dongguan, Guangdong, China. Tel: +86-769-8318-3000 Web: www.newbtl.com Report No.: BTL-FCCP-1-2009C236 Page 2 of 30 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL shall have no liability for any declarations, inferences or generalizations drawn by the client or others from BTL issued reports. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, A2LA, or any agency of the U.S. Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2009C236 Page 3 of 30 Table of Contents Page REPORT ISSUED HISTORY 5 1 . SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 2 . GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 DESCRIPTION OF TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 SUPPORT UNITS 10 3 . AC POWER LINE CONDUCTED EMISSIONS TEST 11 3.1 LIMIT 11 3.2 TEST PROCEDURE 11 3.3 DEVIATION FROM TEST STANDARD 11 3.4 TEST SETUP 12 3.5 EUT OPERATING CONDITIONS 12 3.6 TEST RESULTS 12 4 . RADIATED EMISSION TEST 13 4.1 LIMIT 13 4.2 TEST PROCEDURE 13 4.3 DEVIATION FROM TEST STANDARD 13 4.4 TEST SETUP 14 4.5 EUT OPERATING CONDITIONS 15 4.6 TEST RESULT - 9 KHZ TO 30 MHZ 15 4.7 TEST RESULTS - 30 MHZ TO 1000 MHZ 15 5 . BANDWIDTH TEST 16 5.1 LIMIT 16 5.2 TEST PROCEDURE 16 5.3 DEVIATION FROM STANDARD 16 5.4 TEST SETUP 16 5.5 EUT OPERATION CONDITIONS 16 5.6 TEST RESULTS 16 6 . MEASUREMENT INSTRUMENTS LIST 17 Report No.: BTL-FCCP-1-2009C236 Page 4 of 30 Table of Contents Page APPENDIX A - AC POWER LINE CONDUCTED EMISSIONS 18 APPENDIX B - RADIATED EMISSION - 9 KHZ TO 30 MHZ 21 APPENDIX C - RADIATED EMISSION - 30 MHZ TO 1000 MHZ 26 APPENDIX D - BANDWIDTH 29 Report No.: BTL-FCCP-1-2009C236 Page 5 of 30 REPORT ISSUED HISTORY Report Version Description Issued Date R00 Original Issue. Oct. 28, 2020 R01 Modify the comments. Nov. 04, 2020 Report No.: BTL-FCCP-1-2009C236 Page 6 of 30 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standard(s): FCC Part15, Subpart C (15.209) Standard(s) Section Test Item Test Result Judgment Remark 15.207 AC Power Line Conducted Emissions APPENDIX A PASS ------ 15.209(a) Radiated Emissions APPENDIX B APPENDIX C PASS ------ ------ Bandwidth APPENDIX D PASS ------ NOTE: (1) “N/A” denotes test is not applicable to this device. Report No.: BTL-FCCP-1-2009C236 Page 7 of 30 1.1 TEST FACILITY The test facilities used to collect the test data in this report is at the location of No.3, Jinshagang 1st Road, Shixia, Dalang Town, Dongguan, Guangdong, China. BTL's Test Firm Registration Number for FCC: 357015 BTL's Designation Number for FCC: CN1240 1.2 MEASUREMENT UNCERTAINTY ISO/IEC 17025 requires that an estimate of the measurement uncertainties associated with the emissions test results be included in the report. The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)) The BTL measurement uncertainty as below table: A. AC power line conducted emissions Measurement: Test Site Method Measurement Frequency Range U, (dB) DG-C02 CISPR 150 kHz ~ 30 MHz 2.68 B. Radiated emissions Measurement: Test Site Method Measurement Frequency Range Ant. H / V U, (dB) DG-CB03 CISPR 9kHz ~ 30MHz V 3.79 9kHz ~ 30MHz H 3.57 30MHz ~ 200MHz V 4.26…

Text truncated - open the document above for the full version.

Report No.: 2009C236 Page 1 of 4 EUT TEST PHOTO Report No.: 2009C236 Page 2 of 4 AC Power Line Conducted Emissions Test Photos Report No.: 2009C236 Page 3 of 4 Radiated Measurement Photos 9 kHz to 30 MHz Report No.: 2009C236 Page 4 of 4 Radiated Measurement Photos 30 MHz to 1 GHz
