RNE00739TXOutdoor Temperature Transmitter

User Manual Outdoor Temperature Transmitter Features - Outdoor temperature measuring range : -58 o F to 158 o F; -50 o C to 70 o C - LED transmission indicator - 2 “AAA” size battery (batteries not included) - 82 feet operating range without interference (metal surfaces, electrical devices, etc) - 3-channel selection - Wall mountable Buttons - TEST (TX) button - RESET (RE) button - CHANNEL SELECTION (1 2 3 ) switch Operation Insert 2 “AAA” alkaline batteries into the unit following the polarity shown in the battery compartment. Each time the temperature is measured the remote will transmit the data immediately. The red LED on the front of the transmitter will flash once. Pressing the TEST key once will immediately transmit temperature. Use the CHANNEL SELECTION switch to choose your preferred channel. When using only 1 remote sensor Channel 1 is the most common choice. Please note that subfreezing temperatures will lower the power output of the batteries and affect the transmission range and effectiveness of the remote unit. Severe cold, -12 o F/-24 o C, will freeze the batteries and prevent the unit from functioning. Interference from electrical devices, metal siding, security systems, etc may limit the transmission range. It is recommended you try several locations to find the best location for the transmitter. Wireless transmitters are not universal. Transmitters made by other companies will not work with an Acu>Rite instrument and vice versa. Additional transmitters may be purchased at www.chaneyinstrument.com . The package of this transmitter is marked with an A as are the packages of all Acu>Rite transmitters this product will function with. Reset Operation After the batteries are inserted, the sensor will start to measure the outdoor temperature and transmit the temperature data to the base unit. Pressing the RESET button will restart this procedure. Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment dose cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Trade Name:  Model Number: 00739/00999 The responsible party information: Chaney Instrument Co. 965 S. Wells Street, Lake Geneva, WI 53147, Tel: 262-248-4449 LIMITED WARRANTY INTERNATIONAL Consumer may have more remedies at law than follows. Chaney Instrument Company warrants to the owner, this product to be free from defect in material and workmanship for one year from date of purchase. CHANEY INSTRUMENT SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER ARISING IN CONTRACT OR TORT. Chaney Instrument’s obligation (at its option) is limited to repair or replace this product. For in- warranty repair, send clock, accompanied by Guarantee, bearing Dealer’s name and date of purchase, with $5.00 to cover handling and postage, to: Chaney Instrument Company 965 Wells Street Lake Geneva, Wisconsin 53147  Lake Geneva, WISCONSIN 53147 www.chaneyinstrument.com

32768 HZ Y1 3.58MHz Y2 Output data to RF transmitter with baud rate 400bps SYSTEM BLOCK DIAGRAM OF 00739 MCU SH 6613 Transmit LED Indicator ASK Modulator Transmit RF signal

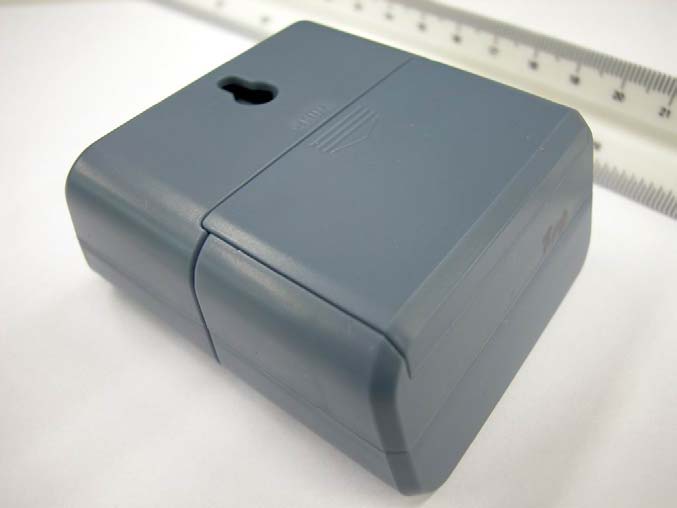

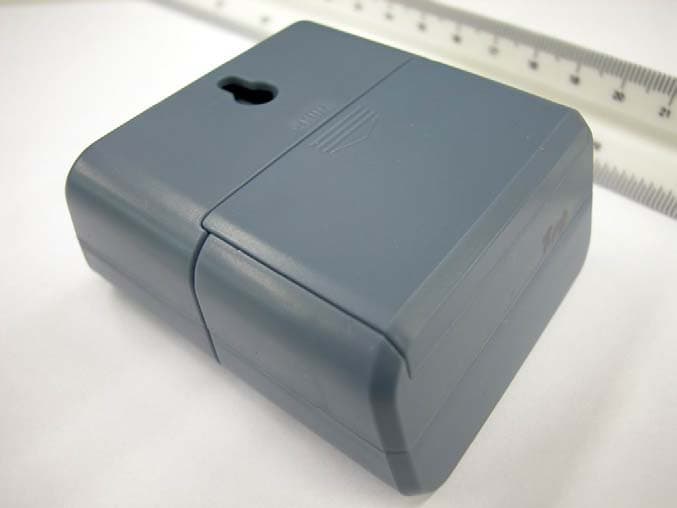

Test Setup FCC ID : RNE00739TX External Photo -front External Photo - rear

Transmitter ACURITE 00739 - Label SIZE AAA 1.5V + - SIZE AAA 1.5V + - 12 3 CHINA TX CHINA FCC ID: RNE00739TX Battery Door harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

Test Setup FCC ID : RNE00739TX Internal Photo – 1 Internal Photo - 2 Test Setup FCC ID : RNE00739TX Internal Photo – 3 Internal Photo - 4 Test Setup FCC ID : RNE00739TX Internal Photo – 5

TECHNICAL DESCRIPTION OF 00739 A.) Circuit Operation: 1.) Wireless temperature remote unit 2.) RF Transmitter B.) Component Description: Category Number Name Description Integrated Circuit SH6613 MCU Temperature Measurement RF Data Control Sensor C103T1A Thermister Temperature Sensor LED Red LED Transmit LED Indicator Transistor 8050 Small Signal Transistor LED Driver Switching operation Transistor 2SC4901 RF Transistor TX Power Amplier Crystal 32.768kHz Crystal 20ppm Clock source for SH6613 operation Crystal 3.58MHz 3.58MHz Resonator Clock source for SH6613 operation Crystal 433.92MHz 433.92 SAW Resonator Fundamental frequency for RF Transmitter.

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Chaney Instrument Co. Application For Certification (FCC ID: RNE00739TX) Transmitter 0319033 DL/ Ann Choy March 24, 2004 INTERTEK TESTING SERVICES FCC ID: RNE00739TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RNE00739TX ii MEASUREMENT/TECHNICAL REPORT Chaney Instrument Co. MODEL: 00739, 00999 Trade Name: ACURITE, ATOMIX, NEW LONDON, Chaney Instrument, Stoney Creek FCC ID: RNE00739TX March 24, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [12-08-03 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8504 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: RNE00739TX iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 4.0 Equipment Photographs ................................................................................... 15 5.0 Product Labelling.............................................................................................. 17 6.0 Technical Specifications................................................................................... 19 7.0 Instruction Manual ............................................................................................ 21 8.0 Miscellaneous Information ............................................................................... 23 8.1 Measured Bandwidth........................................................................................ 24 8.2 Discussion of Pulse Desensitization.................................................................. 25 8.3 Calculation of Average Factor........................................................................... 26 8.4 Emissions Test Procedures .............................................................................. 27 INTERTEK TESTING SERVICES FCC ID: RNE00739TX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: RNE00739TX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RNE00739TX 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Outdoor Temperature transmitter operating at 433.92MHz. The EUT is powered by 3Vd.c. (2 x 1.5V “AAA” size battery). After inserting batteries, the EUT will transmit temperature signal to the c…

Text truncated - open the document above for the full version.

Data Code format and the timing diagram of the 00739 system (REVISED) Time Interval of each bit : 5ms Transmit time : 160ms Detailed data code is shown below: 1 st – 6 th bits Preamble 7 th bit Start bit 8 th – 24 th Data 25 th -27 th Checksum 28 th Stop bit Timing diagram of the transmitted data Bit 1 Bit 2 Bit 7 Bit 8 Bit 9 Bit 10 Bit 27 Bit 28 ...... ....... 2.5ms2.5ms 25ms 5ms 0 Time The data is transmitted every 12.4 seconds ............................ 0.16s 12.4s 0.16s 12.4s time Worst Case : Duty Cycle = (15 x 2.5 + 25)/100 = 0.625 Average Factor = 20 log (0.625) = -4.0dB Data Transmitted with 400 baud rate Data Transmitted with 400 baud rate

Test Setup FCC ID : RNE00739TX Radiated -front Radiated - rear
