RNE00782TXA1Wireless Thermometer

Instruction Manual Specification: - Indoor and outdoor temperatures displayed on the main LCD readout - Temperature measurement range: Indoor main unit: 32F – 122F (0 ºC ~ +50 ºC) Wireless remote unit: -4 F – 130F (-20 ºC ~ +55 ºC) - Temperature resolution: 0.1 degree - Transmission range : up to 100ft. in an open area Instruction manual: ATTENTION: For the fist installation, insert the batteries in the display unit and then in the remote sensor Battery installation: Display unit Insert 2 fresh “AAA” alkaline batteries into the display unit. (Batteries not included) Remote sensor Insert 2 fresh “AAA” alkaline batteries into the remote sensor. (Batteries not included) Getting started: Indoor Display unit When the batteries are put into the display unit, it will display the indoor temperature .The outdoor reading “----” Remote sensor When the batteries are placed into the remote sensor, it will signal the temperature to the display unit. The display unit will then be able to display the outdoor temperature. You may need to push the Reset button on the back of the display unit. Reset button Reset button Battery Icon Description: The battery icon will display when the batteries are full. The battery icon will display and the temperature readings will be blinking when the batteries are low capacity. When to replace the Batteries: For the remote sensor: When the battery icon of the outdoor window displays continuously the remote sensor batteries are low and need to be replaced. Replace the batteries in the Remote sensor and then you MUST press the RESET button on the Indoor Display unit (receiver). When the battery icon of the Indoor display unit (receiver) displays please replace the batteries in the Display unit (receiver). Antenna Icon Description: The antenna icon of the indoor window will display waving as when the receiver is receiving RF signal from the remote sensor. The antenna icon of the outdoor window will display for 0.5 second when the receiver had successfully receive the data from the remote sensor. When the outdoor window displays “- - -”, and the antenna icon of the indoor window displays continuously, the receiver maybe do not either receive any data from remote sensor or the remote sensor is located to far away from display unit (out of range). You MUST be press the RESET button on the Indoor unit (receiver). Troubleshooting: Using the Reset button on the Indoor unit (receiver): In some unusual occasions, the Indoor unit may be affected by electrical interference and respond abnormally. In such conditions, press the RESET button on the Indoor Display unit to resume normal operation. “RESETING” The Display unit should give you the indoor immediately and the outdoor temperature within 1 minute. Using the Reset button on the remote sensor (sender) In some unusual occasions, the remote sensor may be affected by electrical interference and respond abnormally. In such conditions, press the RESET button (located inside the battery compartment) on the remote sensor to resume normal operation. If you press the RESET button on the remote sensor, you MUST press the RESET button on the Indoor Display unit (receiver) as well. If or when the Indoor unit display “- - -“continuously in the outdoor window, it maybe that the remote sensor is out of range or the batteries low. Please put the Remote sensor (sender) close to the Indoor unit (receiver) or replace the fresh batteries. Note: If the Remote Sensor “RESET” button is pressed, or new batteries are installed in the Remote Sensor, you MUST press the Reset button on the Indoor Display unit (receiver). FCC Statement: FCCID: RNE000782TXA1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: The user is cautioned that changes or modifications made to the equipment without the approval of manufacturer could void the user’s authority to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Trade Name: Model Number: 00782 Chaney Instrument Co. 965 S. Wells Street, Lake Geneva, WI 53147, Tel: 877-221-1252 LIMITED WARRANTY INTERNATIONAL Consumer may have more remedies at law than follows. Chaney Instrument Company warrants to the owner, this product to be free from defect in material and workmanship for one year from date of purchase. CHANEY INSTRUMENT SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER ARISING IN CONTRACT OR TORT. Chaney Instrument’s obligation (at its option) is limited to repair or replace this product. For in- warranty repair, send clock, accompanied by Guarantee, bearing Dealer’s name and date of purchase, with $5.00 to cover handling and postage, to: Chaney Instrument Company 965 Wells Street Lake Geneva, Wisconsin 53147 Lake Geneva, WISCONSI…

Text truncated - open the document above for the full version.

Page 1 of 1 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix B Date: 2006-11-08 Test report no.: 60.880.6.047.01 Photos of EUT – External EUT Photos

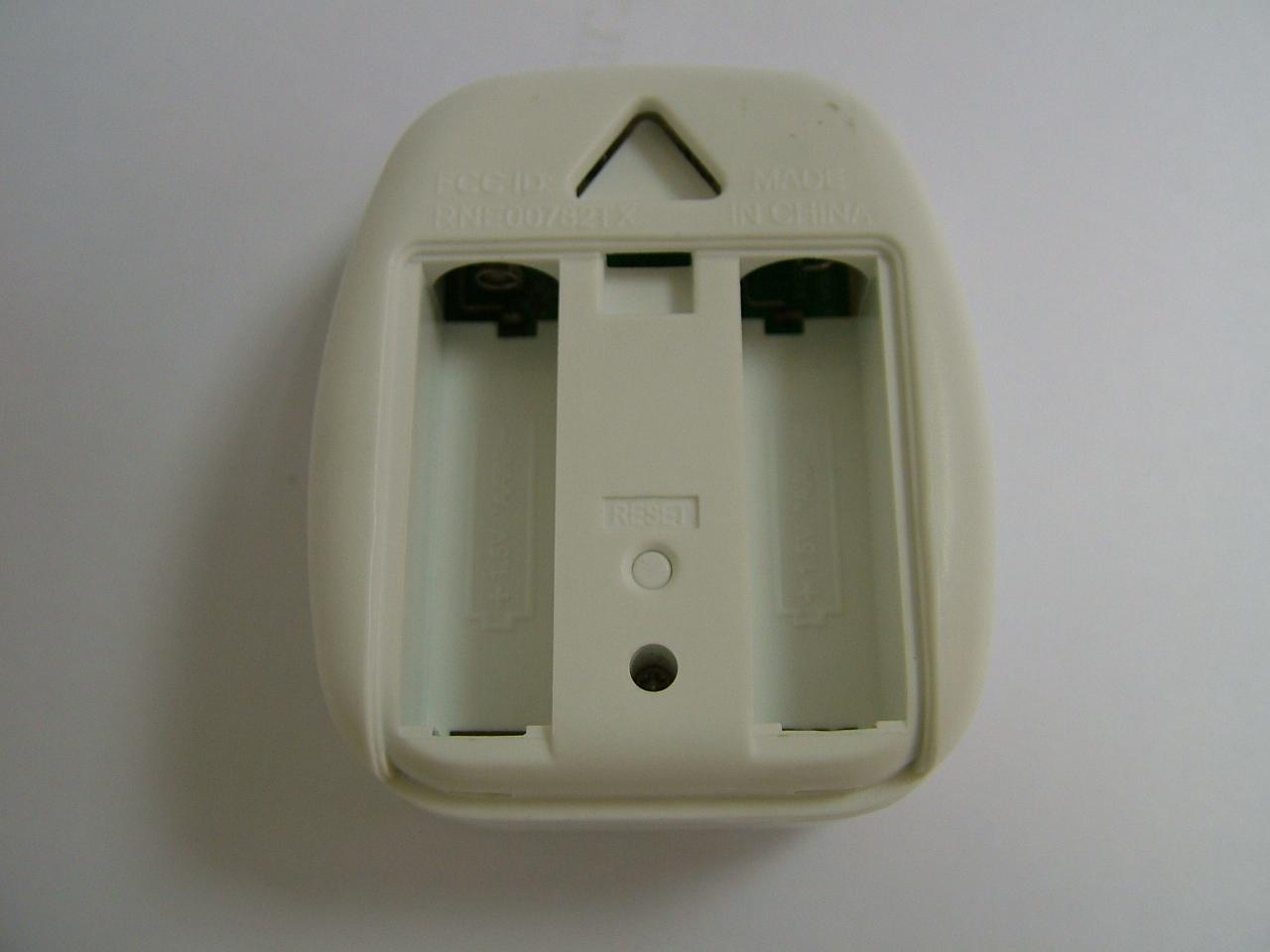

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID: RNE00782TXA1 MADE IN CHINA ACURITE MODEL:00782 MADE IN CHINA Power: 2X”AAA”Batt(for RX/TX) Power: 2X”AAA”Batt(for RX/TX) RESET

Page 1 of 3 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Appendix C Date: 2006-11-08 Test report no.: 60.880.6.047.01 Photos of EUT – Internal EUT Photos Page 2 of 3 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Page 3 of 3 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong

Date: 2006-11-15TEST REPORT No.: 60.880.6.047.01 Page 1 of 23 TUV SUD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Applicant: Chaney Instrument Co. AB 29/F Hai Ying Building, South Caitian Road, Futian District, Shenzhen China Description of Samples:Model name: Wireless Thermometer ( Transmitter ) Brand name: Nil Model no.:00782 FCCID:RNE00782TXA1 Date Samples Received: 2006-10-25 Date Tested:2006-10-25 to 2006-11-14 Investigation Requested: FCC Part 15 Subpart C, Section 15.231 Conclusions: The submitted product COMPLIED with the requirements of Federal Communications Commission [FCC] Rules and Regulations Part 15. The tests were performed in accordance with the standards described above and on Section 2.2 in this Test Report. Remarks: ---- Checked by:Approved by:- Prudence Poon Victor Kwan Project ManagerManager Telecom departmentTelecom department Page 2 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong CONTENT: Cover Page 1 of 23 Content Page 2-3 of 23 1.0 General Details 1.1Test Laboratory Page 4 of 23 1.2Applicant Details Page 4 of 23 1.3Equipment Under Test [EUT] Page 5-6 of 23 1.4 Related Submittal(s) Grants Page 7 of 23 1.5Submitted Samples Page 7 of 23 1.6Country of Origin Page 7 of 23 2.0 Technical Details 2.1Investigations Requested Page 8 of 23 2.2Test Standards and Results Summary Page 8 of 23 3.0 Test Methodology 3.1Radiated Emission Page 9 of 23 3.2Field Strength Calculation Page 9 of 23 3.3Conducted Emission Page 9 of 23 4.0 Test Results 4.1Radiated Emission of Fundamental Frequency Page 10-11 of 23 4.2Spurious Radiated Emission Page 12-19 of 23 4.3Conducted Emission Page 20 of 23 4.4Bandwidth Measurement Page 21-22 of 23 Page 3 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 5.0List of Measurement Equipments Page 23 of 23 Appendix A Photos of Test Setup Appendix B External EUT Photos Appendix C Internal EUT Photos Page 4 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.0 General Details 1.1 Test Laboratory Hong Kong Productivity Council HKPC Building, 78 Tat Chee Avenue, Kowloon Tong, Hong Kong Registration Number: 90656 1.2 Applicant Details Applicant Chaney Instrument Co. AB 29/F Hai Ying Building, South Caitian Road, Futian District, Shenzhen, China Manufacturer Chaney Instrument Co. AB 29/F Hai Ying Building, South Caitian Road, Futian District, Shenzhen, China Page 5 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.3 Equipment Under Test [EUT] Description of EUT Model Name:Wireless Thermometer ( Transmitter ) Brand Name: Nil Model Number: 00782 FCCID:RNE00782TXA1 Rating:3.0Vd.c. ( 2x “ AAA” size batteries ) Antenna Type:Integral Operated Frequency:433.900MHz No. of Channel:1 Accessories and Auxiliary Equipment:None EUT Exercising Software:None General Operation of EUT The Equipment Under Test (EUT) is a transmitter operated at 433.900MHz to detect temperature and transmit this signal to the wireless thermometer. Periodic Operation of EUT The transmitter transmits signal for every 71, 73, 79 or 81 seconds, that mean the silence period must not less than 70 seconds. Data packet is continuously transmitting for approximate 600ms in one transmission, therefore it activated automatically shall cease transmission within 2 seconds after activation. So the EUT is deemed to fulfill FCC section 15.231( e ). According to section 15.231(e), the EUT shall be provided with a means for automatically limiting operation so that the duration of each transmission shall not be greater than one second and the silent period between transmissions shall be at least 30 times the duration of the transmission but in no case less than 10 seconds. Refer to the next page for the figure of silence period and duration of each transmission. Page 6 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong Silence Period Duration of each transmission Page 7 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 1.4Related Submittal(s) Grants This is a single application for certification of the transmitter. 1.5 Submitted Sample(s): 5 samples 1.6 Country of Origin Nil Page 8 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 2.0 Technical Details 2.1 Investigations Requested Perform ElectroMagnetic Interference measurement in accordance with FCC 47CFR [Codes of Federal Regulations] Part 15: 2005 and ANSI C63.4: 2003 for FCC Verification. 2.2 Test Standards and Results Summary Tables EMISSION Results Summary Test ConditionTest RequirementTest MethodClass /Test Result SeverityPass Failed N/A Radiated Emission of Carrier Frequency FCC 47CFR 15.231ANSI C63.4:2003 N/A Radiated Emission, 30MHz to 5GHz FCC 47CFR 15.231ANSI C63.4:2003 Class B Conducted Emission on AC, 0.15MHz to 30MHz FCC 47CFR 15.207ANSI C63.4:2003 Class B Bandwidth Measurement FCC 47CFR 15.231ANSI C63.4:2003N/A Note: N/A - Not Applicable Page 9 of 23 TÜV SÜD Hong Kong Ltd. Unit 601, InnoCentre, 72 Tat Chee Avenue, Kowloon Tong, Hong Kong 3.0 Test Methodology 3.1 Radiated Emission The sample was placed 0.8m above the ground plane on a standard emission test site *. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. *On a standard emission test site with a metal ground plane filed with the FCC pursuant to section 2.948 of the FCC rules, with Registration N…
