RNE00896TXDigital Wireless Rain Gauge (433MHz)

User Manual Digital Wireless Rain Gauge Rain Gauge Specifications: - Outdoor rain gauge transmitter measures the rainfall and transmits the data to an indoor rain monitor base unit which shows the rainfall information on the LCD display. - The display shows on of 3 available rain modes. No rain / Light rain / Heavy rain. - Range of rainfall measurement on the LCD display: o IN (inch): 00.00 ~ 99.90 o MM (millimeter): 000.0 ~ 999.9 - Rainfall measurement can register accumulation up to: o 99.90IN under inch display mode o 999.9MM under millimeter display mode - Transmission range is up to 100 feet in an open area without interference. Interference from such things as metal siding or wall studs and security systems can reduce the effective transmission range. - Power requirement: o Indoor rain monitor requires 2 “AAA” alkaline batteries (not included). o Outdoor rain gauge transmitter: 2 “AA” alkaline batteries (not included). Important Information: 1) For the initial set-up put the batteries in the indoor rain monitor base unit first and then into the outdoor rain gauge transmitter. 2) For the outdoor rain gauge transmitter, please make sure the counting lever inside the unit is placed in an upright position and is free to swing smoothly. 3) For the best reception and to avoid the outdoor rain gauge being immersed in water while it is raining, please place the outdoor rain gauge on a flat surface above ground level. 4) Do not store or locate the outdoor rain gauge and a counting lever close to any source of magnetic interference or electrical equipment. USING MANUAL Know Your Product Outdoor Rain Gauge Transmitter - Measures the rainfall using the internal counting lever and transmits rainfall & rain mode information to the indoor rain monitor base unit. - Lever resolution: each lever swing = 0.02 inch (0.508 millimeter). - Low battery condition will be detected and displayed on the indoor rain monitor. Indoor Rain Monitor - LCD display o 4 digit display for rainfall measurement ƒ IN (inch): 00.00 ~ 99.90 ƒ MM (millimeter): 000.0 ~ 999.9 o IN / MM indicator o 3 rain mode indicators (No rain / Light rain / Heavy rain) o Antenna wave icon to show synchronization and connection status o Low battery indicators for outdoor rain gauge and indoor rain monitor - Function keys o Reset key ƒ Press the Reset key for 1 second to clear all information on the LCD display. The rainfall data can be reset at any time. If not reset the display will show the total of all rainfall since the unit was activated or until the maximum allowable display is reached. To monitor rainfall in a given time period it will be necessary to reset the unit at the start of the time you wish to measure. o IN/ MM (Inch / Millimeter) selection key ƒ Press the selection key for 2 seconds to view a rainfall measurement in “IN” or “MM” display format. o Light key ƒ Press the Light key, the backlight will be turned on for 5 seconds. o Alarm On/Off switch (located on back of unit) ƒ To turn on the rain alert function, slide the Alarm switch to “On” position. ƒ To turn off the rain alert function, slide the Alarm switch to “Off” position. Getting Started (Power reset procedure) 1. Please make sure batteries are inserted into the indoor rain monitor first and the display appears. The unit will go into “sync mode” for 6 minutes. 2. Insert batteries in the outdoor rain gauge transmitter. 3. In the “sync mode” the indoor rain monitor will receive the outdoor transmission signal within 6 minutes. 4. At the synchronization period, the antenna wave icon will keep blinking on the rain monitor display. 5. When the antenna wave icon stops blinking and remains on the display, this means synchronization has occurred and the main unit has gotten the signal from the transmitter unit. 6. Once the synchronization has occurred, the indoor rain monitor will detect updated rainfall information from the transmitter every minute automatically. 7. If the antenna wave icon does not appear on the display after the 6 minutes synchronization period, it means synchronization has failed. 8. Indoor rain monitor will start synchronization again after 2 minutes until synchronization successful. During the synchronization period, press any key to stop the synchronization procedure. Rainfall Alert Mode description - To activate the rain alert mode, slide the Alarm switch to the “On” position. A beep alarm will sound for 10 seconds when the rain mode is changing. - Rain mode alert description: o No Rain: Take an average of the rainfall less than 0.02IN/0.05MM on the past few minutes o Light Rain: Take an average of the rainfall between 0.02IN/0.5MM to 0.18IN/4.6MM on the past few minutes o Heavy rain: Take an average of the rainfall equal or over 0.2IN/5.1MM on the past few minutes - To turn off an alert mode, slide an Alarm switch to “Off” position. Date Transmission • No Rain - If the latest rain mode was "No rain" and keep a "No rain" mode condition on the past 5 minutes. • Light Rain - If the latest rain mode was "Light rain" and keep a "Light rain" mode condition on the past 3 minutes. • Heavy Rain - If the latest rain mode was "Heavy rain" and keep a "Heavy rain" mode condition on the past one minute. Low battery indicator and battery changing If you see that the low battery indicator(s) has changed to half-full status, please install the fresh batteries as follows: Indoor rain monitor Remove the old batteries from the battery compartment and insert 2 fresh “AA” alkaline batteries. Unit will sync with the outdoor transmitter unit automatically. NOTE: After battery replacement, if you find any data show on the indoor rain monitor display, it must an acuminated data, please press the “RESET” button for 1 second to clear the display and start from 00.00IN or 000.0MM counting. Outdoor rain gauge To change the outdoor rain gauge batteries, you must press and holding the “RESET” button for 5 seconds on the indoor rain monitor and let it re-sync again. NOTE: After batt…

Text truncated - open the document above for the full version.

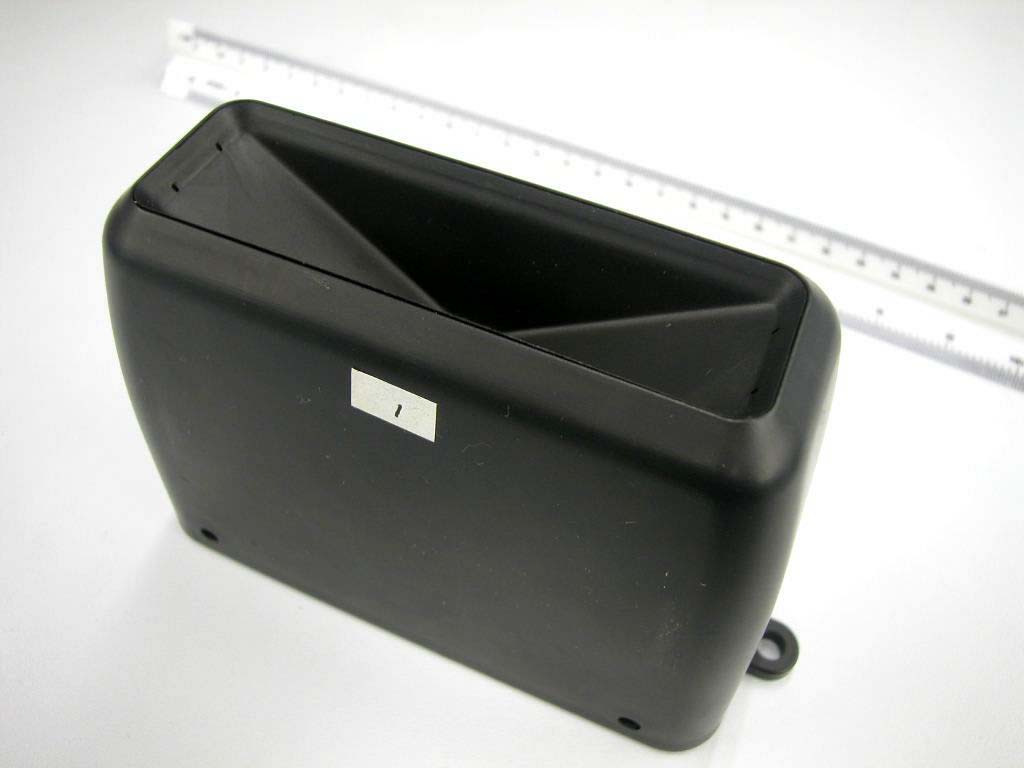

Test Setup FCC ID : RNE00896TX External Photo -front External Photo - rear

Test Setup FCC ID : RNE00896TX Internal Photo – 1 Internal Photo - 2 Test Setup FCC ID : RNE00896TX Internal Photo – 3 Internal Photo – 4 Test Setup FCC ID : RNE00896TX Internal Photo – 5 Internal Photo – 6

TX2-V1.sch-1 - Fri Jan 09 15:35:09 2004

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Chaney Instrument Co. Application For Certification (FCC ID: RNE00896TX) Transmitter 0318752 DL/ Sandy January 13, 2004 INTERTEK TESTING SERVICES FCC ID: RNE00896TX i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: RNE00896TX ii MEASUREMENT/TECHNICAL REPORT Chaney Instrument Co. - MODEL: ATOMIX 00896 ACURITE 00896 NEW LONDON 00896 Chaney Instrument 00896 Stoney Creek 00896 FCC ID: RNE00896TX January 13, 2004 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [08-20-02 Edition] provision. Report prepared by: Derek Leung Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG. Phone: 852-2173-8504 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: RNE00896TX iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 4.0 Equipment Photographs ................................................................................... 15 5.0 Product Labelling.............................................................................................. 17 6.0 Technical Specifications................................................................................... 19 7.0 Instruction Manual ............................................................................................ 21 8.0 Miscellaneous Information ............................................................................... 23 8.1 Measured Bandwidth........................................................................................ 24 8.2 Discussion of Pulse Desensitization.................................................................. 25 8.3 Calculation of Average Factor........................................................................... 26 8.4 Emissions Test Procedures .............................................................................. 27 INTERTEK TESTING SERVICES FCC ID: RNE00896TX iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: RNE00896TX 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: RNE00896TX 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a transmitter unit of digital wireless rain gauge operating at 433MHz. The EUT is powered by 3V d.c. (2 x 1.5V “AA” size alkaline batteries). After the synchronization, the EUT will transmit…

Text truncated - open the document above for the full version.

Test Setup FCC ID : RNE00896TX Radiated -front Radiated - rear
