RNIX825576-DXBox Wireless Controller Device

Thank you for purchasing Hip Gear's 2.4G Wireless Controller for XBOX TM consoles. Please read this manual carefully before use. Features: - Fully compatible with XBOX TM consoles - Dual vibration motors - Power on/off selection - Twin analog sticks - Rubber grips - Auto player matching - 10 Meters(30ft) 2.4G RF wireless transmitting & receiving distance - Turbo fire setting - Macro programmable setting - Low power Indicator Button Name for Hip Gear's 2.4G RF XBOX Wireless Controller: a) Controller (front view) b) Controller (top view) XBOX 2.4G Wireless Controller compatible with X-Box c) Controller's receiver Battery Replacement: - Open the battery compartment door. - Insert the batteries as marked on the bottom of the battery compartment. - Close the battery compartment door. You are now ready to use your wireless controller. Note: - For longer playing time, use Alkaline batteries. - Do not mix fresh and used batteries. This will reduce the controller's transmitting and receiving distance and may cause the product to malfunction. - Rechargeable batteries can be used with this product (rechargeable batteries are not included). - Dispose of used batteries according to the battery manufacturer's instructions. How to use: Step 1: Insert the controller's receiver into the Player 1 slot Note: - Do not insert the controller's receiver into a memory card slot. - Switch off the console before inserting the controller's receiver. Once the receiver is inserted you may turn on your console. Step 2: When the receiver is first plugged into the console, the LED is OFF. Once the controller has detected the receiver, the LED on the receiver will turn ON. The controller is now ready to use. Note: When using more than one wireless controller, you can only plug one receiver in at a time. When the LED lights up on the first receiver you can then plug in the second wireless receiver into the next available controller port. Force Connection to a designated Controller and Receiver: Forcing the connection to a designated controller and receiver can be achieved by following the steps listed below: a) Press the FC button on the receiver - the LED on the receiver starts to blink. b) Press and hold the Back and LT button simultaneously on the controller. The LED of the receiver stops to blink and lights up. The force connection is complete and you are ready to play. Y X A B Black White LT Back Start D-PADRT MacroTurbo Power OFF/ON L-TriggerR-Trigger Caution: If the controller is left idle for more than 3 minutes the designated connection may be lost. If this happens, simply repeat the steps above. Turbo Fire Setting: Each button of the wireless controller has a built-in Turbo Fire function, simply follow the steps listed below to achieve a Turbo Fire gaming experience: - Press and hold the Turbo Fire button, the Turbo LED lights up. - Press any button on the controller and the LED will turn off. The Turbo setting is complete. - The Turbo LED will blink when you press the button which has been set to Turbo Fire. - Repeat the procedure to assign more than one button at a time to a Turbo Fire function. Note: The controller and the receiver must be connected before assigning any Turbo Fire function. To Clear a Turbo Fire: - Press and hold the Turbo Fire button, the Turbo LED lights up. - Press the button which has been set to Turbo Fire, the LED turns off. - The Turbo Fire is clear, repeat this procedure for any other Turbo Fire cancellations. Macro Setting: The Black, White, LT and RT buttons have built in Macro capabilities. This Macro function allows you to program complicated moves and button combinations into any of the Macro function buttons (Black, White, LT and RT). Note: The regular function of the Black, White, LT and RT buttons and Turbo Fire Settings are suspended when the button has a Macro function designated to it - the LT and RT buttons are activated by pressing down on the analog sticks. Only when the Macro designated button is cleared will the button resume its regular operation. Clearing the Macro function is explained further in this manual. How to Program a Macro Function: Press Macro button, the Macro LED turns ON. - Press the Macro function button you wish to use (Black, White, LT or RT). - Input the button combination you wish to designate to the Macro button you have selected. Each combination must be completed within 10 seconds and a maximum of 15 button presses are allowed for each Macro function designation. - Press the Macro button again when the input has been completed, the LED is now OFF. - The Macro LED will blink when the Macro function button is activated. - Repeat the same procedure to program other Macro function buttons. To Clear a Macro Setting: - Press the Macro button, the Macro LED is now ON. - Press the designated Macro function button that you wish to clear (Black, White, LT or RT) - Press the Macro button again, the Macro setting is now clear, and the LED is OFF. Low Power Indication: The Turbo LED and Macro LED will blink simultaneously when the power is low, replace with new batteries. User Information This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The FCC require the user to be notified that any changes or modification made to this device that are not expressly approved by Esel International Co., Ltd. may avoid the user's authority to operate the equipment. To comply with FCC RF exposure requirement, this device and its antenna must no be co-located or operating in conjunction with any other antenna or transmitter. LED FORCE CONNECTION BUTTON FORCE CONNECTION BUTTON LED RT LT B A C K S T A R T W h i t e B a c k M A C R O T U R B O LT B A C K S T A R T W h i t e B a c k M A C R O T U R B O LT B A C K S T A R T W h i t e B a c k M A C R O T U R B O LT…

Text truncated - open the document above for the full version.

ETC Report No.: ET92S-12-005Page A1 of A1 FCC ID: RNIX825576-D ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

R=2.5MM X D XBOX Wireless Controller Device XBOX Wireless Controller Host X H L-825(LM576) 100% R=2.5MM X D XBOX Wireless Controller Device XBOX Wireless Controller Host X H SCALE:200%

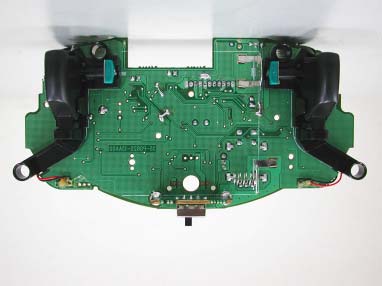

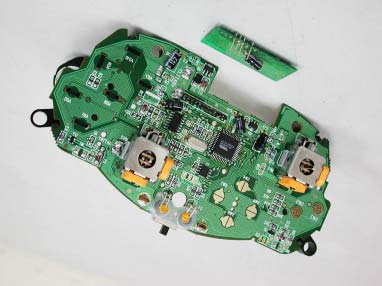

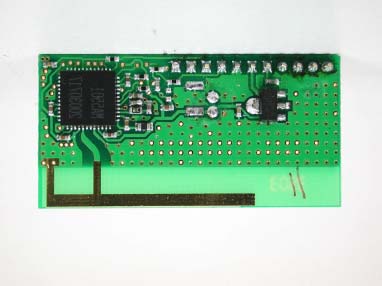

ETC Report No.: ET92S-12-005Page B1 of B4 FCC ID: RNIX825576-D ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside 1 of EUT 2. Inside 2 of EUT ETC Report No.: ET92S-12-005Page B2 of B4 FCC ID: RNIX825576-D 3. Inside 3 of EUT 4. Front view of PCB1 ETC Report No.: ET92S-12-005Page B3 of B4 FCC ID: RNIX825576-D 5. Rear view of PCB1 6. Front view of PCB2 ETC Report No.: ET92S-12-005Page B4 of B4 FCC ID: RNIX825576-D 7. Rear view of PCB2

2.4GHz RF XBox Wireless Controller Device (FCC ID: RNIX825576-D) Working Principle 1. It is a 2.4G RF product. It works at the frequency of ISM Band (2.4GHZ). There are up to 79 channels, and the frequency interval between each channel is 1M Hz. 2. Evenly Randomized Frequency Hopping Sequence method is implemented in the RF technology. 3. It works in “Slave” Mode. We call it “Device. The working procedures are: a) When power on, the Device will search all of the channels, to see whether there is a Host. b) If there is a Host, the Device will identity by the data received, to see whether it can be connected with the Host. c) If it can connect to the Host, then the Device will respond to the Host. d) The Host builds up the connection after receiving the response from the Device. e) The Host sends the command request to the Device for getting the Axes and Buttons value. f) The Device sends Axes and Button value to the Host. g) The Host identifies the data received and does the error detection and the error correction. h) The Host sends Motor commands to the Device. i) The Device will handle the Motor behaviors by the Motor data value that sent from the Host. j) Repeat from step e) to step i).

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : XBOX Wireless Controller Device MODEL : LM576 FCC ID. : RNIX825576-D for APPLICANT : Esel International Co., Ltd. ADDRESS: Rm 15-17, 5/F, Cardinal Ind, Bldg. No. 17 On Lok Mun St., Fanling, N.T., Hong Kong Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026#570~576 Fax:(03)3276188 Report Number : ET92S-12-005 ETC Report No. : ET92S-12-005FCC ID. :RNIX825576-D Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: Esel International Co., Ltd. Rm 15-17, 5/F, Cardinal Ind, Bldg. No. 17 On Lok Mun St., Fanling, N.T., Hong Kong Manufacturer: Eastern Sources Electronics Manufacturer Daji Industrial Zone, Hengshan District, Shipai Town, Dongguan City, Guangdong, China. Description of EUT: a) Type of EUT: XBOX Wireless Controller Device b) Trade Name: Hip Interactive c) Model No.: LM576 d) Power Supply: 6VDC (1.5VDC Battery * 4) Regulation Applied: FCC Rules and Regulations Part 15 Subpart B & C (2003) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date :Nov. 30, 2003 Test Engineer : Approve & Authorized Signer : Signature Win-Po Tsai Manager of EMC Testing Department Electronics Testing Center, Taiwan ETC Report No. : ET92S-12-005FCC ID. :RNIX825576-D Rev. No 1.0 Table of ContentsPage 1 GENERAL INFORMATION .......................................................................................................................1 1.1 Product Description ......................................................................................................................................1 1.2 Characteristics of Device ..............................................................................................................................1 1.3 Test Methodology .........................................................................................................................................1 1.4 Modifiction List of EUT ...............................................................................................................................1 1.5 Test Facility ..................................................................................................................................................1 2 PROVISIONS APPLICABLE ......................................................................................................................2 2.1 Definition ......................................................................................................................................................2 2.2 Requirement for Compliance ........................................................................................................................3 2.3 Restricted Bands of Operation ......................................................................................................................5 2.4 Labeling Requirement...................................................................................................................................5 2.5 User Information ...........................................................................................................................................6 3. SYSTEM TEST CONFIGURATION ..........................................................................................................7 3.1 Justification ...................................................................................................................................................7 3.2 Devices for Tested System............................................................................................................................7 4 RADIATED EMISSION MEASUREMENT ..............................................................................................8 4.1 Applicable Standard......................................................................................................................................8 4.2 Measurement Procedure ...............................................................................................................................8 4.3 Measuring Instrument .................................................................................................................................10 4.4 Radiated Emission Data ..............................................................................................................................11 4.4.1 RF Portion...........................................................................................................................................................11 4.4.2 Other Emission ...................................................................................................................................................14 4.5 Field Strength Calculation ..........................................................................................................................14 4.6 Photos of Radiation Measuring Setup ........................................................................................................18 5 CONDUCTED EMISSION MEASUREMENT ........................................................................................19 6 ANTENNA REQUIREMENT.......................................................................................................................20 6.1 Standard Applicable....................................................................................................................................20 6.2 Antenna Construction and Directional Gain..................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET92S-12-005Sheet 1 of 1 Sheets FCC ID.: RNIX825576-D 4.6 Photos of Radiation Measuring Setup
