ROJ7226SAILOR 7222 VHF DSC Class A

SAILOR 7222 VHF DSC User Manual i SAILOR 7222 VHF DSC User manual Document number: 98-171832-A Release date: July 2, 2021 ii98-171832-A Disclaimer Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed by Thrane & Thrane A/S. The information in this manual is provided for information purposes only, is subject to change without notice and may contain errors or inaccuracies. Manuals issued by Thrane & Thrane A/S are periodically revised and updated. Anyone relying on this information should acquire the most current version e.g. from www.cobhamsatcom.com, Cobham SYNC Partner Portal, or from the distributor. Thrane & Thrane A/S is not responsible for the content or accuracy of any translations or reproductions, in whole or in part, of this manual from any other source. In the event of any discrepancies, the English version shall be the governing text. Thrane & Thrane A/S is trading as Cobham SATCOM. Manufacturer Thrane & Thrane A/S, Lundtoftegårdsvej 93D, 2800 Kgs. Lyngby, Denmark Industrivej 30, 9490 Pandrup, Danmark Copyright © 2021 Thrane & Thrane A/S. All rights reserved. Trademark Acknowledgments •SAILOR is a registered trademark of Thrane & Thrane A/S. • Other product and company names mentioned in this manual may be trademarks or trade names of their respective owners. 98-171832-Aiii GPL notification The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. The verbatim licenses can be found online at: http://www.gnu.org/licenses/old-licenses/gpl-2.0.html http://www.gnu.org/licenses/old-licenses/lgpl-2.1.html For the parts of the software that fall under the GPL/LGPL licenses, you may obtain the complete corresponding source code from us for a period of three years after our last shipment of this product, which will be no earlier than December 31, 2027, by sending a money order or check for DKK 50 to: SW Technology/GPL Compliance, Cobham SATCOM (Thrane & Thrane A/S), Lundtoftegaardsvej 93D 2800 Lyngby DENMARK Write "source for product SAILOR 7222 VHF DSC" in the memo line of your payment. This offer is valid to anyone in receipt of this information. https://www.cobhamsatcom.com/legal/free-and-open-source-software-foss/ iv98-171832-A Safety warning The following general safety precautions must be observed during all phases of operation, service and repair of this equipment. Failure to comply with these precautions or with specific warnings elsewhere in this manual violates safety standards of design, manufacture and intended use of the equipment. Thrane & Thrane A/S assumes no liability for the customer's failure to comply with these requirements. Ground the equipment To minimize shock hazard, the SAILOR 7224 Control Unit unit and the SAILOR 7226 VHF Transceiver Unit must be connected to an electrical ground and the cable instructions must be followed. RF exposure hazards and instructions Your Cobham SATCOM radio set generates electromagnetic RF (radio frequency) energy when transmitting. To ensure that you and those around you are not exposed to excessive amounts of energy and thus to avoid health hazards from excessive exposure to RF energy, all persons must be at least 200 cm away from the antenna when the radio is transmitting. Warranty limitation IMPORTANT - The radio is not a user maintainable unit, and under no circumstances should the unit be opened except by authorized personnel. Unauthorized opening of the unit will invalidate the warranty. Installation and service Installation and general service must be done by skilled service personnel. Compass safe distance SAILOR 7226 VHF Transceiver Unit: Min. compass safe distance: 0.55 m SAILOR 7224 Control Unit: Min. compass safe distance: 0.85 m 98-171832-Av Alerte de sécurité Dangers liés à l'exposition aux fréquences radio et instructions Conformément à la réglementation d'Industrie Canada, le présent radio émetteur ne peut fonctionner qu'avec une antenne de type omnidirectionnelle, demi-onde ou d'un gain maximal de 4 dB, approuvée par Industrie Canada. Pour éviter les risques pour la santé dus à une exposition excessive aux champs de fréquences radio, une distance minimale de 200 cm est nécessaire entre l'utilisateur et le radio-émetteur. vi98-171832-A Emergency calls MM MM M AA AA A YY YY Y DD DD D AA AA A YY YY Y NANA NANA NA MEME MEME ME of the VV VV V EE EE E SS SS S SS SS S ELEL ELEL EL in distress CC CC C ALAL ALAL AL LL LL L SS SS S IGNIGN IGNIGN IGN or other IDENIDEN IDENIDEN IDEN TT TT T IFICIFIC IFICIFIC IFIC AA AA A TT TT T IONION IONION ION MM MM M MM MM M S S SS S II II I (If the initial alert is sent by DSC) PP PP P OO OO O SS SS S ITIT ITIT IT IONION IONION ION given as ll ll l atat atat at itit itit it udeude udeude ude and longitlongit longitlongit longit udeude udeude ude or If latitude and longitude are not known or if time is insufficient, in relation to a known geographical location NANA NANA NA TURETURE TURETURE TURE of distress Kind of AA AA A SS SS S SS SS S II II I SS SS S TT TT T ANCANC ANCANC ANC EE EE E required Any other useful INFINF INFINF INF OROR OROR OR MM MM M AA AA A TT TT T IONION IONION ION MM MM M AA AA A YY YY Y DD DD D AA AA A YY YY Y -M-M -M-M -M AA AA A YY YY Y DD DD D AA AA A YY YY Y -M-M -M-M -M AA AA A YY YY Y DD DD D AA AA A YY YY Y This is NANA NANA NA ME-NAME-NA ME-NAME-NA ME-NA ME-NAME-NA ME-NAME-NA ME-NA MEME MEME ME CC CC C ALAL ALAL AL LL LL L SS SS S IGNIGN IGNIGN IGN or other IDENTIFICATION MM MM M MM MM M SS SS S II II I (If the initial alert is sent by DSC) Use the HANDHAND HANDHAND HAND SS SS S ETET ETET ET for voice calling LL LL L ifif ifif if t Ct C t Ct C t C ovov ovov ov erer erer er PP PP P rr rr r ee ee e ss ss s s RED Buttons RED Button s RED Buttons RED Button s RED Button until beep sounds continuously (more than 3 seconds) SHIP‘s NAME: CALLSIGN: MMSI: OWN OWN OWN OWN OWN IDID IDID ID 99-132140 Press VHF MF HF4 HF6 HF8 HF12 HF16 C…

Text truncated - open the document above for the full version.

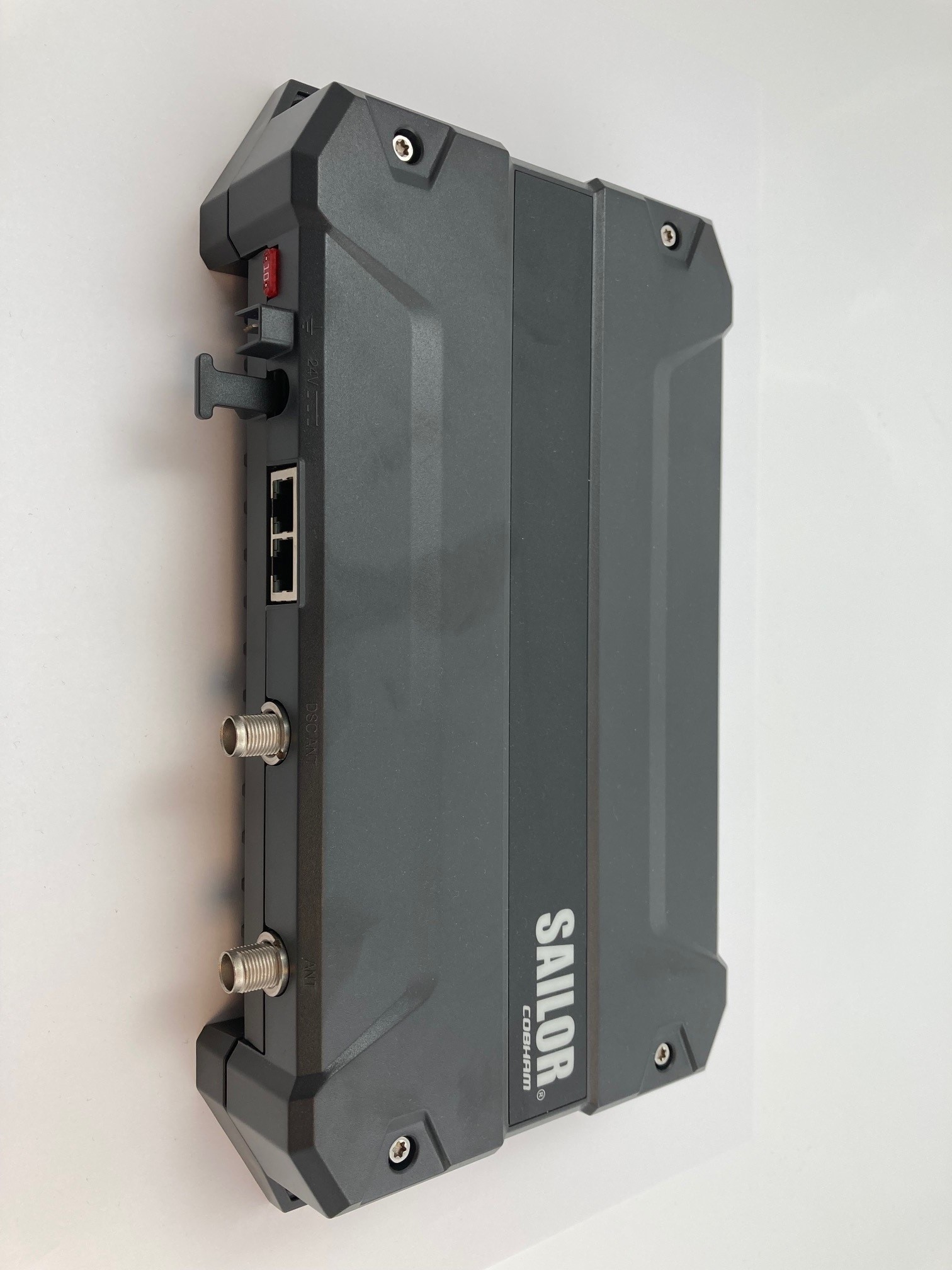

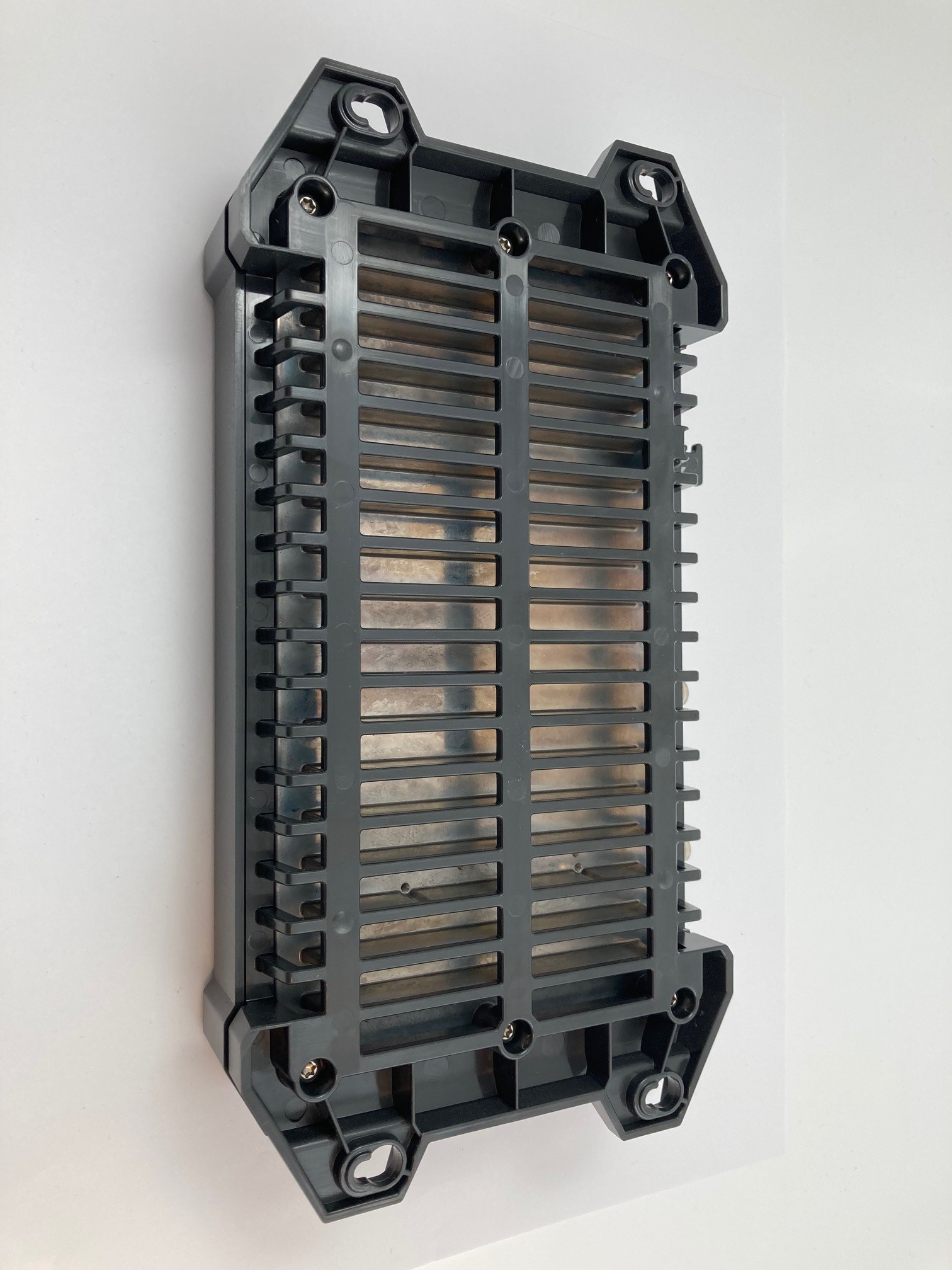

SAILOR 7222 VHF DSC Class A Type Labels SAILOR 7226 VHF Transceiver Unit: SAILOR 7224 VHF DSC Control Unit: Thrane & Thrane A/S trading as Cobham SATCOM Registered no.: DK - 65 72 46 18. Registered address: Lundtoftegaardsvej 93 D, 2800 Kgs. Lyngby, Denmark www.cobham.com SAILOR 7222 VHF DSC Class A Placement of Type Labels SAILOR 7224 VHF DSC Control Unit Type Label SAILOR 7226 VHF Transceiver Unit Type Label Cobham Satcom Niels Jernes Vej 12 9220 Aalborg Ø Denmark T: +45 39 55 88 00 F: +45 96 34 63 88

407222A-00500 SAILOR 7222 VHF DSC Class A 407224A-00500 407226A-00500 Tune-up procedure / statement Document number: 99-180426-A Date: 28 March 2022 Author: Lars-Bo Hesel (LBH) Printed version of this document is only valid if lifecycle is indicated as released in the top banner Copyright © Thrane & Thrane A/S trading as Cobham SATCOM Lundtoftegaardsvej 93D, DK-2800 Kgs. Lyngby, Denmark ALL RIGHTS RESERVED COBHAM RESTRICTED Filename: 99-180426-A Sailor 7222 tune-up procedure.docx COBHAM RESTRICTED 28 March 2022 Page 1 of 6 REVISION HISTORY Rev. Date App. Section Description / Remarks A 28-03-202 LBH All Original © Thrane & Thrane A/S trading as Cobham SATCOM This Document and any other appended documents and drawings are of © copyright to Thrane & Thrane A/S. It contains proprietary information which is disclosed for information purposes only. The contents of this document shall not in whole or in part be used for any other purpose; be disclosed to any member of the recipients organisation not having a need to know such information or to any third party, individual, organisation or Government; be stored in any retrieval system or be produced or transmitted in any form by photocopying or any optical, mechanical or other means without prior permission of Thrane & Thrane A/S. COBHAM RESTRICTED 28 March 2022 Page 2 of 6 Table of Contents Table of Contents .................................................................................................................. 2 1. Introduction .................................................................................................................... 3 2. Basic operation .............................................................................................................. 4 2.1. Controls (knobs and buttons) ................................................................................... 4 2.2. Operating the transmitter .......................................................................................... 5 3. Transmitter power .......................................................................................................... 6 3.1. Configuration and adjustment of transmitter ............................................................. 6 3.2. Conducted rated power and tolerance ...................................................................... 6 COBHAM RESTRICTED 28 March 2022 Page 3 of 6 1. Introduction This document provides the Tune-up procedure / statement of the transmitter rated conducted power and tune up tolerance of the specific high and low power levels for SAILOR 7222 VHF DSC Class A. The document also presents the basic operation of the transmitter. COBHAM RESTRICTED 28 March 2022 Page 4 of 6 2. Basic operation For further information refer to the user manual. 2.1. Controls (knobs and buttons) COBHAM RESTRICTED 28 March 2022 Page 5 of 6 2.2. Operating the transmitter COBHAM RESTRICTED 28 March 2022 Page 6 of 6 3. Transmitter power The following is stated regarding transmitter power. 3.1. Configuration and adjustment of transmitter The transmitter power level, frequency range and stability are factory adjusted and sealed, and no adjustments and/or corrections can be made by the user except for the fixed high/low power setting. 3.2. Conducted rated power and tolerance High power: 25 Watt + 0 dB / - 1.5 dB Low power: 0.5 - 1 Watt

FCC ID: ROJ7226 MPE Calculation for FCC Uncontrolled Environment Formula from page 18 of OET Bulletin 65, Edition 97 -01 where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of i nterest relative to an isotropic radiator R = distance to the center of radiation of the ante nna Maximum peak output power at antenna input terminal : 44.00 (dBm) Maximum peak output power at antenna input terminal : 25.12 (W) Maximum antenna gain: 4.00 (dBi) Maximum antenna gain: 2.512 (numeric) Prediction distance: 200 (cm) Prediction frequency: 156.8 (MHz) Time Averaged Duty Cycle 100 % MPE limit for uncontrolled exposure at prediction f requency: 2.00 (W/m^2) Power density at prediction frequency: 0.1255 (mW/cm^2) Power density at prediction frequency: 1.255 (W/m^2) Maximum allowable antenna gain: 6.02 (dBi) Margin of Compliance: 2.02 (dB) 2 4 R PG S π =

Report No. 433520-01-R02 Nemko Group Nemko Scandinavia, Instituttveien 6, 2007 Kjeller, Norway TEL +47 22 96 03 30 EMAIL [email protected] nemko.com/no Template version: B Test Report Product Ship Station Maritime VHF DSC Class A Name and address of the applicant Thrane & Thrane A/S Lundtoftegaardsvej 93D 2800 Kgs. Lyngby, Denmark Name and address of the manufacturer Thrane & Thrane A/S Lundtoftegaardsvej 93D 2800 Kgs. Lyngby, Denmark Model SAILOR 7222 Rating 25W VHF DSC Class A Trademark SAILOR Serial number Prototype 2 Additional information VHF, DSC class A Tested according to FCC Part 80 Maritime VHF Industry Canada RSS-182, Issue 6 Maritime Radio Equipment Operating in the 156-162.5 MHz Band Order number 433520 Tested in period 2021-08-02 to 2021-10-05 Issue date 2022-09-27 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway www.nemko.com CAB Number: FCC: NO0001 ISED: NO0470 An accredited technical test executed under the Norwegian accreditation scheme Prepared by [Frode Sveinsen] Approved by [G.Suhantakumar] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 80 Report no.: 433520-01-R02 FCC ID: ROJ7226 IC: 6200B-7226G Nemko Scandinavia Page 2 (33) Revision history Revision Date Comment Sign 00 2022-02-15 First edition FS 01 2022-09-13 Updated FCC/ISED ID FS 02 2022-09-27 Updated to GVH and added some new measurements FS THIS TEST REPORT APPLIES ONLY TO THE ITEM(S) AND CONFIGURATIONS TESTED. Deviations from, additions to, or exclusions from the test specifications are described in “Summary of Test Data”. Nemko Group authorizes the client to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any reproduction of parts of this report requires approval in writing from Nemko Group. Any use that a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Group accepts no responsibility for damages suffered by any third party as a result of decisions made or actions based on this report. TEST REPORT FCC Part 80 Report no.: 433520-01-R02 FCC ID: ROJ7226 IC: 6200B-7226G Nemko Scandinavia Page 3 (33) CONTENTS 1 INFORMATION ......................................................................................................................... 4 1.1 Test Item .................................................................................................................................... 4 1.2 Normal test condition ................................................................................................................. 4 1.3 Test Engineer(s) ........................................................................................................................ 4 1.4 Test Equipment .......................................................................................................................... 4 1.5 Other Comments ....................................................................................................................... 4 2 TEST REPORT SUMMARY ...................................................................................................... 5 2.1 General ...................................................................................................................................... 5 2.2 Test Summary ........................................................................................................................... 5 3 TEST RESULTS ........................................................................................................................ 6 3.1 RF Output Power ....................................................................................................................... 6 3.2 Modulation Characteristics - Audio Frequency Response ......................................................... 8 3.3 Modulation Characteristics - Modulation Limiting..................................................................... 10 3.4 Occupied Bandwidth ................................................................................................................ 12 3.5 Spurious Emissions at Antenna Terminal ................................................................................ 14 3.6 Field Strength of Transmitter Spurious Radiations .................................................................. 20 3.7 Frequency Stability .................................................................................................................. 25 3.8 Suppression of Interference Aboard Ships / Receiver Emissions ............................................ 27 4 Measurement Uncertainty ..................................................................................................... 31 5 LIST OF TEST EQUIPMENT................................................................................................... 32 6 BLOCK DIAGRAM .................................................................................................................. 33 6.1 Test Site Radiated Emission .................................................................................................... 33 TEST REPORT FCC Part 80 Report no.: 433520-01-R02 FCC ID: ROJ7226 IC: 6200B-7226G Nemko Scandinavia Page 4 (33) 1 INFORMATION 1.1 Test Item Name SAILOR FCC ID ROJ7226 ISED ID 6200B-7226G Model/version SAILOR 7222 VHF DSC Class A Serial number Prototype 2 Hardware identity and/or version Interface board: 38-166437 rev B PSU board 38-166438 rev B CU application module 88-170462 rev A Software identity and/or version 1.00 Frequency Range 156.025 – 157.640 MHz Type of Modulation Analogue (Phase Modulation) Rated Output Power 25 W Type of Power S…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 433520 FCC ID: ROJ7226 Page 1 (1) Nemko Scandinavia Radiated Emissions 30 – 1000 MHz Radiated Emissions 1 – 2 GHz
