ROJRTU4120BIridium fixed mount transceiver

OPERATION MANUAL SAILOR SC4000 IRIDIUM ii 0125 iii Handset What Is What? 1. Display 2. Indicator lamps Power Call Network 3. Escape key 4. Call transfer key 5. Loudspeaker on/off key 6. Shift key 7. Lock on/off key 8. On/off button 9. Earpiece 10. Signal level 11. Opens menu 12. Opens phone book 13. Volume control/navigate menu 14. Hook on/off key 15. OK key 16. Loudspeaker 17. Microphone 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 0125 Cradle iv Introduction Your Iridium equipment is a modular system that consists of a transceiver unit, control handset unit, antenna unit and an optional analogue PSTN telephone/PABX. You can make and receive voice calls on the control handset and the analogue PSTN telephone. You can connect up to four handsets and one analogue PSTN telephone or PBX switchboard to the system. The system provides intercom for internal calls between any control handsets and between the analogue telephone and a control handset. Via the data port on the transceiver, the unit can be used as a data modem for dial-up data calls, Internet access, SMS and E-mail messaging. Important! For FCC RF exposure compliance, the antenna must be installed with a minimum distance of 0.61m (2 feet) away from all persons. About this Manual This manual provides instructions on how to operate a control handset, an analogue telephone and on using the transceiver as a data modem. The instructions on operating the handset are divided into two parts. The first part deals with Basic operation, which includes e.g. making and answering calls. The second part describes the more advanced functions of the system. All functions of your Iridium equipment can be operated by following the step by step procedures described in this manual. Each procedure is an explicit sequence of key presses that has to be carried out. Unless otherwise specified, the description of the individual procedures has been based on the assumption that the handset is enabled and is displaying either “Ready” or “Ready Internal” in the display. This state is through out the manual referred to as ready state. We recommend that you read the manual before using the equipment. Iridium Satellite System Iridium is a global satellite network for telecommunications. It consists of 66 satellites providing world-wide coverage. The Iridium system makes it possible for any two locations on Earth to establish wireless global telephone contact. You will need an Iridium subscription with an active Subscriber Identification Module (SIM card). The SIM card holds your phone number and the phone number will thus follow the SIM card if used in another Iridium equipment. You can buy a subscription from one of the Iridium Service Partners. The Iridium Service Partners can be found on www.iridium.com . Different services are available from the service partners, for example Crew Calling, Pre and Post Paid subscriptions. Please note Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed. The information in this manual is furnished for informa- tional use only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever. This agreement is governed by the laws of Denmark. Doc. no.: B4150GB0Issue: F/0512 This manual covers operation on the following transceiver unit version: Software03.05.00 or higher Hardwaremk3 0445 1 0512 Abbreviations CUControl unit = handset GPSGlobal Positioning System DTMF Dual Tone Multiple Frequency LBTL-Band Transceiver PABX Public Automatic Branch Exchange (also called PBX) PSTN Public Switched Telephone Network UTCUniversal Time Coordinated (app. the same as Greenwich Mean Time) RTUReceiver and Transmitter Unit (also called Transceiver) Contents Handset................................................................................ iii What Is What?.................................................................................... iii Introduction......................................................................... iv About this Manual.............................................................. iv Iridium Satellite System..................................................... iv Abbreviations....................................................................... 1 Handset Basic Operation.................................................... 2 Handset States.................................................................................... 2 Handset Enabling/Disabling................................................................ 2 Pin Code.............................................................................................. 2 Unlocking Handset.............................................................................. 2 Call Functions...................................................................................... 3 Making a Manual Call.......................................................................... 4 Answering a Call................................................................................. 5 Call Transfering................................................................................... 5 Handset Advanced Operation............................................ 7 Menu System...................................................................................... 7 Keying in Names and Numbers.......................................................... 7 Phone Book......................................................................................... 8 Redialling............................................................................................. 9 Security Lock Function...................................................................... 10 Password........................................................................................... 11 Users................................................................................................. 12 Call Log....…

Text truncated - open the document above for the full version.

TECHNICAL M A N UA L SAILOR SC4000 IRIDIUM Please note Any responsibility or liability for loss or damage in connection with the use of this product and the accompanying documentation is disclaimed. The information in this manual is furnished for informa- tional use only, is subject to change without notice, may contain errors or inaccuracies, and represents no commitment whatsoever. This agreement is governed by the laws of Denmark. Doc. no.: M4150GB0Issue: H/0514 Introduction Your Iridium equipment is a modular system that consists of a transceiver unit, control handset unit, antenna unit and an optional analogue PSTN telephone/PABX. You can make and receive voice calls on the control handset and the analogue PSTN telephone. You can connect up to four handsets and one analogue PSTN telephone or PBX switchboard to the system. The system provides intercom for internal calls between any control handsets and between the analogue telephone and a control handset. Via the data port on the transceiver, the unit can be used as a data modem for dial-up data calls, Internet access, SMS and E-mail messaging. 1 Installation IRIDIUM 0514 Contents 1Technical Specifications................................................................................................................................... 2 2Installation.......................................................................................................................................................... 4 2.1Version Overview................................................................................................................................................. 4 2.2Configuration of Single-Channel Unit.................................................................................................................. 4 2.3Cable Overview.................................................................................................................................................... 5 2.3.1 Scanbus Termination........................................................................................................................................... 6 2.4Where to Place the Satellite Transceiver Box..................................................................................................... 7 2.5How to Mount the Satellite Transceiver Box........................................................................................................ 7 2.6How to Put on the Finishing Cover...................................................................................................................... 8 2.7How to Insert the SIM Card.................................................................................................................................. 9 2.8Optional SIM card Reader.................................................................................................................................... 9 2.9How to Remove the Finishing Cover................................................................................................................... 10 2.10Installation of the Antenna................................................................................................................................... 11 2.11Analogue telephone............................................................................................................................................. 13 2.12Data Interface....................................................................................................................................................... 14 2.13External Ringer Interface..................................................................................................................................... 14 2.14Reset Button......................................................................................................................................................... 14 Appendix A..................................................................................................................................................................... 17 Spare Parts List.................................................................................................................................................... 17 2 Installation IRIDIUM 0514 1 Technical Specifications Space Segment Satellites66 (Plus 6 in-Orbit backup satellites) Orbital planes6 Orbit height780 kilometres Inclination of the orbital planes86.4 degrees Orbital period100 minutes, 28 seconds Spot beams48 per satellite Radio module Frequency Range1616 MHz to 1626.5 MHz (L-Band) Duplexing MethodTDD (Time Domain Duplex) Oscillator Stability± 1.5 ppm Input/Output Impedance50 Ω Multiplexing MethodTDMA/FDMA Average Power during a transmit slot(max) 7W Average Power during a frame(typical) 0.6W Receiver Sensitivity at 50 Ohm(typical) -118.5 dBm Receiver Spurious Rejection at offsets > 1 MHz(typical) 60 dB Voice/Data Rate2.4 kbit/s QPSK AntennaHelical, omni-directional 210° (3 dB beam width) Fibreglass radome ø 96 mm Link Margin16 dB Antenna Tracking Capability TurnOmni-directional antenna Roll/pitchUp to ± 20 from horizontal position YawElevation > 8° Interface Handset600 Ω / 4 wire RS485 Telephone/PABX270 Ω +750 Ω // 150nF / 2 wire DataRS232 with handshake Position informationNMEA 0183 3 Installation IRIDIUM Power supply DC10 – 32V DC AC (Optional)110-230V AC (External adaptor) Consumption25 W during communication 8 W Stand by Environmental Conditions Transceiver Operating temperature-10° C to +55° C Storage temperature-30° C to +70° C Antenna TemperatureEME -35° C to + 55° C Rel. humidityUp to 95% at 40° C Icing (survival only)Up to 25 mm of ice PrecipitationUp to 100 mm/hour Wind (velocity)Up to 100 knots VibrationIME: 2 – 50 Hz @ 1 g EME: 4 – 33 Hz @ 1 g Weight Transceiver :2.7 kg Antenne:220 g Handset & cradle :570 g 0514 4 Installation IRIDIUM 0514 2 Installation 2.1 Version Overview This manual covers the Transceiver Unit versions Mk2, Mk3 and Mk4…

Text truncated - open the document above for the full version.

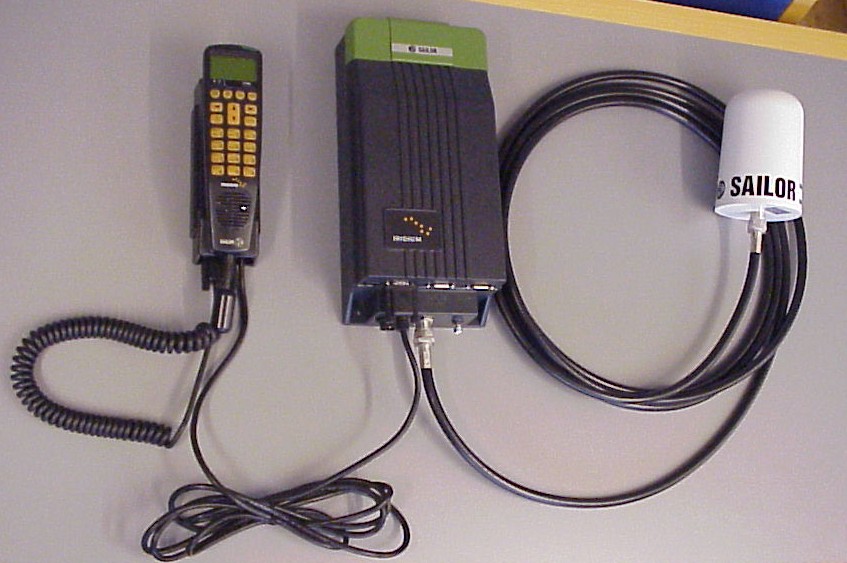

FCC-ID: ROJRTU4120B External Photographs System overview of all individual components Transceiver unit Transceiver unit side view Handset unit Handset unit Handset unit

Thrane & Thrane A/S • Porsvej 2 • 9200 Aalborg SV • Denmark Phone: +45 70 13 70 00 • Telefax: +45 98 18 32 20 • Telex: 69 789 CONFIDENTIAL Doc. Type: Iridium; P55; ID Label Initials : pho Date: 11 April 2005 Concerning : Doc. No. : Rev. : Page : 1 of 2 Filename: \\Ecifs21\Projekter\P55 Iridium mk4\Manager\Type approval\Documentation_for_Telefikation\12)_ID_Label_info\ID_label.doc Created : 11-04-2005 08:45 Last printed 11-04-2005 09:31 ID Label on Iridium transceiver unit The transceiver unit comes in 3 brands. Each brand will require its own ID label. Placement of ID label Thrane & Thrane A/S • Porsvej 2 • 9200 Aalborg SV • Denmark Phone: +45 70 13 70 00 • Telefax: +45 98 18 32 20 • Telex: 69 789 CONFIDENTIAL Doc. Type: Iridium; P55; ID Label Initials : pho Date: 11 April 2005 Concerning : Doc. No. : Rev. : Page : 2 of 2 Filename: \\Ecifs21\Projekter\P55 Iridium mk4\Manager\Type approval\Documentation_for_Telefikation\12)_ID_Label_info\ID_label.doc Created : 11-04-2005 08:45 Last printed 11-04-2005 09:31 ID label on Iridium 9522A L-Band Transceiver ID label on Iridium 9522A L-Band Transceiver (EMEI and FCC label on the rear side)

FCC-ID: ROJRTU4120B Internal Photographs Internal of transceiver unit Internal of transceiver unit LBT ID Label Internal of antenna unit Internal of handset unit Internal of handset unit SIM Card

Thrane & Thrane A/S 08 April 2005 Operational description Fixed Mount Iridium Transceiver ST4120 Product description The ST4120 Iridium transceiver is a Maritime satellite phone making use of the Motorola 9522 L-Band Transceiver (LBT). The LBT is a voice and data modem working in the 1610- 1626MHz band. The ST4120 features connection of: 10-32VDC input (Build-in SMPS power supply) ST4150 Control Handsets PSTN analogue phone or PABX Data Terminal 2.4kb/s GPS NMEA 0183 input Antenna Unit The ST4120 transceiver unit, ST4150 Control handsets and phones are meant for installation below deck. The Antenna Unit is build for installation above deck. Iridium network The Iridium Satellite System is the only provider of truly global, truly mobile satellite voice and data solutions with complete coverage of the Earth (including oceans, airways and Polar regions). Through a constellation of 66 low-earth orbiting (LEO) satellites operated by Boeing, Iridium delivers essential communications services to and from remote areas where terrestrial communications are not available. The service is ideally suited for industrial applications such as heavy construction, defense/military, emergency services, maritime, mining, forestry, oil and gas and aviation. Peter Harbo Olesen Page 1 of 4 Thrane & Thrane A/S 08 April 2005 Voice and data calls can be made between two Iridium subscriber units over the satellite constellation. Calls from any Iridium subscriber unit can be originated to a land PSTN phone via the commercial Iridium gateway located in Tempe, Arizona, US. ST4120 Operational description The ST4120 Iridium equipment is a modular system that consists of a transceiver unit, control handset unit, antenna unit and an optional analogue PSTN telephone/PABX. You can make and receive voice calls on the control handset and the analogue PSTN telephone. You can connect up to four handsets and one analogue PSTN telephone or PBX switchboard to the system. The system provides intercom for internal calls between any control handsets and between the analogue telephone and a control handset. Via the data port on the transceiver, the unit can be used as a data modem for dial-up data calls, Internet access, SMS and E-mail messaging. A GPS can be connected to the transceiver unit for displaying geographical location in the control handset. Background for re-test The present Motorola 9522 L-Band Transceiver is now obsolete due to obsolete components. A new version of the LBT has been developed by Iridium Satellite LLC. This version is called Daytona and the type designation is 9522A. Peter Harbo Olesen Page 2 of 4 Thrane & Thrane A/S 08 April 2005 The specifications are all the same except for the communication interface to the LBT. The former multi node DSC bus is now replaced by a DPL bus, which is a point to point bus. Electrically the bus operates on RS232 levels. The impact of this change is the need of a router that can route the signals between the LBT and the external SIM card reader and the phone interface on the EuroCom equipment. This router is made by use of an additional micro controller, which also will handle the interface to the SIM card reader. Block Diagram LBT 9522A PSU Handset driver LBT IF driver SIM Reader Data I/O Service / NMEA PSTN driver DPL bus Router Local MMI Audio management Platform OS / Timer / Boot GPS Peter Harbo Olesen Page 3 of 4 Thrane & Thrane A/S 08 April 2005 Configuration Up to four control handsets can be connected via a connection box. The system is certified with only one handset connected via the connection box. Peter Harbo Olesen Page 4 of 4

Thrane & Thrane A/S • Porsvej 2 • 9200 Aalborg SV • Denmark Phone: +45 70 13 70 00 • Telefax: +45 98 18 32 20 • Telex: 69 789 CONFIDENTIAL Doc. Type: Iridium; P55; RF Exposure Calculation Initials : pho Date: 03-June-2005 Concerning : Safety distance to Iridium Antenna Doc. No. : 04036 Rev. : 1.00 Page : 1 of 1 Filename: \\Ecifs21\projekter\P55 Iridium mk4\Manager\Type approval\Documentation_for_Telefikation\8)_RF_Exposure_info\8_1)_Iridium_Safety_Distance.doc Calculations of the safety distance due to the Rf emission from the Iridium antenna of the ECI Iridium products According to the FCC rules described in “A local Government Official’s Guide to Transmitting antenna Rf Emission safety: Rules, Procedures and Practical Guidance” the limits for General Population/Unprotected Exposure is stated to 1.0 mW/cm² This value is basis for the calculation of the safety distance of the iridium antenna under all conditions. Technical data. Maximum output Rf power 7 W Antenna gain 3 dB equals 2 times Antenna pattern Hemispherical Frequency 1.616 – 1.626 GHz r = safety distance from the antenna placed at x emitting Rf radiation in an hemispherical pattern Surface area of the hemisphere S = 2
r² The calculation is absolutely worst case situation due to the fact that the output RF power is lower due to the pulsing (TDMA system) transmission. The calculation uses the case if the transmission was a continuous operation. Power x Antenna gain 7000 x 2 Formula r = Surface x Rf limit = 2 x
x 1 = 0.47m The safety distance is therefore stated as 2 feet equals 0.61m > 0.47m The safety distance is stated in the manuals x r

TRL COMPLIANCE SERVICES LTD EMC DIVISION L ONG GREEN FORTHAMPTON GLOUCESTER GL19 4QH UNITED KINGDOM T ELEPHONE +44 (0)1684 833818 FAX +44 (0)1684 833858 E- MAIL [email protected] www.trlcompliance.com FS 21805 TEST REPORT NO: RU1139/6029 COPY NO: ISSUE NO: 1 FCC ID: Q639522A REPORT ON THE CERTIFICATION TESTING OF AN IRIDIUM SATELLITE LLC DAYTONA L-BAND TRANSCEIVER WITH RESPECT TO THE FCC RULES CFR 47, PART 25 TEST DATE: 18 th January 2005 – 21 st January 2005 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC DATE: 27 th January 2005 Distribution: Copy Nos: 1. Cambridge Consultants Limited 2. TCB: TRL Compliance Services Limited 3. TRL EMC THIS DOCUMENT MAY BE REPRODUCED ONLY IN ITS ENTIRETY AND WITHOUT CHANGE RU1139/6029 Page 2 of 54 CONTENTS PAGE CERTIFICATE OF CONFORMITY & COMPLIANCE 3 APPLICANT’S SUMMARY 4 EQUIPMENT TEST CONDITIONS 5 TESTS REQUIRED 5 TEST RESULTS – Transmitter RF Output Power - Conducted 6 Emissions Limitations - Conducted 7 Spurious Emissions - Conducted 8 Spurious Emissions - Radiated 9 Frequency Stability -Temperature 10 Frequency Stability -Voltage 11 ANNEX PHOTOGRAPHS A APPLICANT’S SUBMISSION OF DOCUMENTATION LIST B TEST EQUIPMENT LIST C TEST COMMANDS D DUTY CYCLE E EMISSIONS LIMITATIONS F TRANSMITTER SPURIOUS EMISSIONS – Conducted G TRANSMITTER SPURIOUS EMISSIONS – Radiated H FREQUENCY STABILITY – Temperature I FREQUENCY STABILITY – Voltage J Notes: 1. Component failure during test YES NO [ ] [X] 2. If Yes, details of failure: 3. The facilities used for the testing of the product contain in this report are FCC Listed. RU1139/6029 Page 3 of 54 CERTIFICATE OF CONFORMITY & COMPLIANCE FCC IDENTITY: Q639522A PURPOSE OF TEST: Certification TEST SPECIFICATION: FCC Rules CFR 47, Part 25 TEST RESULT: Compliant to Specification ITU EMISSIONS DESIGNATOR 41K7Q7W EQUIPMENT UNDER TEST: Daytona L-Band Transceiver EQUIPMENT TYPE: Satellite Communications Module MAXIMUM OUTPUT 40.11dBm, 10.3W, 10.11dBW ANTENNA TYPE: External TNC connector. For test purposes applicant declared a Fixed Mast Antenna with a gain of 2dBi CHANNEL SPACING: 41.667 kHz NUMBER OF CHANNELS: 252 MODULATION TYPE: Q7W POWER SOURCE(s): +4.4 Vdc TEST DATE(s): 18 th January 2005 – 21 st January 2005 ORDER No(s): EU2942 APPLICANT: Iridium Satellite LLC ADDRESS: 6701 Democracy Blvd. Suite 500 Bethesda United States of America MD 20817 TESTED BY: J CHARTERS APPROVED BY: P GREEN PRODUCT MANAGER EMC RU1139/6029 Page 4 of 54 APPLICANT’S SUMMARY EQUIPMENT UNDER TEST (EUT): Daytona L-Band Transceiver EQUIPMENT TYPE: Satellite Communications Module PURPOSE OF TEST: Certification TEST SPECIFICATION(s): FCC Rules CFR 47, Part 25 TEST RESULT: COMPLIANT Yes No [X] [ ] APPLICANT’S CATEGORY: MANUFACTURER IMPORTER DISTRIBUTOR TEST HOUSE AGENT [X] [ ] [ ] [ ] [ ] APPLICANT’S CONTACT PERSON(s): Mr C Geibel E-mail address: [email protected] APPLICANT: Iridium Satellite LLC ADDRESS: 6701 Democracy Blvd. Suite 500 Bethesda United States of America MD 20817 TEL: +1 301 571 6277 FAX: +1 301 571 6250 MANUFACTURER: Iridium Satellite LLC DEVELOPMENT AGENT Cambridge Consultants Limited DEVELOPMENT AGENT S CONTACT PERSON(s): Mr P Williams E-mail address: [email protected] ADDRESS: Science Park Milton Road Cambridge CB4 4DW United Kingdom TEL: +44 (0)1223 420024 FAX: +44 (0)1223 423373 EUT(s) COUNTRY OF ORIGIN: United States TEST LABORATORY: TRL EMC UKAS ACCREDITATION No: 0728 TEST DATE(s) 18 th January 2005 – 21 st January 2005 TEST REPORT No: RU1139/6029 RU1139/6029 Page 5 of 54 EQUIPMENT TEST / EXAMINATIONS REQUIRED 1. TEST/EXAMINATION FCC Part 2 FCC Part 25 APPLICABILITY RESULT RF Power Output - 25.204 (a) YES PASS Emissions Limitations - 25.202 (f) YES PASS Spurious Emissions at Antenna Terminals 2.1051 25.202 (f) 25.213 YES PASS Protection of the Radio Navigation Satellite Service - 25.216(c) 25.216(f) YES PASS Spurious Emissions Radiated 2.1053 25.202 (f) 25.213 YES PASS Frequency Stability Temperature 2.1055 25.202 (d) YES PASS Frequency Stability Voltage 2.1055 25.202 (d) YES PASS Note: The Daytona L-Band Transceiver is subject to FCC Part 25 & Part 2 for FCC Certification for units marketed within the United States. The above tests, as specified in FCC Part 2, with limits as defined in FCC Part 25 were performed on the Daytona L-Band Transceiver. 2. Product Use: Satellite Telephone and Data Communications 3. Emission Designator: 41k7Q7W 4. Temperatures: Ambient (Tnom) 20 o C 5. Supply Voltages: Vnom +4.4 Vdc Note: Vnom voltages are as stated above unless otherwise shown on the test report page Single channel [ ] Two channel [ ] 6. Equipment Category: Multi-channel [X] 7. Channel spacing: Narrowband [X] 41.667 kHz Wideband [ ] 8. Test Location TRL Compliance Services Up Holland [X] Long Green [ ] 9. Modifications made during test program No modifications were performed. RU1139/6029 Page 6 of 54 Product Description The satellite communications module consists of an L-Band Transceiver (LBT) capable of simultaneous transmit and receive (duplex) operation covering the frequency range of 1616MHz to 1626.5MHz. The frequency accesses used for duplex channels are organised into sub-bands each of which contains eight frequency accesses. Each sub-band, therefore occupies 333.33 kHz (i.e. 8x41.667kHz). Up to 30 sub-bands containing 240 frequency accesses may be used for duplex channels. Standard References 47 CFR 2 Code of Federal Regulations, Title 47, Part 2, “Frequency allocations and Radio Telemetry Matters; 10-1-03 Edition General Rules and Regulations” 47 CFR 25 Code of Federal Regulations, Title 47, Part 25,”Sattelite Communications” Subpart C, 10-1-03 Edition “Technical Matters” C63.4-2003 American National Standards Institute (ANSI), “Methods of Measurement of Radio Noise Emissions from Low Voltage Electrical and Electronic Equipment in the Range 9 kHz to 40 GHz” RU1139/6029 Page 7 of 54 COMPLIANCE TESTS TRANSMITTER TESTS RF OUTPUT POWER – CONDUCTED – PART 25.204 (a) Ambient temperature …
