ROL-ASI47010000802.11 b/g USB Module

8 8 0 0 2 2 . . 1 1 1 1 g g U U S S B B M M o o d d u u l l e e ASI4701 OEM Reference Installation Guide Version 1.2 1 No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from the copyright owner. All the other trademarks and registered trademarks are the property of their respective owners. Statement of Conditions We may make improvements or changes in the product described in this documentation at any time. The information regarding to the product in this manual are subject to change without notice. We assume no responsibility for errors contained herein or for direct, indirect, special, incidental, or consequential damages with the furnishing, performance, or use of this manual or equipment supplied with it, even if the suppliers have been advised of the possibility of such damages. Electronic Emission Notices This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC INFORMATION The Federal Communication Commission Radio Frequency Interference Statement includes the following paragraph: The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to overcome the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment is for home or office use. IMPORTANT NOTE FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the antenna and your body and must not be co-located or operating in conjunction with any other antenna or transmitter. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 2 R&TTE Compliance Statement This equipment complies with all the requirements of the Directive 1999/5/EC of the European Parliament and the Council of 9 March 1999 on radio equipment and telecommunication terminal equipment (R&TTE)and the mutual recognition of their conformity. The R&TTE Directive repeals and replaces in the directive 98/13/EEC. As of April 8, 2000. European Union CE Marking and Compliance Notices Products intended for sale within the European Union are marked, which indicates compliance with the applicable directives identified below. This equipment also carries the Class 2 identifier. with the Conformité Européene (CE) and European standards and amendments. We declares that the equipment described in this document is in conformance with the essential requirements of the European Council Directives, standards, and other normative documents listed below: 73/23/EEC Safety of the User (article 3.1.a) 89/336/EEC Electromagnetic Compatibility (article 3.1.b) 1999/5/EC (R&TTE) Radio and Telecommunications Terminal Equipment Directive. EN 60950 2000 Safety of Information Technology Equipment, Including Electrical Business Equipment. EN 300 328 V1.2.1(2001) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems;Data transmission equipment operatingin the 2,4 GHz ISM band and using spread spectrum modulation techniques;Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive. EN 301 489-1, V1.2.1(2002); EN 301489-17, V1.2.1(2002) – Electromagnetic compatibility and radio spectrum matters (ERM); electromagnetic compatibility (EMC) standard for radio equipment and services: Part 1: Common technical requirements; Part 17: Part 17: Specific conditions for 2,4 GHz wideband transmission systems and5 GHz high performance RLAN equipment Warning: According to ERC/REC 70-30 appendix 3 National Restrictions, annex 3 Band A “RLANs and HIPERLANs.” See list of 802.11b/g restrictions for specific countries under the heading “European Economic Area Restrictions” as below. English This product follows the provisions of the European Directive 1999/5/EC. Danish Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EF Dutch Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC. Finnish Tämä tuote noudattaa EU-direktiivin 1999/5/EY määräyksiä. French Ce produit est conforme aux exigences de la Directive Européenne 1999/5/CE. German Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 1999/5/EG. Greek Icelandic Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC. EK. 3 Italian Questo prodotto è conforme alla Direttiva Europea 1999/5/EC. Norwegian Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/CE. Portuguese Este produto cumpre com as normas da Diretiva Européia 1999/5/CE. Spanish Este producto cumple con las normas del Directivo Europeo 1999/5/CE. Swedish Denna produkt har tillver…

Text truncated - open the document above for the full version.

8 8 0 0 2 2 . . 1 1 1 1 g g U U S S B B M M o o d d u u l l e e ASI4701 OEM installation guide STATEMENT FOR MODUAL APPROVAL This product is sold to OEM integrators only. The manual for the OEM integrators must include some instructions to be followed by the end users in the user manual. For example: The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. The OEM integrators must be instructed about the end product labeling ("Contains FCC ID:ROL-ASI47010000”) This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, wireless media adapter, wireless media gateway, and similar equipment). The final end product must be labeled in a visible area with the following: " Contains FCC ID: ROL-ASI47010000 ". Manual Information for OEM integrator Following RF exposure info shall be supplied in end-users manual depends on the application. For mobile configuration of RF Exposure Information: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter

8 8 0 0 2 2 . . 1 1 1 1 g g U U S S B B M M o o d d u u l l e e ASI4701 OEM installation guide STATEMENT FOR MODUAL APPROVAL This product is sold to OEM integrators only. The manual for the OEM integrators must include some instructions to be followed by the end users in the user manual. For example: The OEM integrators must be instructed to ensure that the end user has no manual instructions to remove or install the device. The OEM integrators must be instructed about the end product labeling ("Contains FCC ID:ROL-ASI47010000”) This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example, access points, routers, wireless ADSL modems, wireless media adapter, wireless media gateway, and similar equipment). The final end product must be labeled in a visible area with the following: " Contains FCC ID: ROL-ASI47010000 ". Manual Information for OEM integrator Following RF exposure info shall be supplied in end-users manual depends on the application. For mobile configuration of RF Exposure Information: IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter

Astarte Technology Inc. 11F, No.166, Dah-Yeh RD., Peitou112 Taipei, Taiwan, R.O.C. Modular Approval Request Letter Date:Sep. 29, 2004 FCC ID: ROL-ASI47010000 Dear Application Examiner, Astarte Technology Inc..’s 802.11g USB Module, FCC ID:ROL-ASI47010000 have your authorization as a limited modular approval specific to products below: This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ADSL modems, video capture and similar equipment). The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1.”The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2.“The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs; it is integrated in chip GW3887IK. 3.”The modular transmitter must have its own power supply regulation”. The zero IF transceiver which will influence the frequency radiation, have to be 2.8V DC powered, so there are regulators in front of these chips; the part number of this regulator is ISL6411IR. The USB interface provide 5.0 VDC. It’s can operation. 4.”The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C). “The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5.”The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB interface to test kit. Please sees section Photographs of Test Configuration in the test report, the EUT was plugged in this test kit. 6.”The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. Astarte Technology Inc. 11F, No.166, Dah-Yeh RD., Peitou112 Taipei, Taiwan, R.O.C. 7.”The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. “The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are giver in the Users Manual. 8.”The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me of you have any further questions. Thanks for your attention. Best Regards, Sincerely Yours,

Astarte Technology Inc. 11F, No.166, Dah-Yeh RD., Peitou112 Taipei, Taiwan, R.O.C. Date: Sep. 29, 2004 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize Compliance Certification Services Inc. to act on our behalf in all manners relating to application for “802.11g USB Module (Model：ASI4701, FCC ID No.：ROL-ASI47010000)” authorization, including signing of all documents relating to these manners. Any and all acts carried out by Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. REMARK: 1. This authorization letter will be sent along with your application when filing with the FCC. Please follow the format and type it on company letterhead and send original to us.

Astarte Technology Inc. 11F, No.166, Dah-Yeh RD., Peitou112 Taipei, Taiwan, R.O.C. Data: Sep. 29, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID: ROL-ASI47010000 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Block Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application.

Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917208-RP Date of Issue: September 24, 2004 Page 1 of 1 EXTERNAL PHOTOGRPHS OF EUT

ModeL:ASI4701 FCC ID:ROL-ASI47010000 802.11g USB Module Astarte Technology CO.,LTD. ModeL:ASI4701 FCC ID:ROL-ASI47010000 802.11g USB Module Astarte Technology CO.,LTD.

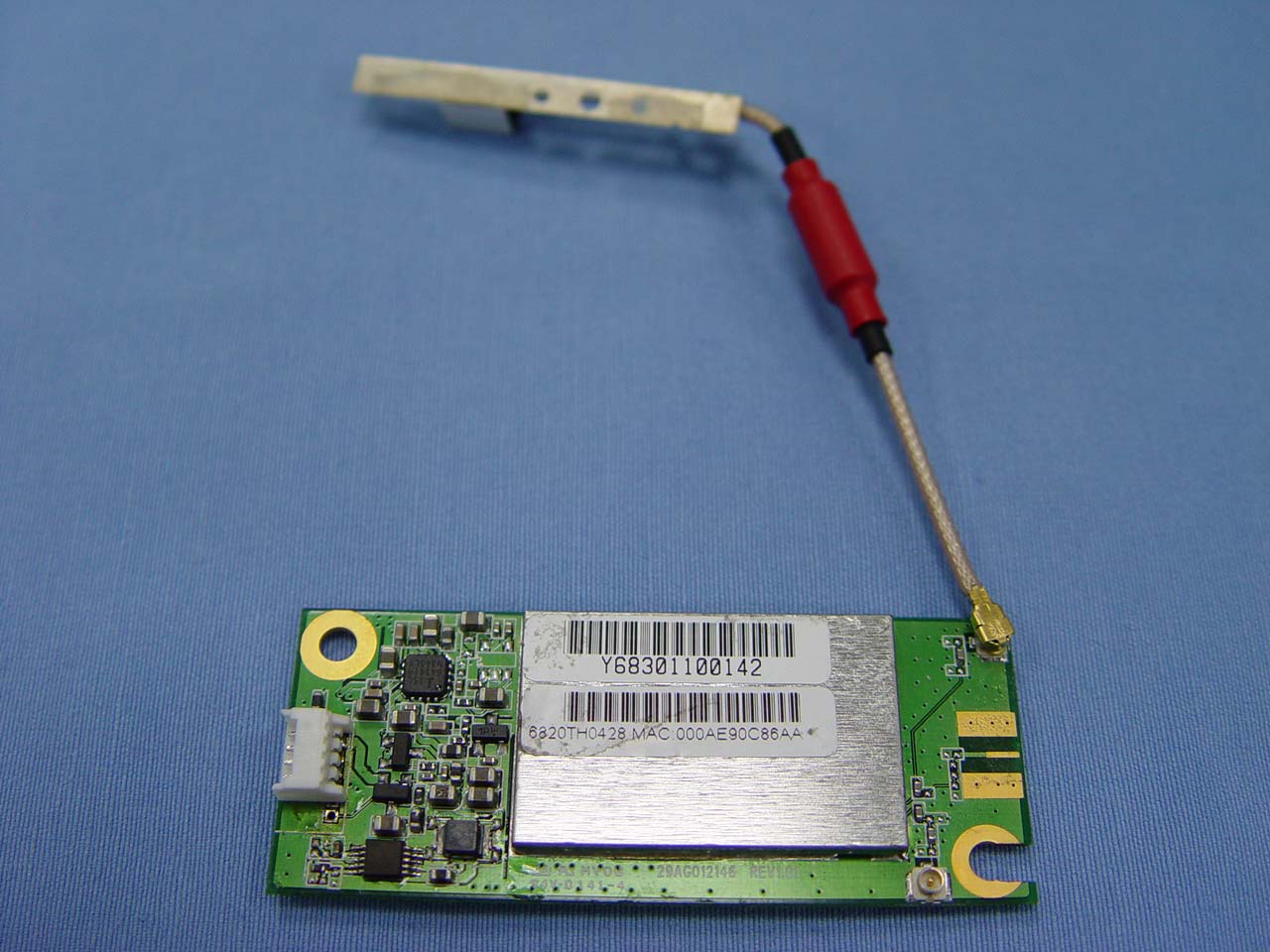

Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917208-RP Date of Issue: September 24, 2004 Page 2 INTERNAL PHOTOGRPHS OF EUT Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917208-RP Date of Issue: September 24, 2004 Page 3

APPROVAL SHEET Joymax ApprovalCustomer Approval CUSTOMER MODEL NO.: JOYMAX MODEL NO.: IFF-811XIPXX-439 DESCRIPTION: 2.4 GHz Flying Lead Wireless Antenna REV.: 00 DATE.: 2004/6/23 CUSTOMER : Tel:+886-3-4335698 Fax:+886-3-4335798 . 4335799 E-Mail:[email protected] No.5, Dong Yuan Rd.2, Jhongli Industrial Park, Jhongli City, Tao Yuan, Taiwan, R.O.C. Http://www.joymax.com.tw 5 Item Page 1. Antenna specification 2. Drawing 3. Test report Electrical test 4. Connector 1.37 I-PEX 5. Cable 6. Packing 2004/6/2300 ContentDateRev. Modification History: Index. 1-1 2-1 3-1 4-1 5-1 6-1 6-1 Model. IFF-811XIPXX-439 Description Antenna Specifications 1-1 1) This is an uncover and flying lead antenna. It is embedded in notebook for W-LAN ( IEEE 802. 11b ). Mechanical Properties 1) 2) 3) Apperance Connector Cable 4) Attachment Strength 1.37 See. Fig.1 I-PEX Soldered: 0.5 kg Electrical Properties 1) Frequency Range 2) Impedance 3) V.S.W.R. 4) Return Loss 5) Gain 6) Polarization 2.4~2.4835GHz 50 ohm nominal 2.0 -10dB 2.5 dBi (peak) Vertical UNIT: mm DATE: SCALE: Model. IFF-811XIPXX-439 Test Report 3-1 Electrica l Test Return loss V.S.W.R. Connector 4-1 I-PEX Cable 5-1 1.37 Packing 6-1 1. 1 2 3 4 2. 3. 4.

Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917212-RP FCC ID: ROL-ASI47010000 Date of Issue: September 24, 2004 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 60 FCC 47 CFR PART 15 Subpart C TEST REPORT For Astarte Technology Co., Ltd. 802.11g USB Module Trade Name: Astarte Model: ASI4701 Prepared for Astarte Technology Co., Ltd. 11F, No. 166, Dah-Yeh Rd., Peitou, Taipei 112, Taiwan, R.O.C. Prepared by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917212-RP FCC ID: ROL-ASI47010000 Date of Issue: September 24, 2004 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SUPPORT EQUIPMENT......................................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................21 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................30 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................35 7.6 SPURIOUS EMISSIONS ................................................................................................................38 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................60 Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917212-RP FCC ID: ROL-ASI47010000 Date of Issue: September 24, 2004 Page 3 1. TEST RESULT CERTIFICATION Applicant: Astarte Technology Co., Ltd. 11F, No. 166, Dah-Yeh Rd., Peitou, Taipei 112, Taiwan, R.O.C. Contact person: Simon Chen E-mail: Simonchen @airvast.com Phone: +886-3-261-0999 ext. 102 Fax: +886-3-261-6699 Equipment Under Test: 802.11g USB Module Trade Name: Astarte Model: ASI4701 Date of Test: September 20 ~ 22, 2004 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Harris W. Lai Devin Chang Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917212-RP FCC ID: ROL-ASI47010000 Date of Issue: September 24, 2004 Page 4 2. EUT DESCRIPTION Product 802.11g USB Module Trade Name Astarte Model Number ASI4701 Model Discrepancy N/A Power Supply Powered from the host device Frequency Range IEEE 802.11b,g: 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 18.31 dBm IEEE 802.11g: 16.78 dBm Modulation Technique 2Mbps: DQPSK 1Mbps: DBPSK 11M…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Refer No: 40728201 Report No: 40917212-RP FCC ID: ROL-ASI47010000 Date of Issue: September 24, 2004 Page 60 APPENDIX 1 PHOTOGRPHS OF TEST SETUP Radiated Emission Set up Photos
