ROR00000004X-1200 Intelligent Wireless Backhaul System

BLiNQ Networks Inc. X-1200 Intelligent Wireless Backhaul System User Guide Release D 0.1 Issue D01 November 2013 BLiNQ Networks Inc. X-1200 User Guide Release D 0.1 Confidential - Restricted Use and Duplication Page ii Issue D01 Revision History Date Release Issue Reason for Issue November 2013 Release D 0.1 Issue D01 Initial Draft (still in development) Contact Information: BLiNQ Networks Inc. 400 March Road, Suite 240 Ottawa, ON K2K 3H4 Web Site: http://www.blinqnetworks.com Sales Inquiries: Email: [email protected] Telephone: 1-613-599-3388 x280 Customer Support: Web: http://www.blinqnetworks.com/support Email: [email protected] Telephone: 1-613-599-3388 x270 BLiNQ Networks Inc. X-1200 User Guide Release D 0.1 Confidential - Restricted Use and Duplication Page iii Issue D01 Table of Contents 1 X-1200 System Overview ............................................................................................................1 2 X-1200 System Description .........................................................................................................5 3 Technical Specifications ..............................................................................................................9 3.1 System Parameters ....................................................................................................................... 9 3.2 OFDMA and Frame Parameters .................................................................................................. 10 3.3 Integrated RBM Antenna Performance ...................................................................................... 10 3.4 Optional Cavity Filters ................................................................................................................. 11 3.5 System Enclosure ........................................................................................................................ 11 4 System Synchronization ............................................................................................................ 13 4.1 Synchronization Services ............................................................................................................ 13 5 System Throughput Performance .............................................................................................. 15 6 Element and Network Management .......................................................................................... 16 7 Ethernet Bridge Support ........................................................................................................... 19 8 Using the X-1200 WebUI ........................................................................................................... 21 8.1 Requirements .............................................................................................................................. 21 8.2 Common X-1200 WebUI Page Items ........................................................................................... 21 8.2.1 General ................................................................................................................................ 21 8.2.2 System Status Messages ..................................................................................................... 22 8.3 Configuring Hub Modules ........................................................................................................... 23 8.3.1 Logging In ............................................................................................................................ 24 8.3.2 System Overview Page ........................................................................................................ 25 8.3.3 Setup - System Page ............................................................................................................ 26 8.3.4 Setup - Radio Interface Page ............................................................................................... 27 8.3.5 Bridge Page ......................................................................................................................... 29 8.3.6 RBMs - General RBM Page .................................................................................................. 30 8.3.7 RBMs - Default Service Page ............................................................................................... 32 8.3.8 RBMs - RBM List Page ......................................................................................................... 38 8.3.9 Performance - HM Page ...................................................................................................... 39 8.3.10 Performance - RBMs Page .................................................................................................. 40 8.3.11 PM History Page .................................................................................................................. 42 8.3.12 Events - Alarms Page ........................................................................................................... 44 8.3.13 Events - History Page .......................................................................................................... 44 8.3.14 Admin - Management Interface Page ................................................................................. 45 8.3.15 Admin - User Manager Page ............................................................................................... 46 8.3.16 Admin - SNMP Settings Page .............................................................................................. 48 8.3.17 Admin - Performance Settings Page (HM Only) .................................................................. 50 BLiNQ Networks Inc. X-1200 User Guide Release D 0.1 Confidential - Restricted Use and Duplication Page iv Issue D01 8.3.18 Admin - Software Upgrade Page ......................................................................................... 51 8.3.19 Admin - Configuration Man…

Text truncated - open the document above for the full version.

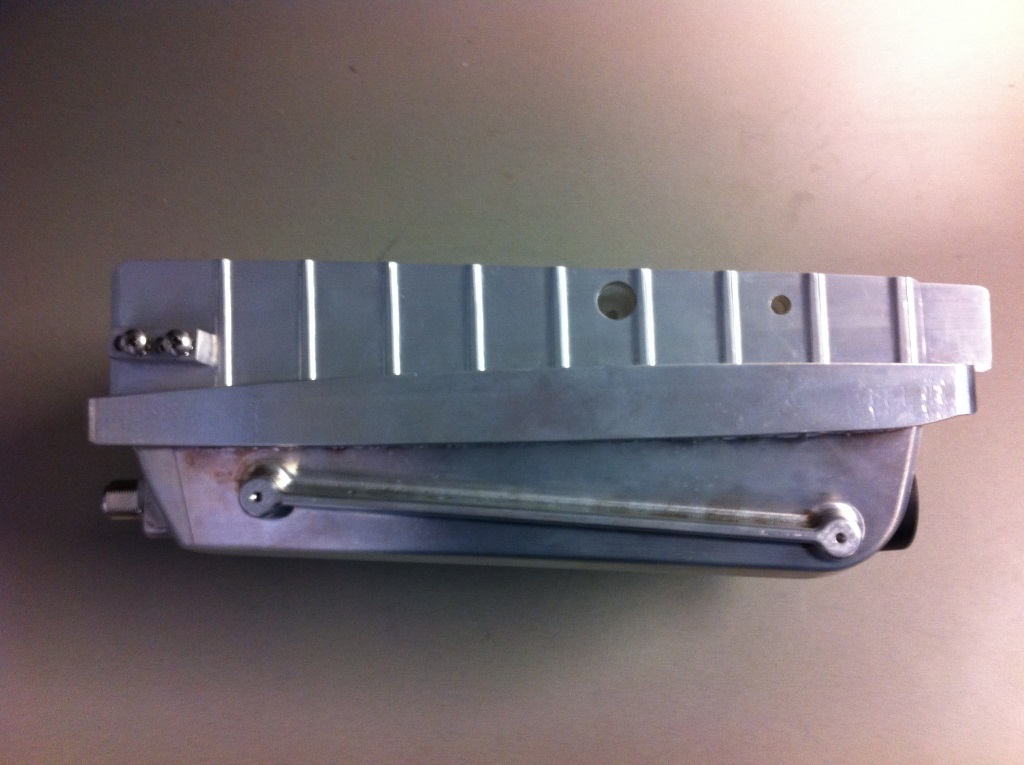

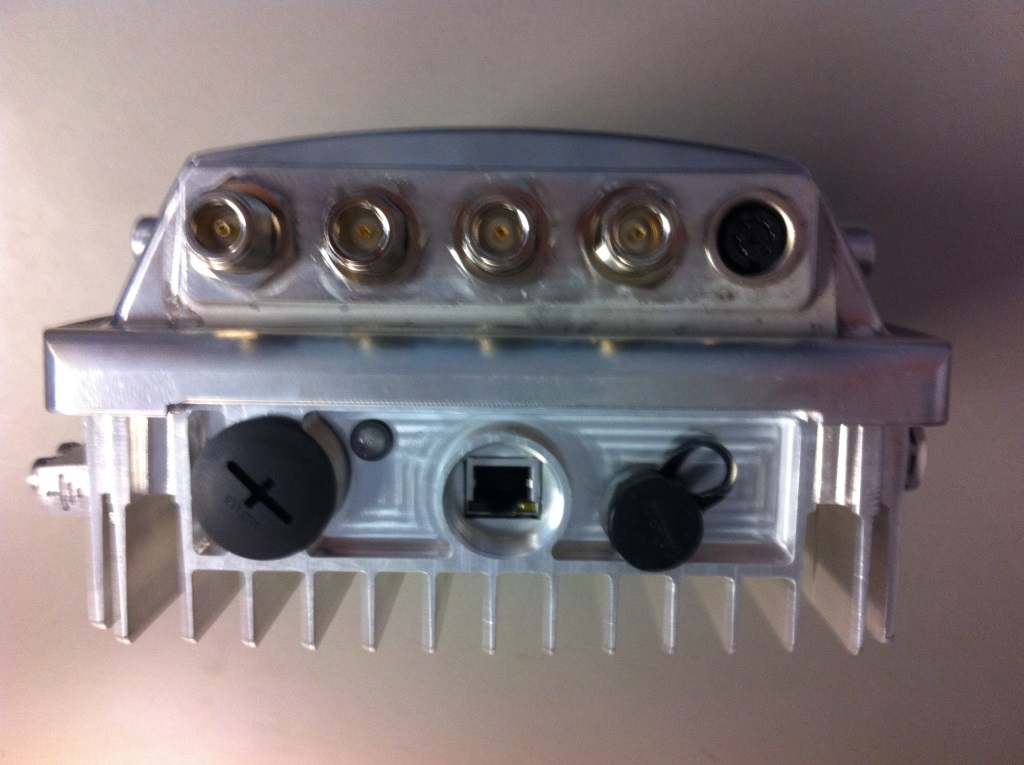

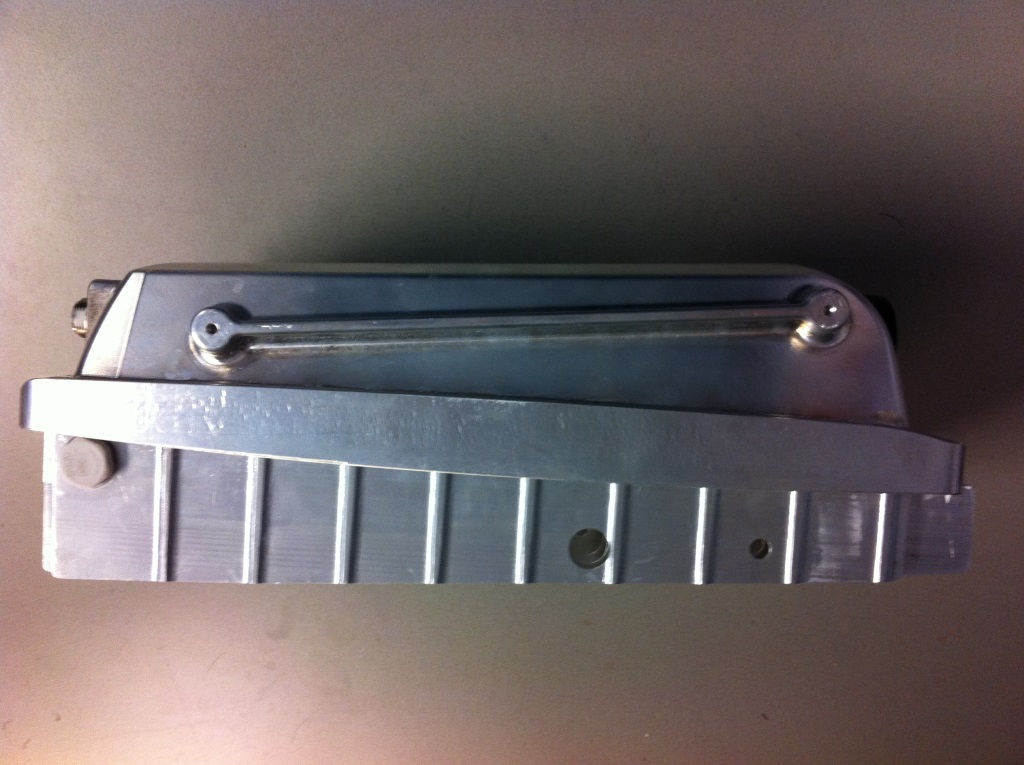

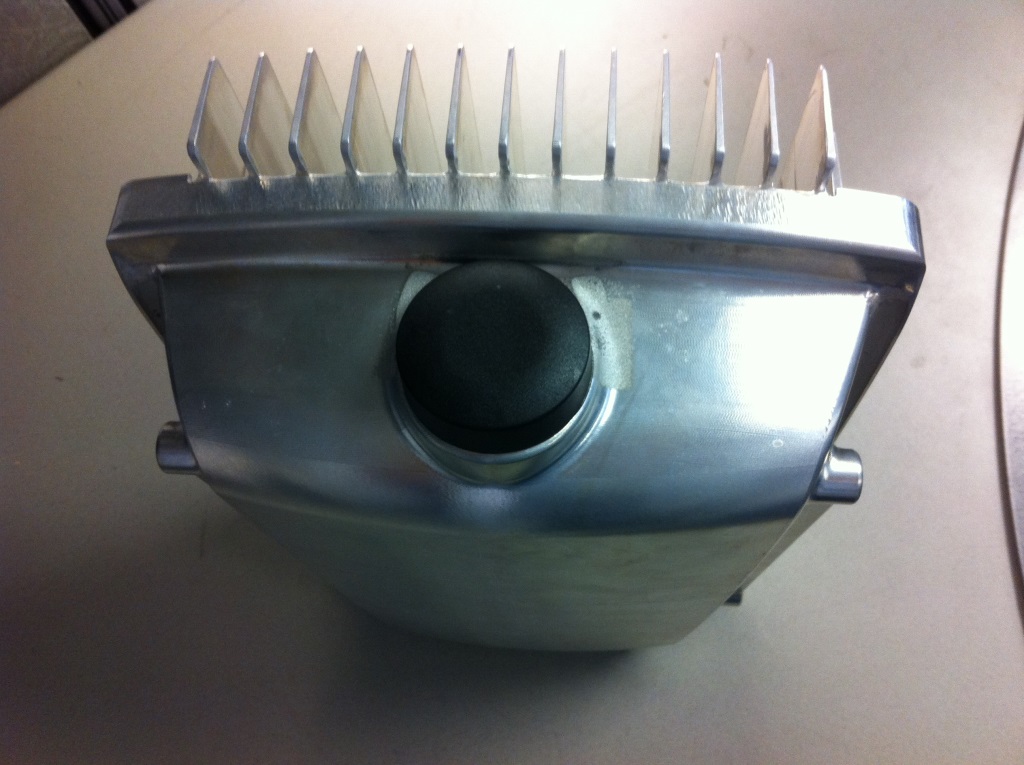

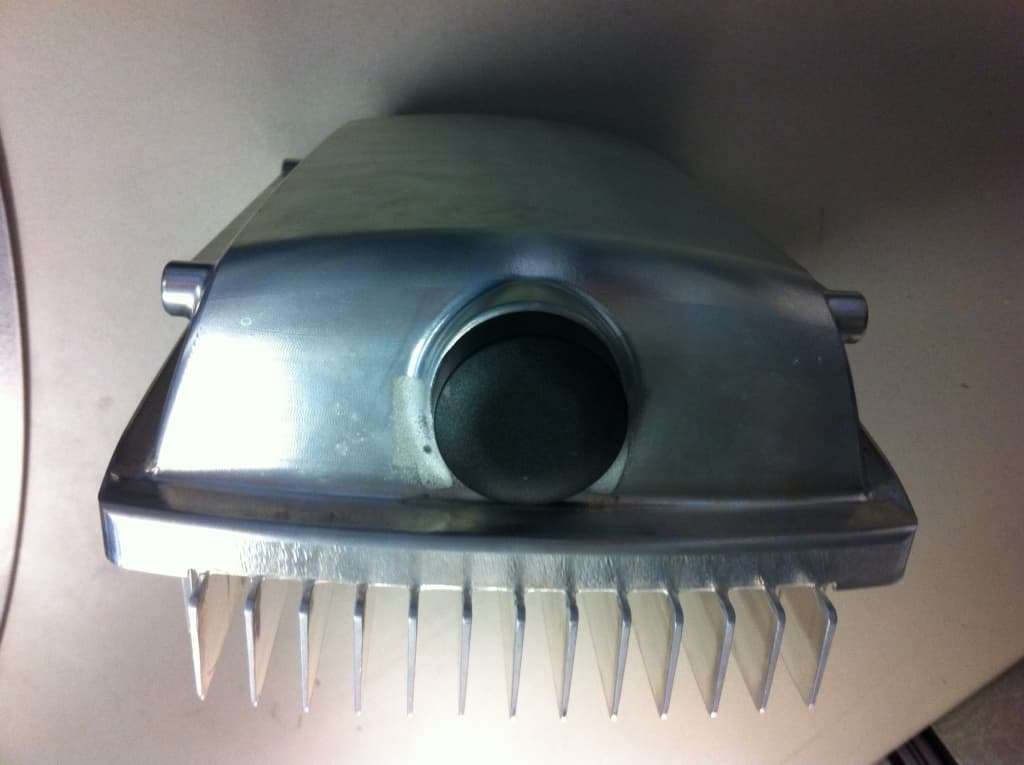

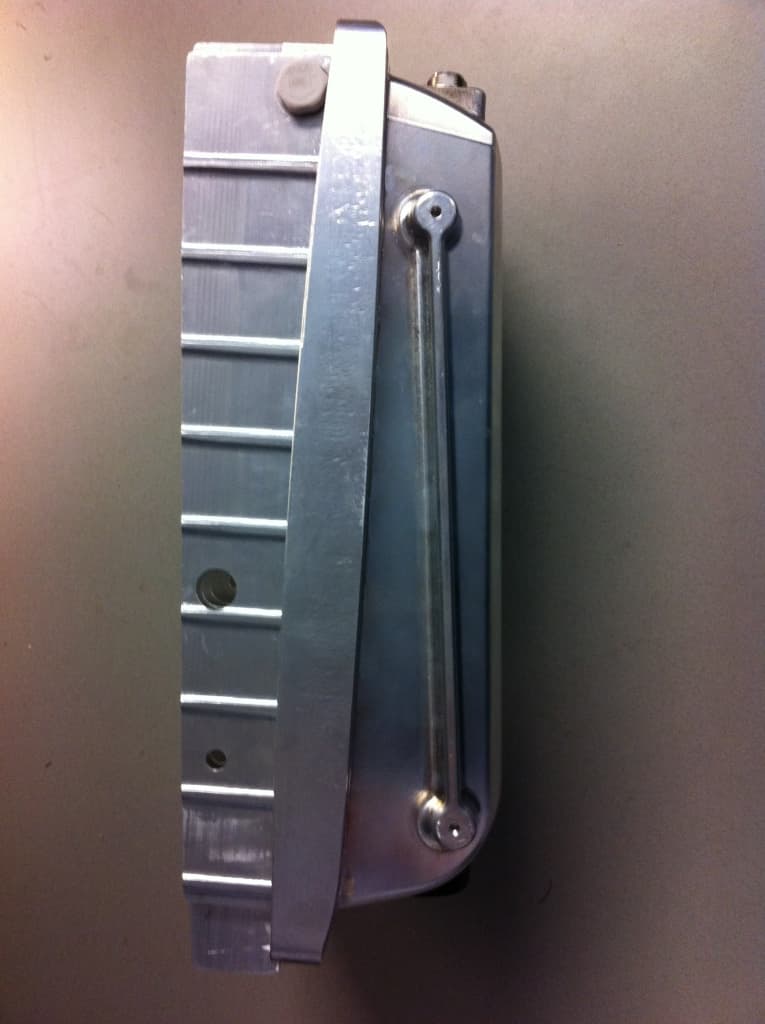

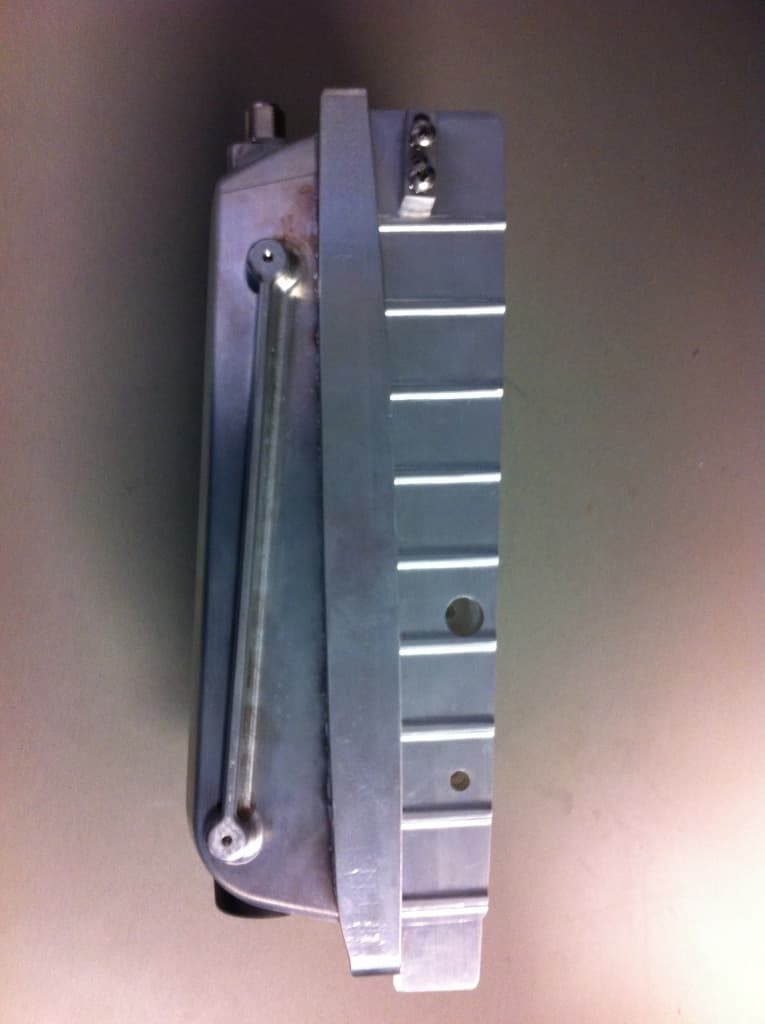

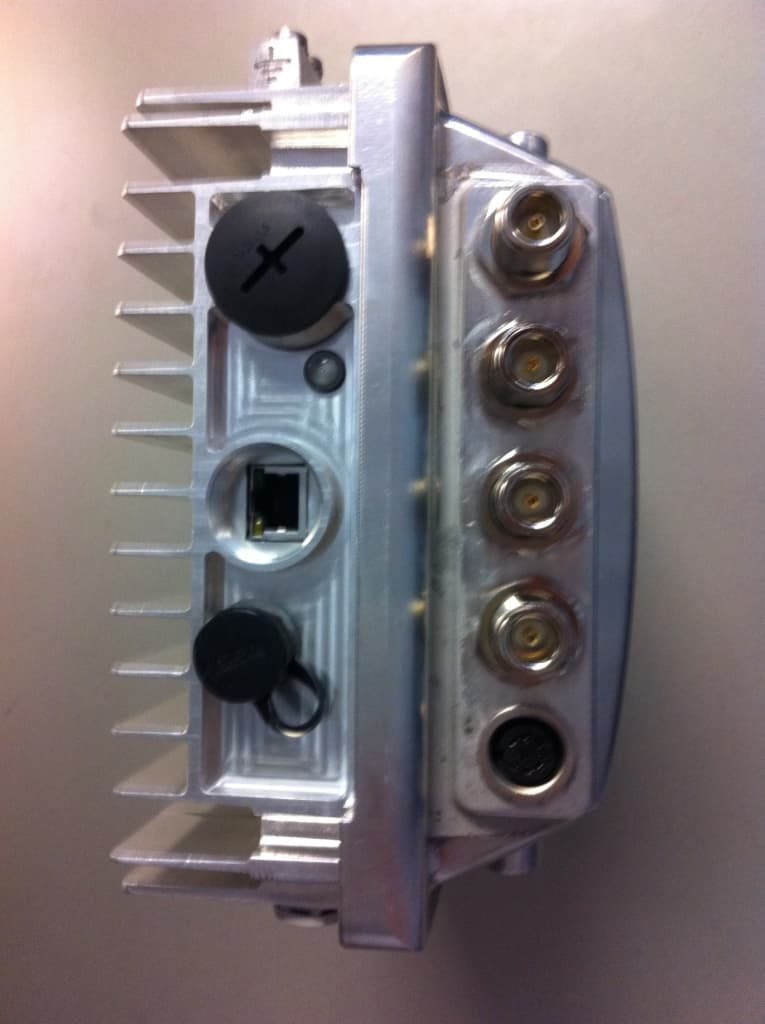

Difference between Hub and Remove Broadband Modules The Hub has the following added features: - GPS receiver - SPI interface to control external plasma antenna - Optional SFP Ethernet Interface - Aluminum base and lid The Remote Broadband Module has the following added features: - Internal 16 dBi 30 degree antenna - Aluminum base and Lexan radome

BLiNQ Module Labels and Location

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at device output terminal:28.28dBmSee note Cable and Jumper loss:1.0dB Maximum peak output power at antenna input terminal:27.28dBm 534.7430081mW Single Antenna gain (typical):17dBi Number of Antennae:1 Total Antenna gain (typical):17dBi 50.11872336(numeric) Prediction distance:50cm Prediction frequency:3680MHz MPE limit for uncontrolled exposure at prediction frequency:1mW/cm 2 Power density at prediction frequency:0.853091 mW/cm 2 8.530908W/m 2 Tx On time:1.000000ms Tx period time:1.000000ms Average Factor:100.000000% Average Power density at prediction frequency:8.530908W/m 2 Maximum allowable antenna gain:17.69004758dBi Margin of Compliance:0.690047579dB Note: Aggregated power of two carries 2 4R PG S   ONE WORLDOURAPPROVAL

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 90 Z and RSS-197.docx; Date: Nov 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Test report 267625-1TRFWL Date of issue: October 23, 2014 Applicant: BLiNQ Networks Inc. Product: Hub Module and RBM Module Model: Model variant: HX-1200 RX-1200 FCC ID: ROR00000004 Specifications:  FCC Part 90, Subpart Z Private land mobile radio services. Wireless broadband services in the 3650–3700 MHz band  RSS-197 Issue 1, February 2010 Wireless broadband access equipment operating in the band 3650–3700 MHz Report reference ID: 267625-1TRFWL Page 2 of 31 Test location Company name: Nemko Canada Inc. Address: 303 River Road City: Ottawa Province: Ontario Postal code: K1V 1H2 Country: Canada Telephone: +1 613 737 9680 Facsimile: +1 613 737 9691 Toll free: +1 800 563 6336 Website: www.nemko.com Site number: FCC: 176392; IC: 2040A-4 (3 m semi anechoic chamber) Tested by: Andrey Adelberg, Senior Wireless/EMC Specialist Reviewed by: Kevin Rose, Wireless/EMC Specialist Date: October 23, 2014 Signature: Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 267625-1TRFWL Page 3 of 31 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant .................................................................................................................................................................................................................. 4 1.2 Manufacturer ........................................................................................................................................................................................................... 4 1.3 Test specifications .................................................................................................................................................................................................... 4 1.4 Test procedure ......................................................................................................................................................................................................... 4 1.5 Statement of compliance ......................................................................................................................................................................................... 4 1.6 Exclusions ................................................................................................................................................................................................................. 4 1.7 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 RSS-Gen, Issue 3, test results.................................................................................................................................................................................... 5 2.2 RSS-197, Issue 1, tests results................................................................................................................................................................................... 5 2.3 FCC Part 90, tests results .......................................................................................................................................................................................... 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .............................................................................................................................................................................................. 6 3.4 Product description and theory of operation ...........................................................................…
