ROY3102PNAREWireless Transceiver System

--------------------------------------------------------------------------------------- Read this user guide carefully for safe operation and proper use of the product. Features and specifications are subject to change without notification. Toughbook Arbitrator WIRELESS TRANSCEIVER SYSTEM ARB-HT3G User Guide FCC RF Radiation Exposure Statement This receiver complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This receiver must not be co- located or operated in conjunction with any other antenna or transmitter. Version 3.00 CAUTION 1 2 1. When Using the Battery Danger (1) Misusing the battery may cause the battery to get hot, explode, or ignite and cause serious injury. Be sure to follow the safety rules listed below: - Do not place the battery in fire or heat the battery. - Do not install the battery backwards so that the polarity is reversed. - Do not connect the positive terminal and the negative terminal of the battery to each other with any metal object (such as a wire). - Do not carry or store the batteries together with necklaces, hairpins, or other metal objects. - Do not pierce the battery with nails, strike the battery with a hammer, step on the battery, or otherwise subject it to strong impacts or shocks. - Do not solder directly onto the battery. - Do not expose the battery to water or salt water, or allow the battery to get wet. (2) Do not disassemble or modify the battery. The battery contains safety and protection devices which, if damaged, may cause the battery to generate heat, explode or ignite. (3) Do not place the battery on or near fire, stoves, or other high temperature locations. Do not place the battery in direct sunlight, use or store the battery inside cars in hot weather. Doing so may cause the battery to generate heat, explode, or ignite. Using the battery in this manner may also result in a loss of performance and a shortened life expectancy. (4) Do not insert the battery into equipment designed to be hermetically sealed. In some cases hydrogen or oxygen may be discharged from the cell which may result in rupture, fire or explosion. CAUTION : Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. (Please refer to instruction for safe disposal of lithium polymer battery at page#3) This device complies with Part 15 and RSS-GEN of the FCC and IC rules. Operation is subject to the following conditions; (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION : Changes or modifications not expressly approved by the party responsible for compliance could Void the user’s authority to operate this device. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The belt clip is only applied to the TX. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided.. 1 2 SPECIFICATIONS Power DC 12V ~ 24V for RX Frequency (MHz) 900MHz FHSS with 902.5 ~ 927.5MHz Number of Channel 51 Channels Channel Space 500KHz Speech Coder 8kHz Mono Type of Modulation GFSK MODULATION / DEMODULATION Receiver Sensitivity Power Consumption Typical -94dBm Maximum when charging: 670mA Maximum when Rec(RX): 140mA RX Power Levels Max Peck Power. 26dBm Temperature Range Operating: 14°F ~ 122°F ( -10°C ~ 50°C ) Storage: -4°F ~ 140°F ( -20°C ~ 60°C ) Dimensions (L x W x H) RX: 94mm x 43mm x 73.7mm (3.7” x 1.69” x 2.9”) CAUTION Warning Do not continue charging the battery if it does not charge within the specified charging time. Doing so may cause the battery to become hot, explode, or ignite. There is a risk of explosion if the battery is replaced by an incorrect type. Dispose of used batteries according to the instructions. (Please refer to below instruction for safe disposal of lithium polymer battery) 2. While Charging Caution The temperature range over which the battery can be charged is 10°C to 45°C. Charging the battery at temperatures outside of this range may cause the battery to become hot or to break. Charging the battery outside of this temperature range may also harm the performance of the battery or reduce the battery’s life expectancy. 3. When Discharging the Battery Danger Do not discharge the battery using any device except for the specified device. When the battery is used in devices aside from the specified device it may damage the performance of the battery or reduce its life expectancy, and if the device causes an abnormal current to flow, it may cause the battery to become hot, explode, or ignite and cause serious injury. Caution The temperature range over which the battery can be discharged is -10°C to 45°C. Use of the battery outside of this temperature range may damage the performance of the battery or may reduce its life expectancy. Safe Disposal of Lithium Polymer Battery 1)Battery cells be fully discharged before disposal. 2)If physically damaged, it is not recommended to discharge battery cells before disposal. 3)Battery must also be cool before proceeding disposal. 4)Submerge the battery into a bucket or tub of salt water. This container should have a lid but it does not need to be air-tight. Allow the battery to remain in the tub of slat water for at least 2 weeks. 5)Remove the battery from the salt water and dispose of as hazardous waste. 3 4 TIP 1: How to undock TX from RX and Desktop Charger LED Indication on TX and RX To prevent units from being broken, undock the TX from the RX as shown in the image to the right. Bat…

Text truncated - open the document above for the full version.

Trinus Systems Inc. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subj ect: Request for Confidential ity FCC ID: ROY3102PNARE Whom It M ay Concern: Pur suant to the provisions of Sections 0.457 and 0.459 of the Commission’s rule s (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as conf idential document from public disclosure indefinitely. Schematic Di agr am Block Di ag ram Ci rcuit D es cription Theory of Operation Above mentioned document contains detailed system and equipment description are considered as p roprietary information in operation of the equipment. The public disclosu re of above documents might be harmful to our company and would give competitor an unfair advantage in the m arket. It is our understanding that all measureme nt t est reports, FCC ID l abe l format and correspondent during certification revie w p rocess cannot be granted as conf identia l d ocuments and those information will be ava ilable for public review o nce the grant of equipment authorization is issu ed. Be st Regards Presid ent Trinus Systems Inc. January 22, 2014

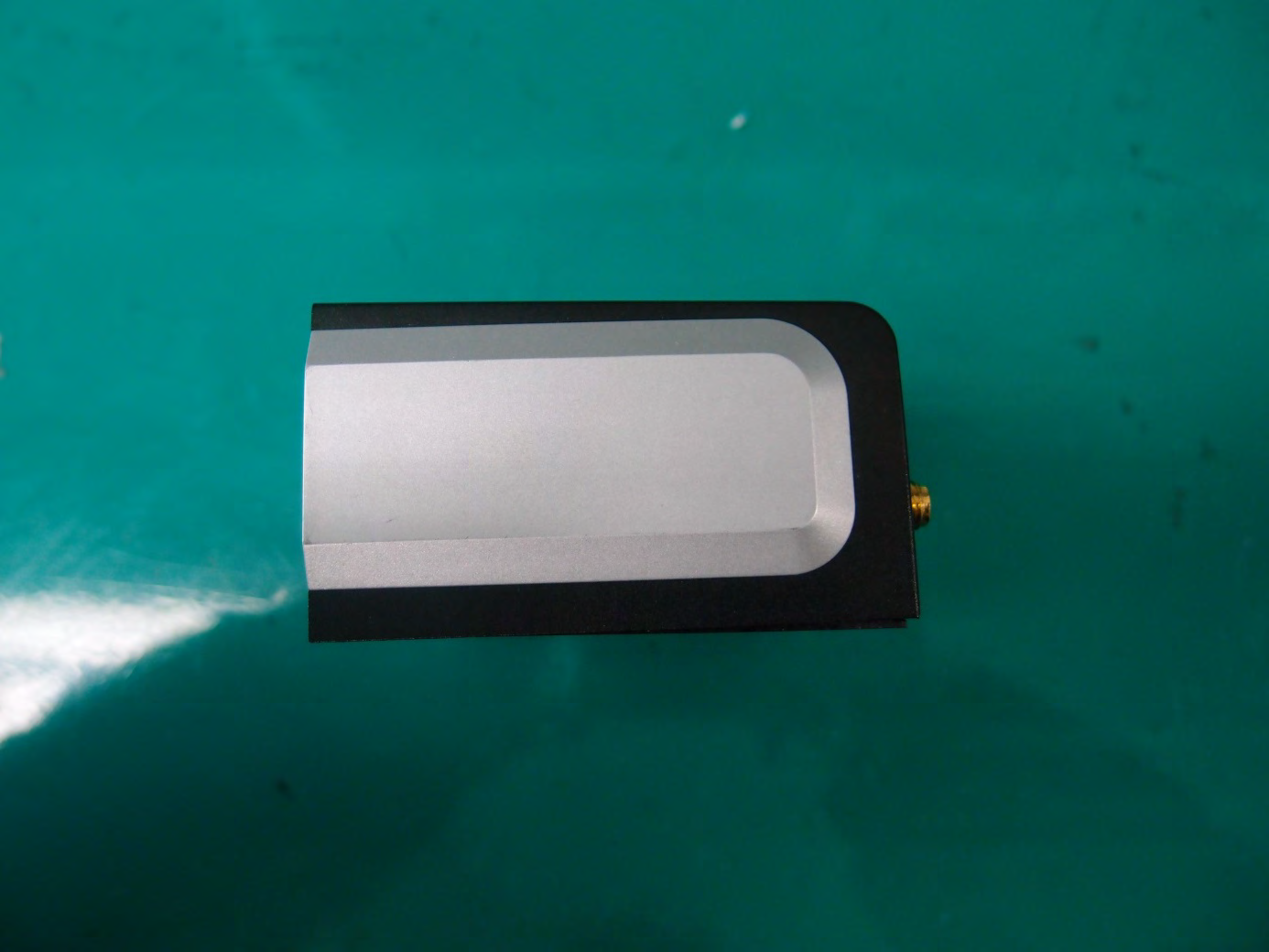

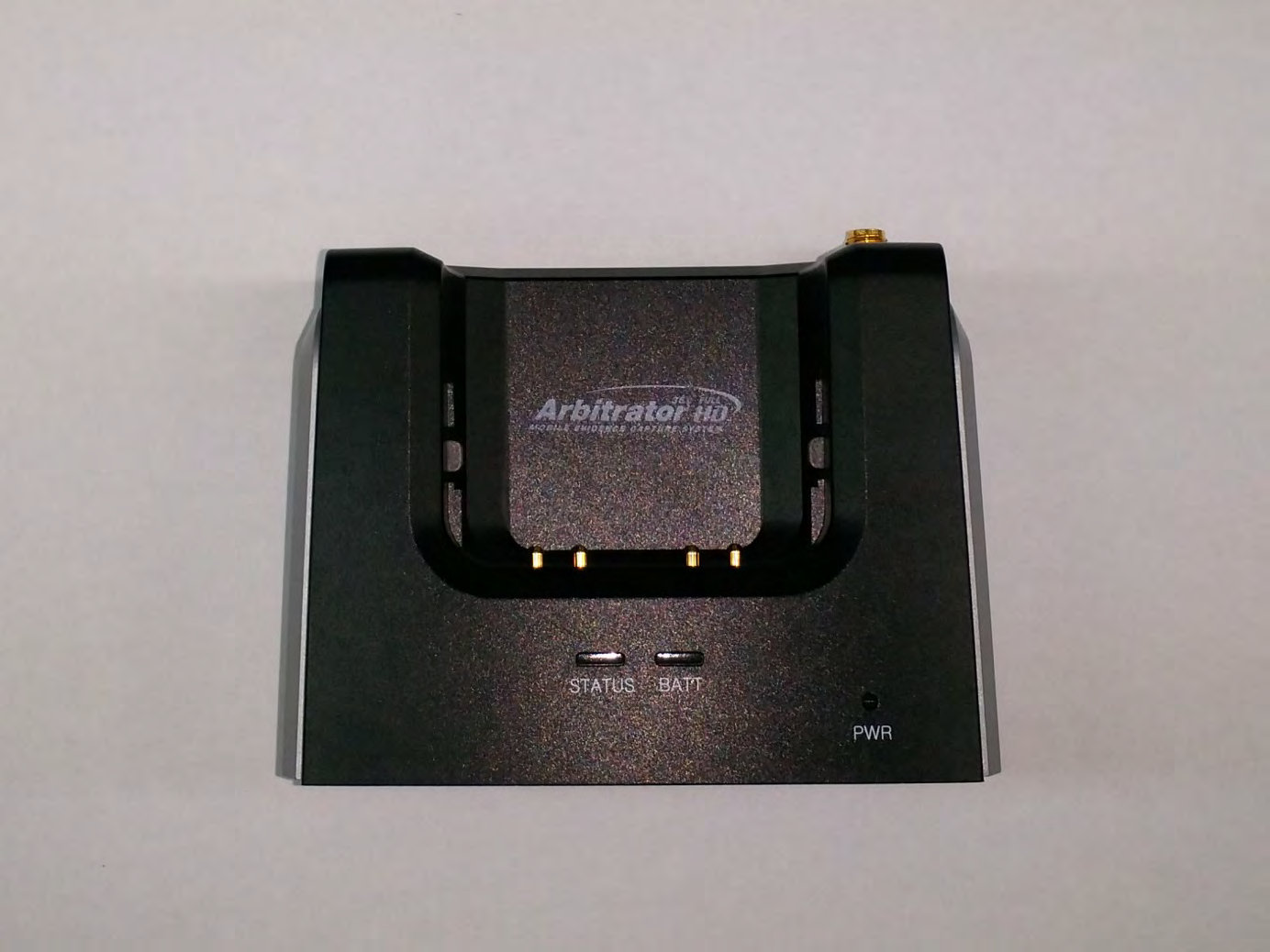

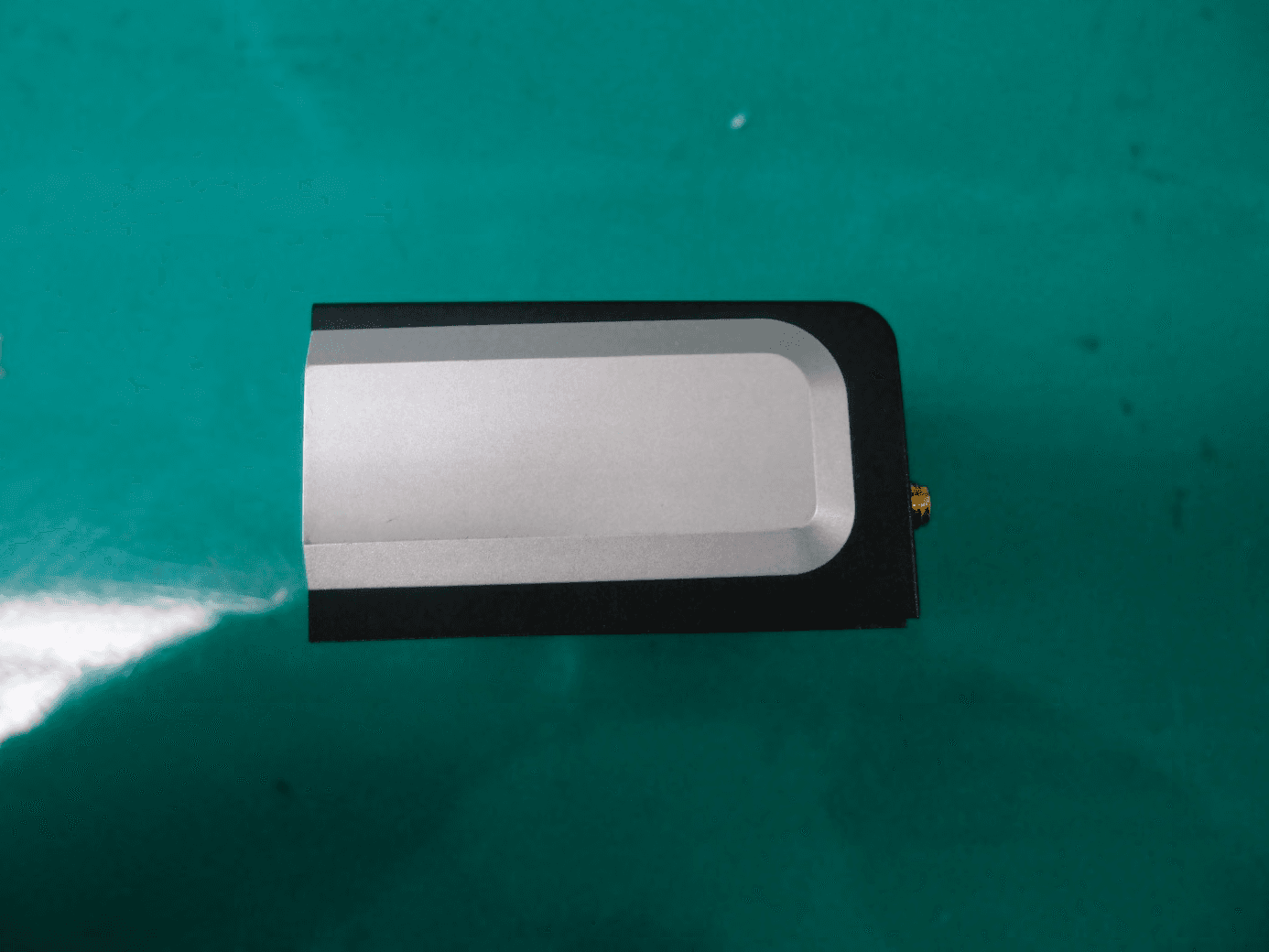

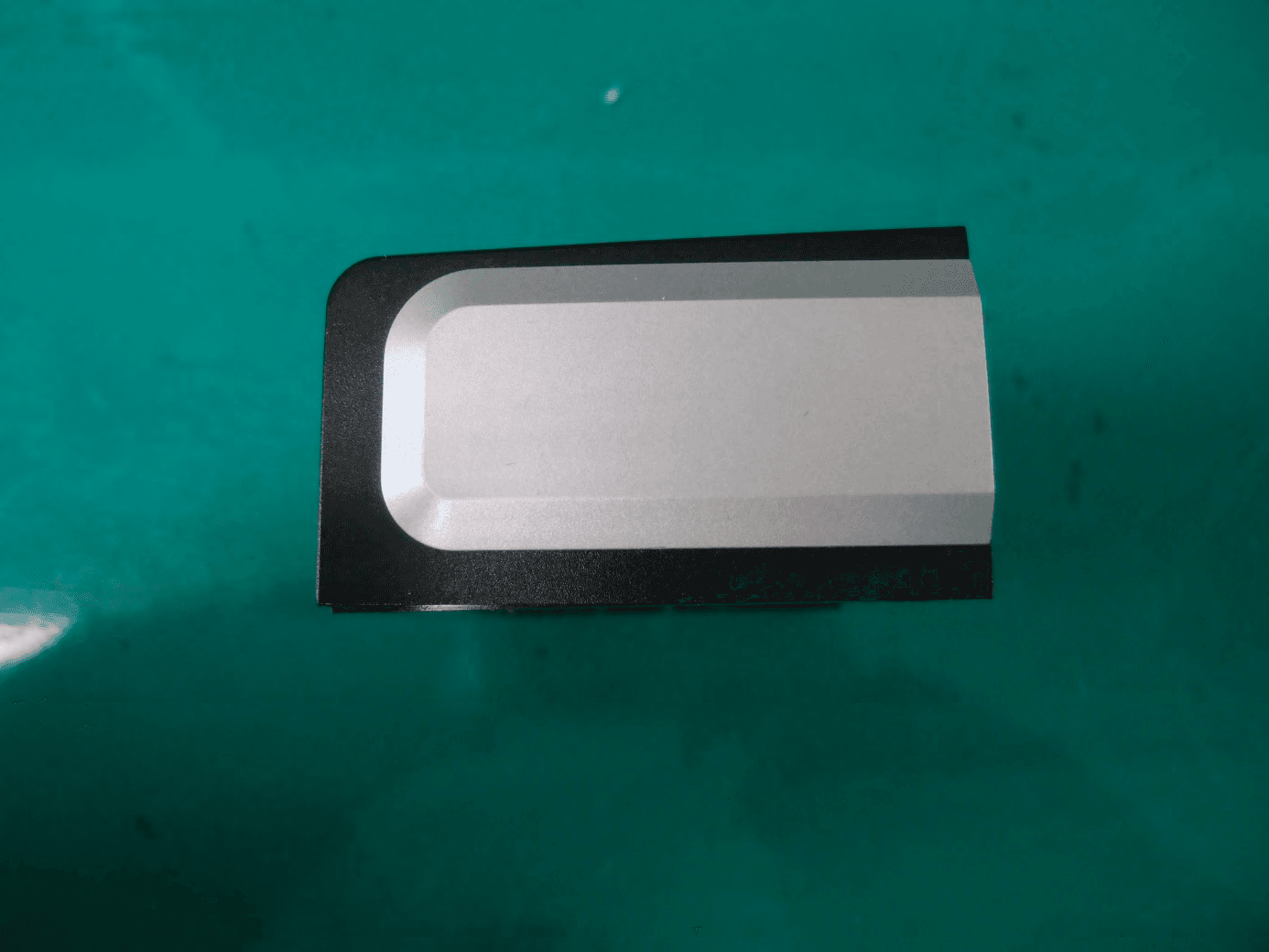

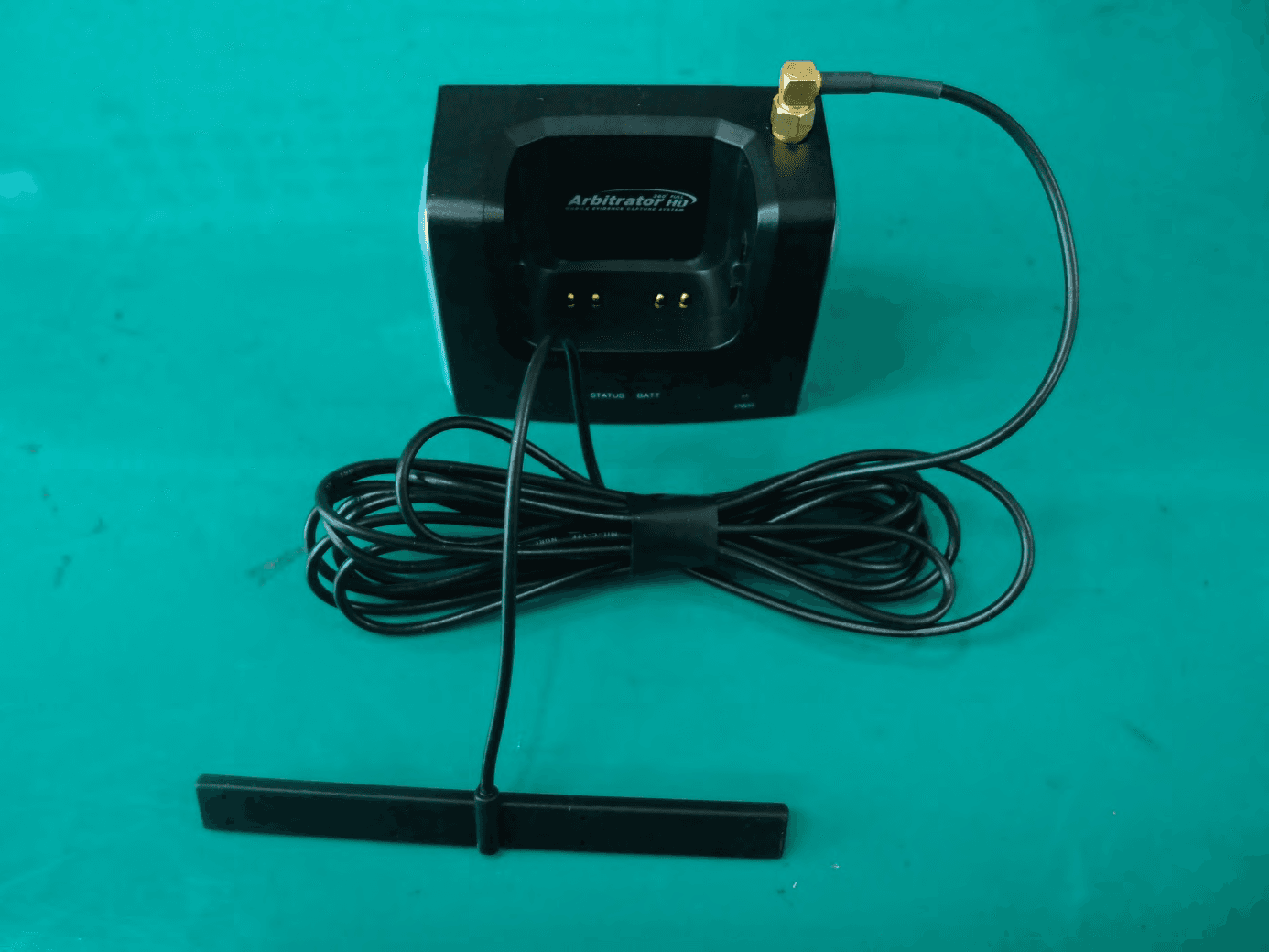

Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 1. Appearance Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 2. Front Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 3. Back Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 4. Top Side Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 5. Bottom Side Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 6. Left Side Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 3. External Photos of EUT 7. Right Side

Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 1. Front Trinus Systems Inc. Wireless Transceiver System ARB-HT3G RX It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209Rev.0) Testing and Certification Agency Appendix 4. Internal Photos of EUT 2. Back

Testing and Certification Laboratory Company : Trinus Systems Inc. Model : ARB-HT3G RX Page : 1 of 3 It should not be reproduced in full or partly without the written approval by TCL of RAPA. RF exposure statement According to §1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range [MHz] Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [mW/cm 2 ] Averaging Time [minute] Limits for General Population/Uncontrolled Exposure 0.3 – 1.34 614 1.63 100 30 1.34 – 30 824/f 2.19/f 180/f 2 30 30 – 300 27.5 0.073 0.2 30 300 – 1500 - - f/1500 30 1500 – 100 000 - - 1.0 30 ※f = frequency in MHz 1. Friis transmission formula P d = (P out X G) / (4πr 2 ) P d = Power density P out = power input to antenna G = power gain r = dist ance to the center of radiation of the antenna Testing and Certification Laboratory Company : Trinus Systems Inc. Model : ARB-HT3G RX Page : 2 of 3 It should not be reproduced in full or partly without the written approval by TCL of RAPA. 2. Information of Antenna • Model Name : HWC-914DP-RSMA-3M Testing and Certification Laboratory Company : Trinus Systems Inc. Model : ARB-HT3G RX Page : 3 of 3 It should not be reproduced in full or partly without the written approval by TCL of RAPA. 3. Calculation of MPE at 20 cm DC Power Frequency [MHz] Max.Average Tune up Power [dBm] Antenna Gain [dBi] EIRP Power density At 20 cm [mW/cm 2 ] Limit [mW/cm 2 ] [dBm] [mW] 12 / 24 V 902.5 26 1.64 27.64 580.76 0.11559 1.0 914.5 27.64 580.76 0.11559 927.5 27.64 580.76 0.11559 • DC 12.0 / 24.0 V The maximum conducted power is 26.00 dBm; antenna is fix-mounted with a maximum gain of 1.64 dBi gain. Therefore, to comply with RF Exposure Requirement, the MPE is calculated. The maximum Peak EIRP calculated is 27.64 dBm. The Power Density can be calculated using the formula. It is considered that 20 cm is the minimum distance that a user can go closer to the EUT. At 0.2 m, S = 0.11559 mW /cm 2 , which is below the MPE Limit of 1 mW/cm 2

Page : 1 / 59 Report No. : RAPA13-O-855 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory TEST REPORT Report Number RAPA13-O-855 Type of Equipment Wireless Transceiver System Model Name ARB-HT3G RX FCC ID ROY3102PNARE IC Number 5479A-102RX00 Applicant Name Trinus Systems Inc. Logo Address #801, Ilsan-Ro 142, Ilsandong-Gu, Goyang-Si, Gyeonggi-Do, Korea Manufacturer Name Trinus Systems Inc. Address #801, Ilsan-Ro 142, Ilsandong-Gu, Goyang-Si, Gyeonggi-Do, Korea Test period December 09, 2013 to December 23, 2013 Issuing date of report December 27, 2013 Total page 59 pages (including this page) SUMMARY The equipment complies with FCC Part 15.247: Operation within the bands 902 MHz to 928 MHz, 2 400 MHz to 2 483.5 MHz, and 5 725 MHz to 5 850 MHz and IC RSS-210 Issue8 Annex 1-2010. This test report contains only the results of a single test of the sample supplied for the examination. It is not a general valid assessment of the features of the respective products of the mass- production. Date : December 27, 2013 Date : December 27, 2013 Prepared and tested by Ta e Yang Yo o n Reviewed by Sukil Park Manager / TCL of RAPA Executive Managing Director / TCL of RAPA Page : 2 / 59 Report No. : RAPA13-O-855 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory CONTENTS 1. GENERAL DESCRIPTION .............................................................................................................. 3 1.1 Applicant .................................................................................................................................................... 3 1.2 Manufacturer ............................................................................................................................................. 3 1.3 Basic description of EUT.......................................................................................................................... 3 1.4 Electrical specification ............................................................................................................................. 4 2. General information of test ............................................................................................................ 5 2.1 Standard for measurement methods ...................................................................................................... 5 2.2 Description of EUT modification ............................................................................................................. 5 2.3 Description of test system configuration ............................................................................................... 5 3. Measurement data .......................................................................................................................... 6 3.1 Spurious Radiated emission .................................................................................................................... 6 3.2 Frequency separation ............................................................................................................................. 10 3.3 Number of hopping channels ................................................................................................................ 13 3.4 Occupied bandwidth ............................................................................................................................... 15 3.5 Average time of occupancy ................................................................................................................... 28 3.6 Maximum peak output power ................................................................................................................ 31 3.7 Conducted emission and band edge .................................................................................................... 38 4. Test equipment list ...................................................................................................................... 59 Page : 3 / 59 Report No. : RAPA13-O-855 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1. GENERAL DESCRIPTION 1.1 Applicant • Company name : Trinus Systems Inc. • Address : #801, Ilsan-Ro 142, Ilsandong-Gu, Goyang-Si, Gyeonggi-Do, Korea • Contact person : Ahnse Lee • Phone/Fax : +82-31-904-5588 / +82-31-904-5696 1.2 Manufacturer • Company name : Trinus Systems Inc. • Address : #801, Ilsan-Ro 142, Ilsandong-Gu, Goyang-Si, Gyeonggi-Do, Korea • Contact person : Ahnse Lee • Phone/Fax : +82-31-904-5588 / +82-31-904-5696 1.3 Basic description of EUT • Product name : Wireless Transceiver System • Model name : ARB-HT3G RX • Serial number : N/A • Frequency : 902.5 MHz ~ 927.5 MHz • Number of channel(s) : 51 Channels • Modulation method : FHSS • FCC Rule Part(s) : FCC CFR47 Part 15 Subpart C Section 15.247 • IC Rule Part(s) : IC RSS-210 Issue8 Annex 8-2010 • FCC classification : DSS / Part 15 Spread Spectrum Transmitter (FHSS) • IC classification : Annex 8 / Frequency Hopping and Digital Modulation Systems Operating in the bands 902 - 928 MHz, 2 400 - 2 483.5 MHz and 5 725 - 5 850 MHz • Test period : December 09, 2013 to December 23, 2013 • Issuing date of report : December 27, 2013 • Place of test : Head office 824 & B104, Anyang Megavalley, 799, Gwanyang-dong, Dongan-gu, Anyang-si, Gyeonggi-do 431-767, Korea Open area test site 80, Jeil-ri, Yangji-myun, Cheoin-gu, Yongin-si, Gyeonggi-do 449-825, Korea (FCC Registration Number : 337229) (IC Submission Number : 143881) (KCC Designation Number : KR0027) Page : 4 / 59 Report No. : RAPA13-O-855 It should not be reproduced in full or partly without the written approval by TCL of RAPA. FCC CFR Part 15.247(Rev.0) Testing and Certification Laboratory 1.4 Electrical spec…

Text truncated - open the document above for the full version.

Trinus Systems Inc. Wireless Transceiver System ARB-HT3G It should not be reproduced in full or partly without the written approval by TCA of RAPA. FCC CFR Part15.209(Rev.0) Testing and Certification Agency Appendix 1. Photos of Test Setup
