RPARFA3RF-Module (RFID TAG Reader/Writer)

1 RF-MODULE-3CH-V3(Type: 045-50007) User’s Manual Ver. 1.0 Riso Kagaku Corporation 2 This manual describes the use, the functions and the performance of the Radio Frequency Identification System RF-MODULE-3CH-V3. The system is so manufactured that it can not be repaired or replaced by the user; and therefore, if there are such needs, please contact Riso Kagaku Corporation or its agent. No service work should be started before the service person has read this manual. Features This product uses radio frequency of 13.56 MHz to communicate with the tags; thus, it should conform to any relative laws and regulations of the country or the region. Authorization of the module or the printer into which the module is installed may be required in some countries or regions. Cautions 1. Use or store this product on the temperature and humidity conditions mentioned below, so as to maintain its operational reliability. 2. Use or store this product in an environment free of explosive gases, inflammable gases, corrosive gases, oils, organic solvents, dust, salt and metal powders. 3. Keep this product free of direct shock, strong vibration or sunshine. 4. To communicate with the tags, this product uses 13.56 MHz radio frequency, which may be interfered by radio waves (noises) emitted from a transceiver, a motor, a monitor, a power supply (including a power supply IC), etc. Please make sure that such interferences will not occur before using the product in a place near to these devices. 5. Take proper measures to avoid any possible electrostatic discharge to the product, which may damage the product. 6. After doing the wiring, make sure the connectors are fastened properly. Warning Do not alter any part of the product. Alteration of the printed wiring board, the antennas or the connecting cables of the module may damage the control board of the printer, and is an illegal act if it causes the modular transmitter emissions out of the limits provided by laws or regulations. Specifications 3 Dimensions Less than 60 x 70 x 14.2 mm Transmitting Frequency 13.56 MHz Transmission field strength Less than 500 μV/m at 3m Operating Temperature 0 to +50 o C Storage Temperature -20 to +60 o C Operating Humidity 25 to 85% RH (Without condensation) Supply voltage 5 V dc +/- 10% Discarding the Product The product should be discarded as normal printed wiring boards. If you do not know how such boards should be discarded, ask Riso Kagaku Corporation, its agent or the government. Notice about the law and the standard FCC ID: RPARFA3 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that unauthorized changes or modifications not approved could void the user's authority to operate the equipment. Canada IC: 4819A-RFA3 Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

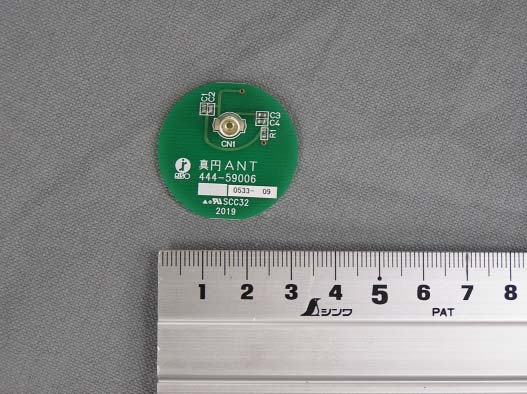

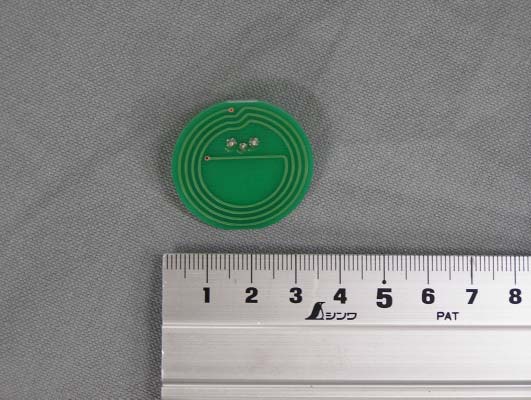

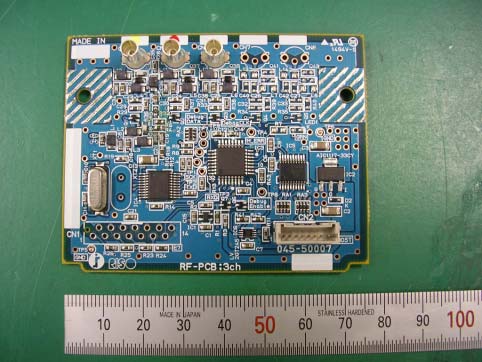

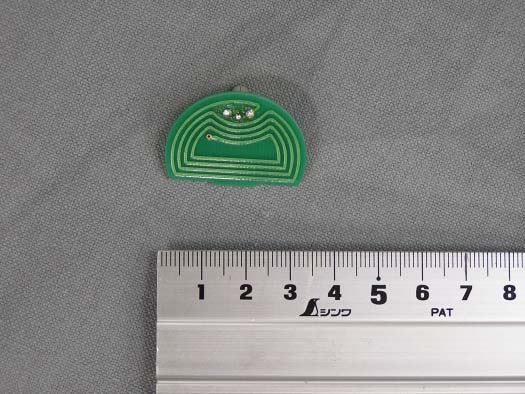

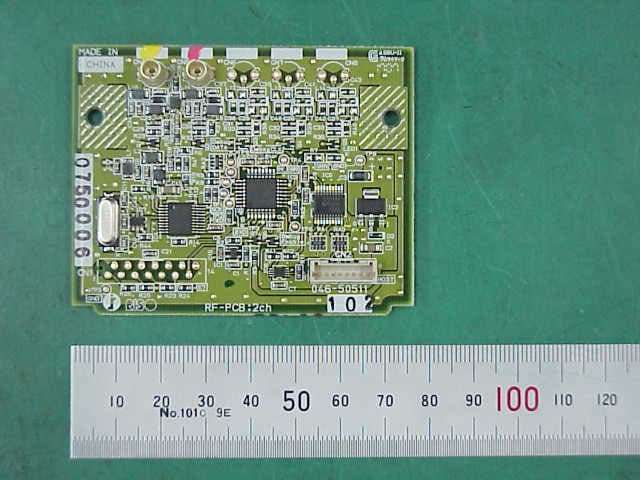

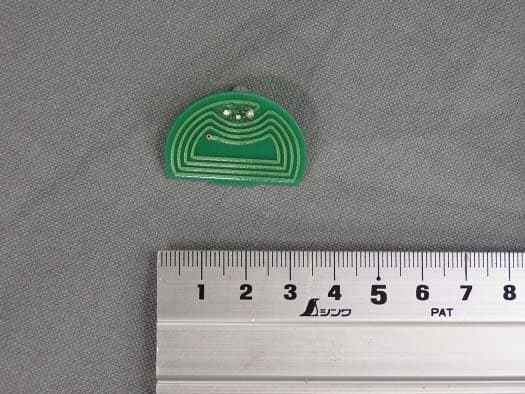

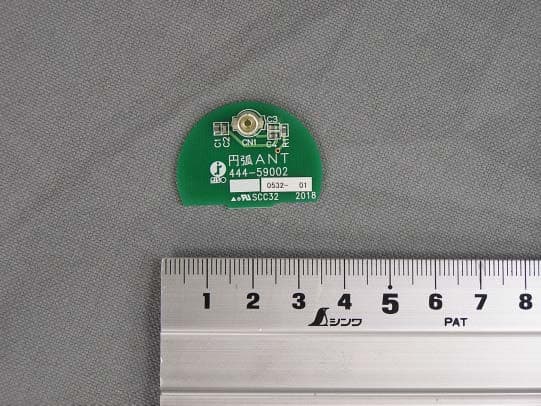

FCC ID: RPARFA3 045-50007 (RF-MODULE-3CH-V3) Component side FCC ID: RPARFA3 444-59002 (D-Shape Antenna) Component side FCC ID: RPARFA3 444-59006 (O-Shape Antenna) Component side FCC ID: RPARFA3 045-50007 (RF-MODULE-3CH-V3) Solder side FCC ID: RPARFA3 444-59002 (D-Shape Antenna) Solder side FCC ID: RPARFA3 444-59006 (O-Shape Antenna) Solder side

FCC ID: RPARFA3 FCC ID LABEL AND LOCATION FCC ID Label for 045-50007(RF-MODULE-3CH-V3) FCC ID LABEL LOCATION 16mm 17.5mm

FCC ID: RPARFA3 045-50007 (RF-MODULE-3CH-V3) Component side FCC ID: RPARFA3 444-59002 (D-Shape Antenna) Component side FCC ID: RPARFA3 444-59006 (O-Shape Antenna) Component side FCC ID: RPARFA3 045-50007 (RF-MODULE-3CH-V3) Solder side FCC ID: RPARFA3 444-59002 (D-Shape Antenna) Solder side FCC ID: RPARFA3 444-59006 (O-Shape Antenna) Solder side

JAPAN QUALITY ASSURANCE ORGANIZATION 2096, OHATA, TSURU-SHI, YAMANASHI 402-0045, JAPAN PHONE +81-554-43-5517, FAX +81-554-43-6316 JQA File No.: 441-50434 Issue Date : August 9, 2005 Page 1 of 28 EMI TEST REPORT JQA File No. : 441-50434 Model No. : 045-50007 Type of Equipment : RF-Module (RFID Tag Reader/Writer) Regulations Applied : CFR 47 FCC Rules and Regulations Part 15 FCC ID : RPARFA3 Applicant : RISO KAGAKU CORPORATION Address : 127-7, Taninosawa, Fukuda, Ami-machi, Inashiki-gun, Ibaraki-ken 300-1156, Japan Manufacture : RISO KAGAKU CORPORATION Address : 127-7, Taninosawa, Fukuda, Ami-machi, Inashiki-gun, Ibaraki-ken 300-1156, Japan Received date of EUT : July 23, 2005 Final Judgment : Passed TEST RESULTS IN THIS REPORT are obtained in use of equipment that is traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. The test results only responds to the tested sample. THIS REPORT should not be reproduced, except in full, without the approval of the JQA Safety & EMC Center EMC Engineering Department TSURU EMC Branch. JQA Application No. :441-50434 FCC ID : :RPARFA3 Model No. :045-50007 Issue Date August 9, 2005 Standard :CFR 47 FCC Rules Part 15 Page 2 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION TABLE OF CONTENTS Page 1 Documentation 1.1 Test Regulation 3 1.2 General Information 3 1.3 Test Condition 4 – 8 1.4 EUT Modifications / Deviation from Standard 9 1.5 Test results 10 1.6 Summary 11 1.7 Test Configuration / Operation of EUT 12 1.8 EUT Arrangement(Drawing) 13 1.9 Preliminary Test and Test-setup (Drawings) 14 – 18 1.10 EUT Arrangement (Photographs) 19 - 21 2 Test Data 2.1 AC Power Line Conducted Emission 0.45 MHz – 30 MHz 22 – 23 2.2 Radiated Emission (Electric Field)9 kHz – 30 MHz 24 2.3 Radiated Emission (Electric Field)30 MHz – 1000 MHz 25 - 26 2.4 Radiated Emission (Electric Field) Above 1 GHz N/A 2.5 Frequency Stability 27 2.6 Occupied Bandwidth 28 2.7 AC Power Line Conducted Emissions for Receiver N/A 2.8 Spurious Emissions for Receiver (Radiation) N/A JQA Application No. :441-50434 FCC ID : :RPARFA3 Model No. :045-50007 Issue Date August 9, 2005 Standard :CFR 47 FCC Rules Part 15 Page 3 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1 DOCUMENTATION 1.1 TEST REGULATION FCC Rules and Regulations Part 15 Subpart A and C (January 8, 2004) Intentional Radiators Test procedure : AC power line conducted emission, radiated emission, frequency stability and occupied bandwidth tests were performed according to the procedures in ANSI C63.4-2003. 1.2 GENERAL INFORMATION 1.2.1 Test facility : 1) Test Facility located at JQA Safety & EMC Center EMC Engineering Department TSURU EMC Branch : Open Site No.1, No.2, An Anechoic Chamber (3 m and 10 m, on common plane) and a Shielded Room FCC Registration Number: 342182 (Date of Listing : March 30, 2005) 2) JQA Safety & EMC Center EMC Engineering Department TSURU EMC Branch is recognized under the National Voluntary Laboratory Accreditation Program for satisfactory compliance established in title 15, Part 285 Code of Federal Regulations. NVLAP Lab Code : 200192-0 (Effective through : June 30, 2006) 1.2.2 Description of the Equipment Under Test (EUT) : 1) Type of Equipment : RF-Module (RFID Tag Reader/Writer) 2) Product Type : Prototype 3) Category : Low Power Communication Device 4) EUT Authorization : Certification 5) FCC ID : RPARFA3 6) Trade Name : RISO 7) Model No. : 045-50007 8) Operating Frequency Range : 13.56 MHz 9) Highest Frequency Used in the EUT : 13.56 MHz 10) Serial No. : FL12 11) Date of Manufacture : - 12) Power Rating : 5.0VDC(*) 13) EUT Grounding : None *The EUT was operated with the host printer.(Input: 120Vac 60Hz, Output: 5.0Vdc) 1.2.3 Definitions for symbols used in this test report : X - indicates that the listed condition, standard or equipment is applicable for this report. - indicates that the listed condition, standard or equipment is not applicable for this report. JQA Application No. :441-50434 FCC ID : :RPARFA3 Model No. :045-50007 Issue Date August 9, 2005 Standard :CFR 47 FCC Rules Part 15 Page 4 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1.3 TEST CONDITION 1.3.1 The measurement of the AC Power Line Conducted Emission X - was performed in the following test site. - was not applicable. Test location : JQA Safety & EMC Center EMC Engineering Department TSURU EMC Branch 2096 Ohata, Tsuru-shi Yamanashi-ken 402-0045, JAPAN - Shielded Room A - Shielded Room B X - Anechoic Chamber - Open Site No.1 - Open Site No.2 Used test instruments : Type Model No.Manufacturer Serial No. Last Cal. Interval X - Test Receiver (R-3) ESI7 Rohde & Schwarz 100059 2004/11 1 Year - Test Receiver (R-4) ESHS30 Rohde & Schwarz 842053/001 2005/2 1 Year - Test Receiver (R-5) ESCS30 Rohde & Schwarz 100203 2005/2 1 Year - AMN (L-1) KNW-407 Kyoritsu Electrical8-833-5 2004/10 1 Year - AMN (L-2) KNW-407 Kyoritsu Electrical8-680-14 2004/10 1 Year X - AMN (L-3) KNW-407 Kyoritsu Electrical8-757-1 2005/6 1 Year - AMN (L-4) KNW-242 Kyoritsu Electrical8-755-1 2005/6 1 Year - AMN (L-5) KNW-242C Kyoritsu Electrical8-837-14 2005/6 1 Year - AMN (L-6) KNW-243C Kyoritsu Electrical8-692-5 2004/9 1 Year - AMN (L-7) KNW-243C Kyoritsu Electrical8-831-3 2005/6 1 Year - AMN (L-8) KNW-243C Kyoritsu Electrical8-831-4 2005/6 1 Year - AMN (L-9) KNW-243C Kyoritsu Electrical8-831-2 2004/9 1 Year - ISN (L-10) ENY41 Rohde & Schwarz 0830663/046 2005/2 1 Year - ISN (L-11) ENY22 Rohde & Schwarz 0830661/029 2005/2 1 Year X - RF Cable (CB-3) 3D-2W Fujikura - 2005/5 1 Year - RF Cable (CB-4) 3D-2W Fujikura - 2005/5 1 Year - RF Cable (CB-5) 3D-2W Fujikura - 2005/5 1 Year X - Pulse Limiter (PL-3) ESH3-Z2 Rohde & Schwarz - 2004/11 1 Year - Pulse Limiter (PL-4) ESH3-Z2 Rohde & Schwarz - 2005/2 1 Year - Pulse Limiter (PL-5) ESH3-Z2 Rohde & Schwarz - 2005/2 1 Year - 50ohm Termination(TM-1) BNC-P-1.5 TDC - 2005/3 1 Year - 50ohm Termination(TM-2) - Y&R - 2005/3 1 Year JQA A…

Text truncated - open the document above for the full version.

JQA Application No. :441-50434 FCC ID : :RPARFA3 Model No. :045-50007 Issue Date August 9, 2005 Standard :CFR 47 FCC Rules Part 15 Page 19 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION 1.10 TEST ARRANGEMENT (PHOTOGRAPHS) PHOTOGRAPHS OF EUT CONFIGURATION FOR CONDUCTED EMISSION MEASUREMENT - Rear View – - Side View – JQA Application No. :441-50434 FCC ID : :RPARFA3 Model No. :045-50007 Issue Date August 9, 2005 Standard :CFR 47 FCC Rules Part 15 Page 20 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - Front View – - Rear View – JQA Application No. :441-50434 FCC ID : :RPARFA3 Model No. :045-50007 Issue Date August 9, 2005 Standard :CFR 47 FCC Rules Part 15 Page 21 of 28 JAPAN QUALITY ASSURANCE ORGANIZATION PHOTOGRAPHS OF EUT CONFIGURATION FOR RADIATED EMISSIONS MEASUREMENT Photograph present configuration with maximum emission - EUT Zoom(Front View) – - EUT Zoom(Side View) –
