RPARFA3BRF Module(RFID Tag Reader/Writer)

1 RF-Module-2ch(Model: 046-50511) User’s Manual Ver. 1.0 Riso Kagaku Corporation 2 This manual describes the use, the functions and the performance of the Radio Frequency Identification System 046-50511. The system is so manufactured that it can not be repaired or replaced by the user; and therefore, if there are such needs, please contact Riso Kagaku Corporation or its agent. No service work should be started before the service person has read this manual. Features This product uses radio frequency of 13.56 MHz to communicate with the tags; thus, it should conform to any relative laws and regulations of the country or the region. Authorization of the module or the printer into which the module is installed may be required in some countries or regions. Cautions 1. Use or store this product on the temperature and humidity conditions mentioned below, so as to maintain its operational reliability. 2. Use or store this product in an environment free of explosive gases, inflammable gases, corrosive gases, oils, organic solvents, dust, salt and metal powders. 3. Keep this product free of direct shock, strong vibration or sunshine. 4. To communicate with the tags, this product uses 13.56 MHz radio frequency, which may be interfered by radio waves (noises) emitted from a transceiver, a motor, a monitor, a power supply (including a power supply IC), etc. Please make sure that such interferences will not occur before using the product in a place near to these devices. 5. Take proper measures to avoid any possible electrostatic discharge to the product, which may damage the product. 6. After doing the wiring, make sure the connectors are fastened properly. Warning Do not alter any part of the product. Alteration of the printed wiring board, the antennas or the connecting cables of the module may damage the control board of the printer, and is an illegal act if it causes the modular transmitter emissions out of the limits provided by laws or regulations. 3 Specifications Dimensions Less than 60 x 70 x 14.2 mm Transmitting Frequency 13.56 MHz Transmission field strength Less than 500 μV/m at 3m Operating Temperature 0 to +50 o C Storage Temperature -20 to +60 o C Operating Humidity 25 to 85% RH (Without condensation) Supply voltage 5 V dc +/- 10% Discarding the Product The product should be discarded as normal printed wiring boards. If you do not know how such boards should be discarded, ask Riso Kagaku Corporation, its agent or the government. Notice about the law and the standard FCC ID: RPARFA3B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that unauthorized changes or modifications not approved could void the user's authority to operate the equipment. Canada IC: 4819A-RFA3B Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

RISO KAGAKU CORPORATION FCC ID: RPARFA3B Request for transmitter modular approval Characteristics of the Modular Transmitter Item Requirements Does the EUT meet the requirement? 1 Have its own RF shielding This module is not required to have its own RF shielding to meet FCC emission requirements. It was tested in a stand alone configuration without external shielding. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the module are buffered through logic or microprocessor inputs. 3 Have its own power supply regulation Module will be installed inside RISO printer only. Power will be provided by Riso printer. Limited modular approval is requested 4 Meet the antenna requirements of Section 15.203 The requirements are not met; however, the module is so configured that it is impossible for the user to replace the antennas. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing This modular transmitter was tested in a stand-alone configuration outside the host device during testing. The host device is an ac-powered unit intended to be used as office/business printer. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This modular transmitter is labeled with its own FCC ID number, and, as the FCC ID is not visible when the module is installed into the host device, the host device bears a label wording: “Contains FCC ID:RPARFA3B” 7 The modular transmitter is manufactured so that the user cannot influence the operation of the transmitter that will operate outside of the scope of the regulations. The module is so manufactured. 8 Address compliance with the Commission's RF exposure limits in Sections 2.1091 and 2.1093. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). The module is not subject to 2.1091, 2.1093 or 15.247. (It is not mobile, portable, or spread spectrum transmitter.)

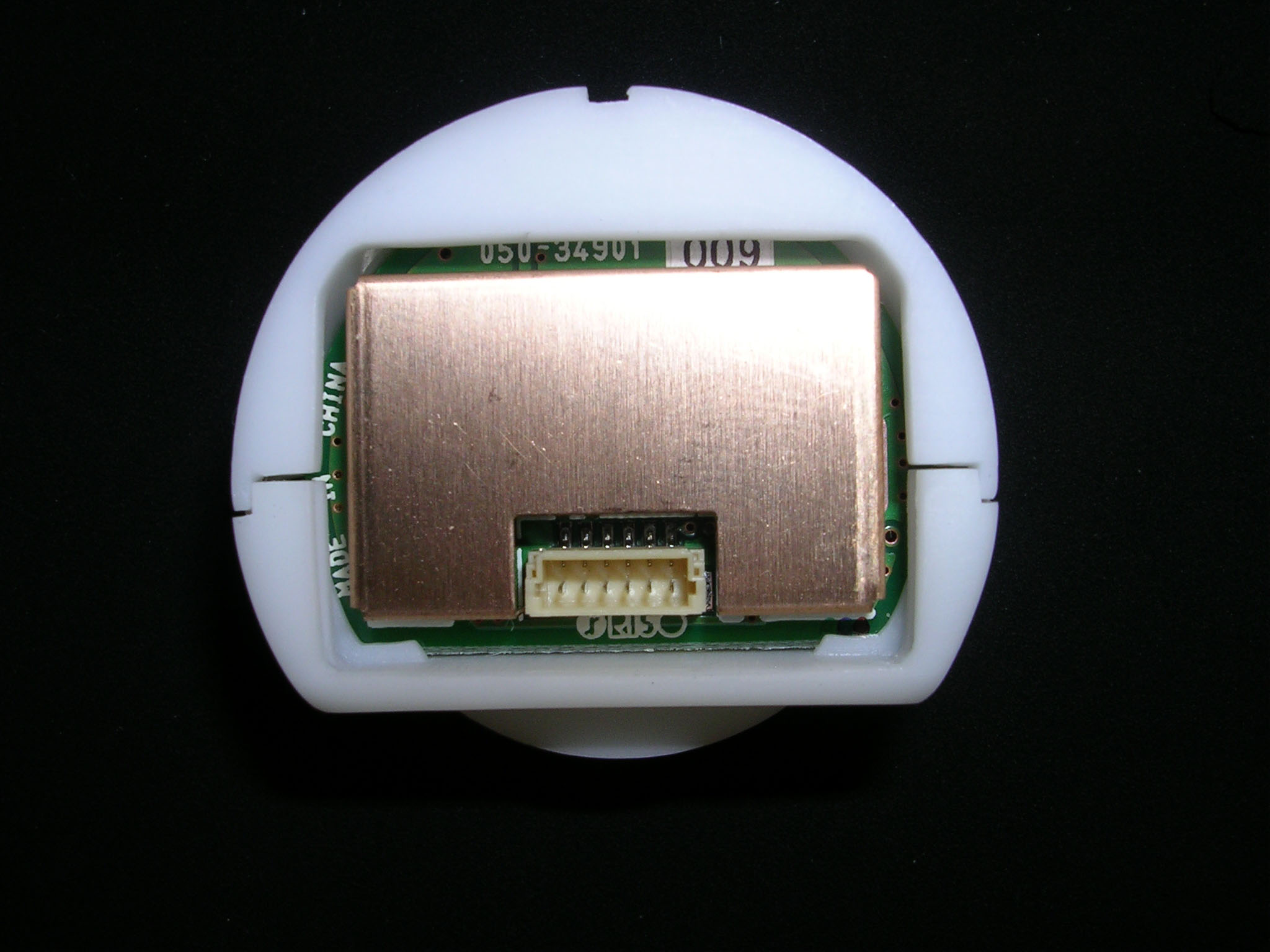

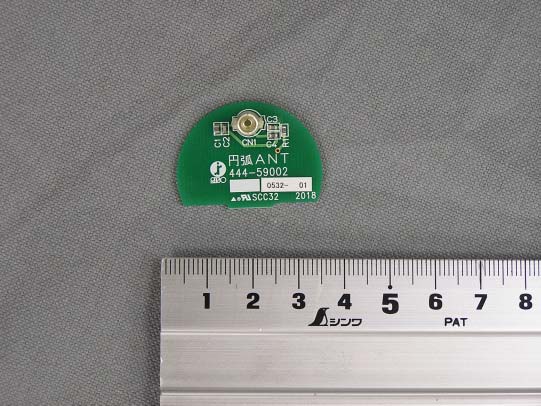

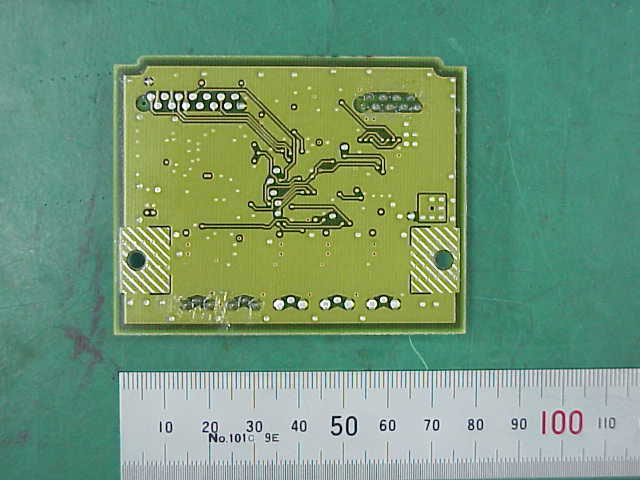

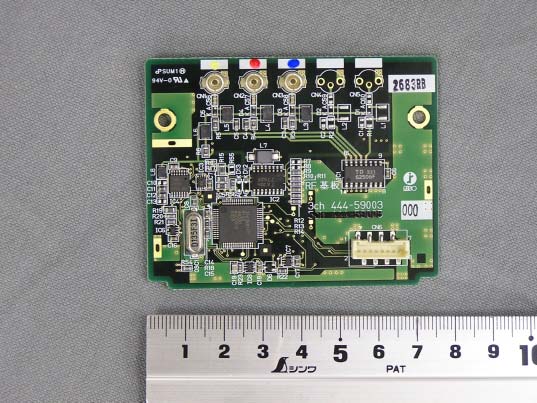

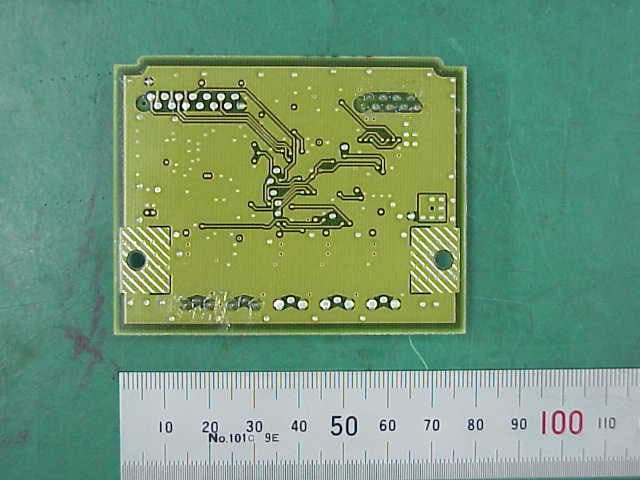

Model: 046-50511 Parts Side O-Shape Antenna 444-59006 Parts Side D-Shape Antenna 444-59002 Parts Side Model: 046-50511 Solder Side O-Shape Antenna 444-59006 Solder Side D-Shape Antenna 444-59002 Solder Side

FCC ID LABEL AND LOCATION FCC ID Label for 046-550511 Label Format for Host Device FCC ID LABEL LOCATION 16mm 18mm Contains FCC ID: RPARFA3B

Transmitter O-Shape Antenna O-Shape Antenna O-Shape Antenna D-Shape Antenna D-Shape Antenna D-Shape Antenna

Model: 046-50511 Parts Side O-Shape Antenna 444-59006 Parts Side D-Shape Antenna 444-59002 Parts Side Model: 046-50511 Solder Side O-Shape Antenna 444-59006 Solder Side D-Shape Antenna 444-59002 Solder Side

Page 1 of 35 JAPAN QUALITY ASSURANCE ORGANIZATION JQA File No.: 441-70789 Issued Date: December 20, 2007 TEST REPORT APPLICANT : RISO KAGAKU CORPORATION ADDRESS : 127-7 Taninosawa, Fukuda, Ami-machi, Inashiki-gun, Ibaraki-ken 300-1156, Japan PRODUCTS : RF-Module(RFID Tag Reader/Writer) MODEL No. : 046-50511 SERIAL No. : SG001 FCC ID : RPARFA3B TEST STANDARD : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C TEST LOCATION : Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan TEST RESULTS : Passed DATE OF TEST : November 14, 2007 – December 12, 2007 This report must not used by the client to Masanori Takahashi claim product endorsement by NVLAP or Manager NIST or any agency of the U.S. Government. Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, Japan ● The measurement values stated in Test Report was made with traceable to National Institute of Advanced Industrial Science and Technology (AIST) of Japan and National Institute of Information and Communications Technology (NICT) of Japan. ● The applicable standard, testing condition and testing method which were used for the tests are based on the request of the applicant. ● The test results presented in this report relate only to the offered test sample. ● The contents of this test report cannot be used for the purposes, such as advertisement for consumers. ● This test report shall not be reproduced except in full without the written approval of JQA. JQA File No. : 441-70789 Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 2 of 35 JAPAN QUALITY ASSURANCE ORGANIZATION Table of Contents Documentation Page 1 Test Regulation 3 2 Test Location 3 3 Recognition of Test Laboratory 3 4 Description of the Equipment Under Test 4 5 Test Condition 5-7 6 Preliminary Test and Test-Setup 8-13 7 Equipment Under Test Modification 14 8 Responsible Party 14 9 Deviation from Standard 14 10 Test Results 15-17 11 Summary 18 12 Operating Condition 19 13 Test Configuration 20 14 Equipment Under Test Arrangement (Drawings) 21 15 Equipment Under Test Arrangements (Photographs) 22-25 Appendix A : Test Data A.1 Conducted Disturbance at the Mains Ports (Section 15.207) 26 A.2 Radiated Emissions (Section 15.225(a)(b)(C)) 27 A.3.1 Radiated Emissions 0.009MHz – 30 MHz (Section 15.225(d)) 28 A.3.2 Radiated Emissions 30MHz – 1000 MHz (Section 15.225(d)) 29 A.3.3 Radiated Emissions above 1GHz(Section 15.225(d)) 30(Not Applicable) A.4 Frequency Stability (Section 15.225(e)) 30 A.5 Occupied Bandwidth 31 Appendix B : Test Instruments Test Instruments 32-35 Definitions for Abbreviation and Symbols Used In This Test Report “EUT” means Equipment Under the Test. “AE” means Associated Equipment. “N/A” means that Not Applicable. “N/T” means that Not Tested. -indicates that the listed condition, standard or equipment is applicable for this report. -indicates that the listed condition, standard or equipment is not applicable for this report. JQA File No. : 441-70789 Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 3 of 35 JAPAN QUALITY ASSURANCE ORGANIZATION Documentation 1 Test Regulation Applied Standard : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Test procedure : ANSI C63.4-2003 2 Test Location Japan Quality Assurance Organization Safety & EMC Center EMC Engineering Department, TSURU EMC Branch 2096, Ohata, Tsuru-shi, Yamanashi-ken 402-0045, JAPAN 3 Recognition of Test Laboratory Japan Quality Assurance Organization, Safety & EMC Center EMC Engineering Department, TSURU EMC Branch is accredited under ISO/IEC 17025 by following accreditation bodies and the test facility of Testing Division is accredited by the following bodies . VLAC Code: VLAC-001-4 (Effective through : April 3, 2008) NVLAP Lab Code:200192-0 (Effective through : June 30, 2008) BSMI Recognition Number: SL2-IN-E-6004, SL2-IS-E-6004, SL2-A1-E-6004 (Effective through : September 14, 2010) VCCI Registration Number: R-004, R-824, R-828, C-003, C-005, C-859, C-860, C-864 (Effective through : April 3, 2008) FCC Registration Number : 342182 (Date of Listing : March 30, 2005) IC Registration Number : 4126-1, 4126-2, 4126-3 (Effective through : August 29, 2008) Accredited as conformity assessment body for Japan electrical appliances and material law by METI. (Effective through : February 22, 2010) JQA File No. : 441-70789 Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 4 of 35 JAPAN QUALITY ASSURANCE ORGANIZATION 4 Description of the Equipment Under Test 1 Manufacturer : RISO KAGAKU CORPORATION 127-7 Taninosawa, Fukuda, Ami-machi, Inashiki-gun, Ibaraki-ken 300-1156, Japan 2 Products : RF-Module(RFID Tag Reader/ Writer) 3 Model No. : 046-50511 4 Serial No. : SG001 5 Product Type : Prototype 6 Date of Manufacture : - 7 Power Rating : 5.0VDC *The EUT was operated with the printer. (Input: 120VAC 60HzOutput:5.0VDC) 8 EUT Grounding : None 9 Received Date of EUT : November 14, 2007 10 Operating Frequency : 13.56MHz(Section 15.225) Operation within the band 13.110 – 14.010 MHz 11 Modulation : AM(Digital) 12 Antenna type : Fixed using 13 Temperature Range : 0 ~ 50 degree JQA File No. : 441-70789 Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 5 of 35 JAPAN QUALITY ASSURANCE ORGANIZATION 5 Test Condition 5.1 Conducted Emissions at the Mains Ports (Section 15.207) The requirements are -Applicable [-Tested -Not tested by applicant request.] -Not Applicable Used test site & instruments : Type Number of test site & instruments (Refer to Appen…

Text truncated - open the document above for the full version.

JQA File No. : 441-70789 (Set-up Photos) Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 1 of 4 JAPAN QUALITY ASSURANCE ORGANIZATION Equipment Under Test Arrangement (Photographs) 1. Conducted Emissions at the Mains Ports - Front View - - Rear View - Photograph present configuration with maximum emission JQA File No. : 441-70789 (Set-up Photos) Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 2 of 4 JAPAN QUALITY ASSURANCE ORGANIZATION 2. Radiated Emissions - Front View - - Rear View - Photograph present configuration with maximum emission JQA File No. : 441-70789 (Set-up Photos) Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 3 of 4 JAPAN QUALITY ASSURANCE ORGANIZATION (Antenna Photographs) JQA File No. : 441-70789 (Set-up Photos) Issue Date: December 20, 2007 Model No. : 046-50511 FCC ID: RPARFA3B Regulation : CFR 47 FCC Rules and Regulations Part 15 Subpart A and C Page 4 of 4 JAPAN QUALITY ASSURANCE ORGANIZATION (Antenna Photographs)
